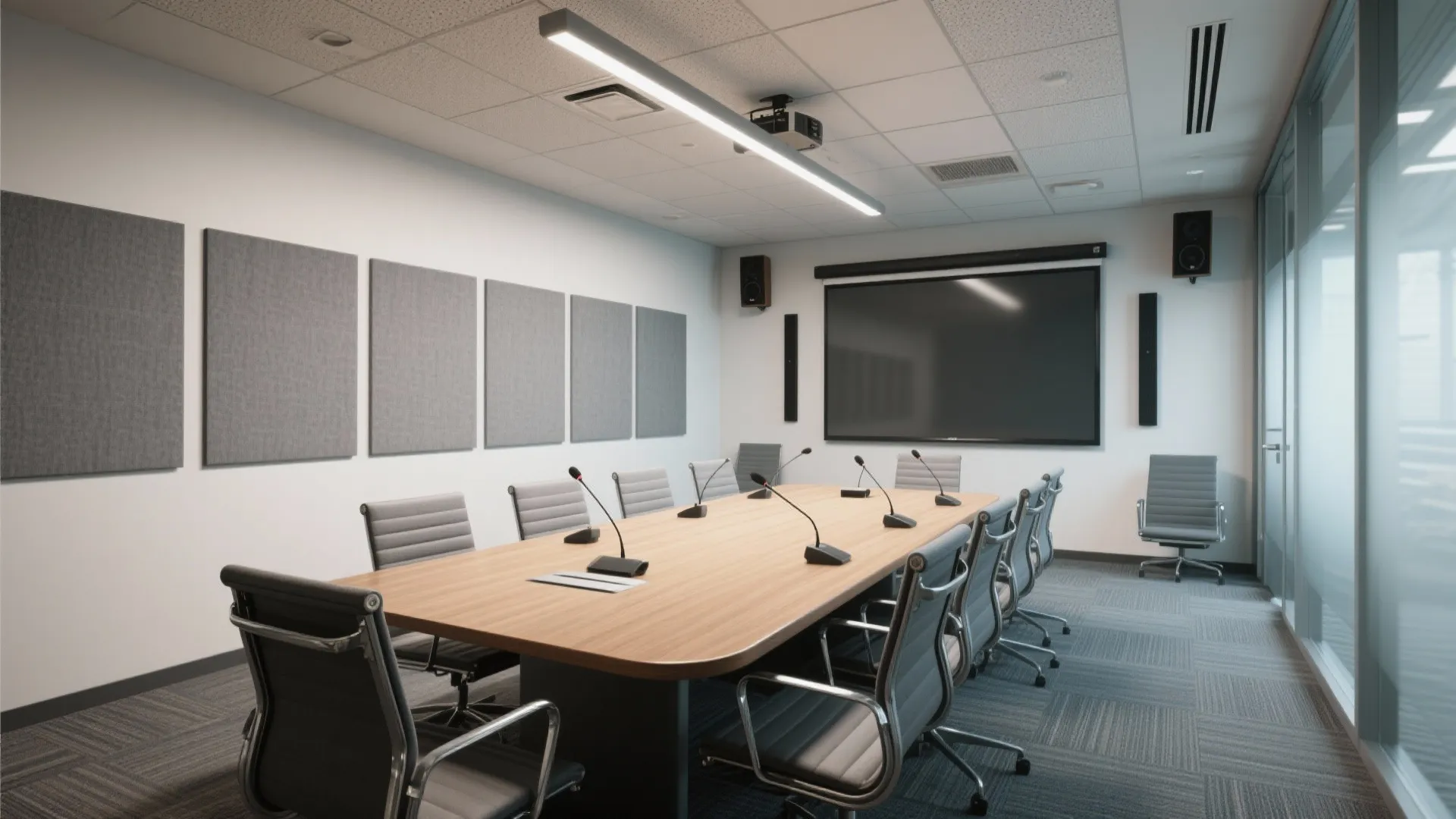

Conference Room Speaker and Microphone: Best Setup Guide: Fast-Track Guide to Choosing Perfect Audio in 1 Minute

I’ve designed and tuned more meeting rooms than I can count, and the pattern is always the same: intelligibility beats loudness, and coverage beats sheer hardware. In a conference room, the best speaker and microphone setup is less about buying the biggest system and more about aligning acoustic goals with room size, materials, and seating behavior.

Speech intelligibility has measurable thresholds. The WELL Building Standard targets background noise at or below 40 dBA in enclosed collaboration spaces and recommends NC 35–40 for meeting rooms to support comprehension and reduce vocal strain (WELL v2, Sound concept). Steelcase research further notes that poor acoustics drive meeting fatigue and reduce participation—open offices can see speech intelligibility scores drop by 30% when reverberation times exceed 0.6–0.7 seconds, a trend that carries into poorly treated conference rooms. Those numbers guide the way I place mics, pick speaker patterns, and set DSP. For broader design benchmarks on acoustic comfort, WELL is a useful reference: WELL v2.

Core Principles: Clarity Over Volume

Clarity hinges on three things: direct sound from the talker to the mic, low reverberation from hard surfaces, and consistent loudspeaker coverage to every seat. In practice, I aim for STI (Speech Transmission Index) in the “good” range (≥0.6) and RT60 around 0.4–0.6 s for mid-sized rooms. Excessive gain on ceiling mics to overcome room noise only raises echo; better placement and treatment solve the root issue.

Room Typologies and Recommended Setups

Before choosing hardware, map the room: volume (m³), seating pattern, ceiling height, and finish materials. If you’re still planning furniture and screen wall locations, a quick pass with a room layout tool helps anticipate mic reach, speaker throw, and sightlines.

Small Rooms (Phone Booths, 1–4 seats)

- Microphones: Single tabletop boundary mic or integrated bar mic under the display. Keep mouth-to-mic distance 30–60 cm.

- Speakers: Integrated soundbar or two small wall speakers flanking the display for stereo image collapse to the screen.

- DSP: Basic AEC (acoustic echo cancellation) and NR (noise reduction).

- Treatment: Soft back wall and ceiling panel to keep RT60 ≈ 0.3–0.4 s.

Huddle Rooms (4–8 seats)

- Microphones: Two tabletop cardioids or a compact beamforming array above the display. Avoid ceiling-only coverage unless the room is very quiet (NC ≤ 35).

- Speakers: Two to four wall-mounted loudspeakers aimed at the seating arc; keep SPL uniform within ±3 dB from front to back.

- DSP: AEC per mic channel, auto-mix to prevent gate-chatter. Target gain-before-feedback margin ≥10 dB.

Mid-Size Conference Rooms (8–16 seats)

- Microphones: Distributed gooseneck or boundary mics, 1 per 2–3 seats, or dual beamforming ceiling arrays aligned to the table. Ceiling arrays excel when table clutter is a concern, but require a well-controlled RT60 ≈ 0.4–0.6 s.

- Speakers: Four to six low-profile ceiling speakers in a 120°–140° coverage pattern or wall speakers aimed to the listening plane. Keep delay alignment to the screen audio if using a soundbar at front.

- DSP: Matrix auto-mix, per-zone EQ, first-order reflections tamed with treatment; automatic gain sharing to limit pumping.

Boardrooms / Large Rooms (16–30+ seats)

- Microphones: Mixed strategy—table goosenecks for primary seats plus one or two ceiling arrays for roaming speech. Consider lobe steering to avoid HVAC noise zones.

- Speakers: Distributed ceiling loudspeakers in zones; front-of-room reinforcement for video calls. Aim for uniform coverage to within ±2 dB across seats.

- DSP: Multiple AEC references, automixer with NOM (number of open mics) management. Add delay by row for time alignment.

Microphone Selection and Placement

- Tabletop boundary mics: Excellent for natural speech if the table isn’t reflective glass; place 30–45 cm from the talker, avoid near-laptop fan vents.

- Gooseneck mics: Highest intelligibility per seat; choose cardioid or supercardioid; keep capsules 15–25 cm from the mouth.

- Ceiling beamforming arrays: Clean look, strong for flexible seating; require low RT60 and controlled HVAC noise. Align lobes to seating positions and avoid pointing into hard walls.

- Lavalier/handheld (rare in conference rooms): Useful for presenters; avoid mixed open mics without strict automixing.

Speaker Strategy: Coverage, Not Loudness

Pick speakers for pattern control first. Ceiling speakers with wide conical dispersion (100°–120°) suit lower ceilings; narrow patterns help tall rooms. If the display is the focal point, anchor perception with a front soundbar and supplement with distributed ceiling speakers for back-row support. Maintain a target level of 65–70 dB(A) at seating during remote speech; music intros can ride higher, but speech needs headroom.

DSP, Echo Cancellation, and Gain Structure

Set mic preamp gains so typical speech hits −18 to −12 dBFS on the automixer. Use AEC references tied to the send-to-far bus. EQ should remove low-frequency HVAC rumble (high-pass at 80–120 Hz), smooth 2–4 kHz presence, and tame any narrow room resonances with modest notches. Limiters protect the far end from sudden spikes; avoid aggressive compression on speech or you will raise room noise audibility.

Acoustic Treatment: Taming Reflections

Hard glass and drywall are the enemy of beamforming. Add broadband absorption to at least 20–30% of wall area in mid-sized rooms—fabric panels, acoustic ceiling tiles, and a soft back wall are practical moves. Carpets help footfall noise and reduce high-frequency flutter. With treatment, you’ll often lower the required mic gain by 3–6 dB, improving AEC stability.

Seating Behavior and Human Factors

People lean back, shuffle papers, and talk to the screen rather than the mic. I keep mics where heads naturally turn: near the display edge or centered along the table’s long axis. For hybrid meetings, camera sightlines and mic placement should reinforce each other—participants hear from where they see. For layouts still in flux, run a quick mockup with an interior layout planner like this room design visualization tool to map seat-to-mic distances.

Noise Control and HVAC

Place mics away from supply diffusers; the broadband hiss and occasional turbulence spikes will trip automixers. Target NC 35–40 in conference rooms (aligned with WELL guidance); if you measure higher, lower fan speeds, increase duct lining, or relocate diffusers.

Cable Management and Power

Run balanced audio (XLR) for analog mics; avoid long unbalanced runs near power. Provide PoE for ceiling arrays and Dante/AVB where possible to reduce analog cabling. Keep a clean cable path under the table—paper rustle near boundary mics is a frequent source of noise complaints.

Commissioning Checklist

- Verify RT60 with a quick measurement; aim for 0.4–0.6 s mid-band in standard rooms.

- Calibrate AEC reference level; check double-talk stability with two voices.

- Walk the room and confirm SPL uniformity (±3 dB across seats).

- Record test clips to assess far-end intelligibility before go-live.

- Save profiles for different seating modes: full table, presenter-only, hybrid panel.

Future-Proofing

Choose systems with firmware support, open protocols, and flexible beamforming maps. As hybrid work evolves, rooms need quick reconfiguration—modular mic arrays and zoned speakers make it painless.

FAQ

Q1: Ceiling mics or table mics—what gives clearer speech?

A: Table mics usually win for clarity because of shorter mouth-to-mic distance. Ceiling arrays work well in treated rooms with NC ≤ 40 and RT60 around 0.4–0.6 s.

Q2: How many mics do I need for a 12-seat table?

A: If using boundary mics, plan one per 2–3 seats (4–6 total). With a ceiling beamformer, one or two arrays can cover if lobes are aligned to seating.

Q3: What SPL should remote speech be in the room?

A: Target 65–70 dB(A) at seating with ≤ ±3 dB variance across the room. This level supports comprehension without raising reverberant noise.

Q4: How do I reduce echo heard by the far end?

A: Improve acoustic treatment to lower RT60, ensure proper AEC reference routing, reduce mic gain, and position mics away from reflective walls.

Q5: Can I rely on a soundbar alone for mid-sized rooms?

A: A soundbar can anchor front audio, but add distributed ceiling or wall speakers for even coverage in 8–16 seat rooms.

Q6: What about HVAC noise under diffusers?

A: Move mics away from diffusers, add duct lining, and tune a high-pass filter around 100 Hz. Aim for NC 35–40 in the room per WELL guidance.

Q7: Do beamforming mics fix poor acoustics?

A: They help with directionality, but cannot overcome high reverberation. Treat walls and ceilings first, then fine-tune lobe steering.

Q8: Is wireless better than wired for conference mics?

A: Wired mics remain more stable and lower latency. Wireless is fine for presenters but keep the main table coverage wired for reliability.

Q9: What DSP features are essential?

A: AEC per mic, auto-mixing with NOM control, band-limited EQ, and gentle limiting. Avoid heavy compression that raises room noise audibility.

Q10: How do I check if coverage is uniform?

A: Play pink noise, measure SPL at multiple seats, and adjust speaker aiming or zone levels to stay within ±3 dB.

Q11: Any guidance for color and materials?

A: Favor matte finishes near mics and speakers to reduce early reflections; soft fabrics and carpets calm acoustics and visually warm the room to encourage participation.
