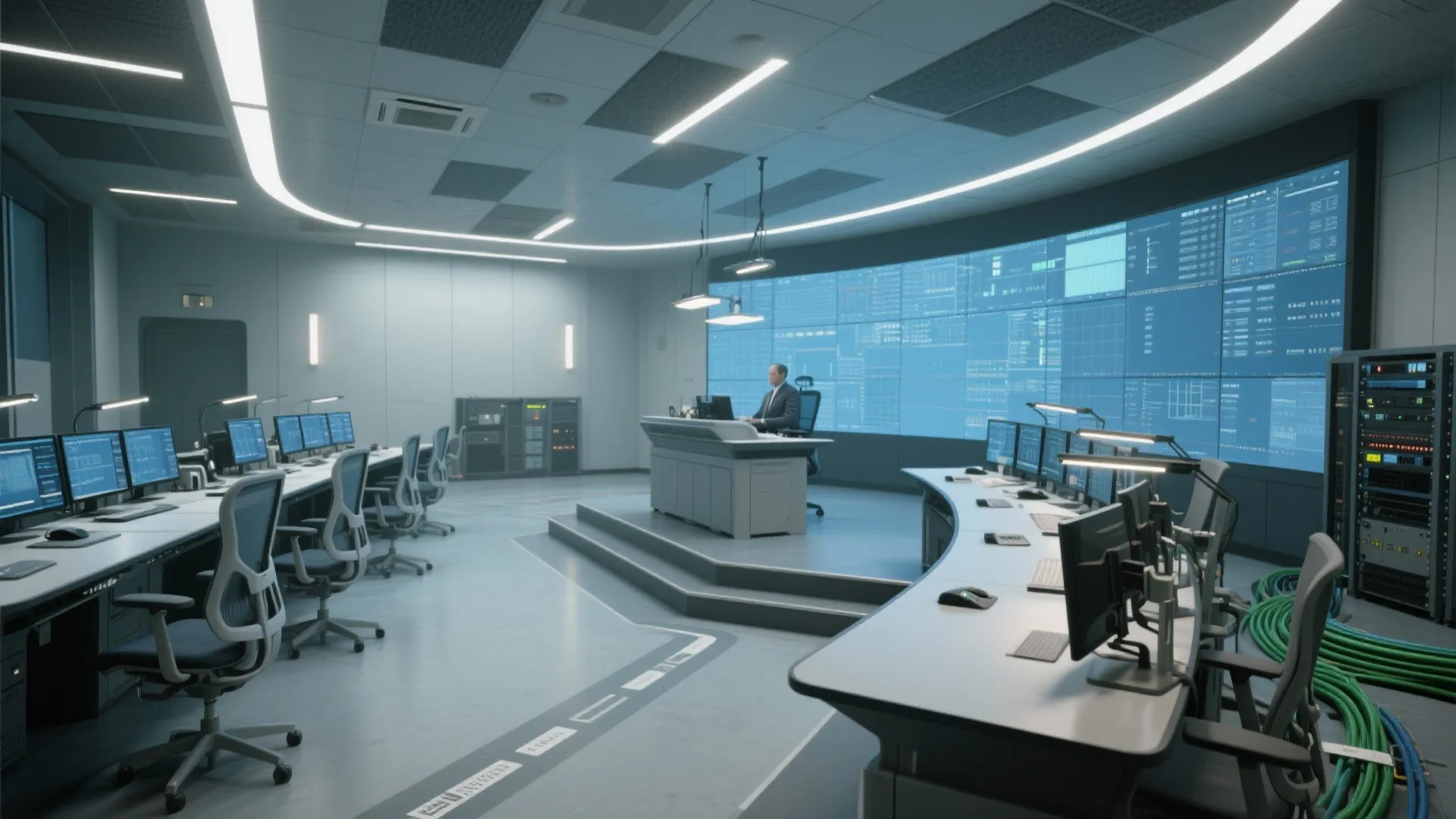

Control Room Design: Creating Functional & Efficient Spaces: Fast-Track Guide to Streamlined Control Room Design in Minutes

I design control rooms to be calm under pressure: legible sightlines, intuitive ergonomics, robust technology, and lighting that supports long shifts. The goal is simple—reduce cognitive load so operators act faster, make fewer errors, and stay comfortable through the night.

Evidence consistently shows that environment influences performance. Steelcase research links posture, physical support, and visual ergonomics to reduced fatigue and error in intensive work settings; WELL v2 also emphasizes circadian-aligned lighting and acoustic comfort as contributors to alertness and decision-making. For task lighting, I aim for 300–500 lux at the desk with low-glare luminaires and controlled contrast, aligning with IES recommendations for VDT (visual display terminal) work. For circadian support, a cool 4000–5000K profile during day shifts and warmer 3000–3500K in late hours helps maintain alertness without overstimulation. See WELL v2 guidance on Light and Mind for human performance factors and IES standards for task illuminance baselines.

In mission-critical rooms, operator reach, monitor height, and access to incident workflows are non-negotiable. Herman Miller’s research on ergonomics correlates neutral posture and adjustable support with lower musculoskeletal strain and higher sustained focus; Steelcase studies similarly show that intuitive adjustments improve time-on-task. I design consoles with 5th–95th percentile anthropometrics: desk height 650–1250 mm (sit-stand), monitor top at or slightly below eye level, and primary reach zones within 400–500 mm.

Core Principles of Control Room Design

• Mission-first spatial logic: Organize by function—real-time monitoring, incident response, collaboration, supervision, and equipment support. Keep the highest acuity positions closest to the video wall and supervisors with clear lines of oversight.

• Visual hierarchy: Video walls should be visible from all priority seats without neck craning. Avoid extreme bezel grids and set brightness to match ambient conditions to reduce adaptation fatigue.

• Human factors: Maintain neutral wrist and shoulder angles, foot clearance, and dynamic sitting options. Every operator should move between postures in under 5 seconds.

• Acoustic clarity: Target NC 30–35, with speech privacy between teams but clarity within teams. Use absorptive ceilings, damped partitions, and strategic soft finishes around collaboration zones.

• Resilience and serviceability: Cable management, rear access corridors, hot-swappable devices, and redundant power/thermal paths keep systems online during events.

• Intuitive wayfinding: Low-contrast floor paths, light cues at door thresholds, and color-coded zones lower cognitive friction during shift changes.

Planning the Layout and Sightlines

Layout drives reaction time. I start with operator task mapping, then place consoles to minimize head-turn and eye-travel to primary targets. Row curvature can keep the visual angle to the video wall between 25–35° for most seats, which reduces ocular strain. Supervisor positions should have unobstructed views to both operators and the wall, ideally raised by a single step (not more) to maintain proximity without creating hierarchy stress. If you are iterating seat counts or row spacing, use a layout simulation tool to test viewing cones, aisle clearances, and emergency egress with millimeter precision via a room layout tool.

Consoles, Monitors, and Ergonomics

• Sit-stand consoles with quiet actuators let operators change posture frequently without disrupting others.

• Keep monitor depth minimal to maintain arm support; articulated arms enable precise focal distance (generally 500–700 mm for most monitors).

• Angle multi-monitor arrays 15–30° per wing to keep the centerline in primary gaze, reducing neck rotation.

• Provide personal task lights with CRI ≥90 and adjustable CCT to harmonize with ambient scenes.

• Cable raceways and front-access panels reduce service time and visual clutter.

Lighting Strategy: Visibility Without Glare

I balance indirect ambient light with controlled task light at the console. Avoid downlights that reflect in screens; choose wall washers and linear indirect pendants to soften contrast. Keep luminance ratios around 3:1 between screen and surrounding surfaces. Use dimmable scenes: alert mode (higher vertical illuminance, cooler CCT), steady monitoring (moderate, neutral CCT), and night mode (lower illuminance, warm CCT). This aligns with WELL v2 Light intent and IES glare control practices. Glare audits with luminance mapping are worth the time; a small aiming change often fixes persistent ghost reflections.

Acoustics and Noise Control

Operational chatter should be intelligible to teammates but not bleed across zones. I specify absorptive ceiling tiles (NRC ≥0.80), fabric-wrapped wall panels at first reflection points, and carpet with dense cushion under operators. Mechanical systems should target RC/NC 30–35. For video walls and equipment rooms, isolate vibration with pads and decouple framing where possible.

Color, Material, and Visual Psychology

Color tempers stress. Desaturated cool neutrals around displays prevent color cast and improve contrast perception. Accent hues can guide behavior: Verywell Mind notes that blues and greens are associated with calm and concentration, whereas saturated reds signal urgency and should be used sparingly at alert stations. Matte finishes minimize reflections; low-gloss laminates, microtextured paints, and anti-glare glass protect visual comfort. Prioritize low-VOC materials for long-occupancy health.

Team Zoning and Collaboration

Group roles by event sequence: monitoring → analysis → incident command. Provide a quiet huddle point within 10–15 meters of consoles for rapid coordination without disrupting the floor. Glass partitions with acoustic laminate keep sightlines while raising STL. Digital whiteboards should be placed outside main gaze lines to avoid peripheral distraction.

Technology Integration and Redundancy

Plan for cable density and heat from day one. Underfloor power and fiber trays with labeled patch points make future changes painless. Redundant UPS feeds and thermal zoning for video processors reduce risk during spikes. Specify KVM systems that let operators switch sources seamlessly; cursor-glide solutions reduce desk clutter and decision friction.

Operations, Shift Work, and Wellbeing

Shift patterns demand micro-rest opportunities. Provide a low-stimulus decompression room with warm lighting and ergonomic recliners within a short walk. Snack and hydration points at the perimeter keep the core quiet. Adjustable armrests and seat pans help different body types settle quickly at handover; a two-minute ergonomic reset checklist during shift change pays off in fewer adjustments during crunch moments.

Future-Proofing and Maintainability

Design for 20–30% growth in endpoints and at least one additional equipment rack per zone. Keep service aisles at 900–1200 mm, with swing clearances marked. Choose modular consoles and tiles so damaged parts can be swapped without downtime. Document every circuit, port, and pathway—panic loves ambiguity.

Typical Spatial Ratios and Clearances

• Primary operator aisle: 1200–1500 mm for two-way traffic and quick egress.

• Console depth: 900–1100 mm to accommodate arms, cabling, and standing posture.

• Row-to-row: 1500–2000 mm depending on monitor depth and sit-stand clearance.

• Supervisor platform lift: one step (120–170 mm) max to keep teams on the same plane of communication.

• Viewing distance to video wall: roughly 1.5–2.5x the image height balances acuity and scan time.

Commissioning and Post-Occupancy Tuning

I treat opening week as Phase Zero. We fine-tune light scenes, monitor heights, HVAC supply diffusers, and acoustic hot spots with the actual team. Small corrections—shifting a row by 80 mm, dimming a linear run, or re-aiming a camera—often produce outsized gains in focus and comfort.

References and Further Reading

• WELL v2 guidelines on Light and Mind support circadian alignment and mental performance (v2.wellcertified.com).

• Steelcase research connects ergonomics and sustained cognitive performance in intensive work (steelcase.com/research).

FAQ

What illuminance levels work best for 24/7 monitoring?

Target 300–500 lux at the workplane with low glare and balanced vertical illuminance. Provide dimmable scenes so night shifts can run lower levels with warmer CCT without sacrificing screen legibility, in line with IES guidance for VDT tasks.

How should I position operators relative to a video wall?

Keep the primary visual cone within 25–35° and aim for viewing distances of 1.5–2.5x image height. Curved rows help equalize angles; avoid seats that require persistent neck rotation.

What are the essentials of an ergonomic console?

Height-adjustable (650–1250 mm), monitor top at or just below eye level, 500–700 mm viewing distance, primary reach within 400–500 mm, and quick-access controls. Provide adjustable armrests, task lighting, and foot clearance.

How do I control glare on screens?

Use indirect ambient lighting, matte finishes, anti-glare monitor coatings, and luminaires placed outside reflection paths. Verify with a glare audit and tweak aiming rather than over-dimming the room.

What acoustic targets should I set?

Aim for NC 30–35 with NRC ≥0.80 at ceilings and strategic wall absorption. Provide speech privacy between teams while keeping intra-team communication clear.

Which colors support focus in critical environments?

Neutral, low-saturation palettes around displays with restrained cool tones. Blues and greens can be calming; limit strong reds to alert signage or specific status cues to avoid persistent arousal.

How can I future-proof the technology backbone?

Plan 20–30% spare capacity in power, data, and rack space, with labeled pathways and underfloor trays. Choose modular KVM and scalable video processors to add sources without reworking furniture.

What’s the best way to test a new layout before build-out?

Run operator workflow simulations and sightline tests, including emergency egress paths, with an interior layout planner; validate with a pilot setup and collect operator feedback before committing.

How should shift handovers be designed?

Provide a quiet handover zone adjacent to the floor, clear console reset steps, and personal adjustability that can be dialed in under two minutes. Keep documentation visible but non-distracting.

Do I need separate collaboration rooms?

A nearby small huddle space reduces floor noise during incidents. Use acoustic glazing to preserve sightlines and equip it with status displays that mirror key wall data.
