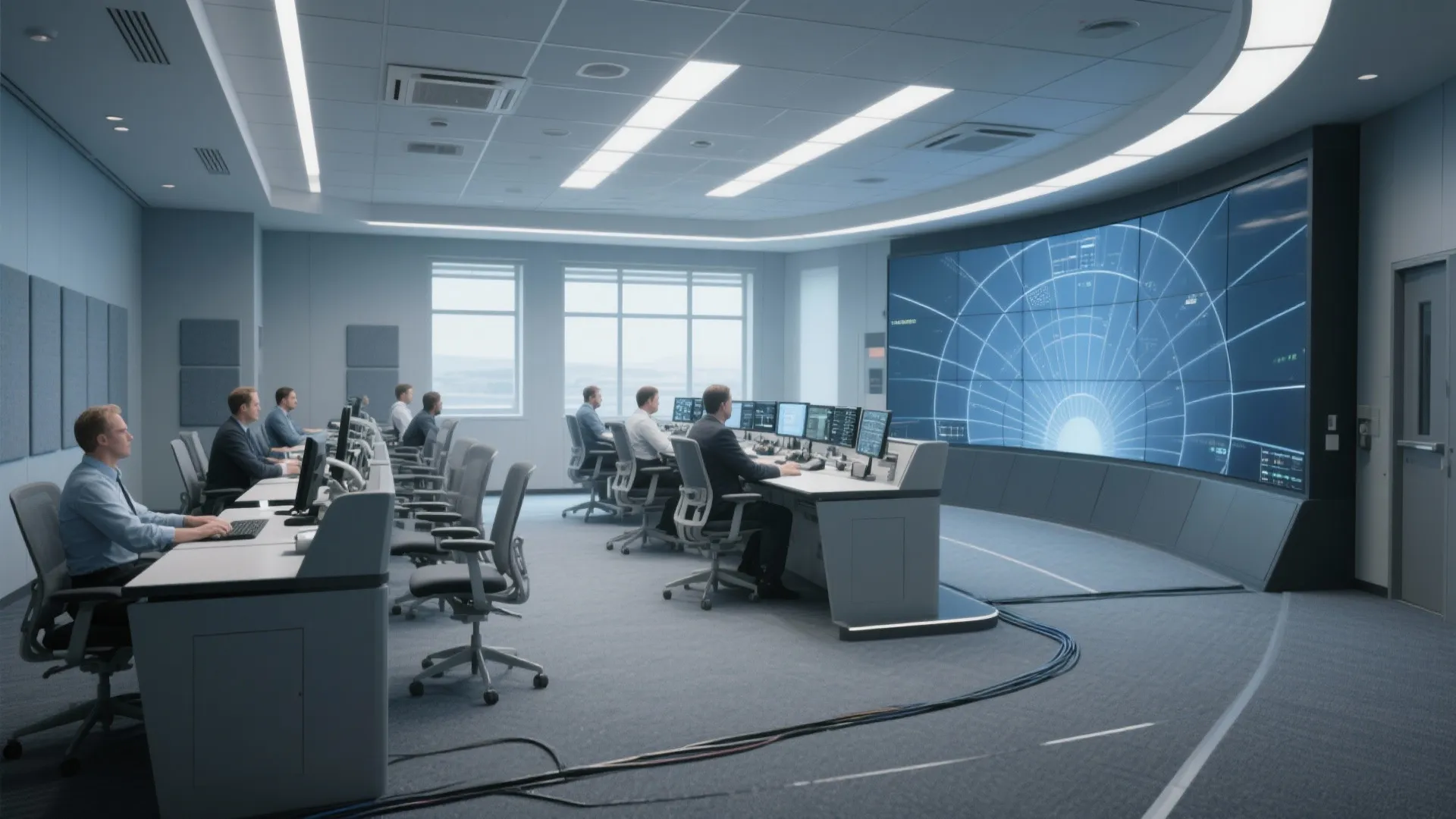

Control Room Design: Essential Guide for Functional Spaces: Fast-Track Guide to Efficient and Modern Control Room Design

Control rooms succeed or fail on the clarity of sightlines, the reliability of systems, and the stamina of the people inside them. After a decade planning mission-critical environments—from utilities and traffic management to security and broadcast—I’ve learned that every decision must serve attention, response time, and operator well-being.

Two data points shape my baseline standards. First, human performance drops sharply under poor ergonomics: Steelcase research links musculoskeletal discomfort with up to 20% productivity loss in seated work. Second, light matters as much as layout: the WELL v2 Light concept highlights that balanced circadian lighting can improve sleep and daytime alertness, reducing fatigue that leads to errors. With those in mind, I design to minimize cognitive load and preserve vigilance across long shifts.

For monitoring-intensive spaces, legibility and glare control are non-negotiable. Following IES lighting guidance, I aim for 300–500 lux on task surfaces, 80–150 lux on ambient fields, and a vertical illuminance plan that respects display luminance ratios, preventing veiling reflections and eye strain during 24/7 operation. The goal is consistent contrast without hot spots, paired with acoustic absorption that holds NC/RC values in the mid-30s for voice clarity without deadening the room.

Core Planning Principles

I start with a clear command hierarchy: primary operator consoles, a shared video wall, supervisors with partial oversight, and support zones for collaboration and incident escalation. A shallow fan-shaped layout keeps every operator within a 15–20° head rotation to key displays, maintaining a comfortable visual cone. For test-fitting and scenario modeling, an interior layout planner with a room layout tool helps simulate sightlines, circulation, and console spacing before committing to infrastructure.

Human Factors and Ergonomics

Operator consoles should allow both seated and standing work. I specify sit-stand consoles with 24–30 inch (610–760 mm) work surface depth, rounded front edges, and dual-arm monitor mounts supporting proper focal distance (generally 600–800 mm) and a 15–20° downward viewing angle. Armrests must not collide with the console edge to avoid ulnar pressure; footrests relieve static standing fatigue. According to Herman Miller’s research library, adjustable equipment and posture variety reduce discomfort and improve sustained attention across shifts.

Reach envelopes matter when seconds count. Frequently used controls and KVM devices belong within the primary reach zone (350–450 mm from seat reference), while emergency overrides need dedicated, unobstructed placements with tactile differentiation. Cable management and CPU sleds should not intrude into knee spaces; I maintain at least 700 mm clear width and 650 mm clear depth per operator position.

Lighting Strategy for 24/7 Vigilance

I balance low-glare ambient light with task highlights. Indirect/direct linear luminaires with UGR < 19 and 3500–4000K CCT suppress glare on displays while preserving color neutrality. Night modes shift to 3000–3500K to protect circadian rhythm and visual comfort. Vertical illuminance on faces (150–200 lux) supports camera recognition and team communication without washing out the video wall. Dimming scenes tie to incident states (normal, alert, critical) so teams can stabilize visual focus during spikes.

Control the luminance hierarchy: brightest at the task, moderated at the wall, darkest at the video wall perimeter to enhance contrast. Shades or electrochromic glazing keep daylight manageable; I avoid toplighting directly above the video wall and instead place uniform ambient sources behind operators to reduce reflective glare.

Display Wall and Workstation Sightlines

Operators should read the video wall without posture strain. I keep the lowest active content line at or slightly above seated eye height of the front row, with a maximum vertical viewing angle around 30–35°. Horizontal offsets exceeding 45° degrade legibility and induce neck rotation; curved or segmented walls can recover central alignment. Pixel pitch follows viewing distance: for critical text and GIS, plan P1.2–P1.8 at 2–4 m; for overview dashboards, P2.5–P3.9 beyond 4–6 m. Calibrate brightness levels so the wall does not exceed surrounding luminance by more than 3:1.

Acoustics and Speech Intelligibility

Incident management depends on hearing the right voice at the right time. I target an RT60 around 0.5 s in small rooms and 0.6–0.7 s in larger floors, mixing high-NRC ceiling tiles, broadband wall absorbers behind operators, and carpet with dense underlay. Position collaboration tables in semi-acoustic alcoves to prevent cross-talk into the console zone. Masking systems set around 44–48 dBA stabilize speech privacy without masking alarms.

Thermal Comfort and Air Quality

Heat loads from LED walls, PCs, and UPS racks can overwhelm operators. I separate equipment heat into a rear plenum or dedicated micro-CRAC loop; underfloor or low-wall displacement ventilation quietly washes fresh air across the breathing zone. Aim for 22–24°C with minimal vertical stratification (≤2°C) and stable air speeds under 0.2 m/s around consoles to avoid drafts.

Color, Materials, and Visual Psychology

Color affects vigilance. Verywell Mind’s color psychology overview notes that cooler hues can aid focus, while high-saturation reds elevate arousal. I prefer desaturated blues and charcoals for perimeters, low-chroma mid-grays on work surfaces (30–50% LRV) to minimize contrast flare against screens, and small accent fields for zoning. Finishes should be matte or low-sheen to prevent specular reflections. Select durable, repairable materials and avoid textured patterns that create visual noise in peripheral vision.

Workflow, Zones, and Circulation

Separate quiet monitoring from incident collaboration. A soft boundary—half-height acoustic partitions or a change in ceiling texture—keeps the console field focused. Supervisors sit back or on a raised platform with a clear line of sight, not looming directly behind operators. Clear 1200–1500 mm circulation paths prevent congestion during shift changes and rapid team assembly. If you’re iterating room sizes or seating clusters, a layout simulation tool like an interior layout planner helps stress-test adjacency and response routes.

Power, Redundancy, and Technology Backbone

Every control room carries a resilience promise. Dual power feeds with UPS bridging to generator, A/B feed to critical consoles, and diverse cable routes are standard. Plan KVM-over-IP and AV-over-IP with segregated VLANs; keep patching fields accessible yet protected. Labeling and color-coding reduce error during high-pressure reconfiguration. Provide maintenance corridors behind the video wall and console rows—800–1000 mm clear—for hot-swap service without interrupting operations.

Operator Health Across Long Shifts

Breaks are not a luxury; they are risk controls. Include a low-stimulus respite room with 2700–3000K warm light and high-CRI sources to reset circadian cues. Hydration points, adjustable task lights, and anti-fatigue mats for standing consoles keep micro-strain in check. Shift handover pods with writable surfaces and quiet acoustics reduce information loss at the most error-prone moment of the day.

Commissioning, Testing, and Change Management

A room is only as good as its first hectic day. I run mock incident drills to validate sightlines, acoustic clarity, alarm audibility, and power failover. Light levels and display calibrations are measured and logged; acoustics are tuned after occupancy. Finally, train teams on posture rotation, lighting scenes, and emergency pathways. Small adjustments in the first month—monitor heights, chair tuning, cueing of alerts—pay dividends for years.

Reference Standards and Research Anchors

I routinely check the WELL v2 Light concept for circadian and visual comfort guidance and review Steelcase research on ergonomics and cognitive load for 24/7 work. These resources sharpen design intent and help stakeholders align on performance targets.

FAQ

How much light do operators need without causing screen glare?

I target 300–500 lux on work surfaces and 80–150 lux ambient, with UGR < 19 luminaires; keep the video wall slightly dimmer than the task plane in critical mode to maintain contrast.

What is the ideal monitor viewing distance and angle?

Keep focal distances around 600–800 mm with a 15–20° downward angle; center the primary monitor within the 15–20° head rotation range to reduce neck strain.

Which acoustic metrics matter in a control room?

Focus on RT60 around 0.5–0.7 s, background levels in the mid-30s NC/RC, and targeted sound masking at 44–48 dBA to preserve speech clarity without hiding alarms.

How do I size pixel pitch for a video wall?

Match pixel pitch to viewing distance: text-critical content at P1.2–P1.8 for 2–4 m viewing; overview dashboards at P2.5–P3.9 for 4–6 m and beyond.

What ergonomics features should every console include?

Sit-stand height adjustability, rounded edges, monitor arms with fine tilt/height, cable management outside knee space, and a footrest. Provide task lights with low glare and dimming.

How should zones be organized for incident response?

Keep a quiet console core, a collaboration ring or alcove, and supervisor oversight behind or slightly elevated. Maintain 1200–1500 mm clear aisles for fast movement.

What redundancy is essential for mission-critical uptime?

Dual power feeds with UPS-to-generator bridging, A/B circuits to consoles, redundant network paths, and maintenance corridors behind displays for hot swaps.

Which colors work best for vigilance and reduced eye strain?

Use desaturated cool hues on walls and mid-gray matte work surfaces (30–50% LRV). Limit high-saturation accents and glossy finishes that create flare or visual noise.

How do I manage daylight without losing situational awareness?

Use motorized shades or electrochromic glazing, place ambient light behind operators, and avoid skylights over the video wall. Balance daylight with dimmable artificial light scenes.

What are typical clearances around consoles?

Provide 700 mm clear width and 650 mm knee depth per station, 1200–1500 mm for main circulation, and 800–1000 mm behind the wall and console rows for service access.

How can I reduce fatigue on 12-hour shifts?

Alternate sit/stand, provide anti-fatigue mats, schedule short restorative breaks in a low-stimulus room, and use circadian-supportive lighting that warms at night.

Do I need a raised floor?

It depends on cable density and cooling strategy. Raised floors simplify power/data reconfiguration and support displacement ventilation, but wall/ceiling raceways can work in smaller rooms.

Further Reading

For ergonomic and behavioral research relevant to 24/7 environments, see Steelcase research. For health-centered lighting strategies and circadian considerations, review WELL v2 guidance on the Light concept.
