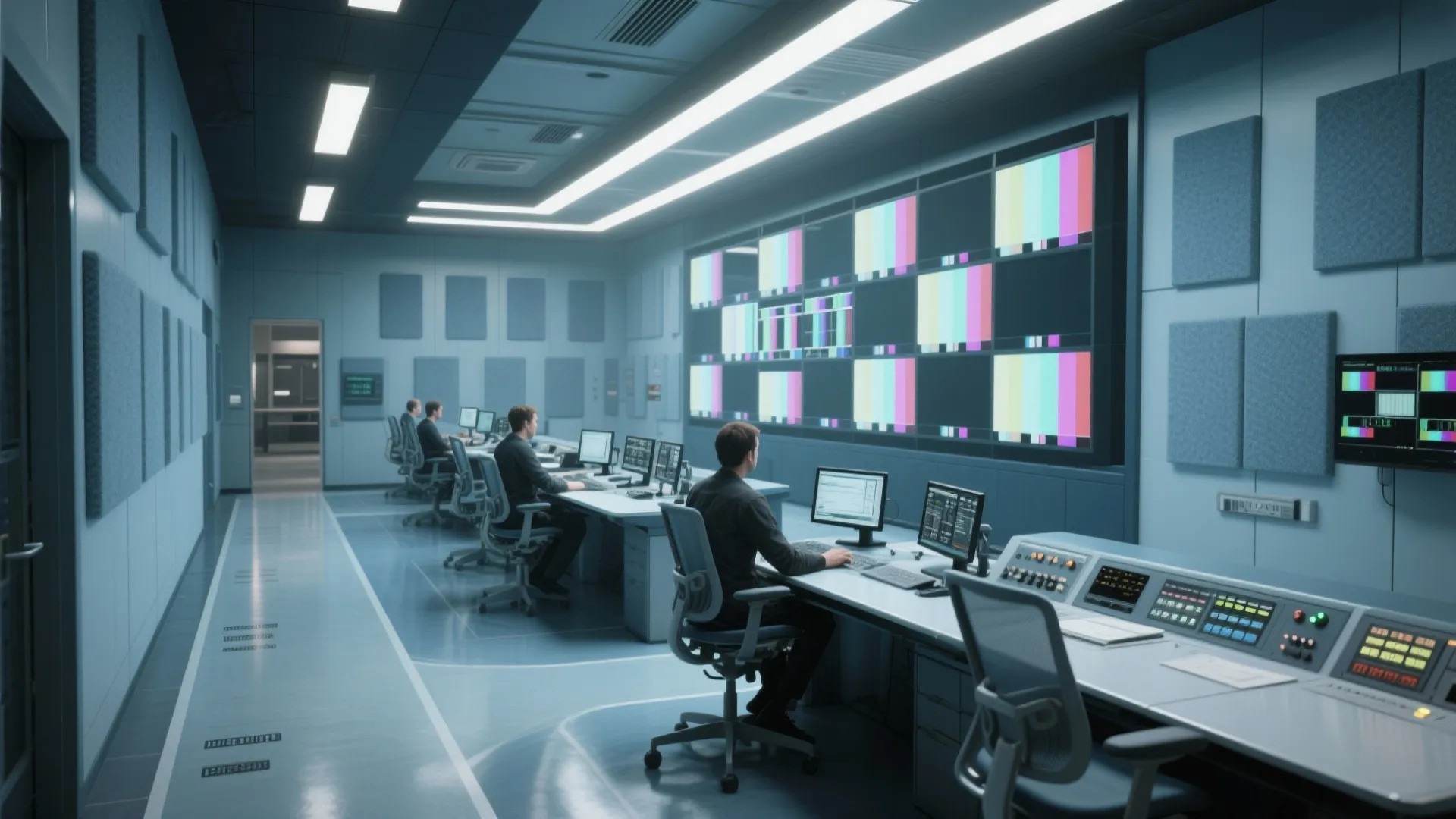

Control Room Design: Optimize Your Space for Efficiency: 1 Minute to Smarter, More Productive Control Rooms

Control rooms are high-consequence environments where visual clarity, acoustic control, and ergonomic precision translate directly into operational safety and response speed. In my projects, the most effective spaces align sightlines, lighting, and workflow so operators can interpret data calmly and act decisively. Research backs this: the WELL v2 L03 standard recommends 300–500 lux for computer-based tasks to reduce eye strain, while the Illuminating Engineering Society (IES) sets similar task lighting ranges for monitor-centric work to maintain visual comfort and accuracy. Meanwhile, Steelcase research reports that posture variability and properly adjusted seating significantly reduce fatigue during prolonged monitoring—critical for 24/7 teams.

Space planning needs numbers, not guesswork. Herman Miller’s guidelines show that a neutral elbow height around 25–29 inches (63–74 cm) supports comfortable keyboarding for most adults, while monitor top-line alignment at or slightly below eye level helps minimize neck flexion during multi-hour shifts. From my own rollouts, keeping ambient noise under NC-30–35 in primary monitoring zones protects speech intelligibility during incident calls. These data-driven targets are the backbone of a resilient control room—stable, legible, and adaptable under stress. For broader workplace behavior patterns and focus requirements, the Gensler Research Institute consistently links choice, posture change, and acoustic protection to higher cognitive performance in complex environments.

When I refine a control room layout, I test workstation geometry, viewing distances, and circulation flows before construction. A layout simulation tool helps model sightlines to video walls, operator reach zones, and egress paths to reduce costly changes later. If you are iterating console positions and shared screens, a room layout tool can quickly visualize adjacency, angles, and line-of-sight conflicts in real scale, de-risking critical decisions during design development.

Define Mission, Loads, and Team Dynamics

Start with the operational profile: emergency response, process control, transportation, security, or broadcast. Each mission dictates dwell times, information density, escalation patterns, and peak staffing. I map behavioral flows—alert triage, handoffs, incident escalation—to guide adjacency and visibility. High-alert roles need clear sightlines to the main video wall and supervisory desk; support roles may sit peripherally with fast access to shared resources. Team sizes and shift rotations inform console spacing and breakout rooms, while redundancy requirements shape power, data, and HVAC resilience.

Sightlines and Video Wall Geometry

Visual hierarchy is everything. For main displays, keep the center of critical content within 15–20 degrees below horizontal eye level for primary viewers. Maximum comfortable viewing distance typically ranges from 1.5–3.0 times the display height, depending on pixel pitch and content complexity. I design tiered consoles or shallow ramps to maintain unobstructed views; seated operator eye heights of 44–48 inches (112–122 cm) are good planning assumptions. Avoid extreme head rotations—limit sustained horizontal neck rotation to under 30 degrees for core tasks. Group related feeds (e.g., alarms with maps) to streamline scanning patterns and reduce cognitive load.

Workstation Ergonomics and Consoles

Use adjustable sit-stand consoles to support posture change. Keyboard-platform height should tune to each operator—roughly 25–29 inches seated, 38–44 inches standing, depending on body dimensions. Provide independent monitor arms so operators can set viewing distance at 20–30 inches (50–75 cm), with the top of the active display at or slightly below eye level. Wrist-neutral mousing surfaces, lumbar-support chairs with 4D armrests, footrests for shorter operators, and anti-fatigue mats at standing positions reduce musculoskeletal strain. Arrange primary controls within a 16–18 inch (40–45 cm) reach envelope; secondary controls can sit within 24 inches (60 cm). Cable management and under-console ventilation protect equipment uptime and maintain a clean, low-stress visual field.

Light Environment: Glare, Lux, and Color

Lighting should serve screens first. Follow IES task lighting guidance and WELL v2 recommendations around 300–500 lux for monitor tasks, with low-glare optics and luminance ratios that keep the screen as the brightest focal plane within a comfortable range. Use indirect ambient lighting with louvers or microprisms to soften luminance contrast. Integrate task lights at 200–300 lux for paperwork without over-illuminating screens. Keep correlated color temperature around 3500–4000K for general shifts; in 24/7 rooms, I implement programmable spectrums—cooler during peak alert hours and warmer toward night—to support circadian stability without washing out critical color-coded alerts. Control daylight with dual-layer shades to eliminate veiling reflections on displays.

Acoustics and Speech Intelligibility

Low-noise HVAC, acoustic ceiling tiles (NRC 0.70+), and absorptive wall panels around 0.6–0.8 NRC in targeted zones keep background noise under control (NC-30–35 in focus areas). Carpet tiles or resilient rubber with acoustic backing reduce footfall noise on night shifts. Arrange talk-intensive positions toward zones with higher absorption and place shared comms or incident rooms adjacent but sound-separated (STC 45+ partitions). For paging or alert tones, tune levels to be clearly audible but under thresholds that induce startle responses—operators should perceive signals without a cortisol spike.

Thermal Comfort and Air Quality

Control rooms host dense electronics; heat loads demand precise air distribution. I favor underfloor or low-velocity displacement where feasible to minimize drafts at operator level while pulling heat away from consoles and racks. Give operators local control within a narrow band to reduce thermal disputes. Filter to MERV 13+ where mission-critical air quality is required; consider hot-aisle containment in equipment rooms to decouple thermal loads from occupied zones. Maintain relative humidity in the 40–60% range to balance comfort and static control.

Spatial Ratios, Rhythm, and Visual Balance

Visual harmony steadies attention. I keep console rows aligned with a clear central axis to the video wall, spacing aisles at 48–60 inches for smooth circulation. Avoid visual clutter around the primary field of view; use calm, low-chroma finishes on large surfaces, reserving saturated colors for wayfinding and critical zones. Repetition of console modules creates rhythm; subtle material shifts delineate teams without breaking sightlines. Supervisory platforms or glazed incident rooms gain a controlled overlook without becoming a spectacle.

Color Psychology and Interface Legibility

Use desaturated, cool-neutral palettes (blue-gray, slate) to reduce visual fatigue and let alerts pop. For on-screen content, preserve high contrast and avoid red-green combinations that impair users with color vision deficiencies. Accent colors should be functional: amber for caution, red for critical, green for stable—applied consistently across physical signage and UI. Keep wall finishes at mid reflectance values (LRV 30–60) to minimize glare and balance the luminance field.

Technology Integration and Resilience

Plan for future density: 30–50% spare rack space, dual-path fiber, UPS with clean power, and generator-backed circuits for consoles and video processing. Provide swing spaces for rapid reconfiguration during incidents. Integrate secure KVM switching, redundant network routes, and clear cable trenches with easy-access panels. I label everything, both above and below floor, to cut mean time to repair when seconds count.

Support Spaces: Breaks, Briefings, and Recovery

Performance drops without recovery. Include a briefing room near the floor for quick huddles, a quiet room for decompression, and a kitchenette set away from the monitoring line to keep odors and conversation from bleeding into primary zones. Restroom access should be direct and secure. Lighting and acoustics in support spaces can be warmer and softer to reset operator stress between intense intervals.

Safety, Egress, and Accessibility

Design clear, redundant egress paths with 48-inch minimum main aisles and anti-slip finishes. Edge-mark steps and platform transitions with high-contrast nosings. Ensure ADA-compliant stations with adjustable ranges that truly work for all body sizes. Place emergency stops, extinguishers, and first-aid within obvious reach, with photoluminescent guidance for low-light conditions.

Change Management and Training

The best control rooms evolve with their teams. Prototype early—mock up console heights, monitor arrays, and viewing angles with operators present. Run simulated incidents to validate sightlines and handoffs. Small changes—like moving a shared whiteboard into the operator’s peripheral view—can shave seconds off a response. Document settings for each role so shift handovers are seamless.

Plan, Test, and Visualize Your Layout

To de-risk sightlines and adjacency, prototype the footprint digitally before you build. A dedicated interior layout planner lets you test console arcs, wall geometry, and escape routes in context. If you need a fast way to iterate seating rows against a video wall and verify that each seat retains clear visibility, try a room layout tool to visualize and adjust the control room plan at true scale.

Trusted Research and Standards

For lighting and human factors guidance referenced above, consult the WELL v2 features on Light and Movement and IES task lighting recommendations. For workplace behavior and focus patterns, Gensler’s research library offers robust data on cognitive work and environmental supports. These sources provide clear, evidence-based targets without overcomplicating design intent.

FAQ

Q1. What illuminance should a control room target for screen-intensive work?

Aim for 300–500 lux at the work plane with low-glare optics and balanced luminance. Use task lighting for paper-based tasks without washing out displays. This aligns with WELL v2 guidance and typical IES recommendations for VDT environments.

Q2. How high should video walls be to preserve comfortable viewing?

Keep the center of critical content within about 15–20 degrees below horizontal eye level from the primary row. Check viewing distances at roughly 1.5–3.0 times the display height depending on pixel density and content detail.

Q3. What’s the ideal workstation geometry for long shifts?

Provide sit-stand consoles with adjustable keyboard heights (25–29 inches seated, ~38–44 inches standing), monitor distance at 20–30 inches, and top-of-screen at or slightly below eye level. Ensure wrist-neutral positions and 4D armrests to reduce strain.

Q4. How do I reduce operator fatigue on night shifts?

Enable posture changes, calibrate lighting to reduce glare, maintain NC-30–35 background noise, and provide micro-break spaces close to the floor. Incorporate programmable spectral lighting to ease circadian strain in 24/7 operations.

Q5. What acoustic strategy keeps speech intelligible during incidents?

Combine low-noise HVAC, absorptive ceilings (NRC 0.70+), targeted wall panels (NRC 0.6–0.8), and carpet or rubber flooring. Separate huddle/incident rooms with STC 45+ partitions and avoid hard parallel surfaces near operator clusters.

Q6. How much space should I allocate per operator?

For console depth and ergonomic reach, plan 30–36 inches of depth plus monitor arm clearance, and about 60–72 inches width per station for dual/triple monitors and personal equipment. Aisles should be 48–60 inches for safe circulation.

Q7. What color palette supports focus without dulling alerts?

Use low-chroma cool neutrals on large surfaces, keep mid-range reflectance (LRV 30–60), and reserve saturated hues for wayfinding and priority cues. Maintain high-contrast UI elements and avoid red/green combinations that challenge color-deficient users.

Q8. How do I future-proof technology in a control room?

Allow 30–50% spare rack capacity, dual-path cabling, hot-swappable components, and labeled access panels. Provide backup power (UPS plus generator), redundant network routes, and KVM solutions to reassign feeds quickly during outages.

Q9. Should I isolate equipment rooms from the main floor?

Yes. Separate equipment rooms improve thermal management and reduce noise. Use hot-aisle containment and dedicated exhaust; maintain the main floor at stable temperatures with low-velocity air distribution to avoid drafts.

Q10. What’s the best way to validate the layout before build-out?

Run full-scale digital simulations and physical mockups. Test sightlines, reach zones, and incident workflows with actual operators. Iterate console spacing and video wall height until all seats achieve clear visibility and comfortable posture.
