I’ve designed and retrofitted control rooms across utilities, transportation, and security—many of them under 300 square feet—where every inch carries operational consequences. Tight footprints can work astonishingly well when we prioritize human factors, visual hierarchy, and a rigorous workflow map.

Two data points shape my baseline decisions. First, line-of-sight and cognitive load matter: according to Steelcase research, poorly organized visual fields increase task-switching costs and error rates, while well-structured environments improve cognitive performance (steelcase.com/research). Second, the WELL v2 standard emphasizes visual comfort, recommending 300–500 lux for most regularly occupied tasks and higher vertical illuminance for visual displays—critical for multi-screen consoles (wellcertified.com). These benchmarks guide lighting layers, screen angles, and distances in small rooms.

Define the Mission-Critical Flow Before Drawing Walls

I start with a sequence map: detect → assess → act → verify → document. Each step becomes a zone, even if zones overlap by mere inches. The operator’s primary station aligns to detection and assessment. A secondary periphery handles documentation and call-taking. The back wall or a corner becomes the verify/escalate area with an incident board. If you’re iterating layouts or testing sightlines quickly, use a room layout tool to simulate reach ranges and display heights: room layout tool.

Right-Size the Console: Distances, Heights, and Reach

In compact rooms, the console is the room. I keep screen centerlines at 15–20 degrees below horizontal eye level to reduce neck strain and situate top bezels no higher than eye level when seated. The primary reach envelope should sit within 400–450 mm (about 16–18 inches) from the front edge of the work surface for frequently used controls, aligning with ergonomic principles and reducing micro-movements that add up over a 12-hour shift. Keyboard trays set at 25–27 inches from the floor with a 5–10 degree negative tilt help maintain neutral wrists; chair arms should slide under the work surface to keep the operator close to the console.

Screen Real Estate Without Visual Clutter

More monitors aren’t always better in a small room. I prioritize 2–4 larger displays in a gentle arc (15–25 degrees per panel) over a wall of small screens. Critical feeds occupy the central, single-fixation zone; secondary feeds sit at the periphery. The goal is to minimize saccades across unrelated content. Steelcase research on cognitive load supports limiting simultaneous stimuli in the main focal zone to protect situational awareness (steelcase.com/research).

Lighting Layers: Reduce Fatigue, Clarify Information

Compact rooms intensify glare risk. I favor three layers: indirect ambient (250–300 lux), task lighting at the console (350–500 lux adjustable), and controlled vertical illuminance on critical displays to balance contrast. Per WELL v2 guidance, ensure uniformity and avoid high luminance ratios between screens and surrounding surfaces. Warm-neutral ambient (3500–4000K) paired with slightly cooler task lighting (4000–4500K) preserves alertness without washing out color-coded alerts. Matte, low-VOC finishes around the console reduce specular glare.

Acoustic Hygiene in a Hard-Working Box

Even with two or three operators, small control rooms can drown in HVAC noise and cross-talk. I target a background noise level near NC 30–35 and use acoustic ceiling tiles (NRC ≥ 0.75) plus a soft back wall to dampen reflections. Desk screens with sound-absorbing cores can create micro-acoustic pockets without blocking sightlines. If the room adjoins a noisy corridor, seal gaps and specify doors with perimeter seals; behavioral norms—inside voice policy and concise handoffs—do the rest.

Color and Contrast Drive Readability

High-stimulation colors fatigue operators over long shifts. I use a calm, low-saturation palette with deliberate contrast around control surfaces and labels. Blue-green accents steady the space, while high-contrast banding helps operators locate critical switches. Verywell Mind’s color psychology overview notes that blues and greens can support calm and focus, while intense reds can elevate arousal—use red sparingly for alert framing (verywellmind.com/color-psychology). Keep display backgrounds dark-neutral with consistent alert color taxonomy.

Plan the Perimeter: Storage, Cabling, and Bypass Paths

Perimeter organization is everything. Vertical cable raceways, underfloor troughs where possible, and removable service panels keep the floor clear. I tuck shallow storage (12–16 inches deep) behind the operator’s chair arc to hold binders, PPE, and quick-grab tools. Leave a clean 36-inch egress lane to the door; if you’re in a micro-room, 30 inches is the absolute minimum for a safe bypass without shoulder contact. This is where an interior layout planner helps validate pinch points: interior layout planner.

Ergonomics for Long Shifts

Chairs with adjustable lumbar (height and depth), seat pan tilt, and 4D arms are non-negotiable for 8–12-hour shifts. I prefer dual-height stations or sit-stand consoles with silent actuators; set standing work heights around 41–43 inches for average statures, and ensure monitor mounts adjust through at least 10 inches of vertical travel. Footrests and anti-fatigue mats reduce calf strain in standing modes.

Human Factors: Handovers and Incident Modes

I script two states: routine monitoring and incident response. For routine, the soundscape stays quiet, lighting is balanced, and the front display shows dashboards. During incidents, the room switches to a brighter, cooler task light, and a shared priority screen takes over—reducing verbal back-and-forth. A small whiteboard or digital board at the periphery captures event logs that remain visible but outside the primary focal zone. Handovers happen at the console, with an on-screen checklist and a 3–5 minute overlap window to reduce omissions.

Small-Room Layout Patterns That Work

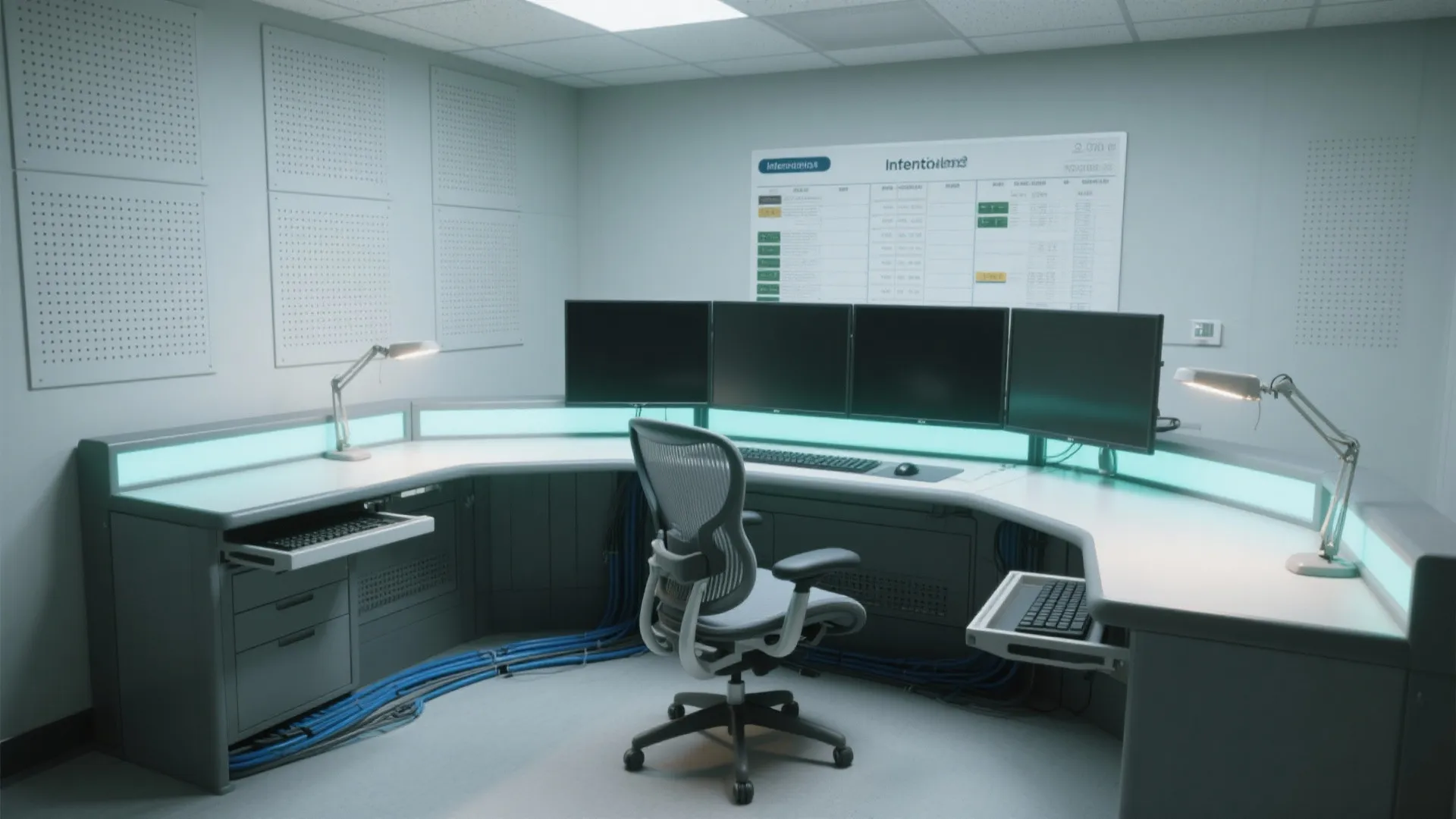

- Single-operator bay: A shallow U-shaped console with the operator centered, primary screens in the middle, comms to the left, and logging to the right. A compact rear shelf holds a printer and reference materials.

- Two-operator tandem: Two consoles in a gentle V, 10–15 degrees angled toward a shared front display. Keep 48 inches between chair backs for simultaneous egress.

- Corner command: In truly tiny rooms, place the operator at a 45-degree corner console to expand peripheral visibility and free a side wall for storage and a verify board.

Materials and Cleanability

Choose low-gloss laminates that hide fingerprints, antimicrobial edge banding, and tight radii on corners to prevent cable snags. Perforated metal modesty panels double as passive thermal relief for CPUs. Carpet tiles with solution-dyed fibers manage acoustics and clean easily; use high-friction transitions at thresholds to reduce slips during sprints.

Technology Integration Without Visual Noise

Consolidate KVM switches in a shadow line below the work surface, color-code cabling, and label everything at both ends. A single, large format display for briefings can replace three small screens. Keep radios on shock-mounted shelves with rear cable exits; use programmable keys for common call groups to reduce menu hunting. If budget allows, centralize alarms to a single auditory profile with escalating layers instead of multiple beepers.

Commissioning and Testing

Before sign-off, I run a 48-hour simulation with real operators: double shifts, routine and incident drills, and a light-level sweep at eye and desk heights. Then we tweak monitor heights, glare control, and control mapping. I also log walkway clearances and capture a punch list for cable discipline—bad cable management ruins small rooms faster than anything else.

FAQ

How many monitors should a small control room use?

Start with two to four larger displays in a shallow arc. Reserve the central screen for critical feeds and push secondary data to the periphery to protect attention.

What are the recommended light levels for operators?

Target 250–300 lux ambient with 350–500 lux adjustable task lighting at the work surface. Maintain balanced vertical illuminance on displays to reduce contrast glare, consistent with WELL v2 guidance.

How deep should a compact console be?

Thirty to 34 inches handles most multi-monitor arms without crowding. If space is tighter, a 28–30 inch depth with low-profile arms and a cable trough can still work.

What acoustic targets are realistic in a small room?

A background noise criterion around NC 30–35 with high-absorption ceiling tiles (NRC ≥ 0.75) helps keep speech intelligible while masking HVAC noise.

Is sit-stand essential for control rooms?

Not essential, but highly recommended for long shifts. Ensure silent lift columns, monitor arms with sufficient vertical travel, and presets that avoid re-aiming cameras or misaligning sightlines.

How much clearance do two operators need back-to-back?

Keep at least 48 inches between chair backs to allow simultaneous egress and minimize collisions. In ultra-small rooms, 42 inches is workable with strict etiquette, but not ideal.

Which colors work best for alerting without causing fatigue?

Use a calm, low-saturation base palette. Reserve saturated red or amber for true alerts and frame them within a dark-neutral UI to maintain salience without overwhelming the room.

What’s the best way to manage cables in tight spaces?

Combine vertical raceways, under-desk trays, and labeled bundles with slack loops for service. Keep power and data separated to reduce interference and heat buildup.

How do I plan for incident response in a tiny room?

Define a lighting and display state change: brighter, cooler task lights and a single shared priority screen. Add a dedicated verify/escalate spot—whiteboard or digital—outside the main focal zone.

Which standards or research should I reference?

Use WELL v2 for lighting and comfort guidance and Steelcase research on cognitive load and workplace performance for visual structuring and focus.
