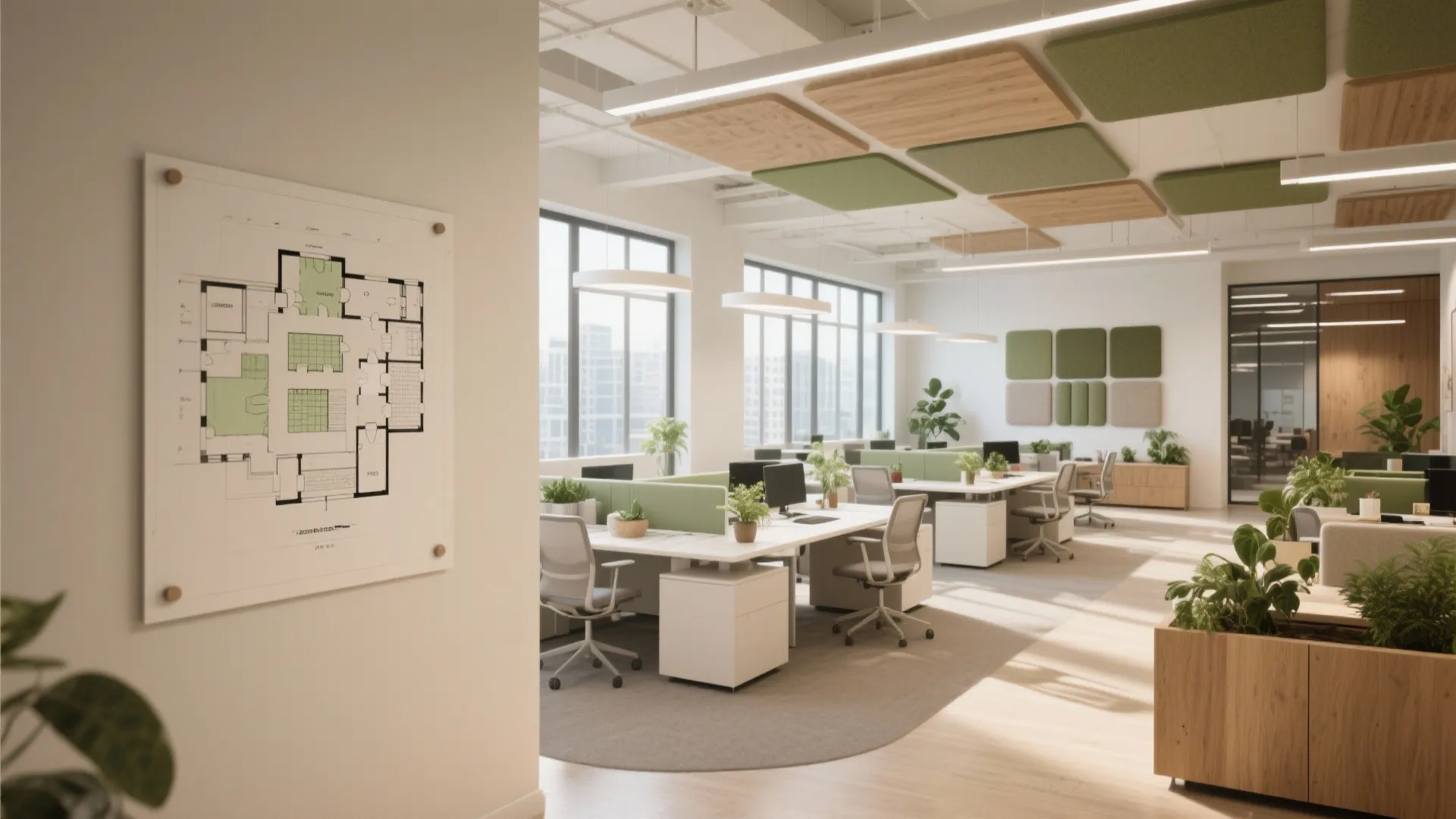

Convert Your 2D Floor Plan to 3D with Ease: Unlock the potential of your designs using a PDF to 3D converter

I’ve spent over a decade translating flat plans into spaces people actually inhabit. Moving from a 2D floor plan to a 3D model isn’t just a visual upgrade; it’s how you test scale, light, circulation, and acoustic behavior before a single wall goes up. In practice, 3D reduces misinterpretation, aligns stakeholders, and accelerates decision-making—especially when materials, lighting, and ergonomic factors need to be felt rather than imagined.

There’s hard data behind the shift. Steelcase research has long correlated spatial clarity with better collaboration and fewer redesign cycles; reducing ambiguity saves time and cost when teams preview environments in 3D. WELL v2 also links daylight access and visual comfort with occupant well-being, making early light simulation in 3D models more than a nice-to-have. I commonly reference the WELL Light concept (WELL v2) when setting lumen targets and glare limits during early modeling. For industry context and guidelines, the WELL Building Standard (v2) offers structured criteria on visual comfort and light exposure, while Steelcase research highlights the productivity gains associated with better environmental fit.

From 2D to 3D: What Actually Improves

In 2D, your eye reads boundaries; in 3D, your brain senses proportion. The jump provides instant feedback on ceiling heights, door clearances, furniture adjacency, and circulation bottlenecks. I often start by verifying key spatial ratios—like 1:1.5 seating-to-circulation in collaborative areas—and then check sightlines to daylight and noise sources. In residential layouts, 3D exposes pinch points at kitchen islands or bath entries; in workplaces, it reveals how meeting rooms bleed sound into focus zones.

Lighting: Model First, Refine Fast

Light isn’t a finish—it’s a behavior driver. Following IES recommendations, task areas typically target 300–500 lux, while circulation can work at 100–200 lux. In 3D, it’s easier to position fixtures, test color temperature gradients (2700K lounging, 3500–4000K task), and control glare by adjusting mounting heights and shielding angles. That early simulation prevents over-lighted, flat environments and ensures visual hierarchy. If daylight is a key strategy, I model window transmittance and ceiling reflectance to maintain balanced vertical illuminance, consistent with WELL v2 light guidelines.

Color Psychology and Material Reality

Color behaves differently in volume. Cool hues can recede to calm tight corridors; warm neutrals bring hospitality to communal nooks. I gauge saturation carefully—muted palettes for focus, richer accents for wayfinding. Materials get equal scrutiny: matte finishes reduce specular glare, acoustic panels balance RT60 in small rooms, and low-VOC surfaces protect indoor air quality. Conscious material selection aligns with sustainable practices and supports comfort without visual noise.

Ergonomics and Human Factors in 3D

Real human bodies need more than clearances; they need reach zones, leg room, and posture-friendly layouts. I map ergonomic data—desk heights around 28–30 inches, monitor top at or slightly below eye level, and chair armrest alignment with work surface—to ensure workable stations. In kitchens, I verify triangle distances between sink, cooktop, and refrigeration. In living spaces, I maintain a minimum 36-inch clear walkway, widening to 42 inches in high-traffic zones.

Behavioral Patterns and Flow

People congregate where sightlines, comfort, and tasks intersect. In 3D, I observe how a space invites or redirects movement—whether a café bar backs up circulation or a quiet enclave needs acoustic relief. For teams, clustering collaboration zones near daylight with buffers to focus areas yields fewer interruptions. In homes, I favor semi-open thresholds that provide psychological separation while maintaining sightlines for supervision.

Acoustic Comfort: Plan Before You Build

Noise control benefits hugely from volumetric modeling. I place absorptive finishes where reflections accumulate—ceilings in hard-surfaced rooms, soft wall treatments opposite glass, rugs under seating clusters. For meeting rooms, I aim for a modest RT60 (around 0.4–0.6 seconds) to keep speech intelligible without sounding dead. 3D layouts let me position baffles and partition heights to prevent sound flanking through open plenums.

Spatial Ratios, Rhythm, and Balance

Rhythm comes from repeated elements—bays, beams, pendant lines—balanced by negative space. I work with clear proportion sets: 60–30–10 for program distribution, and 1:2 void-to-solid in feature walls to keep compositions legible. In 3D, you can step back, view axial alignments, and adjust massing until the space feels inevitable rather than forced.

Workflow: A Straightforward Conversion

My conversion path is simple: validate the 2D plan, import or trace, define levels and envelope, drop key furniture families, and iterate with light and material. When layouts are involved, a room layout tool becomes invaluable for rapid adjacency testing and circulation checks—perfect for comparing options before locking dimensions.

room layout tool

2024–2025 Design Considerations

Recent projects emphasize hybrid work, acoustic zoning, and daylight prioritization. I’m seeing furniture systems that flex between heads-down and collaborative modes, biophilic palettes that anchor mood, and tuned luminaires with better glare control. Sustainability continues to move from specification to measurement: EPD-backed materials, low-VOC certifications, and close-loop finishes are now standard asks.

Common Pitfalls to Avoid

Three patterns trip teams up: over-scaling furniture, underestimating circulation, and lighting afterthoughts. The remedy is simple—test in 3D early, measure walking paths, and run basic light simulations. Keep thresholds generous, treat corners as acoustically sensitive, and anchor focal points where sightlines naturally converge.

FAQ

How does a 3D model improve decision-making over a 2D plan?

It clarifies scale, light, and circulation, reducing ambiguity for clients and contractors. Teams can preview real furniture, surface finishes, and lighting behavior before construction.

What lighting levels should I target in task areas?

Based on IES guidance, aim for roughly 300–500 lux at task planes. Circulation can be lower, around 100–200 lux, with careful glare control via shielding and positioning.

Does 3D help with WELL Building Standard goals?

Yes. You can model daylight access, visual comfort, and glare mitigation aligned with WELL v2 Light concept requirements, validating design intent early.

Can color psychology be tested in 3D?

Absolutely. 3D reveals how color saturations and finishes interact with light and volume—cool hues calm tight zones; warm neutrals foster hospitality in communal areas.

What ergonomic checks should I run?

Confirm desk height (28–30 inches), monitor top near eye level, clear walkways (≥36 inches), and kitchen triangle distances. Validate reach zones and door swings in 3D.

How do I plan for acoustic comfort?

Identify reflective surfaces and place absorptive materials strategically. For meeting rooms, target an RT60 around 0.4–0.6 seconds to balance clarity and comfort.

What’s the best way to test layout options quickly?

Use an interior layout planner to simulate adjacency, circulation, and furniture sizing. Iterating in 3D exposes pinch points and visual conflicts early.

Will converting to 3D increase project time?

It typically reduces time downstream. Early 3D modeling catches issues that cause costly revisions on site and streamlines stakeholder approvals.

How do I handle mixed-use spaces in hybrid offices?

Model acoustic buffers, define clear pathways, and assign lighting zones. Keep collaboration near daylight with transitions to focused areas, minimizing noise spill.

What sustainability factors should I reflect in the model?

Specify low-VOC finishes, consider recycled-content materials, and model daylight to reduce artificial lighting loads. Use EPD-backed products where possible.
