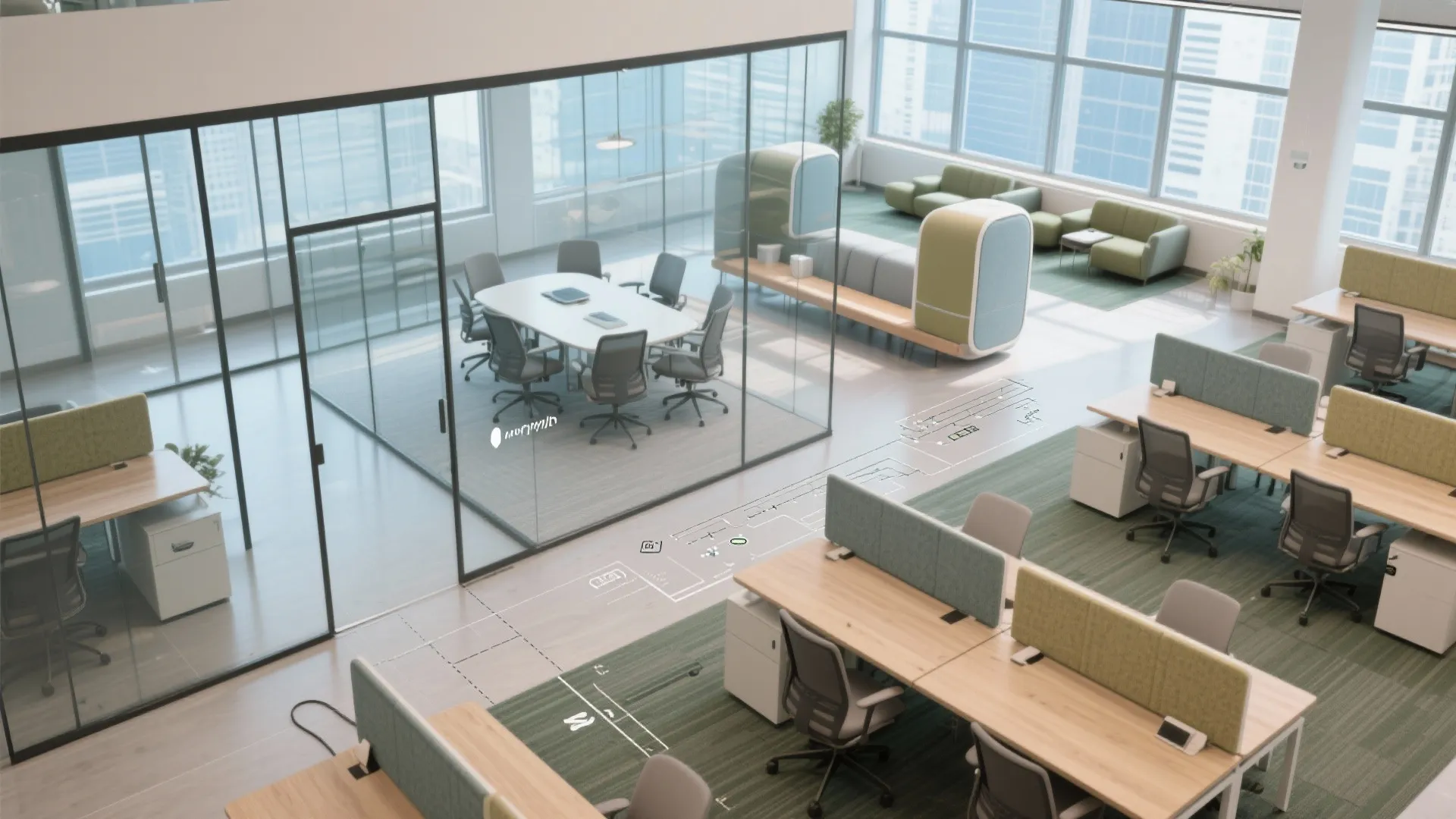

Create an Office Floor Plan Drawing Online: Easily Design Your Ideal Office Layout with Our Tools

I’ve planned and delivered workplaces for more than a decade, and the best results always start with a precise, easy-to-iterate floor plan. Done right, an online office plan becomes a decision lab—where traffic, daylight, acoustics, and team behaviors are visualized before a single wall moves. In Gensler’s 2024 research, 48% of workers cite acoustics and privacy as top barriers to productivity, while Steelcase reports that teams with access to adaptable spaces see measurable increases in focus and collaboration time. Those are layout variables you can model early, not discover late.

To anchor planning in health and performance, I reference WELL v2 guidance for light, air, and comfort, along with IES recommendations for task illuminance (typically 300–500 lux for open offices, higher for detail tasks). Research from Steelcase and Gensler consistently shows that balanced neighborhoods (focus, collaboration, and rejuvenation zones) correlate with higher perceived productivity—so your plan should prove how each mode is supported, not just how many desks fit. For deeper reading, explore the Gensler Research Institute’s workplace insights and Steelcase’s research library for benchmarks and post-occupancy evidence.

Set the Brief: Team, Space, and Intent

Before drawing, I clarify three pillars: headcount and team types (individuals vs. project teams), work modes (focus, collaboration, learning, social), and the building’s constraints (core, windows, egress, MEP). I map peak occupancy, adjacency needs, and storage loads. Then I define success metrics—acoustic NC levels by zone, circulation width ratios, daylight access percentage by seat row, and target booking ratios for meeting rooms. This ensures the drawing answers measurable goals, not just aesthetics.

Block and Test Core Zones

I start with macro zoning: entry and reception, visitor path, team neighborhoods, meeting suites, support (print/mail/IT), and social/refresh. Circulation should be clear and looped, minimizing dead-ends. For open areas, I maintain 1.5–1.8 m primary aisles and 1.2 m secondary paths, widening at intersections to prevent bottlenecks. Meeting suites cluster near the center to shorten average walk time; quiet zones sit away from cafés and terraces. When planning these relationships, a layout simulation tool like an interior layout planner or a room layout tool helps visualize lines of travel and adjacency impacts in minutes: room layout tool.

Right-Size Workpoints and Collaboration Spaces

Bench desks can run 600–800 mm deep depending on monitor size and cable management; I allocate at least 1,800–2,000 mm between facing rows for seated and standing postures to avoid ergonomic conflicts. Small rooms (2–4 people) benefit from 1,800 x 2,400 mm minimum to fit a table and camera sightlines; huddle nooks can be 1,500–1,800 mm deep with acoustic treatment. Program fewer, better medium rooms and more focus pods—data shows underutilization of large rooms, while focus demand is consistently high in hybrid teams.

Plan for Light: Daylight, Task, and Glare Control

I position focus desks perpendicular to glazing to reduce monitor glare, keep collaboration and social zones closer to windows for energy and views, and specify task lights at 300–500 lux where ambient lighting doesn’t meet IES ranges. Color temperature sits between 3,500–4,000K in open areas, with warmer 3,000K in lounges to cue decompression. Provide shading and matte finishes around screens to control veiling reflections. Good light hierarchy improves mood and reduces visual fatigue.

Acoustic Strategy by Zone

True acoustic comfort isn’t an afterthought. I deploy a triad—absorption (ceiling tiles, wall panels), blocking (partitions, bookcases), and masking (sound masking systems)—and align them with behaviors. Phone booths near circulation catch quick calls; enclosed focus rooms (STC 45+) absorb deep work; collaboration zones use area rugs and felt baffles to tame mid/high frequencies. Keep noisy equipment (printers, coffee grinders) out of quiet neighborhoods and buffer with storage walls.

Color Psychology and Material Tuning

Color affects arousal and focus. Muted greens and desaturated blues calm; energized social hubs can carry warmer accents. Finishes should be low-VOC and durable—think solution-dyed carpet tiles for modularity, FSC-certified wood for warmth, and cleanable, bleach-solution–tolerant surfaces in pantries. Vary textures to create visual rhythm and wayfinding; contrast floors subtly to define neighborhoods without full-height walls.

Ergonomics: Desks, Chairs, and Reach Zones

Height-adjustable desks support posture variation; set keyboard height so elbows rest near 90°, and position monitors with the top third at eye level. Keep frequently used items within a 400 mm reach zone and allow 1,000–1,100 mm behind seats for pull-back clearance. Provide a mix of sit-stand points, perching ledges, and soft seating to keep micro-movements frequent during the day.

Circulation, Egress, and Safety

I maintain clear travel paths to exits, check door swings, and avoid furniture in egress widths. For larger offices, I add visual cues—contrasting floor bands or ceiling lines—to guide movement. If you’re testing multiple layouts, a room design visualization tool that supports drag-and-drop blocks helps compare aisle widths and turning radii quickly: interior layout planner.

Hybrid Work and Space Ratios

Hybrid offices thrive on a higher ratio of unassigned seats, focus pods, and small meeting spaces. I aim roughly 60–70% individual workpoints, 20–25% collaboration rooms/nooks, 10–15% social/amenity zones—then tune by observing booking data. Provide touchdown benches near entries for transient staff and visitors, and ensure power everywhere—floor boxes, totems, and rail-integrated outlets.

Test, Iterate, and Document

Once the primary scheme is drafted, I run quick tests: daylight exposure by row, expected noise conflicts, and circulation loops. I label each room with intended behavior, capacity, acoustic strategy, and technology (camera location, display size, mic array). I export annotated plans and 3D walkthroughs for stakeholder reviews, then refine based on feedback and mock-use.

Quick Steps to Create Your Office Floor Plan Online

- Gather inputs: headcount, team profiles, adjacency matrix, equipment list, and building shell dimensions.

- Block major zones first; draw circulation as continuous loops.

- Place focus near calm edges; cluster meeting rooms; anchor social near natural light.

- Validate light levels and glare; add acoustic layers per zone.

- Dimension clearances and egress; check door swings and accessibility.

- Iterate alternatives and compare metrics (seat count, meeting mix, daylight reach).

- Export 2D/3D views for buy-in and build-out coordination.

Common Pitfalls and How to Avoid Them

- Overstuffed benching erodes privacy; maintain generous desk-to-desk aisles.

- One-size-fits-all meeting rooms lead to poor utilization; diversify sizes.

- Neglecting glare and acoustics up front causes expensive retrofits; specify early.

- Vague tech planning creates camera-sightline issues; draw AV zones and cable paths.

- Underpowering collaboration areas forces seat-hunting; provide universal power.

FAQ

Q1: How many meeting rooms do I need?

A: Start by tracking meeting sizes and durations. Many offices benefit from a 40–50% mix of small rooms (2–4 seats), 30–40% medium (6–8), and a limited number of large rooms. This aligns with the frequent underuse of large rooms and high demand for quick huddles.

Q2: What lighting levels should I target?

A: For open offices, plan ambient plus task lighting to reach roughly 300–500 lux at the desktop per IES recommendations. Increase to 500+ lux for detailed tasks and use 3,000K–4,000K color temperature depending on zone mood and time-of-day cues.

Q3: How wide should corridors be?

A: Primary aisles typically perform well at 1.5–1.8 m for two-way traffic and ADA maneuvering, with 1.2 m minimum for secondary paths. Widen at intersections to prevent congestion and sightline conflicts.

Q4: What’s the best way to handle acoustics?

A: Combine absorption (ceiling tiles, wall panels), blocking (partitions, storage), and masking (electronic sound masking). Place quiet zones away from cafés and use phone booths near circulation for quick calls.

Q5: How do I plan for hybrid work?

A: Increase small rooms and focus pods, provide touchdown benches, and keep a portion of seats unassigned. Distribute power broadly and offer varied postures—sit-stand desks, perches, and soft seating—to support short on-site bursts.

Q6: Where should I place collaboration zones?

A: Near natural light and along central spines for accessibility. Buffer with storage walls or acoustic panels if adjacent to focus neighborhoods, and ensure AV gear is drawn with camera angles in mind.

Q7: How do color choices influence productivity?

A: Cooler, desaturated hues like soft blues and greens support calm and focus, while warmer accents energize social spaces. Use higher chroma sparingly in focus areas to avoid visual fatigue.

Q8: What ergonomic dimensions should I respect?

A: Provide 1,000–1,100 mm behind chairs for egress, set desk heights to maintain 90° elbow angles, and position monitors so the top third sits at eye level. Keep frequently used items within a 400 mm reach zone.

Q9: How do I prevent glare on monitors?

A: Orient desks perpendicular to windows, specify matte screens and worktop finishes, add adjustable shading, and consider 3,500–4,000K lighting with good vertical illuminance for video calls.

Q10: What materials are both durable and sustainable?

A: Low-VOC paints, solution-dyed carpet tiles (for easy replacement), FSC-certified wood, and high-recycled-content acoustic panels. Prioritize surfaces that clean well in high-touch zones.

Q11: How can I validate a plan quickly with stakeholders?

A: Export annotated 2D plans with dimensions and a short 3D walkthrough. Label room capacities, acoustic strategies, and AV points. Use side-by-side alternatives to compare seat counts, aisle widths, and daylight reach.

Q12: What’s a good starting ratio for space types?

A: Begin with 60–70% individual workpoints, 20–25% collaboration spaces, and 10–15% social/amenity areas, then adjust based on booking and sensor data.
