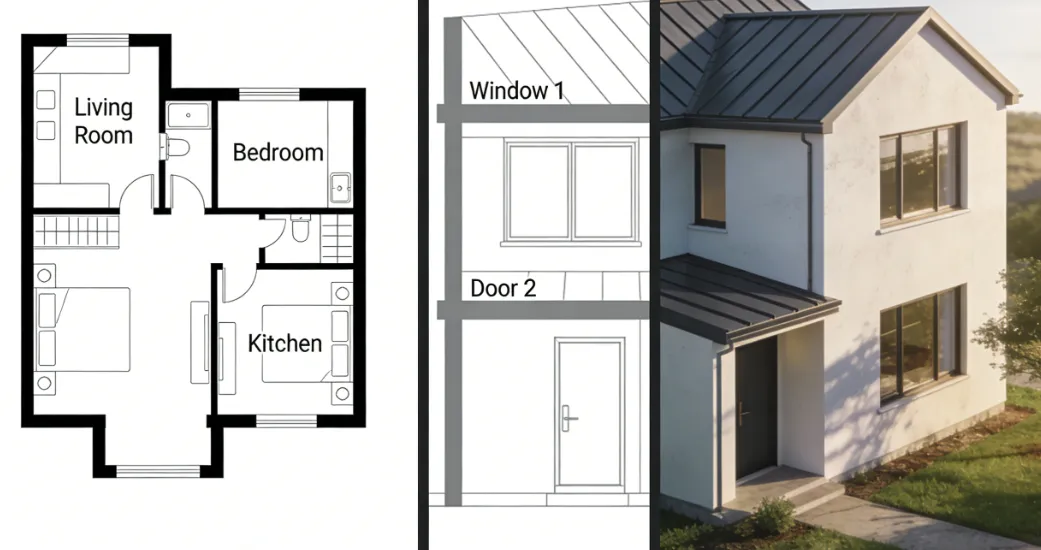

Create Elevation Online Using 2D Floor Plan: Transform Your 2D Floor Plans into Stunning Elevations

A 2D floor plan contains all the structural information you need to produce a house elevation — wall positions, room dimensions, door and window locations. The challenge is translating a top-down drawing into a vertical facade view, and knowing which decisions to make at each stage.

This guide covers the full process: what information to extract from your 2D plan, how to build the elevation in a free floor planner, and the specific checks that prevent the most common elevation mistakes.

What a 2D Floor Plan Already Tells You

Before opening any tool, read your floor plan for the structural data that drives elevation design:

Wall positions and lengths — the exterior wall perimeter defines the building footprint and the horizontal extent of every elevation face.

Door and window positions — the gap positions in exterior walls tell you where each opening falls horizontally. The floor plan shows left-right position; you'll add vertical position (sill height) when building the elevation.

Room functions — a bedroom typically has smaller, higher windows for privacy; a living room typically has larger, lower windows for light and views. Room function guides window sizing decisions.

Structural elements — columns, load-bearing walls, and projections (bay windows, porches) visible in the floor plan become the structural anchors of the elevation.

What the 2D floor plan doesn't tell you: wall heights, floor levels, roof geometry, and facade materials. These are the decisions you add when creating the elevation.

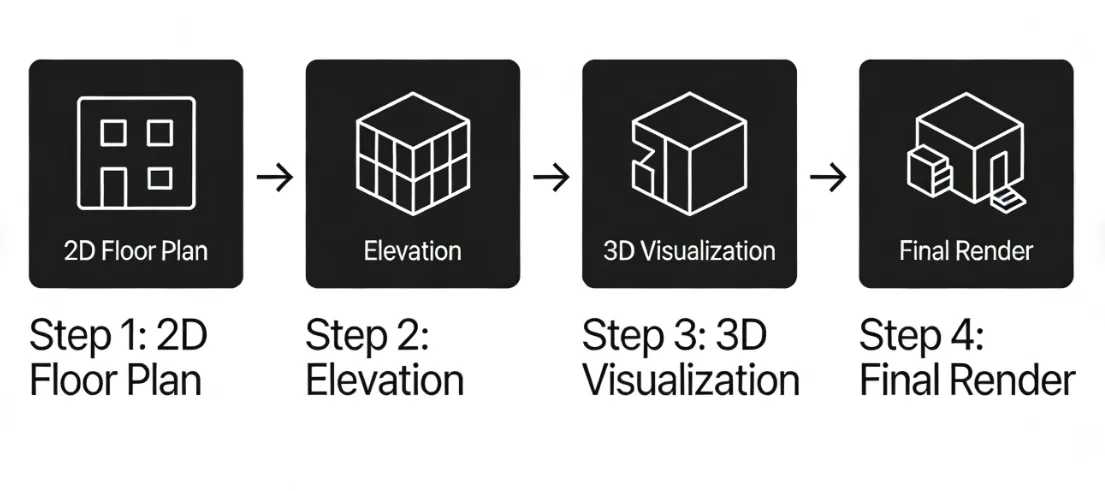

The Exact Workflow Designers Use (Step-by-Step)

save pin

Step-by-Step: From 2D Floor Plan to Elevation Online

Step 1 — Import or redraw the floor plan

Open Coohom's online floor planner in your browser. Either:

1. Import: Upload your floor plan image (JPG, PNG, or PDF) — the AI auto-detects walls, or use it as a background tracing reference
2. Draw: Input wall dimensions directly using the wall drawing tool with snap-to-grid

Verify all exterior walls are correctly positioned and dimensions match your plan. This is the foundation everything else builds on — inaccuracies here propagate through the entire elevation.

Step 2 — Set wall heights per room

This is the step most people skip, and it's what turns a flat plan into a three-dimensional structure.

In the wall properties panel, set height for each room:

1. Standard residential: 2.4–2.7m (8–9ft)
2. Open-plan living areas: 2.7–3.0m (9–10ft)
3. Double-height spaces: 4.8–6.0m (16–20ft)

For multi-storey buildings, set floor levels: ground floor height, then first floor offset above it. The elevation view is generated from these vertical dimensions combined with the horizontal wall positions from the floor plan.

Step 3 — Place windows at correct sill heights

The floor plan shows the horizontal position of each window. Now add the vertical dimension:

1. Living room, dining: 800–900mm sill height, large openings (1.2–1.8m wide)
2. Bedroom: 900–1,100mm sill height, moderate openings (900mm–1.2m wide)
3. Bathroom, WC: 1,400–1,600mm sill height, smaller openings for privacy
4. Kitchen above counter: ~1,000mm sill height

Window vertical alignment across rooms matters. Try to align window heads (top edge) at the same height across a facade — this creates the horizontal rhythm that makes an elevation look intentional rather than random.

Step 4 — Add doors at correct positions

Exterior doors are typically 2.1m (7ft) tall with a sill at floor level. The floor plan tells you the left-right position; place each door at the corresponding point in the exterior wall.

For front elevations especially, door position within the facade is a major compositional decision. A centered door reads as formal and symmetrical. An off-center door reads as casual and asymmetric. Check this in 3D before committing.

Step 5 — Design the roofline

The roofline defines the silhouette — the most distinctive part of any elevation. Select from:

1. Flat roof: Clean, modern, works well with large windows and horizontal emphasis
2. Mono-pitch (shed roof): Single slope, contemporary, allows high windows on the taller wall
3. Gable (pitched) roof: Traditional, symmetrical ridge, suits formal elevations
4. Hip roof: All four sides slope, lower visual profile than gable

Set the pitch angle. Residential pitches typically range from 15° (low profile) to 45° (steep traditional). The pitch affects how much of the roof is visible in the elevation view — a steeper pitch makes the roof a dominant visual element.

Set overhang depth: 300–600mm is typical residential. Deeper overhangs create stronger shadow lines and protect walls from rain; they also reduce natural light at ground level.

Step 6 — Apply facade materials

With structure confirmed, add materials. Work from large surfaces to small:

Primary wall material — the dominant surface covering most of the facade. Options: painted render (most versatile), face brick (textured, warm), stone cladding (natural, heavy), timber boards (warm, contemporary).

Accent material — used on specific elements to create contrast or define zones. Common: darker render band at ground floor, brick reveals around windows, timber canopy above entrance.

Roof material — concrete tile, clay tile, metal standing seam, or flat membrane (for flat roofs). The roof color has significant impact on the elevation's overall tone — a dark roof reads very differently from a light one.

Window frames — white frames are neutral and versatile. Dark grey or black frames read as contemporary. Timber frames add warmth.

Limit to 3 materials maximum. More than three creates visual complexity that reads as clutter rather than richness.

Step 7 — Validate in 3D exterior view

Switch to 3D view and check the elevation from straight-on at each face, then from angles:

Proportion check: Does the wall height feel right relative to the width? A typical two-storey house reads best with a height-to-width ratio between 1:1.5 and 1:2. Very wide, low buildings need horizontal material lines to avoid looking squat.

Window rhythm: Do windows read as a pattern across the facade, or do they look randomly placed? Aligned window heads create horizontal rhythm. Vertically stacked windows on multi-storey facades create vertical rhythm.

Material balance: Does one material dominate appropriately? If your eye can't settle on the primary material, the palette is too busy.

Roofline silhouette: View from street distance (zoom out to simulate 10–15m). The silhouette is the first thing a viewer sees — it should read clearly.

Shadow depth: Zoom into window areas and check that reveals (window recesses) create visible shadow lines. Flat windows flush with the wall surface look cheap in renders and in reality.

What the 2D Plan Can't Tell You (Design Decisions You Must Add)

Common Elevation Mistakes When Working from 2D Plans

Keeping all windows the same size. The floor plan shows openings, but the elevation is where you differentiate — large windows in living areas, smaller in bedrooms, narrow in bathrooms. Uniform windows make a facade look undesigned.

Not setting wall heights early enough. The vertical dimension is the most important transformation from 2D plan to 3D elevation. Setting heights in the last step means you can't make informed material and window decisions until then.

Designing the front elevation only. The side and rear elevations share the same roofline and must be consistent. A roofline that looks balanced on the front can look odd from the side. Check all four faces in 3D before finalizing.

Ignoring floor plan constraints on window placement. A window position that looks good on the facade sometimes conflicts with interior furniture placement — a window centered on a wall that has a sofa pushed against it. Check the floor plan and elevation together.

FAQ

Can a 2D floor plan be directly converted into a house elevation?

Yes. A 2D floor plan provides wall locations, room sizes, and door and window positions, which can be used to construct a vertical elevation once wall heights, roof design, and facade materials are added.

What information from a 2D floor plan is most important for creating an elevation?

Key details include exterior wall positions, door and window locations, room functions, and structural elements such as columns or projections, which determine the layout of the facade.

What details are missing from a typical 2D floor plan when designing an elevation?

A 2D plan usually does not specify wall heights, floor levels, roof shapes, window sill heights, or exterior materials, so these must be defined during the elevation design process.

Why is setting wall height important when converting a floor plan to an elevation?

Wall height determines the building’s vertical proportions and allows the software to generate a realistic 3D structure from the flat floor plan.

How can window placement affect the appearance of a house elevation?

Proper window sizing, sill height, and alignment across the facade create visual balance and rhythm, making the elevation look intentional and aesthetically pleasing.
