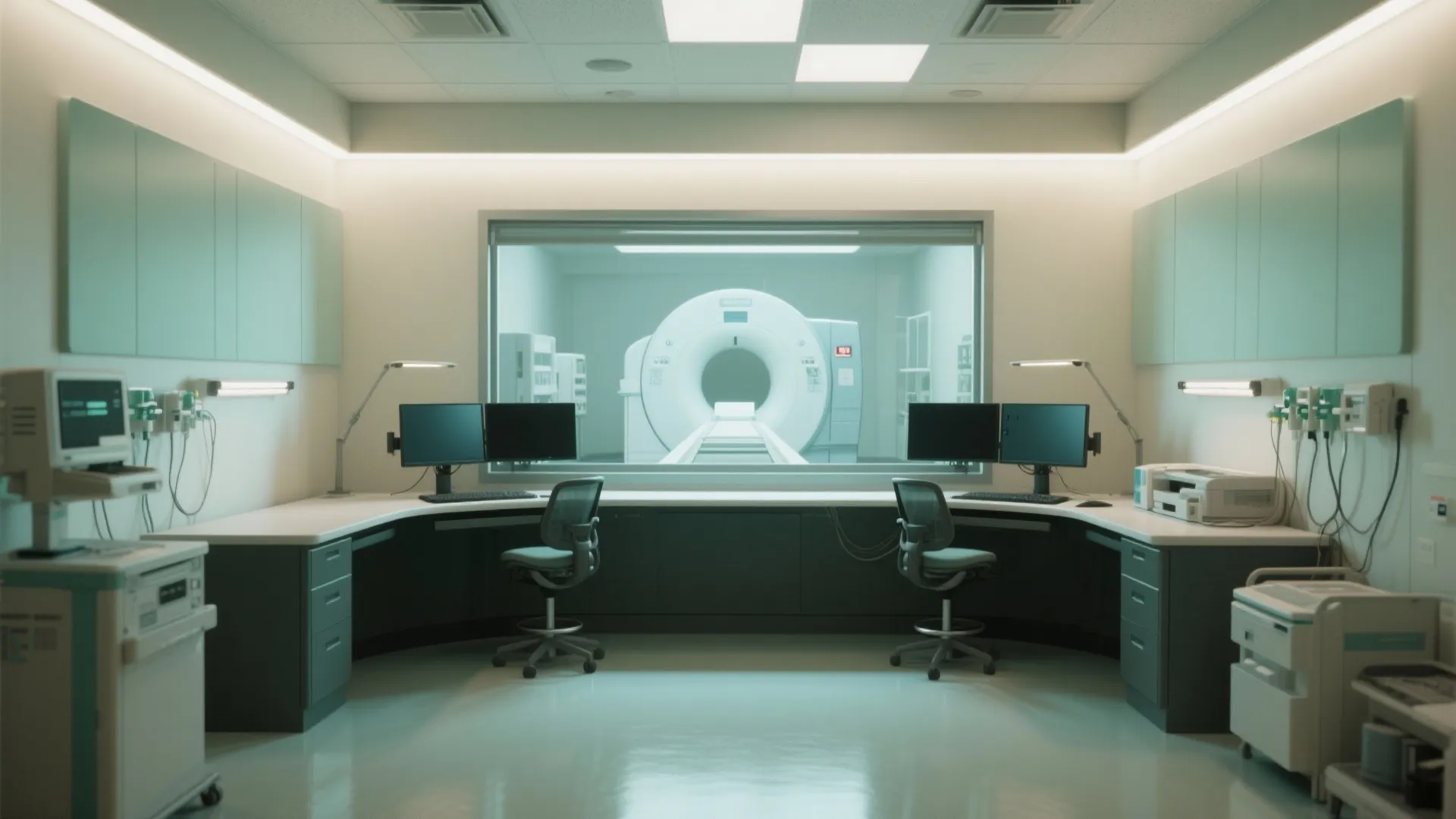

CT Console Room Design: Maximizing Functionality & Comfort: 1 Minute to Understand CT Console Room Optimizations

I’ve spent the last decade refining CT console rooms for hospitals and imaging centers, and the highest-performing spaces share one trait: they are designed around human factors first, then technology. The stakes are real—operator fatigue, miscommunication, and glare-induced errors compromise both patient care and throughput. Research backs the link between environment and performance: according to WELL v2, providing task-adjustable lighting and controlling glare directly supports visual acuity and error reduction in work settings, while Gensler’s workplace studies consistently correlate better environmental control with improved task effectiveness and satisfaction. These aren’t soft perks; they translate to smoother scans and fewer retakes.

Lighting and ergonomics are non-negotiable baselines. The Illuminating Engineering Society (IES) recommends task lighting levels that typically fall in the 300–500 lux range for office-type visual tasks, paired with lower ambient levels and strong glare control to protect monitor contrast. On ergonomics, fixed-height workstations consistently underperform; adjustable sit-stand desks and display arms reduce musculoskeletal strain. Steelcase research has shown that posture variability improves comfort and sustained attention—critical when technologists monitor scans for hours.

Core Spatial Principles

CT console rooms must orchestrate a tight relationship between the control console, imaging suite sightlines, communication equipment, and emergency workflows. The layout should prioritize a straight visual axis to the gantry room (through the lead glass) with primary monitors aligned perpendicular to the glazing to reduce reflections. Keep clear floor space for rapid movement during patient events and a two-person working envelope without collisions. If you are visualizing different arrangements or testing door swings versus monitor walls, a layout simulation tool like an interior layout planner can help prototype adjacencies before construction. Try a room layout tool: room layout tool.

Monitor Wall, Sightlines, and Reflections

Monitors are the console’s main instrument. Place primary diagnostic displays on a non-glare wall, ideally 90 degrees to the viewing window. Keep the viewing window large enough to frame the gantry bore and patient table movement, but offset ceiling lights so no fixtures reflect into the glass. Use deep, matte finishes around the window reveal to absorb stray light. Mount secondary worklist screens off-axis to minimize head rotation. For redundancy, plan a clean cable path and quick-access power conditioned by hospital-grade UPS.

Lighting Strategy: Layered and Tunable

Blend three layers: low-glare ambient (indirect pendants or perimeter coves), task lighting (adjustable, 300–500 lux at the work surface per IES office-type guidance), and accent lighting for wayfinding. Tune color temperature between 3500K and 4100K to maintain alertness without washing out screen contrast; task lights should be dimmable and aimable, with UGR-conscious optics to minimize discomfort glare. Blackout shades for any exterior glazing are essential for imaging accuracy. Provide scene presets (scan prep, monitoring, reporting, cleaning) so staff can shift the space instantly.

Acoustic Comfort and Speech Intelligibility

Console rooms carry constant low-level equipment hum punctuated by team communication. Aim for an ambient NC/RC of 30–35 with a balanced absorption strategy (ceiling tiles NRC 0.75+, wall panels NRC 0.7+ on 20–30% of wall area). Position absorptive panels opposite the glazing and behind operators to reduce flutter echo. Ensure intercom and patient comms are intelligible—treat the room for clarity, not deadness. Door gaskets and lined return-air paths help keep HVAC noise in check.

Ergonomics: Workstations, Displays, and Reach Zones

I always plan sit-stand benches with rounded edges, anti-fatigue mats, and cable management trays. Arrange equipment within primary reach (400–500 mm from the leading edge) to minimize shoulder abduction; mount phones and emergency comms within the near-reach zone. Use adjustable arms for dual or triple displays so the top of the primary monitor aligns near eye height; center-to-eye distance around an arm’s length (500–700 mm) reduces eye strain. Provide at least 1,200 mm clearance behind operators for pass-through and emergency movement, and 1,500–1,800 mm for two operators to work side-by-side.

Workflow and Safety Logic

Map the entire scan lifecycle: patient ID verification, protocol selection, contrast coordination, scanning, and image QC. The console should place protocol and emergency stop controls on the dominant-hand side of the primary operator. Keep medication verification and contrast-related communication tools in a clearly labeled zone, separate from general admin tasks. Place a quick-view whiteboard or digital dashboard with daily cases and contrast notes within sight but outside the primary glare path.

Color Psychology and Visual Fatigue

High-saturation colors may excite but also fatigue. For long-focus tasks, cool neutrals with low reflectance (LRV 20–40) support contrast on screens. For recovery from visual strain, include a small patch of biophilic tones—muted greens or desaturated blues—away from the monitor wall. Color psychology literature notes that blues and greens are associated with calm and concentration, which supports steady attention during prolonged monitoring.

Materials and Cleanability

Prioritize smooth, non-porous, healthcare-compliant finishes: high-pressure laminates with antimicrobial surfaces for worktops, resilient sheet flooring with heat-welded seams, and washable, low-sheen paints. Keep metal trims matte to avoid specular highlights. Choose ceiling tiles with both high NRC and scrubbability for infection control protocols. Corner guards and durable base details prevent damage from equipment carts.

Technology Integration and Redundancy

Plan power, data, and HVAC early. Provide multiple dedicated circuits for the workstation, clean power for displays, and labeled data drops with slack coils for service loops. Locate a small rack or cabinet for network gear with front-to-back airflow and noise isolation. Integrate red/amber visual status lights tied to scan states near the door for quick reads. Fail-safe modes and UPS-protected equipment keep monitoring live during brief outages.

Thermal Comfort and Air Quality

Operators perform best around 21–23°C with minimal drafts; adjustable diffusers or displacement outlets can keep temperature stable without blowing across the neck and shoulders. Separate the console room’s return path from the CT equipment room to limit heat and noise spill. Provide a small operable control for task-level airflow if the facility standard allows.

Transparency and Privacy Balance

The lead-glazed view is essential, but privacy still matters. Use partial film patterns on lower portions of glass to reduce visual clutter and stray reflections, while keeping the gantry and patient table fully visible. For after-hours or training, switchable privacy film or roller shades can reduce distraction.

Planning Dimensions and Clearances

As a baseline for a single-operator console: 1,800–2,400 mm bench length, 800 mm depth, and 1,200 mm rear clearance. For dual operators, extend to 2,800–3,200 mm bench length and 1,500–1,800 mm rear clearance. Maintain 900 mm minimum circulation at doors and a 1,500 mm turning diameter for accessibility. If the console door opens into a corridor, recess the swing to keep path-of-travel clear for emergency egress.

Commissioning and Human Testing

Before go-live, dim the ambient lights and check screen reflections at different times of day. Run a full patient simulation: voice comms, emergency stop access, and role handoffs. Verify acoustic clarity with the intercom volume at normal settings. Capture feedback during the first two weeks and implement quick fixes: monitor arm tightening, re-aimed task lights, or relocating a noisy mini-rack.

Change Management and Training

Even the best rooms fail without adoption. Hold short training bursts on sit-stand etiquette, scene lighting presets, and cable management. Create a simple etiquette card: light presets, voice levels, and cleaning protocols. When staff know how to tune the room, performance improves, and so does morale.

Recommended Research To Ground Decisions

Two resources I reference frequently: IES guidance for task illuminance and glare control in screen-dominant spaces, and WELL v2 guidelines for lighting quality and ergonomics that link visual comfort with performance. For broader workplace behavior and analytics on task effectiveness, Gensler’s research library is a practical compass for aligning design choices with measurable outcomes. See: ies.org/standards and wellcertified.com for technical baselines; gensler.com/research for behavioral insights.

FAQ

What illuminance levels work best for CT console tasks?

Provide 300–500 lux at the work surface via adjustable task lighting, with lower ambient levels and strong glare control to preserve monitor contrast. Follow IES guidance for VDT environments.

How can I reduce monitor glare from the viewing window?

Orient primary screens perpendicular to the glazing, use matte finishes around the window, offset ceiling fixtures to avoid reflections, and specify dimmable, shielded luminaires.

What desk dimensions are comfortable for two operators?

Plan a 2,800–3,200 mm long bench, 800 mm deep, with 1,500–1,800 mm rear clearance to allow pass-through and quick response during patient events.

Which chair or desk features matter most?

Height-adjustable sit-stand desks, adjustable monitor arms, lumbar-support chairs with arm adjustability, and anti-fatigue mats. Posture variability is key for sustained attention.

How do I handle acoustics without over-dampening?

Target NC/RC 30–35. Use high-NRC ceiling tiles and selective wall panels on 20–30% of area to control reverberation while keeping speech intelligibility for team communication.

What color palette supports long-focus work?

Cool neutrals with low reflectance (LRV 20–40) near screens to protect contrast, complemented by desaturated greens/blues elsewhere to support calm and reduce visual fatigue.

Where should emergency controls be located?

On the dominant-hand side of the primary operator within near-reach, with clear sightlines to the patient. Keep the area uncluttered and labeled, separate from admin tools.

How do I manage cable clutter and service access?

Use under-bench trays, grommets, and labeled slack coils. Provide a small network cabinet with managed airflow and UPS. Keep quick-release access panels for maintenance.

What HVAC strategies improve comfort at consoles?

Maintain 21–23°C with low draft. Use diffusers that avoid direct airflow to the neck/shoulders, separate returns from the equipment room, and allow local adjustability where possible.

How do I simulate layouts before construction?

Prototype adjacencies and sightlines with a room design visualization tool or interior layout planner, then validate with mock-ups. Try this layout simulation tool: interior layout planner.
