CT Console Room Design: Optimize for Comfort and Efficiency: Fast-Track Guide to Creating the Ideal CT Console Room Layout

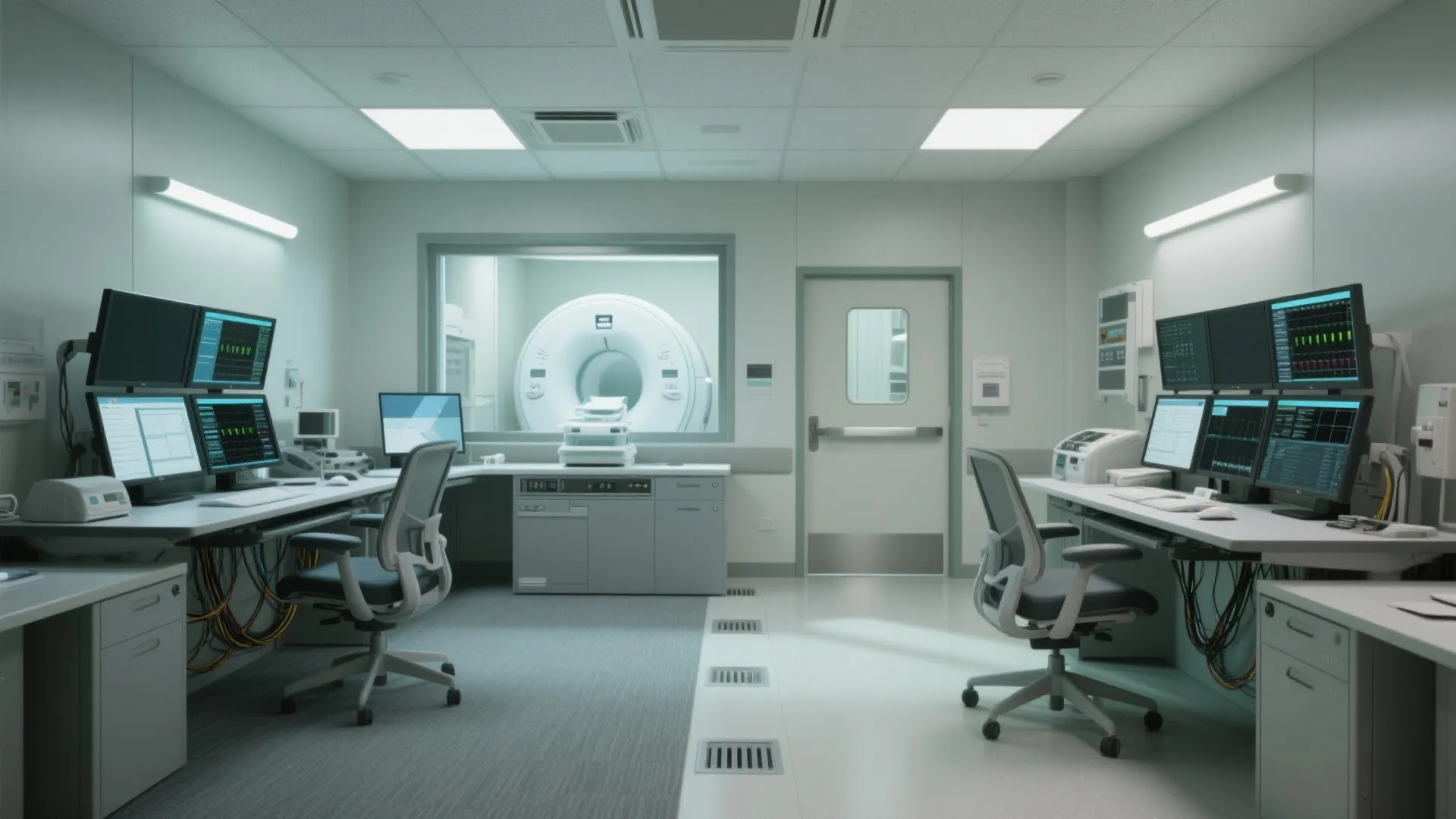

I design CT console rooms to work like a calm cockpit—clear sightlines to the technologist, stable environmental controls, and an intuitive layout that supports error-free operation. Comfort and clarity matter: imaging quality depends on how consistently the team can communicate, monitor patients, and execute protocols without distraction. The console room is the nerve center; when it’s designed thoughtfully, throughput improves and staff fatigue drops.

Workflow data consistently validates a human-centered approach. Steelcase research links well-tuned environments to improved cognitive performance and reduced fatigue, essential for repetitive, high-stakes tasks in healthcare operations. WELL v2’s thermal comfort and lighting guidelines also show measurable impacts on alertness and satisfaction, reinforcing the need for controllable, task-appropriate lighting and stable temperatures in control spaces. For deeper context, see WELL v2’s Light and Thermal Comfort features on v2.wellcertified.com.

Lighting precision is non-negotiable. The Illuminating Engineering Society (IES) recommends task illuminance for office-type work in the 300–500 lux range, with low glare (UGR ≤ 19) to protect screen legibility. I target 350–400 lux ambient with a 4000 K neutral-white baseline and layered task lighting that can dim to 150–200 lux during scanning for reduced reflection on monitors. Anti-glare diffusers, indirect uplight, and matte finishes around displays help maintain a stable visual field. When layouts change or multiple operator stations must fit into tight footprints, I validate sightlines and equipment clearances with an interior layout planner such as this room layout tool: room layout tool.

Plan the Room Around Sightlines and Roles

I start with the operator’s eye line. The primary workstation must have uninterrupted views to the scanner room window and patient door, minimizing head turn beyond 30–40 degrees for routine monitoring. Secondary stations—protocol review, RIS/PACS access, and phone lines—sit within a 1.5–2 m reach arc to avoid unnecessary standing and pivoting. I aim for clear 1.2 m circulation paths, widening to 1.5 m at pinch points for two-person cooperation. Cable management tracks below the desk and in floor boxes keep power, network, and modality lines tidy and serviceable.

Workstation Ergonomics for Long Shifts

Sustained accuracy depends on posture. I specify sit-stand consoles with 650–1250 mm height range, monitor arms supporting dual to quad displays with 150 mm vertical and 300 mm horizontal adjustability, and a minimum 600 mm viewing distance. Chair selection follows ergonomic guidelines: synchronous tilt, adjustable lumbar, 3D armrests, and breathable upholstery. Keyboard trays at 25–30 mm negative tilt reduce wrist extension; mouse surfaces sit at the same plane to prevent ulnar deviation. Footrests help shorter staff maintain planted feet when seated higher.

Thermal Comfort and Air Quality

Operators in imaging suites often work in sealed spaces adjacent to shielded rooms, so fresh air and temperature control matter. I design for stable 21–23°C with low velocity at the desk to avoid drafts, and 40–60% relative humidity to keep static and dry-eye discomfort at bay. Distribute supply diffusers away from monitor fronts and use linear slot diffusers to temper across the ceiling. Return air should not create noise near head height; keep NC levels around 30–35 in the console room. Align HVAC controls with WELL v2 thermal comfort principles and provide local control for small setpoint adjustments during peak hours.

Acoustic Comfort: Keep the Noise Floor Low

Acoustics influence decision accuracy in repetitive tasks. I target 0.60–0.75 NRC on ceilings and select wall panels with 0.70+ NRC at ear height to absorb phone chatter and equipment hum. Place sound-absorbing panels opposite glass to control flutter echo, and use carpet tiles with cushion backing for footfall noise. Avoid locating mini-racks or UPS units in the console unless isolated within ventilated, acoustically lined cabinets. Door sweeps and perimeter seals help keep scanner noise out without impeding airflow.

Lighting Layers That Respect Screens

Three layers keep vision comfortable: ambient, task, and accent. Ambient provides uniform, low-glare illumination; task lighting supports paperwork and labeling; accent lighting guides circulation without bright spots in the operator’s peripheral view. Screens prefer vertical illumination below 100 lux to minimize reflected luminance; I avoid downlights directly over monitors and choose indirect pendants or wall grazers. If color rendering affects skin tone checks on patient cams, I set CRI ≥ 90 for task luminaires. For procedural critique and night shifts, dim-to-warm fixtures help ease eye strain as the circadian load changes.

Color Psychology and Visual Balance

CT rooms endure long hours of attention; colors should support calm vigilance. A neutral base (soft grays, muted sand) keeps contrast stable around screens. I add desaturated blues or greens in peripheral walls to cue calm and reduce perceived stress—tones commonly associated with lower heart rate and improved focus in color psychology studies. Bold accents stay behind the operator or below desk height to avoid competing with on-screen color cues.

Spatial Ratios and Storage Discipline

Clutter degrades performance. I allocate at least 15–20% of floor area to concealed storage: shallow wall cabinets for forms and PPE, lockable drawers for protocols, and a dedicated bin for contrast-related paperwork. Printers and labelers sit within 3–4 steps of the main station but not in the primary sightline. If the modality vendor requires frequent access to service laptops or phantoms, integrate a service niche near the door with power/data and task lighting, keeping the operator zone interruption-free.

Safety, Compliance, and Shielding Awareness

While the console room itself is outside the scanner’s primary shielding envelope, plan walls with sufficient mass and avoid large penetrations that might compromise acoustic or HVAC intent. Cable conduits should have gaskets to reduce sound leakage. Emergency egress paths must remain clear, and fire protection heads placed to avoid direct spray onto electronics. Label power circuits, isolate clean power for monitors, and keep critical equipment on conditioned UPS as required by facility standards.

Technology Integration and Future-Proofing

CT suites evolve. I reserve a 300–600 mm cable chase behind consoles, specify 30–40% spare capacity in patch panels, and leave floor boxes with extra conduit stubs for upgrades. Monitors trend larger; allow 200–300 mm clearance beyond current diagonal. If speech recognition is used for reporting, add acoustic clouds above the operator zone to improve capture quality. For hybrid workflows, mount a small secondary display near the window for direct patient monitoring without breaking gaze from the primary screen.

Behavioral Patterns and Team Communication

The best console rooms anticipate human behavior: quick handovers, quiet verbal checks, and short bursts of collaboration. I set a two-person teaming zone adjacent to the main station with shared access to PACS and a whiteboard for protocol notes. Phones and intercoms go on noise-damped mounts. If interpreters or trainees join often, add a compact perch stool area to prevent crowding. A visual rhythm—aligned monitors, consistent sightlines, balanced lighting—reduces cognitive friction when multiple people work side by side.

CT Console Room Layout Starter

For teams exploring options, prototype the arrangement with an interior layout planner that supports monitor spacing, circulation paths, and sightlines before committing to millwork. A layout simulation tool helps test workflows and emergency routes early: layout simulation tool.

FAQ

What illuminance is best for a CT console room?

Target 350–400 lux ambient with controllable task lighting. Keep glare low (UGR ≤ 19) and avoid direct downlights over monitors to protect legibility.

How should monitors be positioned?

Maintain 600–800 mm viewing distance, eyes at the top-third of the display, and limit head rotation to under 40 degrees for routine monitoring. Use adjustable arms for fine-tuning.

Do I need acoustic panels?

Yes. Aim for 0.60–0.75 NRC on ceilings and 0.70+ NRC on wall panels near operator heads to absorb speech and equipment noise, improving focus and communication.

What temperature and humidity are ideal?

Keep 21–23°C and 40–60% RH. Provide gentle airflow and local control so operators can adjust setpoints slightly during long shifts.

Which colors reduce stress without dulling alertness?

Neutral bases with desaturated blues or greens in peripheral walls support calm focus and reduce visual fatigue without interfering with on-screen color cues.

How much storage should I plan?

Allocate 15–20% of floor area to storage, including lockable drawers for protocols, shallow wall cabinets for forms/PPE, and a printer niche outside primary sightlines.

Can I integrate sit-stand consoles in tight rooms?

Yes. Choose compact bases with cable management and ensure 1.2 m clear circulation. Validate reach arcs and sightlines with a room design visualization tool before installation.

What standards guide lighting and comfort?

Follow IES recommendations for task illuminance and glare control, and reference WELL v2 Light and Thermal Comfort features for holistic environmental tuning.

How do I minimize scanner noise leaking into the console?

Use perimeter door seals, gasketed penetrations, and acoustic panels opposite glazing. Keep mechanical equipment out of the console or isolate it in lined enclosures.

What future-proofing steps matter most?

Reserve spare conduit and patch capacity, leave clearance for larger monitors, and provide flexible cable chases behind consoles for smooth technology upgrades.
