Designing 2D Floor Plan Doors: ADA Compliance, Drawing Symbols, and Layout Mistakes

Why Door Placement in a 2D Floor Plan Matters

In architectural and interior design, a door is more than a passage — it's a critical part of spatial logic, movement flow, and regulatory compliance.

Misplaced doors can lead to:

1. Conflicts between swinging doors or furniture
2. Poor space utilization
3. Violation of accessibility codes like ADA
4. Construction delays or costly rework

To avoid these problems, you must carefully consider door width, swing direction, clearance, and symbol representation during the drafting stage.

Key U.S. Code Requirements for Door Design (ADA & IRC)

A. ADA Standards for Accessible Design (Section 404)

Applies to public buildings and commercial spaces; some residential applications may also require ADA compliance.

Drawing Tip: Use dashed arcs to show swing direction. Annotate “Clear Width” and dimension the required pull-side space.

B. IRC Residential Code: Section R311.3 – Doors

Sets minimum door size and egress requirements in homes.

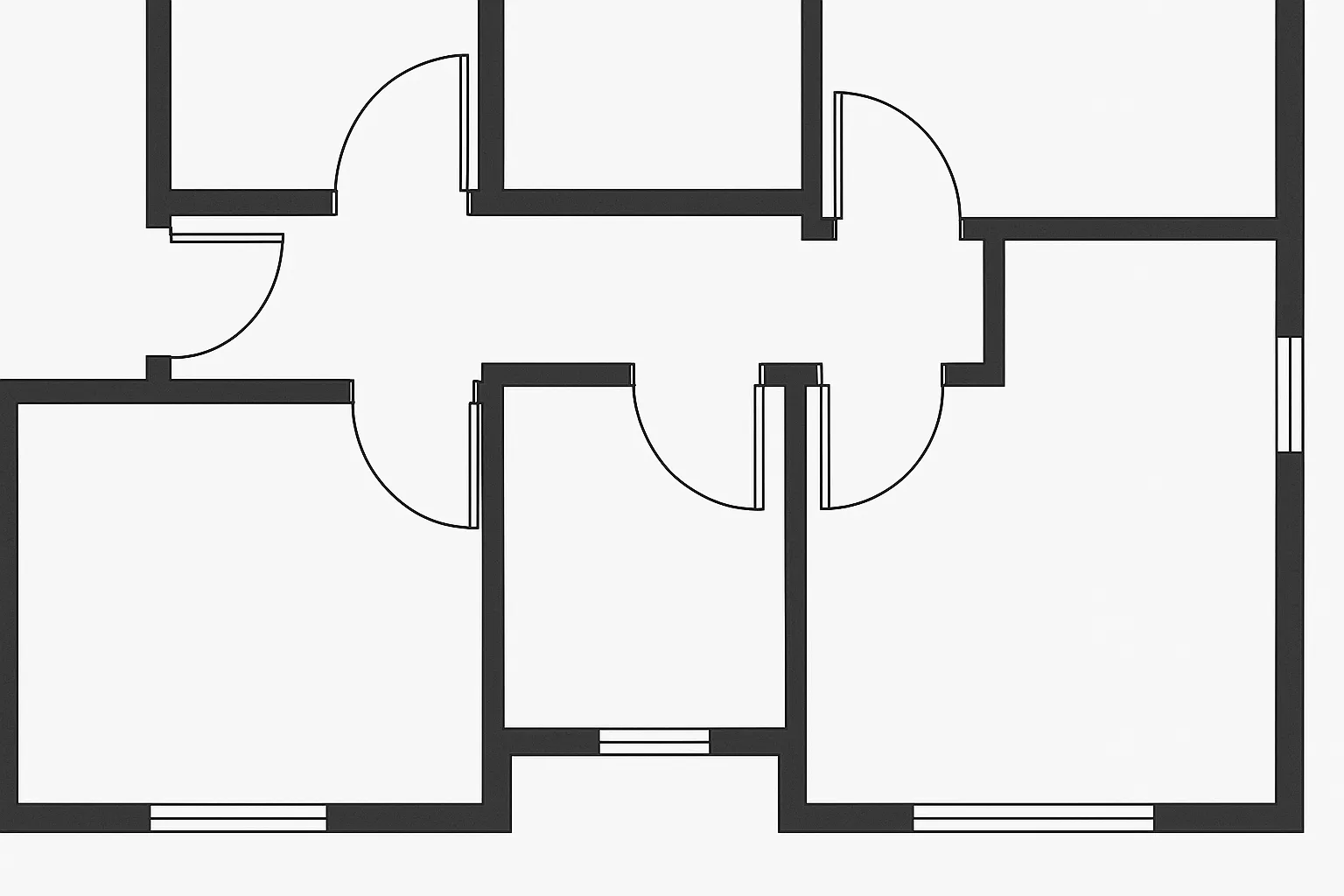

Standard Drawing Conventions for Doors in 2D Plans

To ensure clarity and regulatory approval, 2D floor plans should include:

1. Door Opening: Break in wall where the door will be placed
2. Door Leaf: Rectangular shape showing physical slab of the door
3. Swing Arc: Dashed curved line indicating opening direction and range
4. Door Tags: Labels such as D01, D02 to identify individual doors
5. Dimension Callouts: Including width, offset from walls, clearance spaces

These standards ensure that your drawings are easy to read by builders, inspectors, and clients.

Common Mistakes in 2D Door Design (And How to Fix Them)

Mistake 1: Door-to-door conflicts

1. Issue: Opposing doors may swing into each other
2. Fix: Offset doors or keep at least 12–18 inches of wall between them

Mistake 2: Door opens into furniture or outlets

1. Issue: Blocks function and accessibility
2. Fix: Mark the full swing arc during the planning phase and adjust accordingly

Mistake 3: Door width below code minimums

1. Issue: Non-compliance with ADA or IRC; poor mobility flow
2. Fix: Use 32-inch width as a baseline; 36-inch for common areas or entrances

Mistake 4: Missing door tags or schedules

1. Issue: Confusion in construction documentation
2. Fix: Assign a unique tag (D01–D10) and maintain a matching door schedule with size, type, and hardware

Expert Tips from Professional Drafting Consultants

Riley Adams, Certified Interior Designer:

“Symmetry may look good on paper, but poor door placement ruins real-world functionality. Always prioritize movement patterns over aesthetics.”

Emily Hart, Residential Plan Checker:

“Swing arcs must be drawn in 2D. Especially in kitchens or hallways, a 5° collision can block appliance doors or storage access. It’s a make-or-break detail.”

Precision Starts with the Door

Every door in a floor plan represents a decision about space. It's not just about form — it's about access, comfort, and compliance.

When drafting doors in 2D, remember to:

1. Follow ADA standards and IRC residential code
2. Use correct symbols for door leaf, arc, and labels
3. Dimension pull-side clearance and net clear widths
4. Maintain a clean door schedule for contractors and inspectors

A well-placed door doesn’t just open a room — it opens up a smarter, safer layout.
