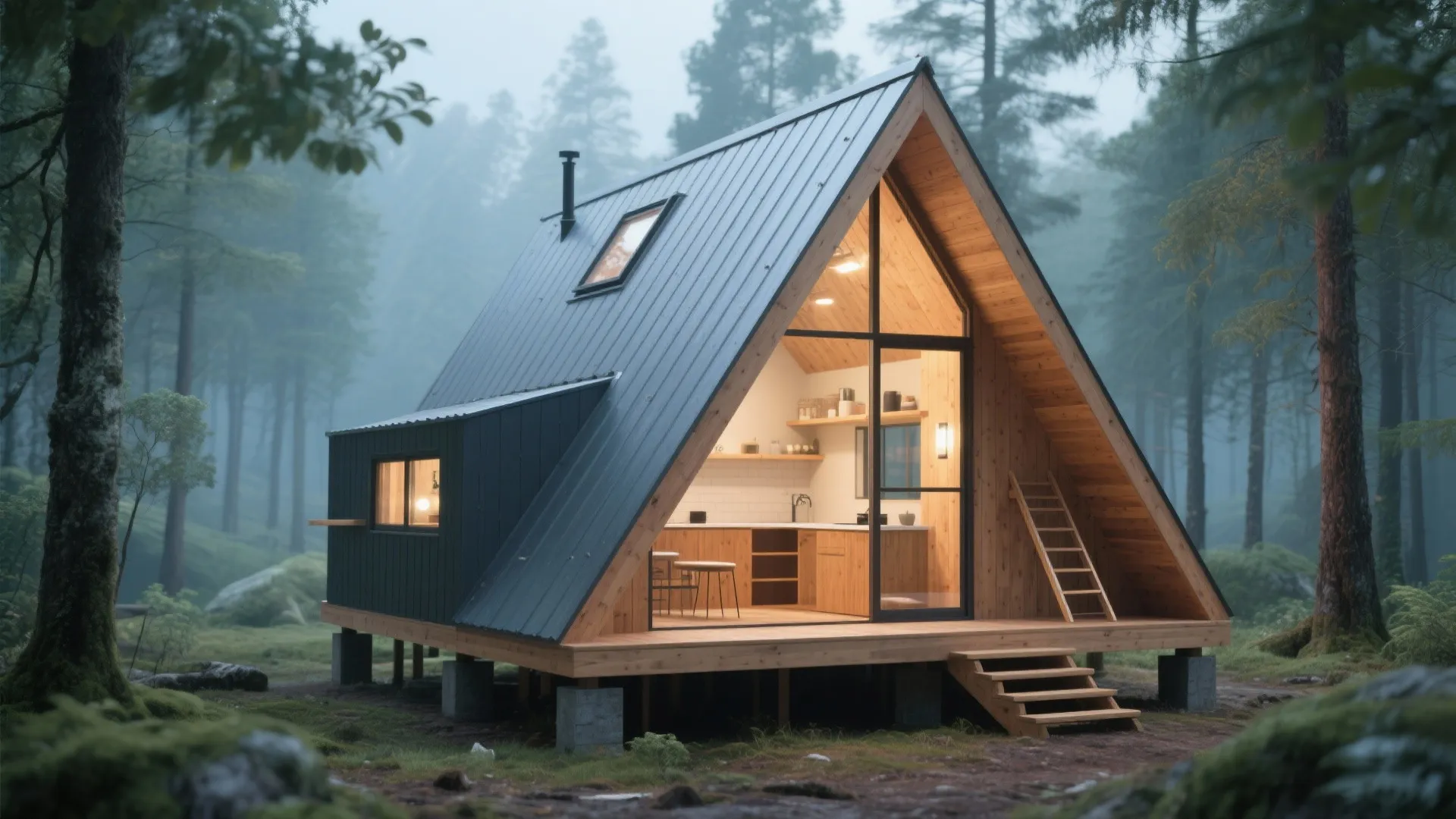

DIY A Frame House: Step-by-Step Guide for Beginners: Fast-Track Guide to Building Your Own A Frame House in Less Time

Designing and building a DIY A-frame house is equal parts structure, climate strategy, and lifestyle choice. I’ve planned cabins from coastal forests to high-desert slopes, and an A-frame can be a smart envelope when you leverage its steep roof, compact footprint, and simple geometry. Done right, it delivers thermal efficiency, resilient structure, and character—without overcomplicating the build.

Early decisions should be grounded in data, not just aesthetics. A-frame interiors benefit from daylight and glare control: the Illuminating Engineering Society (IES) recommends task illuminance around 300–500 lux for living and work areas, while circulation can sit at 100–200 lux; getting glazing area and shading right matters on those tall gables. Ergonomics also apply even in small cabins—working surface heights near 28–30 inches help reduce wrist deviation according to mainstream ergonomic standards, improving day-to-day comfort. I routinely map these baselines before framing, so the envelope serves the way you live.

Material choices are no place for guesswork. WELL v2 guidance highlights volatile organic compound (VOC) limits and source control for healthier indoor air; I’ve seen noticeable performance gains using low-VOC finishes and airtightness detailing at roof planes and ridge junctions. Thermal strategy matters too: Steelcase research on worker comfort indicates temperature variation strongly impacts perceived productivity—translate that to cabins, and your insulation continuity and air sealing will make or break comfort across seasons.

Assess Site, Codes, and Foundation Strategy

Start with your site. A-frames shed snow well, but wind uplift on those large planes can be significant. Get a basic wind and snow load check for your county and confirm setbacks, height limits, and utility routes. Soil determines your foundation: for well-draining sites, pier-and-beam can keep costs down and speed construction; for frost-prone regions, consider frost-protected shallow foundations. I model the footprint early to verify clear circulation and furniture placement; when space is tight, a room layout tool helps test bed alcoves, ladder vs. stair positions, and dining clearances before committing to structural spacing.

Define Your A-Frame Geometry and Span

An A-frame is essentially two rafters forming a steep isosceles triangle, tied by a floor system. Common roof pitches range from 12:12 to 18:12; steeper roofs shed snow and increase vertical volume but compress usable floor area along the edges. I balance rafter spacing (16" or 24" on center) with insulation thickness and window openings. If you plan a sleeping loft, set the tie beam height and stair/ladder angle early—remember ergonomic riser heights (7–7.75") and treads (10–11") to keep ascent safe.

Plan the Envelope: Insulation, Air Sealing, and Moisture

Warm-side air sealing and continuous insulation are the soul of a comfortable A-frame. I favor a vented roof with baffles to maintain airflow from eave to ridge, reducing condensation risk. In cold climates, aim for roof R-values consistent with local energy codes; continuous exterior insulation over sheathing reduces thermal bridging at rafters. In mixed climates with high humidity, prioritize a robust vapor control strategy, avoiding double vapor barriers. Pair the envelope with operable ridge and gable windows for stack ventilation; target interior daytime light levels at 300–500 lux in primary zones using layered lighting to supplement.

Structure: Rafters, Ties, and Lateral Bracing

Choose rafter depth based on span and insulation needs—LVL or glulam rafters allow longer spans with slimmer profiles. The rafter-to-floor tie connection must resist thrust; hardware selection should follow manufacturer specs for snow and wind loads. I add discrete knee braces at entry and gable ends for lateral stability without cluttering lines. If you integrate large triangular glazing on the gable, calculate shear walls or use structural glass systems that preserve the view while maintaining stiffness.

Floor Plan and Daily Ergonomics

Compact A-frames thrive when circulation is clean. Keep primary path widths around 32–36"; set kitchen counters at 36" height and consider pull-out prep boards for flexibility. Bed nooks benefit from 24" clearance on at least one side. Use the interior layout planner to check clearances under sloped ceilings—people instinctively avoid head-bumping zones, so push storage and seating into knee-wall areas and keep stand-up tasks in the center bay.

Openings: Doors, Windows, and Glare Control

Glazing on tall gables is irresistible but can create glare and heat gain. I apply light shelves, exterior overhangs, and high-performance glass with low solar heat gain coefficients to temper extremes. Aim for operable windows on opposing sides to enable cross-ventilation; pair with ridge vents for passive stack effect. Based on IES targets, use dimmable warm-white ambient lighting (2700–3000K) in living areas and neutral-white task lighting (3500–4000K) in kitchens. Window placement should preserve privacy and frame landscape views while respecting thermal balance.

Framing Sequence: Step by Step

1) Set foundations or piers and verify level. 2) Install band joists and floor system; sheathe the deck. 3) Layout rafter positions on the deck, then assemble and raise rafter pairs—temporary bracing is essential. 4) Install tie beams and any loft joists; confirm square and plumb frequently. 5) Add roof sheathing, underlayment, and flashing; integrate vent baffles before insulation. 6) Frame gable walls and openings; install structural headers where needed. 7) Weather-in with roofing and housewrap, then set windows and doors. 8) Complete rough mechanicals and electrical, focusing on airtight penetrations. 9) Insulate, air seal, and finish interior cladding.

Services: Electrical, HVAC, and Acoustic Comfort

Plan cable runs at mid-wall height along the center bay to avoid sloped ceiling complications. Mini-split heat pumps are efficient for small volumes and offer zoned control; pair with a heat recovery ventilator for fresh air without sacrificing efficiency. A-frames can echo; soften acoustics with wood fiber panels, rugs, and upholstered pieces. Set receptacle and switch heights with ergonomics in mind—switches around 44–48" work well for most users while keeping lines clean.

Materials and Finishes for Durability

Exterior: durable roofing (metal or high-quality architectural shingles), rainscreen siding (wood, fiber cement), and corrosion-resistant fasteners. Interior: low-VOC finishes per WELL guidance and moisture-resilient materials near kitchens and baths. The sloped ceiling is a feature—tongue-and-groove wood brings warmth, while pale matte finishes lift perceived brightness. Prioritize FSC-certified lumber and recycled-content insulation to elevate sustainability.

Color Psychology and Atmosphere

Color sets behavioral cues in compact spaces. Soft greens and desaturated blues can lower arousal and support relaxation; saturated accents near social areas help energize without overwhelming. Keep ceilings lighter to expand perceived height, and anchor the floor with a mid-tone to stabilize the visual field. If your A-frame doubles as a workspace, neutral palettes with controlled contrast prevent eye strain and balance focus.

Safety, Maintenance, and Long-Term Flexibility

Guard open edges at lofts with code-compliant railings and baluster spacing. Use anti-slip treads on steep stairs or ladders, and install hardwired smoke/CO detectors. Maintenance should include annual roof inspections, fastener checks, and resealing exposed wood. Design for adaptability: modular storage along knee walls, plug-and-play lighting tracks, and future-proof chases for solar or battery upgrades.

Resources and Research

I lean on respected bodies for performance baselines and design clarity. Explore guidance from the International WELL Building Institute for air quality and materials and IES standards for lighting targets—both help translate comfort into buildable detail. For workplace behavior insights that map nicely to cabin productivity and comfort, the research divisions at Steelcase offer useful context.

Reference links: WELL Building Standard v2 and IES lighting standards are excellent starting points for healthy materials and illuminance targets.

FAQ

What roof pitch works best for an A-frame?

Common pitches range from 12:12 to 18:12. Steeper roofs shed snow better and increase vertical volume, but reduce usable floor width at the edges. Choose based on climate and desired loft height.

How do I prevent condensation in the roof assembly?

Use a vented assembly with continuous airflow from eave to ridge, add baffles, and maintain an airtight warm-side layer. Avoid trapping moisture with improper vapor barriers.

What insulation strategy is most effective?

Combine cavity insulation with continuous exterior insulation to limit thermal bridging at rafters. Aim for R-values aligned with local energy codes and seal all penetrations.

How much natural light should I target?

For primary living and work areas, plan for 300–500 lux at task level per IES guidance. Supplement large gable glazing with shading to manage glare.

Are mini-split systems suitable for small A-frames?

Yes. Mini-splits provide efficient heating/cooling with zoned control. Pair with a heat recovery ventilator to maintain fresh air without major energy penalties.

Can I use a ladder to access the loft?

You can, but a compact staircase with risers around 7–7.75" and treads 10–11" is safer and more comfortable. If space forces a ladder, add handrails and non-slip steps.

How do I manage acoustics in a tall, open volume?

Introduce sound-absorbing finishes: wood fiber panels, rugs, curtains, and upholstered seating. Break up hard parallel surfaces to reduce flutter echoes.

What materials reduce indoor air pollutants?

Low-VOC paints, adhesives, and sealants, plus solid wood and formaldehyde-free panels. Follow WELL v2 guidance for source control and verify product certifications.

How should I plan electrical in sloped ceilings?

Route along center bays and knee walls, use surface-mount tracks or pendants with adjustable drops, and set switch heights around 44–48" for accessibility.

Is pier-and-beam acceptable for cold climates?

It can be, but consider frost-protected shallow foundations to handle freeze-thaw. Always confirm soil and local code requirements.

What window glazing is best for a large gable?

Use low-SHGC, low-e glazing with thermally broken frames. Combine with exterior shading or interior light-diffusing treatments to control glare and heat gain.

How can I maximize usable floor area under slopes?

Push storage and seating into knee-wall zones, keep standing tasks in the center, and validate clearances with a room layout tool before framing.

Do I need engineered rafters?

For longer spans or heavier snow loads, LVL or glulam rafters are smart choices. They allow slimmer profiles while meeting structural requirements.

What maintenance does an A-frame require?

Annual roof inspections, fastener checks, sealant renewal, and periodic re-finishing of exposed wood. Verify window seals and clean gutters to preserve the envelope.
