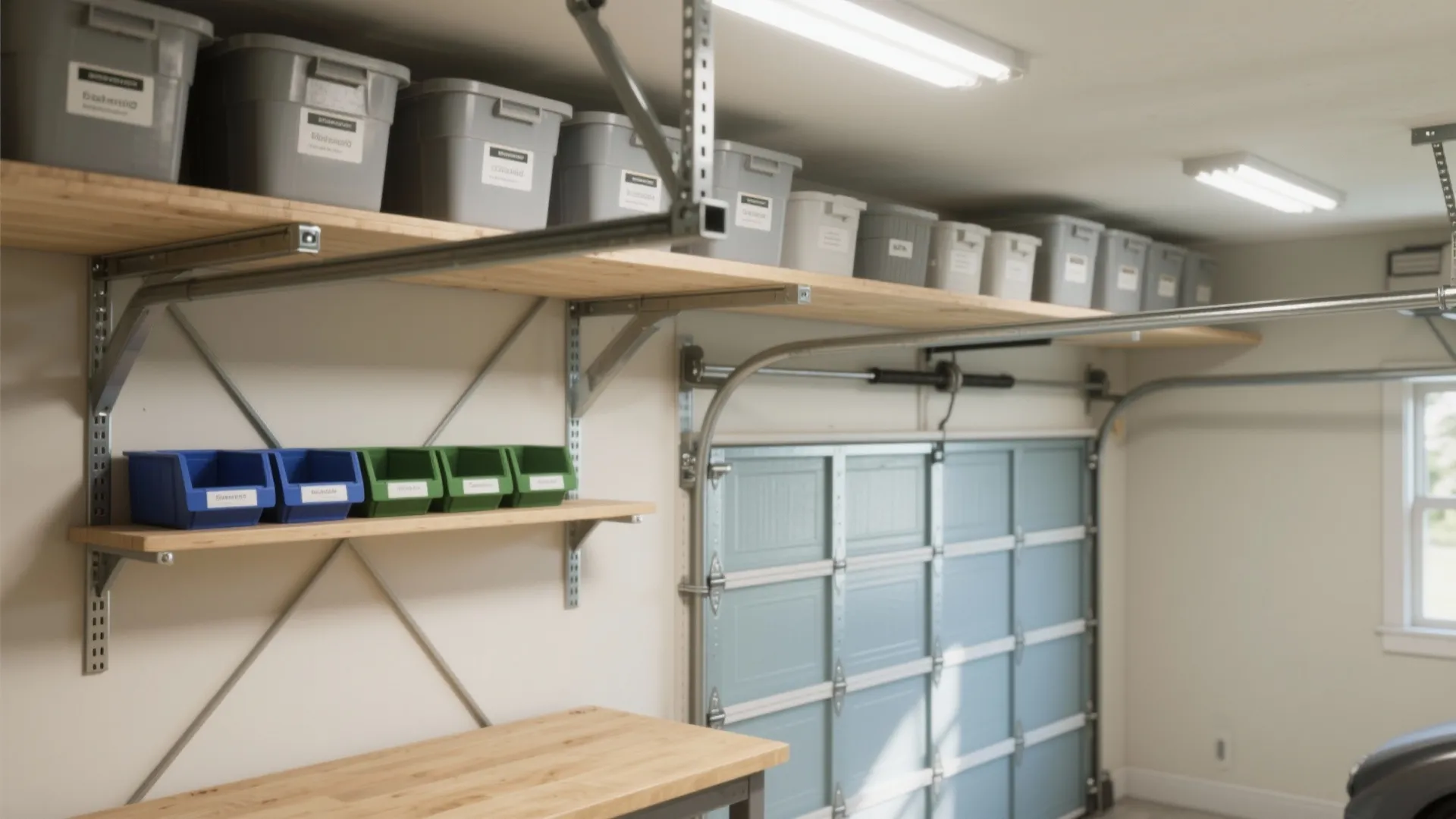

DIY Above Garage Door Storage: Maximize Overhead Space Smartly: Fast-Track Guide to Creating Garage Storage in Minutes

I’ve converted countless underused garage volumes into clean, high‑capacity storage, and the strip above a sectional door is one of the most overlooked. Done right, it carries seasonal gear, tools, and bins while keeping the track clearance, torsion assembly, and headroom safe. The sweet spot is balancing load, access, and door movement, then choosing hardware rated for the job.

Two data points guide my layouts. First, typical 24‑gauge steel garage doors weigh 100–150 lb depending on insulation, but the opener’s duty cycle and spring balance are designed only for door motion—not extra loads on rails or tracks. Second, ergonomic research from Herman Miller shows optimal reach zones cap frequent‑use storage at 15–48 inches above floor, with infrequent items placed higher; anything above 72 inches should be light and accessed less often to reduce strain. This is why I keep heavy totes off the overhead and use it for seasonal or bulky but lightweight items.

To keep the door’s path unobstructed, I map clearances first. Most standard doors need 12–18 inches of headroom for the horizontal track and opener rail; some low‑headroom kits use dual tracks but still claim roughly the same envelope. Steelcase workplace research on organized environments notes up to a 27% perceived productivity gain when clutter is reduced—translating neatly to a garage: better zoning speeds retrieval and keeps you working safely.

Plan the Structure Above the Door

I start with the load path. Shelves or racks should transfer weight to joists or wall studs, never to the door tracks or opener rail. Ceiling joists at 16 or 24 inches on center dictate bracket spacing; I use a stud finder and mark spans, then design shelves that center fasteners in solid framing. If your ceiling is finished drywall, add access via cutouts or use toggle anchors only for non-structural trim, not for load-bearing shelves.

For simple spans, I like 2x4 ladder frames skinned with 3/4-inch plywood, hung with heavy-duty angle brackets rated 200 lb+ per bracket. Stainless or zinc-coated lag bolts are a must in humid garages. I keep depth to 16–20 inches so bins won’t foul the door. Always leave 2–3 inches minimum from shelf front edge to the door’s high-point arc.

Choose Appropriate Hardware and Materials

Powder-coated steel ceiling racks are convenient, but confirm load ratings after derating for fastener type and joist spacing. Look for products with published dynamic load limits and anti-racking diagonal braces. I prefer through-bolting where possible: 5/16-inch lag screws into joists and Grade 5 hardware for redundancy.

Materials matter in unconditioned garages. Plywood resists dimensional change better than MDF. If using lumber, select kiln-dried boards to minimize warping near a heat source (sun-facing doors can push garage temps above 100°F in summer). For bins, clear polypropylene with gasket lids keeps dust and insects out; label on two faces for easy identification from below.

Lighting, Visibility, and Safe Reach

Task lighting reduces ladder time and mistakes. The Illuminating Engineering Society recommends 300–500 lux for task areas; I aim for around 400 lux above the door zone with 4000K LEDs to maintain neutral color rendering. Add glare control—shielded fixtures or diffusers—to avoid blinding reflection off metal rails when you’re on a ladder.

I keep high storage for items under 20–25 lb per bin. A lightweight aluminum ladder with 3-point contact and rubber feet is my standard. Always face the shelf, keep hips over rails, and avoid reaching more than 18 inches from your centerline. For frequent access, relocate those bins to eye-level wall shelving instead.

Protect Door Mechanics and Clearances

Never attach to tracks, struts, or the opener’s rail. Torsion springs, cables, and drums need free access for maintenance. Leave 1–2 inches clearance around safety sensors and the photo-eye beam path; misalignment causes nuisance reversals. If your opener uses a wall-mount jackshaft, ensure the shaft and cable spools remain unobstructed. After installation, cycle the door several times and watch for near misses—especially at the top of travel.

Layout Strategy and Zoning

I split the overhead into three zones: center above the door for lightweight seasonal items, the side returns above the vertical tracks for long, light objects (snow shovels, foam boards), and deep ceiling space away from the door for heavier racks. Map these zones visually and label shelves to reduce decision fatigue.

If you’re modeling a tight bay or single-car garage, a room layout tool helps visualize clearance arcs and rack depths before drilling. Try this interior layout planner: room layout tool.

Ventilation, Moisture, and Material Longevity

Garages swing in humidity and temperature. Keep 1-inch gaps behind shelves for airflow and avoid pushing bins flush to drywall that may wick moisture. Use closed-cell foam pads under metal racks to prevent galvanic interaction with damp concrete if any leg lands on the floor. Desiccant packs in bins protect documents or fabrics. If you live in coastal areas, consider stainless hardware or hot-dip galvanization.

Acoustic and Behavioral Considerations

Metal-on-metal rattles near an opener can be distracting. I tape neoprene between brackets and joists, and secure loose ladder frames with construction adhesive plus screws to damp vibration. Behaviorally, the out-of-the-way storage discourages daily use, which is perfect for holiday decor or camping gear. For kids’ sports kits and bikes, keep them in low, easy-reach zones.

Safety Checks and Maintenance

Quarterly, inspect fasteners, look for deflection or sag, and retighten lag bolts. Check for any scuffs on the door panels or track that might indicate hidden contact. Rebalance the door annually—if it won’t stay at mid-height without the opener, springs may need professional adjustment. Update labels as items rotate.

Color and Visual Order

Color coding reduces search time. I use cool hues for seasonal (blue for winter, green for garden), warm for event decor, neutral for tools. Verywell Mind’s color psychology work links blues and greens to calming effects, making the overhead visually quieter in a busy workshop. Keep bin fronts consistent to avoid visual noise.

Mistakes to Avoid

Common errors: oversizing shelves that intrude into the door arc; trusting drywall anchors for load; hanging heavy items (paint, liquids) overhead; ignoring lighting; mixing materials that corrode (steel brackets with copper plumbing). If it feels marginal, downsize the load or relocate it lower.

Quick Build Steps I Trust

1) Measure door arc and opener rail; mark keep-out zones. 2) Locate joists and studs; snap chalk lines. 3) Pre-drill and mount rated brackets with lag bolts. 4) Build a shallow ladder frame; attach plywood top. 5) Add front lip or netting to prevent bin slide. 6) Label, load with light bins only, then test door cycles.

Reference and Standards

If you’re aligning your garage project with well-being criteria, review WELL v2 guidance on ergonomics and visual comfort; it reinforces reach zones and glare control without prescribing residential specifics. For lighting levels, the Illuminating Engineering Society’s recommendations offer reliable targets for safe visibility.

Explore more on healthy environments: WELL v2.

FAQ

Q1: How much weight can I store above the garage door?

A: Limit to lightweight items—typically under 20–25 lb per bin—and design your shelf to a known capacity based on bracket ratings and joist anchoring. Never load the door tracks; all weight must transfer to joists or studs.

Q2: What clearance do I need from the door?

A: Leave 2–3 inches minimum from the shelf edge to the door’s highest arc and maintain the opener rail path. Check by cycling the door and watching the top panel as it transitions to horizontal.

Q3: Are ceiling racks safe above a sectional door?

A: Yes, if mounted to joists with rated hardware and kept clear of tracks, springs, and sensors. Add diagonal bracing to prevent sway and ensure bins won’t shift into the door path.

Q4: What lighting should I use?

A: Aim for 300–500 lux task lighting; 4000K LEDs provide neutral visibility. Shield fixtures to reduce glare on metal components when you’re on a ladder.

Q5: Can I store liquids or paint overhead?

A: I avoid heavy liquids overhead due to spill risk and weight. Keep them on lower shelves where temperatures are more stable and access is safer.

Q6: How do I prevent corrosion?

A: Use galvanized or stainless hardware, avoid dissimilar metal contact, and keep airflow around shelves. Gasketed bins reduce moisture exposure.

Q7: What’s the best bin size?

A: Medium bins (12–18 gallons) balance weight and reachability. Label two faces and add a front lip on the shelf to prevent slide-out when the door moves.

Q8: Will overhead storage affect the opener?

A: It shouldn’t if you preserve the opener’s rail clearance and sensor alignment. If you notice stuttering or reversals, check for obstruction and re-level the photo eyes.

Q9: How do I anchor into a finished ceiling?

A: Locate joists with a stud finder, cut small access points if necessary, and use lag bolts into wood. Drywall anchors are not sufficient for structural loads.

Q10: Any layout tools to test fit?

A: Yes—simulate rack depths and door arcs with an interior layout planner before drilling: room layout tool.
