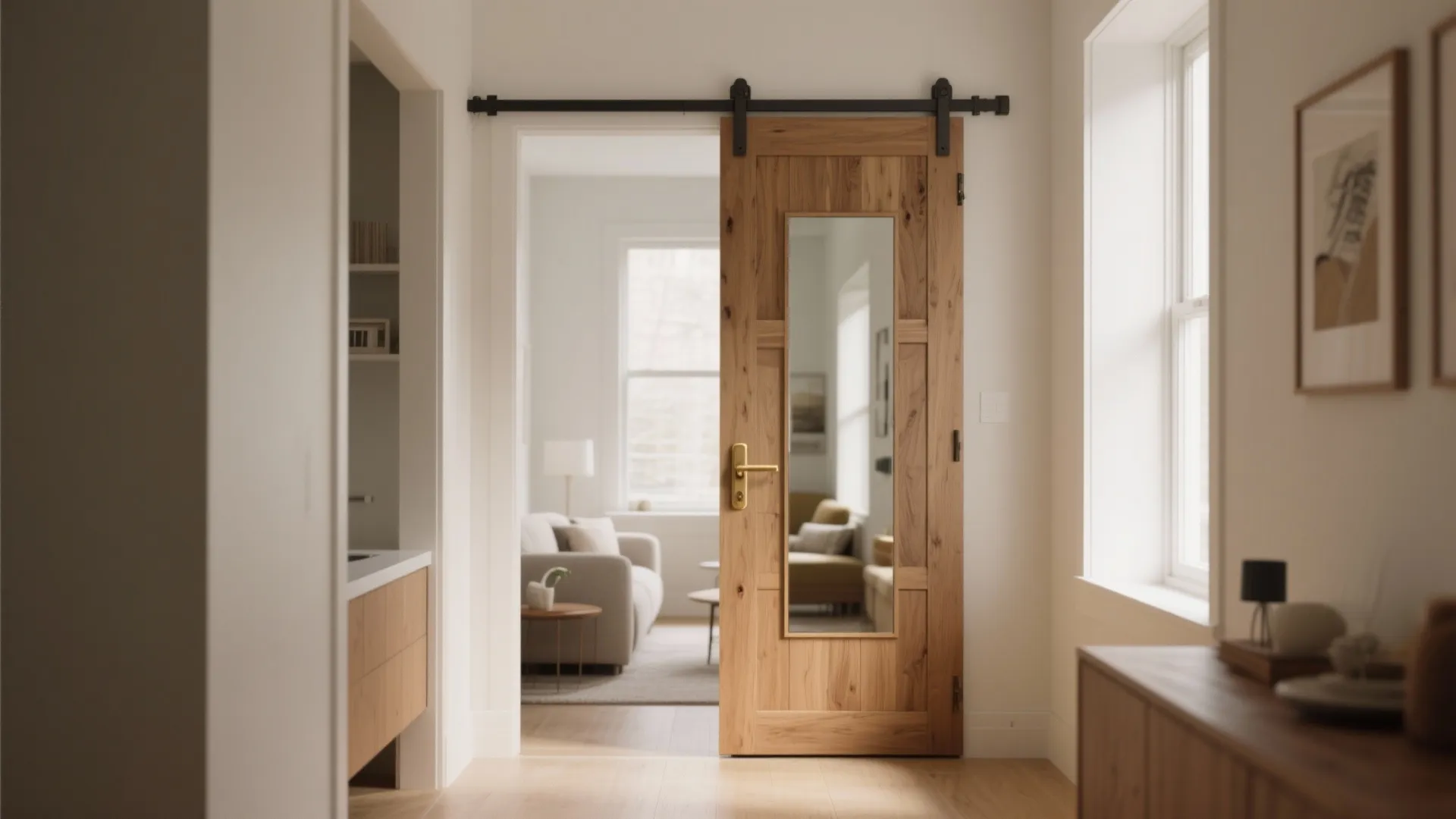

DIY Barn Door Mirror: A Stylish Statement for Small Spaces: 1 Minute to Upgrade Your Room with Barn Door Mirror DIY Tips

Sliding barn door mirrors bring instant depth and a tactile focal point to compact rooms. By combining a full-length mirror with a slim sliding track and a rustic door face, you get a multifunctional piece that reflects light, saves swing space, and elevates visual rhythm. In small homes where square footage is precious, a barn door mirror can expand perceived area by reflecting brighter zones and sightlines, while keeping circulation clear.

Light and ergonomics matter even in decorative installations. WELL v2 recommends meeting appropriate illuminance for task clarity, and the Illuminating Engineering Society (IES) cites 150–300 lux as a baseline range for general residential ambient lighting, while 500 lux supports grooming tasks at mirrors. Pairing your barn door mirror with a dimmable, 3000–3500K fixture reduces harsh shadows and helps color fidelity. Research from Steelcase indicates that people in well-lit, glare-controlled environments report higher comfort and sustained focus, which translates to better daily routines around vanities and entryways. For a deeper dive on lighting and human comfort, see the IES standards and WELL v2 resources.

Beyond lighting, form and behavior shape how the mirror works in a tight plan. Sliding hardware eliminates the swing arc of a hinged door, preserving 6–10 square feet of usable floor area in micro spaces. The mirror surface doubles the visual boundary, extending views and balancing composition across the room. When mounted along a traffic wall or concealing a shallow storage niche, you gain a clean face during the day and easy access when needed—an elegant resolution to clutter in small apartments.

Design Intent: Balance Function, Light, and Texture

I aim for a calm backdrop with a textured reveal. A narrow stile-and-rail wood face (3–4 inch stiles, 2–3 inch rails) frames a full-height mirror inset, giving tactile warmth without heavy mass. In tight entries, I prefer a lighter species (oak, ash, or FSC-pine) finished in matte or low-sheen to reduce glare. The mirror should align with typical eye levels—center around 58–60 inches from finished floor—to accommodate a broad range of users. Keep overall door thickness near 1–1.25 inches to minimize projection off the wall and avoid crowding.

Layout and Placement Strategy

Position your barn door mirror where it can borrow light—opposite or diagonal to a window—yet avoid direct axial glare. Maintain a minimum 2 inches clearance between mirror edge and adjacent vertical surfaces to prevent knuckle bumps. For hallways less than 36 inches wide, mount the track above the opening and use low-profile hangers to keep clearances. If you’re mapping options or testing traffic flows in a studio or entry, a room layout tool can help model sliding paths and reflections before you drill.

room layout tool

Dimensions That Work in Tight Rooms

For small apartments, 24–30 inches wide by 72–80 inches tall covers full-length without overpowering the wall. Leave at least 1 inch gap between the door edge and the wall to prevent scraping. Track length should be 1.5–2× door width to ensure full reveal. If covering a closet or a shallow shelf, confirm total travel clears the opening fully—no partial access points that encourage clutter.

Materials and Finish: Rustic, Refined, or Minimal

Wood: Solid oak or ash for durability; poplar or pine for budget builds. Consider FSC certification and low-VOC finishes for indoor air quality. Finish with a matte polyurethane or hardwax oil to resist fingerprints. Metal: Powder-coated steel or anodized aluminum tracks; select nylon-coated wheels for quieter glide. Mirror: Use a tempered safety mirror or add a safety backing film; beveled edges introduce a subtle light split that enhances depth. Hardware: Choose concealed fasteners and anti-jump brackets for stability, especially in homes with vibration (near transit lines or shared corridors).

Color Psychology and Visual Balance

The mirror amplifies adjacent colors. Soft neutrals around 3000K lighting temperatures reduce contrast fatigue and keep skin tones natural. If the barn face is dark (charcoal, espresso), balance with lighter walls to avoid a void effect. Warm mid-tones—clay, sand, light oak—feel welcoming and pair well with brushed brass or matte black hardware. A single accent stripe or inlay can anchor vertical rhythm without drifting into visual noise.

Acoustic and Glide Comfort

Sliding doors can click, rattle, or drone if poorly assembled. Add a felt or rubber bumper at terminal points and a soft-close damper to prevent slams. Nylon wheels on a continuous track reduce resonance; verify that mounting fasteners hit studs at 16 inches on center. If the mirror faces a hard-floored corridor, consider a small runner to absorb reflected sound energy and tame footfall.

Safety and Mounting: Non-Negotiables

Find studs and mark them before drilling. Use lag bolts sized to your track spec (commonly 1/4–3/8 inch diameter, length based on wall type). If using anchors on drywall, confirm load ratings exceed the door’s full weight by a 2× margin. Apply safety film to the mirror back or choose tempered glass. Maintain finger clearance at pulls—recessed pulls are ideal when doors pass close to adjacent walls. Add floor guides to prevent lateral sway.

Step-by-Step Build Overview

1) Measure the opening and wall run. Confirm travel distance and track length. 2) Cut and assemble your door face: stile-and-rail frame or a single slab with applied trim. 3) Attach mirror with proper backing: structural adhesive plus mechanical clips or a routed recess in a plywood core. 4) Finish the wood; let it cure fully to avoid off-gassing onto the mirror. 5) Mount the track to studs; level carefully. 6) Hang the door with anti-jump brackets; test glide. 7) Install floor guide and soft-close kit. 8) Adjust pulls and seals; check clearances and safety stops.

Where It Works Best

Entryways that need a quick look before heading out. Bedrooms lacking space for hinged closet doors. Studio apartments where one element needs to perform double duty: reflect light, hide storage, and provide tactile character. Bathrooms with adequate ventilation can use barn door mirrors outside wet zones—keep them away from direct shower spray and confirm privacy needs.

Maintenance and Longevity

Wipe the track monthly; dust acts like abrasive grit. Clean mirrors with a non-ammonia solution and microfiber. Re-tighten hardware twice a year. If you used a natural oil finish, refresh annually. Inspect safety film for bubbles and edges; replace if compromised. A well-built unit should glide silently and stay square for years.

FAQ

How much space do I need for the sliding path?

Plan for 1.5–2× the door width in track length and at least 1 inch wall clearance along the travel. Keep floors flush; transitions can snag guides.

What lighting works best around a mirror door?

Target 300–500 lux at face height with 3000–3500K color temperature. Diffuse lighting prevents harsh shadows at cheek and jaw lines.

Is tempered glass mandatory?

It’s strongly recommended. If using standard mirror, add a safety backing film to minimize hazards in case of breakage.

Will a barn door mirror make my room feel larger?

Yes—by reflecting brighter zones and extending sightlines. Place it to capture the longest view and avoid clutter reflections.

Can I mount on drywall without hitting studs?

Use heavy-duty anchors rated above the door’s full weight, but studs are the preferred method for long-term safety and stability.

What finishes minimize fingerprints?

Matte or low-sheen wood finishes and brushed metal hardware show fewer prints. Keep a microfiber cloth nearby for quick touch-ups.

How do I reduce noise when sliding?

Choose nylon wheels, add felt bumpers, and install a soft-close kit. Ensure the floor guide is aligned to prevent lateral chatter.

Will humidity in bathrooms damage the door?

Use sealed finishes and keep the door outside direct wet zones. Good ventilation helps; avoid placing mirrors where steam condenses heavily.

What pull style works in tight clearances?

Recessed pulls or low-profile edge pulls protect fingers and keep the door from snagging clothing in narrow halls.

Can I hide storage behind the mirror?

Yes. Plan shelf depths to clear the back of the door and use full travel to reveal the opening completely; avoid partial access points.

How high should I mount the mirror center?

Around 58–60 inches from finished floor suits most users and aligns well with typical eye levels in compact spaces.

What track finish is most durable?

Powder-coated steel resists scratches, while anodized aluminum is lightweight and corrosion-resistant—choose based on look and environment.
