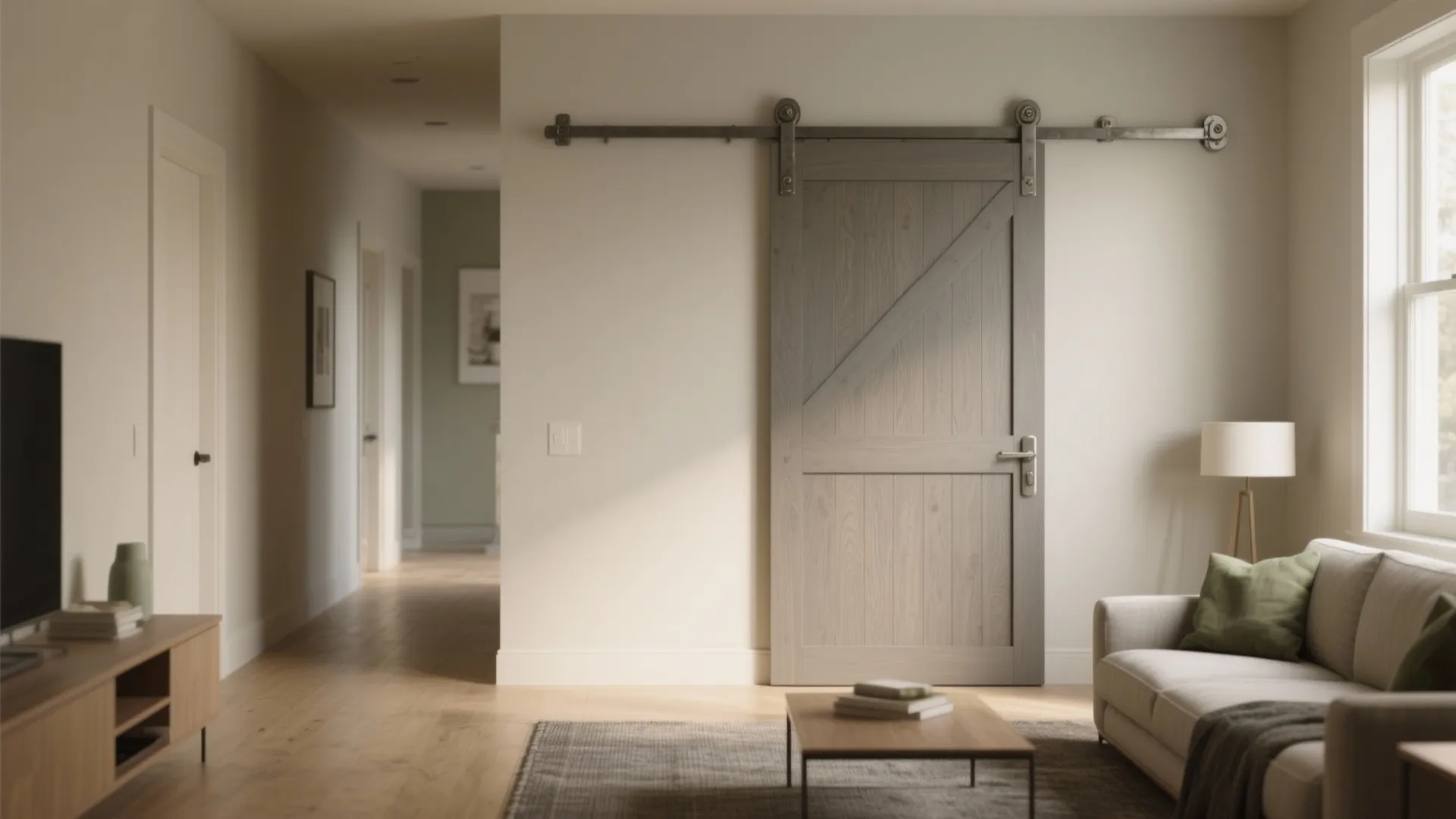

DIY Barn Door Plans: Transform Your Space with Style: Fast-Track Guide to Barn Door Building in Just 1 Day

Sliding barn doors bring character, save floor space, and solve tricky circulation challenges in tight homes and studios. I’ve specified and built dozens over the years, and the best results come from planning—millimeter-accurate measurements, hardware matched to door weight, and finishes tuned to the room’s light and acoustic profile. Space savings alone can be substantial: a standard interior swing door needs roughly 10–12 sq ft of clearance, while a barn door consumes near-zero swing area, improving tight corridor flow and furniture placement. Steelcase research shows spatial efficiency and reduced obstructions contribute to perceived productivity and movement ease in workplaces, a lesson that translates to home layouts where circulation is often constrained. WELL v2 also emphasizes accessible movement and clear paths, aligning seamlessly with sliding solutions that eliminate swing conflicts.

Beyond flow, a barn door can subtly influence comfort. According to the Illuminating Engineering Society (IES), recommended ambient residential lighting levels typically range around 100–300 lux, and glare control is key when introducing reflective surfaces like glass inserts or high-sheen paints. Color choices matter too: Verywell Mind’s overview of color psychology indicates blues can support calm and focus, while warm neutrals increase a sense of comfort—useful when a barn door is a large visual field in a living room or home office. For workplace adjacency or study areas, Steelcase research highlights how reduced visual clutter and controlled sightlines enhance focus; a solid door can limit distractions, while translucent glazing maintains brightness.

Key Measurements and Clearances

I start every plan by mapping openings and travel paths. Measure the net door opening (width and height), surrounding wall space for the slide, and obstacles like thermostats or outlets. A single barn door should be 1–2 inches wider than the opening for privacy and light control. Leave at least the full door width of free wall on the slide side; for double doors, ensure twice the clear wall width. Maintain 1/2–3/4 inch gap at the floor for smooth travel and undercut ventilation; add a floor guide to prevent sway. For ceiling height, allow 6–8 inches above the door for track hardware and a comfortable sightline. If you’re navigating complex furniture and circulation zones, a room layout tool can help scenario-test movement and furniture placements before you drill.

room layout tool

Choosing the Right Track and Hardware

Hardware dictates reliability. Match track kit capacity to door mass, not just size. Solid hardwood panels can run 60–120 lbs; reclaimed oak or dense maple pushes higher. Standard residential tracks typically support 150–200 lbs per door, with quiet, sealed bearings for smooth travel. Opt for steel tracks with anti-jump blocks and adjustable stops. If you’re closing a bathroom or bedroom, include a soft-close damper to reduce impact noise. Handle style and backplate width should align with your hand ergonomics—narrow pulls can pinch when opening heavy panels; a 1–1.5 inch grip depth feels safer and more comfortable.

Material Selection and Sustainability

Material choices shape acoustics, longevity, and maintenance. I frequently specify engineered hardwood skins over a stable core for flatness and reduced warping. For moisture-prone zones (laundry, baths), consider marine-grade plywood skins sealed on all sides, or powder-coated aluminum frames with tempered glass. Reclaimed timber adds depth, but inspect for embedded fasteners and plane the surfaces to reduce splinters. Low-VOC finishes keep indoor air quality in check; satin or matte sheens minimize glare. You can explore performance materials and surface innovations through resources like Material ConneXion, which track durability, sustainability attributes, and finish behavior.

Color, Texture, and Visual Balance

A barn door is a major visual plane; its color and texture will anchor the composition. For calm communal spaces, desaturated hues—warm gray, muted sage, or soft beige—pair well with natural wood grain. In a home office, cooler blues and charcoal can aid focus. Balance the door’s mass with adjacent wall art or shelving to avoid visual dominance. If the door spans 42–48 inches, consider horizontal planking for width rhythm; narrower doors benefit from vertical or chevron textures to create height. Keep edges clean and avoid overly busy hardware in minimalist rooms.

Acoustic Comfort and Privacy

Sliding doors don’t seal like swing doors, so I design for acoustic support. Add perimeter brush seals or compressible side gaskets where the door meets the wall to reduce sound leakage. A solid-core construction typically improves sound attenuation by several decibels compared to hollow assemblies. Soft-close dampers, rubber bumpers at stops, and low-noise rollers cut operational noise. For bedrooms or video-call areas, pair the door with a wall-mounted acoustic panel near the opening to catch reflected speech; textiles and area rugs further absorb high frequencies.

Light Control and Glaze Options

Glazed barn doors are excellent where you need borrowed light. Choose frosted or reeded glass to maintain privacy while diffusing brightness. Mind the IES-recommended ambient levels: in hallways, stay around 100–150 lux to avoid over-illumination spill through glass into sleeping areas. If glare becomes an issue, a matte film or low-iron frosted glass can tame reflections. For full privacy, keep the panel solid and leverage sidelights elsewhere.

Ergonomics and Daily Use

Door operation should be intuitive and safe. Mount handles at 34–38 inches above finished floor for a broad ergonomic range. If you have young children, specify edge radii and avoid protruding barn door straps or hooks that can catch clothing. Consider a finger pull on the latch side to prevent knuckles from contacting the wall. For accessibility, aim for a smooth 15–25 lbf pull resistance; oversized panels may require upgraded bearings or balanced hangers.

Wall, Header, and Fastening Strategy

Track loads transfer into studs or a structural header. I prefer a continuous 2x ledger mounted into multiple studs, then the track mounted to the ledger. Use lag screws rated for shear and withdrawal per manufacturer guidance. On masonry, choose sleeve anchors with appropriate embedment—keep holes clear of grout lines. Confirm that the header sits level; a 1/8 inch out-of-level will show as creep when the door rests.

Layouts: Single, Double, and Bypass

Layout choice relates to opening width and adjacent furniture. Single-slide is clean for 28–42 inch openings. Double-slide pairs are great over 60–72 inch openings, offering symmetry and flexibility. Bypass tracks solve cases with limited wall space, letting one panel pass in front of another; just ensure a slightly deeper header and track standoff to clear handles. To preview sightlines and furniture adjacency—especially in living rooms or studios—use an interior layout planner to model door travel and clearance impacts across scenarios before committing.

interior layout planner

Finishes and Maintenance

Finish the door and track components before installation. Seal all faces and edges to reduce moisture exchange. For daily care, a microfiber wipe-down avoids scratching matte finishes. Re-lubricate rollers annually if the manufacturer advises; retighten fasteners seasonally and check floor guides for wear. In kitchens, degrease pulls with a mild solution and rinse thoroughly.

Step-by-Step Build Outline

1) Measure opening and wall clearance. 2) Select door type: solid core, framed plank, or glazed panel. 3) Determine track kit capacity and length (door width + 4–6 inches). 4) Prep structural ledger or verify stud locations. 5) Fabricate door: cut, assemble, square, sand, and seal. 6) Mount track level and install hangers. 7) Hang door, set stops, and add floor guide. 8) Fit soft-close dampers and brush seals if privacy is a priority. 9) Add hardware: handles and finger pulls. 10) Test travel, adjust, and finalize.

Cost, Time, and Skill Level

A DIY solid-wood single panel with mid-grade hardware typically lands in the $250–$650 range, depending on timber and finish. Glazed or reclaimed builds trend higher. Most projects take a weekend: one day for fabrication and finishing, one for hardware and hang. If you’re new to carpentry, prioritize a flat, square panel and a dead-level track—those two steps determine 90% of the final feel.

Authority References

For lighting levels and glare control, consult IES recommended practices. For environmental comfort and movement, WELL v2 guidance offers human-centered criteria that complement sliding solutions. Color psychology insights from Verywell Mind can help tune the visual mood of a large panel in your space.

FAQ

Q1: How wide should my barn door be relative to the opening?

A1: Aim for 1–2 inches wider than the opening to reduce light bleed and improve privacy. For double doors, each panel should overlap the center by at least 1 inch.

Q2: Can a barn door work for bathrooms?

A2: Yes, with brush seals or side gaskets to limit sound and sight gaps, and a privacy latch if desired. Use moisture-resistant materials and fully sealed finishes.

Q3: What track length and capacity do I need?

A3: Track length should exceed door width by 4–6 inches for stop adjustment. Capacity must match door weight; many residential kits support 150–200 lbs per panel—verify manufacturer ratings.

Q4: How do I manage glare and lighting around a large door?

A4: Keep ambient levels near IES recommendations (100–300 lux in residential areas), choose matte finishes, and avoid direct beam hits on glossy surfaces. Frosted glazing diffuses light without harsh reflections.

Q5: What’s the best material for flatness and durability?

A5: Engineered cores with hardwood skins stay flat and resist warping. In wet areas, marine-grade plywood or metal frames with tempered glass perform well.

Q6: How do I make a barn door quieter?

A6: Use soft-close dampers, rubber bumpers on stops, and sealed bearings. Add perimeter brush seals to reduce air gaps and improve sound attenuation.

Q7: Is a bypass system worth it in small rooms?

A7: If you lack wall space equal to the full door width, bypass tracks let one panel pass in front of another. Ensure deeper standoffs and confirm handle clearance.

Q8: What handle height works for most users?

A8: Mount at 34–38 inches above finished floor for comfortable reach. For accessibility, ensure pull resistance stays around 15–25 lbf.

Q9: Do I need a structural header?

A9: You can mount to a continuous ledger tied into multiple studs; for wide or heavy doors, a dedicated structural header distributes loads and prevents fastener creep.

Q10: How do I plan furniture around a sliding door?

A10: Keep 3–4 inches clear at the wall for handle knuckles, avoid tall furniture within the slide zone, and test scenarios with a layout simulation tool to confirm circulation.

Q11: What finish sheen should I pick?

A11: Satin or matte minimize glare and fingerprints; semi-gloss is harder-wearing but can highlight reflections, which may be distracting in bright rooms.

Q12: How often should hardware be maintained?

A12: Check fasteners seasonally, clean tracks quarterly, and re-lubricate rollers annually if specified by the manufacturer. Inspect floor guides for wear.
