I’ve lit dozens of billiard rooms over the years, and the best games always happen under even, glare-free light. A DIY billiard table light isn’t complicated—what matters is getting the right brightness, color temperature, and spread, then mounting at the proper height. Done right, the table surface reads crisply, balls cast soft shadows, and players don’t squint when lining up a shot.

For performance targets, I work to the Illuminating Engineering Society’s recommended task ranges for visual tasks: roughly 300–500 lux on the playing surface for residential billiard tables is a reliable sweet spot (IES task lighting guidance). Keep color temperature around 3000–4000K for a natural cue-ball white and comfortable visual tone; Steelcase research also connects comfortable, balanced lighting to improved focus and reduced eye strain in task settings. These benchmarks help ensure your build isn’t just bright—it’s playable and comfortable.

Plan the Light Spread First

The cue is simple: the light should cover the felt evenly, with minimal falloff at the rails. For a standard 8-foot table (88" x 44" play area), aim for a fixture length around 40–60 inches or a linear system spanning roughly two-thirds of the table length. If you’re planning a multi-pendant approach, space three small shades equally along the table’s length and center the array on the table’s width to avoid shadow stripes. When laying this out, a layout simulation tool can help visualize coverage and avoid hot spots: room layout tool.

Select Sources: LED Wins for Heat, Color, and Cost

I prefer LED linear fixtures or LED pendants for three reasons: consistent beam spread, low heat, and good CRI (Color Rendering Index). Target CRI ≥ 90 to make ball colors pop and maintain felt fidelity. A typical DIY build uses 30–45W total LED load for an 8-foot table, depending on efficiency (many quality LED strips or bars deliver 80–120 lumens per watt). That usually lands you in the 300–500 lux range when installed at the right height and with a suitable diffuser.

Mounting Height and Glare Control

Mount the fixture so the light plane sits about 32–36 inches above the table surface. This height produces a gentle, even spread without throwing glare into players’ eyes during a stance. If you’re using pendants, add a matte or lightly textured diffuser to soften edge brightness. Shield the source above sightlines; you should never see the bare LED chips when standing at typical shooting positions.

Simple DIY Build Path

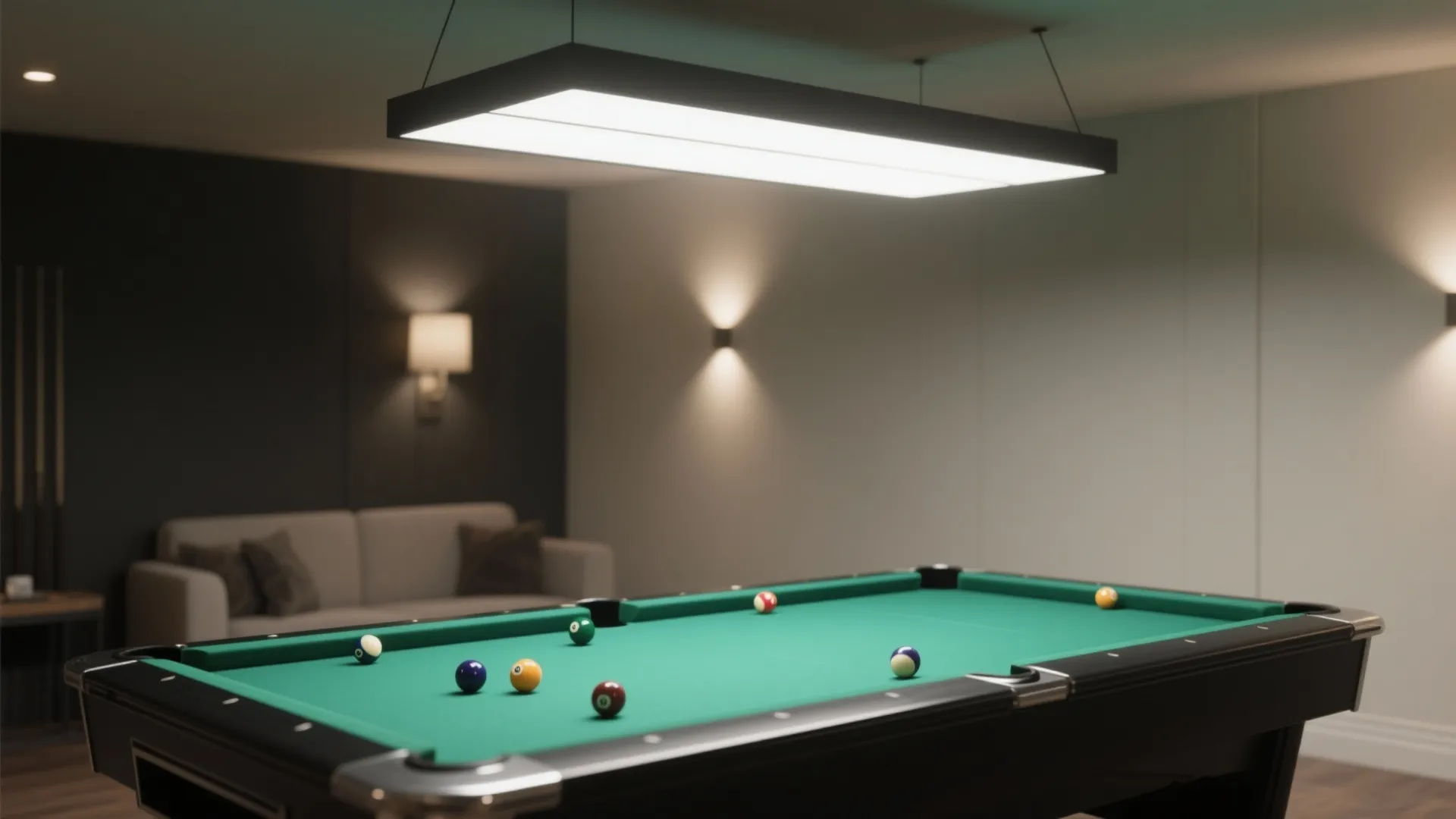

Here’s a clean setup I often specify for hobby builds: a rectangular wood or metal frame sized roughly 50" x 14" for an 8-foot table, lined with high-CRI LED bars on both long sides facing inward onto a matte white reflector panel. Add a translucent acrylic diffuser on the underside to homogenize the output. Suspend with two or three aircraft cables, each anchored to ceiling joists with proper toggles or lag shields. Keep wiring tidy with a junction box centered above the table.

Dimming, Switches, and Color Temperature

Install a compatible dimmer so you can fine-tune brightness. I often set 3500K for a balanced, neutral tone—warm enough for a cozy room, cool enough for visual clarity. If you’ve chosen tunable LEDs, lock the temperature after testing under actual play; too warm makes reds look muddy, too cool makes whites stark and fatiguing. Test from multiple shot angles to confirm no hotspots.

Measure Your Lux and Fine-Tune

Use a simple handheld lux meter or a phone-based sensor app to take readings at center and near each pocket. If you’re under 300 lux, raise output or lower the fixture slightly. If you’re over 600 lux and feel glare, either dim down or improve diffusion. The goal is smooth uniformity—small differences (±10%) across the surface are fine, but visible bright bands are not.

Safety and Structure

Anchor into solid ceiling framing and verify load ratings—most DIY light boxes weigh 8–18 lbs depending on materials. Use listed LED drivers and ensure all connections are enclosed in a junction box with strain relief. Keep wiring away from sharp metal edges and add grommets where cables pass through the frame.

Acoustics and Room Comfort

While billiards isn’t loud, hard surfaces can make a room feel harsh. A fabric-wrapped light box or the addition of felt baffles inside the fixture subtly dampens high-frequency reflections. Consider a rug or acoustic panels around the room to reduce clatter and keep the space comfortable for longer sessions.

Material Selection and Finish

Choose finishes that resist fingerprints and diffuse light well: matte black or bronze exteriors with matte white interiors are classics. If the felt is dark (navy, charcoal), a slightly higher output or a cooler end of neutral (3800–4000K) can help maintain contrast. Avoid glossy interiors inside the fixture; they create specular hotspots.

Color Psychology for Atmosphere

Green felt naturally pairs well with neutral-white light; it reads crisp without feeling clinical. If the room is painted deep colors, keep the light neutral to avoid color casts over the table. Accent lighting elsewhere can run warmer so the table remains the visual anchor.

Budget Notes

A DIY linear LED build typically lands between $120–$300 depending on materials and finish. If you opt for a prebuilt billiard light with high-CRI LEDs, expect $250–$700. Always check the driver specs for dimming compatibility to avoid flicker.

Troubleshooting Common Issues

If you see banding or hard shadows, add or replace the diffuser with higher-transmission matte acrylic, or reposition LED bars to graze the reflector rather than direct downlight. If the table edges look dim, extend the LED sources closer to the perimeter or lower the fixture by an inch. For color inconsistency, verify all LED strips are from the same bin and set to the same CCT.

Quick Layout Checklist

1. Target 300–500 lux on felt (IES task range)
2. Color temperature 3000–4000K, CRI ≥ 90
3. Fixture height 32–36" above table
4. Even coverage across rails and pockets
5. Dimmer + flicker-free driver
6. Secure anchoring into joists

FAQ

How bright should a billiard table light be?

For home play, aim for about 300–500 lux measured at the felt. This aligns with common task-lighting ranges referenced in IES guidance and gives clear ball visibility without glare fatigue.

What color temperature works best?

Stay in the neutral white range: 3000–4000K. I tend to set 3500K for balanced color and comfortable contrast.

Do I need high CRI LEDs?

Yes—CRI ≥ 90 keeps ball colors accurate and felt texture legible. Lower CRI can make reds and blues look flat and affect shot reading.

How high should I hang the fixture?

Mount 32–36 inches above the table surface. This height minimizes glare while maintaining even spread.

Single fixture or multiple pendants?

Either works. A single linear fixture offers cleaner uniformity; three pendants spaced evenly can look great but need careful diffusion to avoid shadow stripes.

Can I dim the light without flicker?

Use a driver and dimmer rated for your LED type (e.g., 0–10V or phase dimming). Poor driver selection is the main cause of shimmer and flicker at low levels.

How do I avoid glare on break shots?

Add a matte diffuser, shield LED chips from direct view, and verify site lines from typical stances. Adjust height or dim slightly if bright reflections appear on the cue ball.

What if my table edges look dim?

Extend the LED sources closer to the long sides, lower the fixture by about an inch, or increase diffusion to broaden the beam.

Is 4000K too cool for a cozy game room?

Not necessarily. 4000K delivers crisp contrast; pair it with warm ambient lamps elsewhere to keep the room inviting.

Any tips for power and safety?

Anchor into joists, enclose connections in a junction box, use listed drivers, and add strain reliefs. Avoid routing cables against sharp edges and use grommets.
