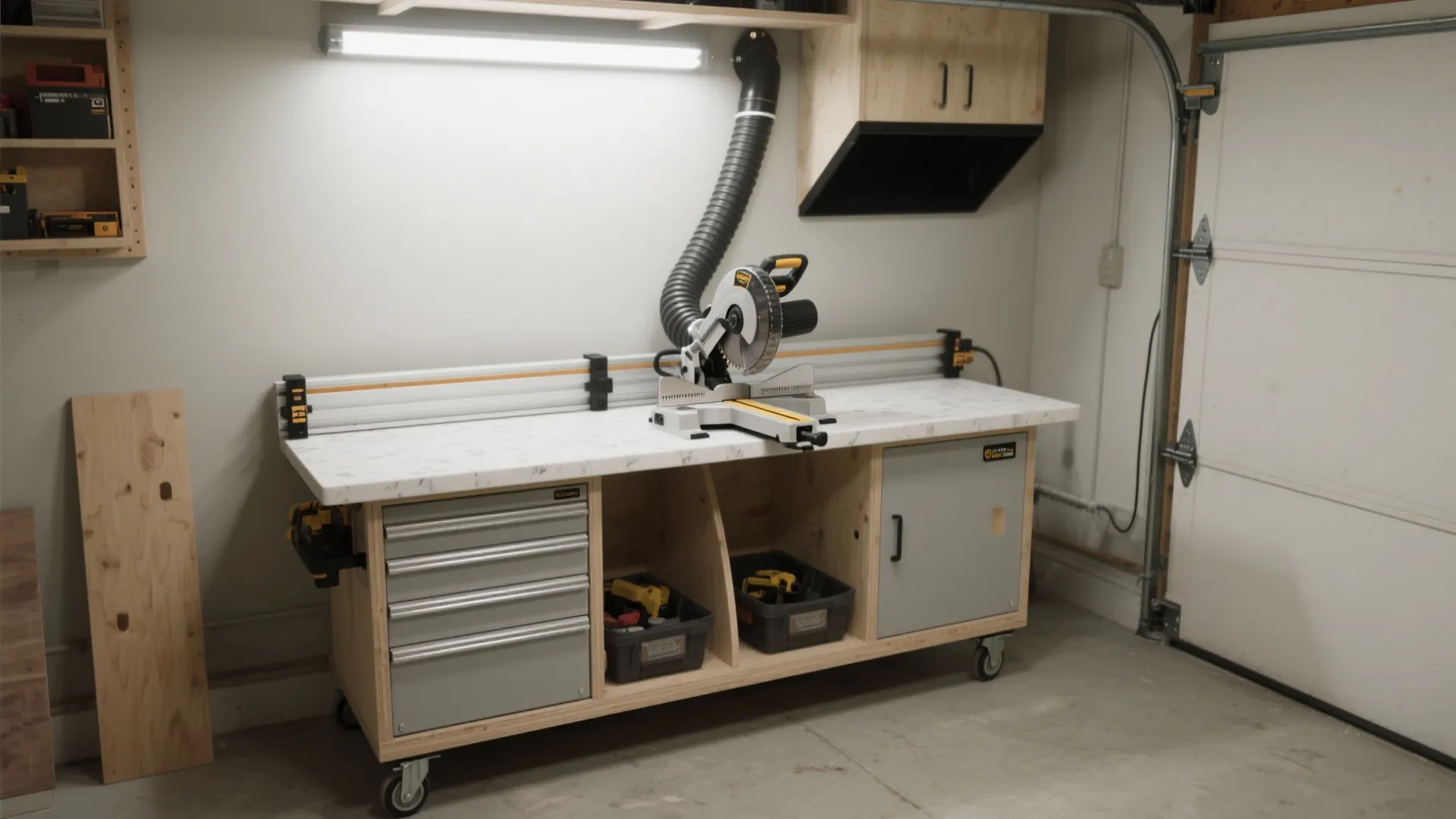

DIY Chop Saw Table: Your Essential Guide to Space-Saving Workshop Setup: 1 Minute to a Streamlined Chop Saw Table Project—No-Fuss, All Function

I’ve built and refined more than a dozen compact chop saw tables for small shops and garage workspaces, and the same principles keep paying off: smart ergonomics, consistent height alignment, and controlled dust and noise. A good station lets you cut faster, safer, and cleaner without swallowing precious floor area. In workshops where floor space averages under 200 sq ft, shaving just 6–10 sq ft with better layout can open a safer pathway and free up assembly space.

Height and reach aren’t guesswork. The WELL v2 Ergonomics concept targets working surfaces in the 28–38 inch range to accommodate neutral shoulder posture, while many carpenters prefer 34–36 inches for standing saw work to keep elbows around 90–120 degrees. For lighting, IES recommendations for detailed tasks land near 1000–1500 lux at the cut line, paired with 4000–5000 K neutral-white LEDs to preserve color accuracy and minimize eye strain; keep glare below unified glare ratings recommended in shop task lighting to protect sightlines near shiny aluminum fences. See WELL v2 guidance on ergonomics and posture and IES standards on task lighting for deeper context.

Plan the Footprint and Flow

Start by mapping how you move: walk from lumber rack to saw, cut, stage offcuts, and slide finished pieces to assembly. A linear flow keeps tripping hazards low. In tight shops, I aim for a table footprint around 24–30 inches deep and 60–72 inches wide, with wings extending as needed. Maintain at least 36 inches of clear aisle on the operator side—IFMA workplace circulation guidance often cites 36 inches as a practical minimum for comfortable movement in light-duty tasks. If your layout is tricky, use a room layout tool to simulate aisle widths, turning radii, and the impact of folding wings: room layout tool.

Set the Working Height and Fence Alignment

Match your chop saw deck height to the table wings within ±1/16 inch to prevent stock dipping or binding. I typically set the finished surface at 35 inches for average users and adjust for taller operators. Keep the rear fence perfectly straight; a continuous T-track or straightedge reference helps. For repetitive work, integrate a stop block system with clear, legible scales—black-on-white with matte finish reduces glare and misreads under 4000–5000 K LED lighting.

Left/Right Wings and Material Support

Design wings to support your longest typical stock. For trim and casing, 72–96 inch wings are common; for furniture parts, 36–48 inches may suffice. Include adjustable leg levelers on wings to maintain co-planarity on uneven floors. A low-friction top—laminated plywood or melamine—keeps stock sliding without lifting. Add a sacrificial backer strip for cleaner cuts and reduced tear-out.

Dust Collection and Air Quality

Chop saws throw fine particulates that linger. Enclose the rear with a wedge or funnel hood aimed at a 4-inch dust port, ideally pulling 350–400 CFM at the hood to capture airborne dust quickly. Supplement with a high-MERV shop air filter and a downdraft box near sanding areas. Keep hoses short with gentle sweeps; tight elbows kill airflow. A rubber flapper at the hood opening helps when cutting narrow stock.

Lighting the Cut Line

Place a dedicated task light within 24 inches of the blade path. Aim for 1000–1500 lux at the miter fence and crosscut line, and keep the fixture shielded to avoid glare reflecting off aluminum. Neutral-white 4000–5000 K gives accurate read on pencil lines and grain. If your saw has an LED shadow line, coordinate brightness so shadows aren’t washed out.

Noise and Vibration Control

Even brief cutting cycles spike noise. Soft-mount the saw with anti-vibration pads and mass-load the cabinet base with sand or a dense drawer pack. Seal panels tightly; gaps act as sound leaks. When using compression-loaded doors on the dust hood, the seal helps both dust capture and noise reduction. Store hearing protection within arm’s reach to reinforce good habits.

Ergonomics: Reach, Posture, and Safety

Keep the frequent-reach zone within 18 inches of your stance: tape measure, stop block clamp, pencil, eye protection. Position the saw handle so your wrist stays neutral; avoid ulnar deviation when pulling the saw through thick stock. Toe-kick recesses (3 inches deep, 4 inches high) at the operator side allow you to stand closer without leaning. Round over front edges to reduce forearm pressure.

Storage That Works With the Workflow

Under-table drawers for blades, wrenches, and measuring tools keep the top clear. A vertical slot near the right wing for frequently used moldings speeds repeat cuts. Add a shallow tray above the fence for offcuts and test pieces to avoid clutter near the blade path.

Stop Systems and Repeatability

A robust stop block with a micro-adjust wheel delivers precision without fuss. Consider a T-track along the fence with flip stops for quick batches. Calibrate with a machinist square; confirm a few standard lengths (12, 24, 36 inches) before production runs. Use contrasting color on the stop block face to read small gaps clearly.

Foldable and Mobile Options

If floor space is tight, build folding wings with piano hinges and removable support legs. Locking casters (dual-lock) let you reposition the table, but add diagonal bracing and a wheel lock routine: lock front-left caster first, then rear-right, to prevent racking during cuts. A wall cleat can park the station under shelving when not in use.

Materials and Finish

3/4-inch plywood carcass with hardwood edging is my go-to. For high-wear tops, HPL laminate resists glue and finishes. Choose satin finishes to reduce specular glare under strong task lighting, and use closed-cell foam gaskets around the dust hood to improve capture efficiency.

Pro Dimensions Cheat Sheet

- Table height: 34–36 inches typical; align with saw deck ±1/16 inch.

- Depth: 24–30 inches; deeper if storing tools behind the fence.

- Operator aisle: 36 inches minimum clearance.

- Wing length: match longest common stock (36–96 inches).

- Dust port: 4 inches, target 350–400 CFM near hood.

- Lighting: 1000–1500 lux at the cut line; 4000–5000 K color temperature.

Layout Strategy for Small Shops

Place the chop saw perpendicular to the main traffic path so long stock projects into low-traffic space. Keep the bench vise and assembly table out of the swing arc. If you routinely cut 8–12 foot boards, consider a diagonal orientation to use corner-to-corner length without blocking the entry. For experimenting with footprints and aisle widths, an interior layout planner helps visualize clearances and wing folds before you build: interior layout planner.

Safety Checklist

- Eye and hearing protection staged within 18 inches.

- Clear zones marked with tape near blade path.

- Zero-clearance inserts for cleaner cuts.

- Anti-kickback habits: hands outside the blade shadow line, clamp small parts.

- Blade changes logged; dull blades increase force and risk.

FAQ

Q1: What is the ideal table height for most users?

A: I set 34–36 inches for standing work, aligning the wings to the saw deck within ±1/16 inch. This keeps elbows near 90–120 degrees, consistent with WELL v2 ergonomic guidance for neutral posture.

Q2: How much lighting do I need at the cut line?

A: Target 1000–1500 lux with 4000–5000 K LEDs. IES task lighting guidance supports high illuminance for fine work, and neutral-white color preserves line and grain visibility.

Q3: What aisle clearance prevents crowding?

A: Hold 36 inches minimum on the operator side. It’s a practical circulation width drawn from facility planning norms and keeps tool drawers usable without collisions.

Q4: How do I control dust effectively on a chop saw?

A: Use a rear capture hood feeding a 4-inch port and aim for roughly 350–400 CFM. Keep duct runs short, avoid tight elbows, and seal gaps to improve capture efficiency.

Q5: Are foldable wings stable enough for long boards?

A: Yes, with piano hinges, removable legs, and adjustable levelers. Add diagonal bracing and verify co-planarity before cutting long stock.

Q6: What materials make the top durable and low-friction?

A: 3/4-inch plywood with HPL laminate provides a smooth, glue-resistant surface. Melamine also works, but edge protection is important to prevent chipping.

Q7: How do I reduce noise and vibration?

A: Soft-mount the saw, mass-load the base, and close panel gaps. Keep hearing protection within arm’s reach so usage becomes automatic.

Q8: What stop system is best for repeat cuts?

A: A T-track fence with flip stops and a micro-adjust block. Calibrate with a machinist square and confirm standard lengths before batch cutting.

Q9: Can I make the station mobile without losing accuracy?

A: Use dual-lock casters and a locking routine. Add diagonal bracing to resist racking and re-check alignment after moves.

Q10: How do I avoid glare on measurement scales?

A: Choose matte-finish scales and keep lighting neutral-white. Glare control improves read accuracy and reduces eye strain.
