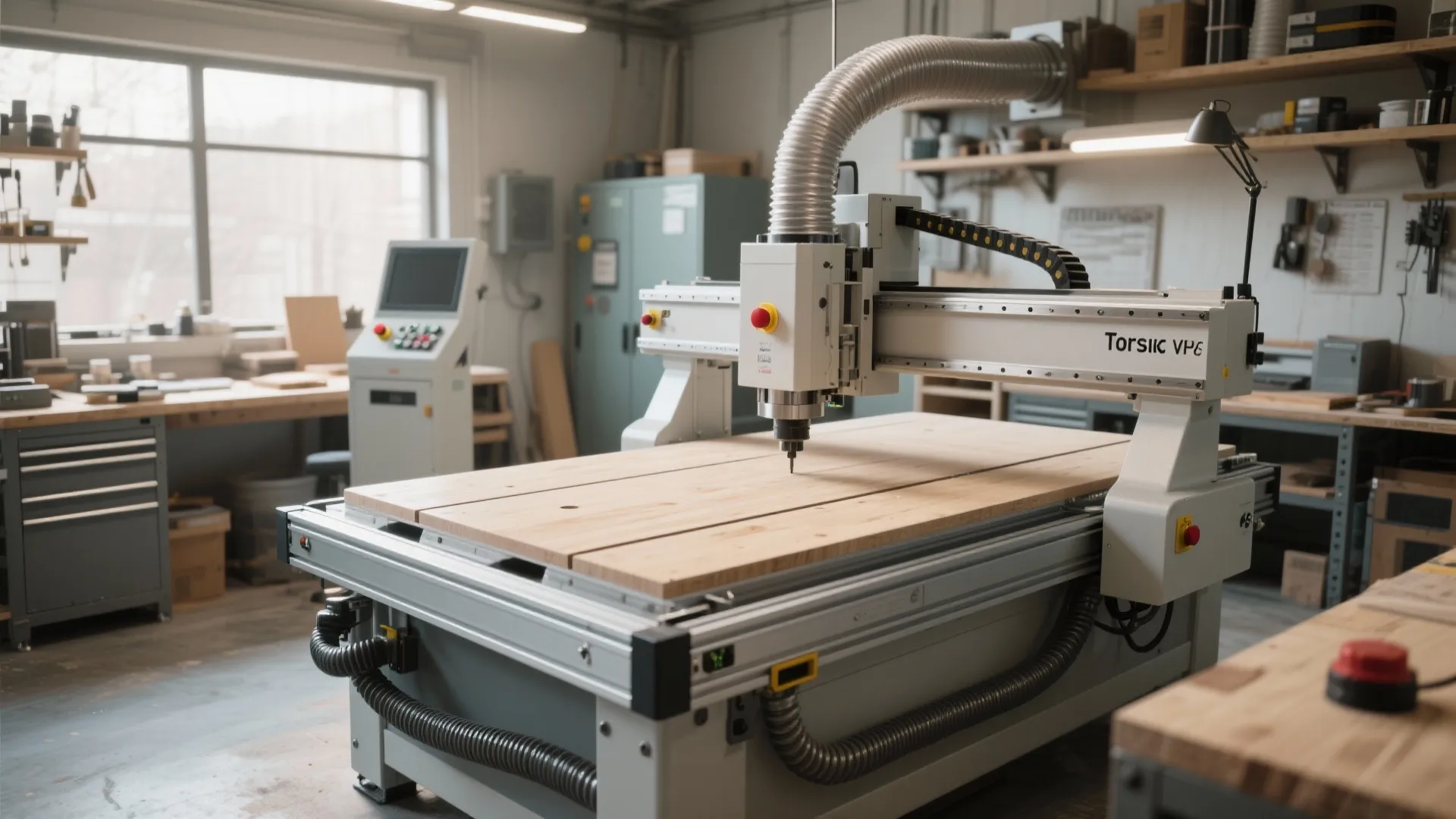

DIY CNC Router Table: Build Your Custom Workshop Essential: Fast-Track Guide to a Personalized CNC Router Table in Just Days

Building a CNC router table that truly fits your workshop starts with a clear understanding of the work you do and the materials you handle. I design tables around repeatability, safety, and human-centered ergonomics: stable gantries, vibration-dampened frames, precise workholding, and intuitive operator reach zones. In well-organized maker spaces, spatial clarity translates directly to output quality—Gensler’s workplace research reports that teams with well-designed layouts maintain up to 20% higher productivity by reducing friction points and task-switching overhead. In practice, that means your machine footprint, loading path, and dust evacuation should be mapped before a single cut is made.

Ergonomics isn’t just for offices. Herman Miller’s research shows neutral posture reduces fatigue and error rates, and those principles matter at the router: keep the most frequently used clamps, collets, bits, and safety gear within a 500–700 mm reach envelope, and set your table height between 870–920 mm for comfortable standing operations. For lighting, the Illuminating Engineering Society recommends task illuminance around 500 lux for precision work—pair high-CRI LEDs with targeted task lights to minimize shadows and glare near the spindle and workholding. For deeper reading on performance-centered environments, Herman Miller’s research library is a solid reference you can use for planning.

Core Design Principles

I prioritize stiffness, alignment, and serviceability. A torsion-box table deck (18–22 mm skin over a ribbed core) gives excellent flatness and vibration control without excessive weight. Ensure frame members form a closed rectangle with triangulated bracing. Gantry sides should sit on machined rails with proper preload; belt or ballscrew drives need straight-line access and dust shielding. Cable management is often overlooked—bundle signal and power separately, and allow generous radius for drag chains to avoid conductor fatigue.

Size, Footprint, and Layout

Match bed size to your common sheet goods: 600×900 mm (24×36 in) is compact and covers most hobby needs; 1220×2440 mm (4×8 ft) supports full sheets and production workflows. Plan a clear 900 mm loading corridor on the long side, with outfeed space for stock. Keeping the operator’s control station within lateral sight of the spindle reduces mishandling and speeds setup. If you’re plotting layouts, a room layout tool can help simulate clearances, cable runs, and dust collection routes: room layout tool.

Structure and Materials

For frames, I use either welded steel (50×50×3 mm box) for stiffness and long-term alignment, or heavy Baltic birch plywood for torsion-box decks paired with aluminum extrusions (e.g., 4080 profiles) for rails and gantry uprights. MDF is workable for spoilboards, but keep it sealed; plywood or phenolic-faced composites resist humidity better. Incorporate rubber isolation feet or anti-vibration pads to reduce transmitted noise, especially in shared or residential settings.

Linear Motion and Drive

Choose motion components based on tolerance goals. For fine detail work, ballscrews offer better backlash control; for larger-format cutting, GT2/HTD belts are fast and forgiving. Linear rails with preloaded carriages beat DIY roller wheels for rigidity if budget allows. Keep dust off rails with wipers and simple bellows; contamination will compromise precision more than any single component upgrade.

Spindle, Router, and Power

A 1.5–2.2 kW VFD spindle with ER collets delivers quieter operation and better runout than consumer routers, especially for aluminum or hardwood. If you prefer a trim router for cost or simplicity, plan for more noise and less duty cycle. Place the VFD in a ventilated, dust-protected enclosure; follow manufacturer wiring diagrams, proper grounding, and shielded cable runs. Separate high-voltage lines from signal cables to minimize electrical noise on stepper drivers.

Workholding: Spoilboard, T-Tracks, and Vacuum

I favor a hybrid deck: a surfaced MDF spoilboard with a grid of threaded inserts or T-tracks, plus removable jigs for repetitive work. Vacuum hold-downs shine for sheet goods and fast cycle times, but they add cost and require careful gasketing and zoning. Whatever the method, index your work coordinate system with physical corner stops; repeatability starts with consistent datum points.

Dust Collection and Air Quality

CNC routing creates fine particulates. Pair an enclosure or skirted dust shoe with a 2–3 hp dust collector and a high-efficiency cartridge filter. Keep hose runs short and smooth; use anti-static ducting to reduce chip adhesion. If you’re cutting MDF or composites, add local HEPA filtration near the machine. Good air movement improves visibility and reduces cleanup time; position the dust collector to avoid sharp bends and crushed hoses.

Electronics, Controls, and Safety

Mount the controller, drivers, and power supplies on a hinged, accessible panel. Provide an e-stop at the operator station and a secondary near the machine front. Interlocks for door or enclosure panels are useful in shared spaces. Cable ferrules, labeled terminals, and strain reliefs make future servicing painless. Keep firmware and control software backed up; document steps for homing, probing, and tool change routines.

Lighting, Color, and Acoustic Comfort

Task lighting around 500–750 lux aids bit changes and surface inspection; 4000–5000K color temperature balances clarity and comfort. Color psychology still matters in a workshop—cooler hues can feel more focused, while warm accents reduce stress after long sessions. Acoustic comfort is achievable with rubber feet, mass-loaded vinyl panels on nearby walls, and soft finishes that limit harsh reflections, making machine noise less fatiguing.

Human Factors: Reach, Posture, and Workflow

Maintain reach zones: frequently used tools within 500–700 mm, occasional items up to 1,000 mm, and heavy stock staged waist-high. Keep viewing angles to the spindle unobstructed, and set the pendant or control screen near eye level to reduce neck strain. Good workflow design reduces misfeeds—clear ingress for material, defined staging for finished parts, and a bin system for bits and clamps. The result is fewer pauses, fewer mistakes, and better throughput.

Commissioning and Calibration

After assembly, square the gantry to the rails, tram the spindle to the table within 0.02–0.05 mm if possible, and surface the spoilboard. Run test patterns: circle-diamond-square for backlash, pocketing grids for dimensional validation, and V-carve lettering to reveal resonance. Document feed rates and spindle speeds for your common materials; good notes turn into reliable recipes.

Maintenance and Longevity

Set a weekly schedule: vacuum rails, check belt tension, inspect couplers, and verify homing switches. Monthly, re-check tram and surface flatness, and tighten frame fasteners. Keep a small kit on hand—feeler gauges, dial indicator, squares, and a torque wrench—and store replacement bearings and belts; downtime usually starts with small consumables.

Budget and Phased Upgrades

Start with a rigid frame, decent rails, and safe wiring. Upgrade the spindle and dust collection before cosmetic add-ons. Later, add tool length probing, auto-squaring, or vacuum hold-down once your workflows justify them. A machine that cuts cleanly and predictably will pay for its own refinements.

FAQ

What table height is most comfortable for CNC work?

For standing operation, 870–920 mm keeps elbows near 90 degrees and reduces back strain. This aligns with general ergonomic guidance on neutral posture and reach.

How much lighting do I need around the router?

Target 500 lux at the work surface with 4000–5000K LEDs and a high CRI. Add focused task lights to the spindle area to reduce shadows.

Should I choose belts or ballscrews?

Belts are faster and economical for large-format woodworking; ballscrews provide better precision and lower backlash for fine detail work and metals.

What’s the best workholding approach?

A surfaced MDF spoilboard plus T-tracks or threaded inserts covers most jobs. Vacuum hold-down excels for sheet goods and repeat production, but costs more and requires airtight zoning.

How do I manage dust effectively?

Use a dust shoe, a 2–3 hp collector with a cartridge filter, short smooth duct runs, and anti-static hose. Add HEPA filtration when cutting MDF or composites.

Can I place the control station away from the machine?

Keep it within direct sight of the spindle. Shorter reach and immediate visual feedback reduce errors during setup and tool changes.

How do I reduce noise in a small workshop?

Install rubber isolation feet, seal gaps, add mass-loaded vinyl or acoustic panels nearby, and choose a VFD spindle, which typically runs quieter than consumer routers.

What calibration steps matter most at first startup?

Square the gantry, tram the spindle, surface the spoilboard, and run test patterns to check backlash and dimensional accuracy. Record feeds and speeds for your materials.

Is an enclosure necessary?

Not mandatory, but it improves dust control, safety, and acoustic comfort. Use clear panels for visibility and interlocks if multiple users share the space.

How often should I re-surface the spoilboard?

Any time you see ridging or after major tram adjustments. Light passes maintain flatness and protect tool life.
