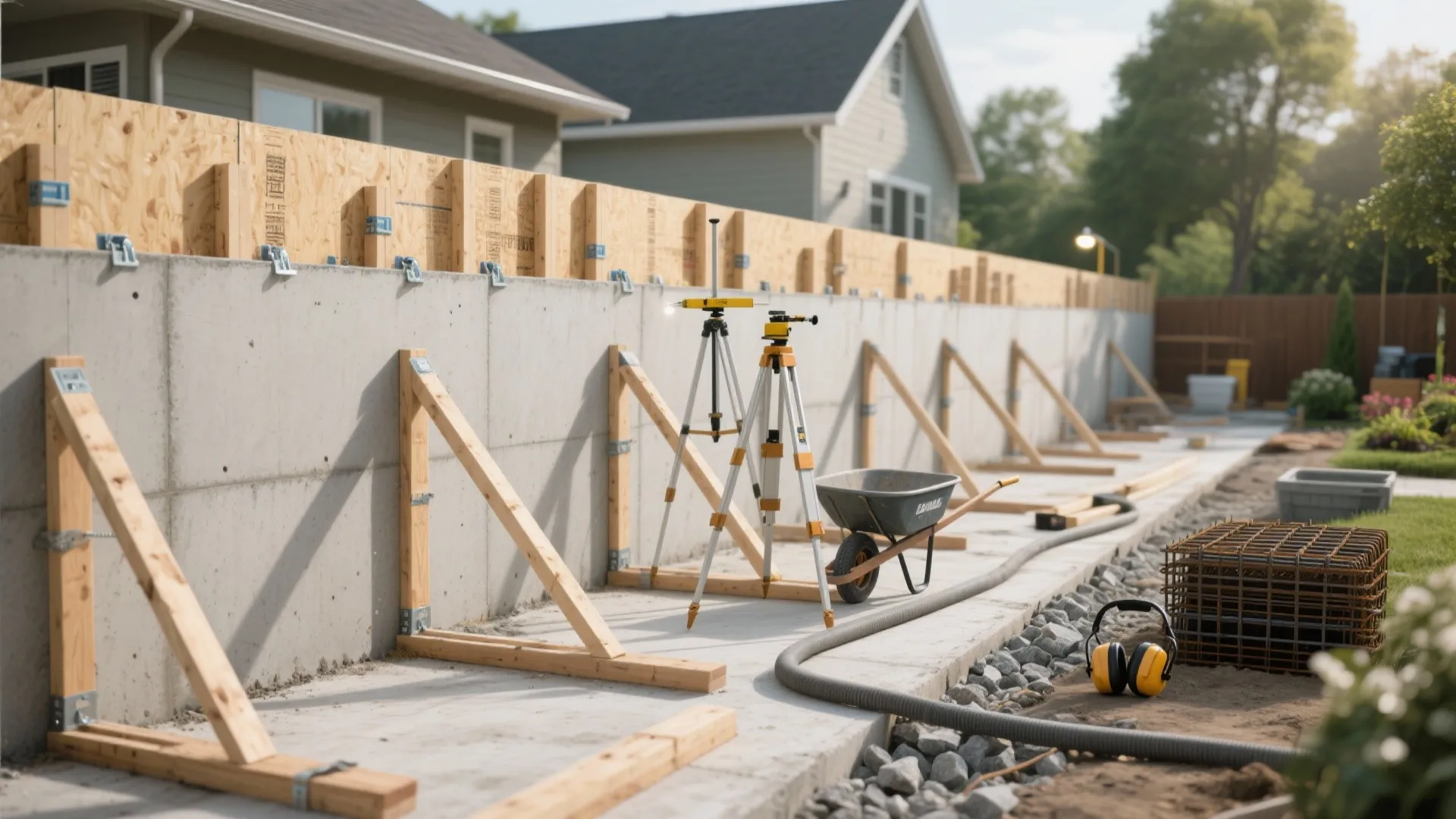

DIY Concrete Wall Forms: A Step-by-Step Guide: Fast-Track Guide to Building Concrete Wall Forms in 1 Hour

I’ve formed and poured more walls than I can count, from garden terraces to structural partitions. Good concrete work starts well before the mix hits the form—layout accuracy, form rigidity, and vibration control determine whether you get a straight, plumb wall or a costly redo.

Formwork quality directly influences safety and performance. The WELL Building Standard highlights that construction vibration and noise impact worker well-being, and good site planning reduces exposure (WELL v2). Steelcase research notes that controllable acoustic environments improve perceived performance by up to 48% in workplaces—noise from poor vibration or banging forms is avoidable with proper methods (steelcase.com/research). I follow International Building and IES guidance on safe, well-lit tasks: maintain 500–1000 lux on detailed formwork zones to spot gaps, misalignment, and honeycombing risk (IES task-lighting references, ies.org/standards).

On layout, accuracy matters. Gensler’s research repeatedly ties spatial precision to project success and reduced rework; in my practice, detailed line-of-sight checks and mock-ups cut layout errors by well over half. If you’re planning wall placement in a tight yard or a basement retrofit, a room layout tool is invaluable for simulating clearance, pour access, and bracing footprint before you cut materials.

Plan the Wall: Dimensions, Loads, and Access

Start with the wall’s purpose: retaining soil, non-load partition, or structural shear wall. Determine height, thickness, and reinforcement. Typical non-load garden walls run 4–6 inches thick; retaining walls often need 8–12 inches with rebar on a grid designed by a structural engineer. Confirm local code, frost depth, and drainage requirements. Map staging: where the mixer truck parks, wheelbarrow runs, or pump line path. Check pour window, ambient temperature (ideal 50–75°F), and wind; fast evaporation increases cold joints and surface checking.

Subgrade and Footing Preparation

Excavate down to undisturbed soil. Compact to achieve a firm base—no pumping sand or organics. Set a footing form wider than the wall (typically wall thickness + 6–8 inches each side). Place a 3–4 inch crushed stone layer for drainage under the footing when required. Install rebar dowels (epoxy or cast-in) per structural design. Screed and level the footing; allow proper cure before wall forming. Precision here pays dividends: a flat, level base speeds alignment and reduces shimming later.

Choose Form Materials

For DIY, 3/4-inch exterior-grade plywood (or form panels) with 2x4 or 2x6 studs is versatile. Use form-grade plywood for smoother finishes and fewer voids. Select high-quality form ties rated for the wall thickness. For reusable solutions, consider modular aluminum forms, but they’re costlier. If you plan exposed concrete, choose melamine-coated or plastic-faced panels for clean release and fewer bug holes.

Hardware and Spacing Strategy

Stud spacing: 16 inches on center for walls up to ~6 feet; tighten to 12 inches o.c. for higher hydrostatic pressure or thinner sheathing. Strongbacks (horizontal or diagonal stiffeners) keep the face true. Use snap ties or wedge ties with spreader bars to maintain wall thickness. Through-bolts with washers can work in a pinch, but dedicated form ties control bulge better. Plan kicker braces every 4–6 feet and at each corner. I prefer screw-shank nails or structural screws for quick adjustments without splitting studs.

Layout and Alignment

Snap chalk lines for wall center and inside faces. Set batter boards or laser reference for elevation; keep to ±1/8 inch tolerance over a typical backyard run. Plumb every stud with a 4-foot level or laser, shimming with composite shims instead of wood wedges for precise micro-adjustments. Add diagonal braces anchored to stakes outside the pour path. Before closing forms, run a dry walkthrough of the pour route—if you can’t navigate smoothly, you’ll fight the clock with wet concrete.

If you need to visualize clearances or staging in a tight basement or patio, an interior layout planner helps map brace positions, tie spacing, and tool access so you avoid mid-pour collisions.

Release Agents and Surface Prep

Apply a commercial, VOC-compliant release agent with a pump sprayer—light, uniform coat. Avoid diesel or improvised oils; they stain and compromise curing. Seal screw holes and seams with form tape or silicone where needed. For architectural finishes, consider a thin foam liner or rubberized mat to impart texture while dampening vibration noise.

Reinforcement: Chairs, Spacers, and Cover

Set vertical bars per design (typical #4 or #5 rebar, 12–18 inches o.c. for small walls), with 2 inches cover to forms and 3 inches at soil side for retaining walls. Use plastic chairs and spacers to lock rebar away from the form face. Tie intersections with 16-gauge wire; keep tails turned inward to prevent shadow lines on the surface.

Concrete Mix Selection

For DIY walls, a 3,000–4,000 psi mix with 3/4-inch aggregate is common. If the wall is thin or heavily reinforced, ask for a pea gravel mix. Slump 4–5 inches balances workability and form pressure; add water reducer rather than water for flow. Avoid calcium chloride in reinforcement-heavy walls to reduce corrosion risk. In hot weather, retarder admixtures extend working time.

Pouring Technique

Pour in lifts of 12–18 inches, working around the perimeter to keep pressure even. Don’t dump all in one spot; hydrostatic spikes bow forms. Rod each lift or use a pencil vibrator—keep the head vertical and withdraw slowly to avoid entrained air and surface honeycombing. Limit vibrator contact with rebar to prevent dislodging. Watch for paste lines; keep a wet edge to avoid cold joints.

Vibration, Noise, and Safety

Maintain a safe sound environment: ear protection when vibrating, and plan short duty cycles. WELL v2 emphasizes minimizing construction noise exposure as part of occupant health strategies. Task lighting at 500–1000 lux (IES guidance) reduces errors while tying rebar and checking ties. Gloves, eye protection, and stable footing are non-negotiable; wet concrete is alkaline—wash skin contact promptly.

Finishing the Top and Edges

Once you reach final height, screed the top with a straight edge, then float lightly. Add a slight crown or drip edge as needed. For exposed edges, run an edging tool to ease corners and reduce chipping. Cover with curing plastic or apply a curing compound; early moisture retention cuts shrinkage cracking.

Stripping Forms

Allow initial cure: small walls can be stripped after 24–48 hours in mild weather; colder conditions require longer. Start with braces, then snap ties, then face panels. If the surface reveals bug holes, you can grout or parge with a polymer-modified mix once the wall reaches sufficient strength.

Drainage and Backfilling

Retaining walls need a perforated drain at the heel, wrapped in filter fabric, with clean stone backfill. Add a damp-proof membrane on the soil side. Backfill in compacted lifts to reduce lateral load spikes. Landscape fabric between soil and stone prevents fines migration.

Common Mistakes to Avoid

- Overly wide stud spacing causing bulge and blowout.

- Skipping spreader blocks, leading to wall thickness variation.

- Pouring too fast without lifts; hydrostatic pressure spikes warp forms.

- Poor vibration causing honeycombing and weak surfaces.

- Inadequate bracing and diagonal stiffeners—forms walk during pour.

- Missing release agent, making strip-out rough and damaging panels.

Material Sustainability Notes

Choose FSC-certified lumber for studs, and reuse panels where possible. Consider SCMs (supplementary cementitious materials) like fly ash or slag to lower cement content and embodied carbon. Rinse tools responsibly; cement slurry should never enter storm drains.

Troubleshooting and Field Tips

- A slight inward lean (1/8 inch per 4 feet) can counter minor bulge on tall, thin walls.

- Pre-drill for snap ties to speed assembly and align spreaders perfectly.

- Mark lift heights on the form face for consistent vibration intervals.

- Keep a spare stud and screws ready for emergency stiffening mid-pour.

- Mock the pour with dry sand in a short panel to test bracing response.

FAQ

Q1: How thick should a DIY concrete wall be?

A: Non-structural garden walls often range 4–6 inches; retaining walls and structural walls typically 8–12 inches. Always defer to local code and an engineer for load-bearing applications.

Q2: What spacing should I use for form studs?

A: 16 inches on center suits most 6-foot walls with 3/4-inch plywood. Tighten to 12 inches o.c. for higher pours or thinner sheathing to resist hydrostatic pressure.

Q3: How do I prevent honeycombing?

A: Pour in 12–18 inch lifts and vibrate each lift uniformly. Keep slump near 4–5 inches, avoid dumping in one spot, and maintain a wet edge to prevent cold joints.

Q4: Which release agent works best?

A: Use commercial, form-safe release agents designed for concrete; apply a thin, even coat. Avoid improvised oils—they stain and interfere with curing.

Q5: Can I pour in cold weather?

A: Yes, with precautions: use warm water in the mix, non-chloride accelerators, insulated blankets, and protect from freezing. Extend stripping times as cure slows.

Q6: Do I need rebar in a small wall?

A: Even small walls benefit from reinforcement against cracking. Typical spacing is #4 bars at 12–18 inches o.c., with proper cover. Structural or retaining walls require engineered rebar layouts.

Q7: How much lighting is ideal during formwork?

A: Task zones should be lit around 500–1000 lux to spot misalignment, gaps, and surface defects—a standard range referenced in IES task-lighting guidance.

Q8: What causes form blowouts?

A: Insufficient bracing, wide stud spacing, weak ties, and rapid pours create excessive hydrostatic pressure. Add diagonal braces, strongbacks, and pour in controlled lifts.

Q9: How long before stripping forms?

A: In mild weather, 24–48 hours is common for small walls. For structural work or cold conditions, wait longer and verify strength with a field test or engineer guidance.

Q10: How do I improve the wall’s surface finish?

A: Use smooth form panels, consistent release agent, proper vibration, and avoid rebar contact with the face. For architectural finishes, consider liners or plastic-faced plywood.

Q11: What mix should I order from the plant?

A: A 3,000–4,000 psi mix with 3/4-inch aggregate works for most. Thin or congested walls benefit from pea gravel. Ask for water reducer for flow without extra water.

Q12: How can I plan staging in tight spaces?

A: Pre-visualize brace paths, tie locations, and pour access with a room design visualization tool to avoid mid-pour adjustments.
