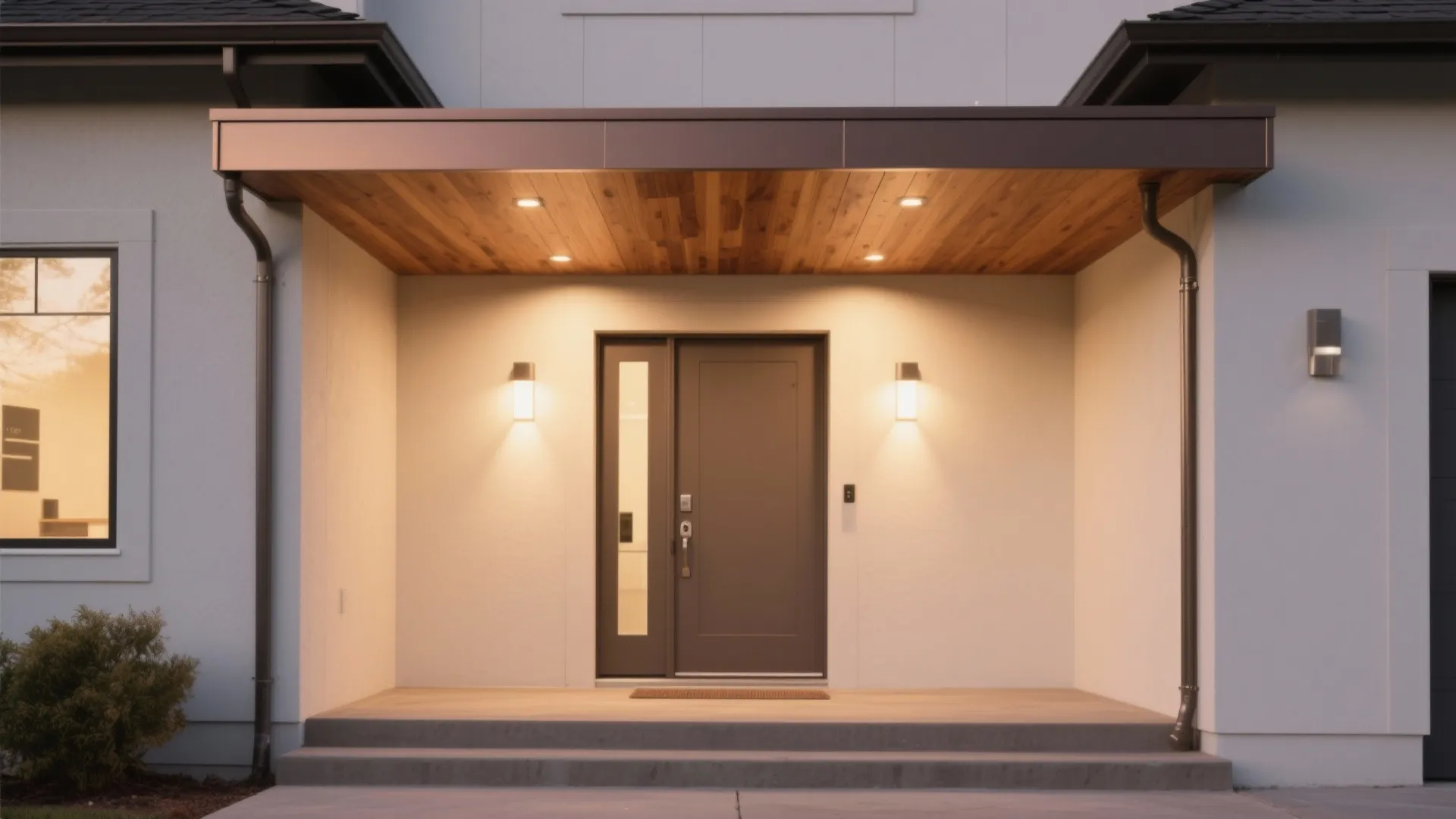

DIY Door Overhang: Protect Your Entryway in Style: 1 Minute to Create a Simple, Functional DIY Door Overhang

I love how a well-proportioned door overhang transforms a threshold from a vulnerable gap into a welcoming, weatherproof pause. A small canopy cuts direct rain, moderates glare, and frames the arrival moment—without overwhelming the facade. Beyond looks, there’s measurable comfort: the WELL v2 Light concept encourages control of glare and daylight balance for entry areas because visual comfort at transitions reduces strain and improves orientation. Steelcase research also notes that properly managed light at points of arrival lowers perceived stress and improves wayfinding, especially under variable sky conditions. Together, these principles inform the way I size, angle, and detail a DIY door overhang.

Practical performance matters. According to IES recommendations for outdoor entrances, target horizontal illuminance in the 30–50 lux range with uniformity to avoid harsh contrasts; that guideline keeps faces visible and steps legible while limiting glare. Steelcase has indicated that well-managed thresholds—adequate cover and balanced lighting—contribute to smoother behavioral transitions and reduce decision fatigue at points of entry. I size canopies to cast rain away from the door edge, set lighting to warm (2700–3000K), and use matte finishes to damp specular reflections. For deeper design guidance on light and wellness, WELL Certified’s Light features provide useful criteria and ranges.

Color choices affect mood right at the door. Verywell Mind’s color psychology overview points to warm hues increasing perceived welcome, while cooler neutrals communicate calm and cleanliness. I lean on a restrained palette—muted warm wood or powder-coated bronze—paired with a lighter soffit that bounces warm light down without glare. Texture and sheen matter: low-gloss, open-grain woods read natural and reduce visual fatigue compared to mirrorlike metals.

Key Benefits of a Door Overhang

- Weather protection: Diverts rain, shields from snow and sun, and reduces wind pressure at the latch.

- Durability: Keeps finishes and seals from premature failure by minimizing wetting cycles and UV exposure.

- Comfort: Cuts direct sun glare and stabilizes luminance at eye level; aim for 2700–3000K lighting in the canopy.

- Safety: Keeps the landing dry, with recommended 30–50 lux at the stoop for visibility per IES guidance.

- Curb appeal: Creates a focal point and proportion, improving facade rhythm and value impression.

How I Size the Overhang

Depth is the first driver. As a rule of thumb, I target 24–36 inches of projection for typical single doors; at minimum, ensure the drip line falls beyond the door swing by 4–6 inches. In rainy climates, extend to 36–42 inches if structure allows. Width should exceed the door frame by 6–10 inches on each side to shelter jambs. Keep the canopy thickness visually light (2–4 inches at the edge) to avoid bulk, and set a subtle pitch of 3–10 degrees so water sheds quietly.

If you are testing different projections or flank supports, a room layout tool can help visualize proportion against your facade and porch massing: room design visualization tool.

Materials That Earn Their Keep

- Wood: Cedar and cypress are my go-to for rot resistance. Use kiln-dried stock, seal all faces, and add a drip kerf along the front edge.

- Metal: Powder-coated aluminum keeps weight down and resists corrosion; use concealed fasteners and neoprene washers to break galvanic paths.

- Roofing: Standing seam metal or EPDM atop a plywood substrate for shallow pitches; for steeper craftsman styles, asphalt shingles over proper underlayment.

- Fasteners: Stainless steel screws for exterior exposure; predrill and countersink to avoid splitting and proud heads.

Structural Logic and Anchoring

Load path is simple: vertical load from the canopy transfers into wall anchors or side brackets. For timber brackets, I use 2x6 or laminated members, through-bolted into wall studs or masonry with sleeve anchors. Always locate studs, then add a ledger board at least 1.5 inches thick, tied with structural screws. For masonry, a steel ledger with appropriately sized expansion anchors ensures pull-out resistance. Pitch the canopy so water departs at the front drip edge, and break the front edge with a small kerf to prevent reverse capillary creep.

Lighting, Glare, and Color Temperature

Integrate a shallow soffit light or a pair of sconces with warm 2700–3000K LEDs. Keep luminance distribution even: a single diffused source under the canopy reduces harsh shadows across the threshold. The IES target of 30–50 lux at the landing will keep facial recognition clear for guests and cameras. Choose matte fixtures with diffusers and shield the source from direct view to maintain visual comfort. If the entry faces west, add a micro-baffle or a slim eyebrow at the canopy edge to temper late-afternoon glare.

Acoustic and Human Factors

Hard canopies can amplify rain noise; lining the underside with a thin acoustic panel or wood slats over felt moderates sound and feels calmer at arrival. Ergonomically, ensure the tallest household member clears the canopy edge with at least 84 inches of headroom; I prefer 90–96 inches for more generous clearance. Keep hardware reachable and visible in low light, and avoid protruding brackets near the door swing arc.

Detailing for Longevity

- Waterproofing: Flash the ledger with metal flashing, then a self-adhered membrane above. Overlap layers to direct water out, never in.

- Drainage: Provide a continuous drip edge and avoid flat tops; add a slim gutter only if you can downspout away from the landing.

- Thermal movement: Leave 1/8 inch expansion joints for metal; for wood, seal end grain aggressively.

- Maintenance: Recoat wood every 2–3 years depending on exposure; inspect fasteners annually and touch up powder coat as needed.

Form and Proportion

Match canopy style to your architecture. Craftsman entries favor exposed timber brackets and shingled tops; modern homes do better with crisp aluminum, thin profiles, and hidden supports. The canopy should read as a lighter layer than the wall—thin leading edges, controlled shadows, and a clear hierarchy where the door remains the hero.

Step-by-Step Build Outline

1) Measure and mark studs or masonry anchor points. 2) Install a flashed ledger at the desired height. 3) Fabricate brackets and attach with through-bolts. 4) Frame the canopy with joists and a front beam; set pitch. 5) Sheath with exterior-grade plywood and membrane. 6) Finish with metal or shingles. 7) Add lighting and test illuminance. 8) Seal, paint, and tune drip details.

Research and Standards to Guide Decisions

For healthy, comfortable entries, WELL v2 Light features encourage glare control, color temperature selection, and visual comfort at transitional zones. Steelcase workplace research highlights the effect of balanced thresholds on attention and stress, reinforcing the goal of consistent luminance and protected arrival points.

Frequently Asked Questions

How deep should a DIY door overhang be for effective rain protection?

For most single doors, 24–36 inches works well; in heavy rainfall areas, extend to 36–42 inches if structure permits. Ensure the drip line lands beyond the door swing by at least 4–6 inches.

What light levels should I aim for under the canopy?

Target 30–50 lux on the landing per IES entry recommendations. Use warm 2700–3000K LEDs and diffusers to minimize glare.

Which materials hold up best outdoors for a small canopy?

Cedar or cypress for the frame and soffit, powder-coated aluminum for edges or skins, and stainless fasteners. Flash all interfaces and seal end grain.

Do I need brackets or can I use hidden supports?

Hidden steel cleats or angle irons can carry slim modern canopies; traditional styles benefit from visible timber brackets. Either way, through-bolt into studs or use proper masonry anchors.

How do I manage rain noise on a metal canopy?

Add a thin acoustic layer—felt or acoustic panel—under a perforated or slatted soffit. A minor pitch and secure fastening also reduce drumming.

Will a canopy affect my door’s finish and hardware longevity?

Yes, positively. Reduced UV and wetting cycles extend finish life and keep seals pliable. Overhangs also help prevent wind-driven rain from reaching hardware.

What color palette works best at an entry?

Warm neutrals with a matte sheen feel inviting and reduce glare. Pair a lighter soffit with warm 2700–3000K lighting for comfortable facial illumination.

Can I integrate smart lighting at the entry?

Absolutely. Motion-sensing, dusk-to-dawn controls, and warm-dim LEDs maintain the recommended illuminance while saving energy and improving arrival experience.

How high should the canopy sit above the door?

Maintain at least 84 inches clearance; I prefer 90–96 inches for comfortable headroom and better proportions relative to the facade.

Do I need gutters on a small canopy?

Not always. A clean drip edge and adequate pitch are often enough. Add a micro-gutter only if you can downspout water away from the landing.

Is there a recommended angle for the canopy pitch?

3–10 degrees keeps profiles slim while ensuring drainage. For shingled tops, 3:12 or greater works well.

Tips

- Pre-finish all parts before assembly, especially end grain.

- Use mockups to test depth and edge thickness before committing.

- Verify anchor pull-out capacity for your wall type.

- Night-test lighting to hit the 30–50 lux target without glare.
