DIY Door Painting Stand: Easy Guide for Home Projects: 1 Minute to Make Your Own Door Painting Stand and Save Time

I’ve painted more doors than I can count, and a dependable stand is the difference between a smooth, dust-free finish and a run of drips and dents. A good setup lets you work both faces in one session, reduces touch points, and keeps airflow consistent so the coating cures evenly.

Across workplace studies, clear workflow and ergonomics correlate with better outcomes. Steelcase has reported that work environments designed for low strain can boost task quality and reduce error rates. WELL v2 guidelines also emphasize controlling particulates and volatile organic compounds (VOCs) during finishing tasks, which translates at home into better ventilation and fewer defects. I keep these principles front and center when setting up painting stands. See WELL v2 resources for air and materials guidance at wellcertified.com.

Color choices affect perceived quality once a door is set back in place. Verywell Mind’s overview of color psychology notes that warm hues feel more inviting while cooler tones convey calm; selecting finishes that align with a room’s behavioral goals is just as important as the mechanics of painting.

Materials You’ll Need

• Two sawhorses (folding or rigid, 30–32 in height)

• Four 2×4 lumber lengths (cut to roughly door width + 8 in)

• Eight 3–4 in deck screws

• Two scrap 1×3 battens (for anti-slip rails)

• Four screw-in utility hooks or drywall screw “pins” (to hold the door’s edges)

• Drop cloths or builder paper

• Painter’s pyramids (optional), or short finish nails

• PPE: respirator rated for paint fumes, safety glasses, nitrile gloves

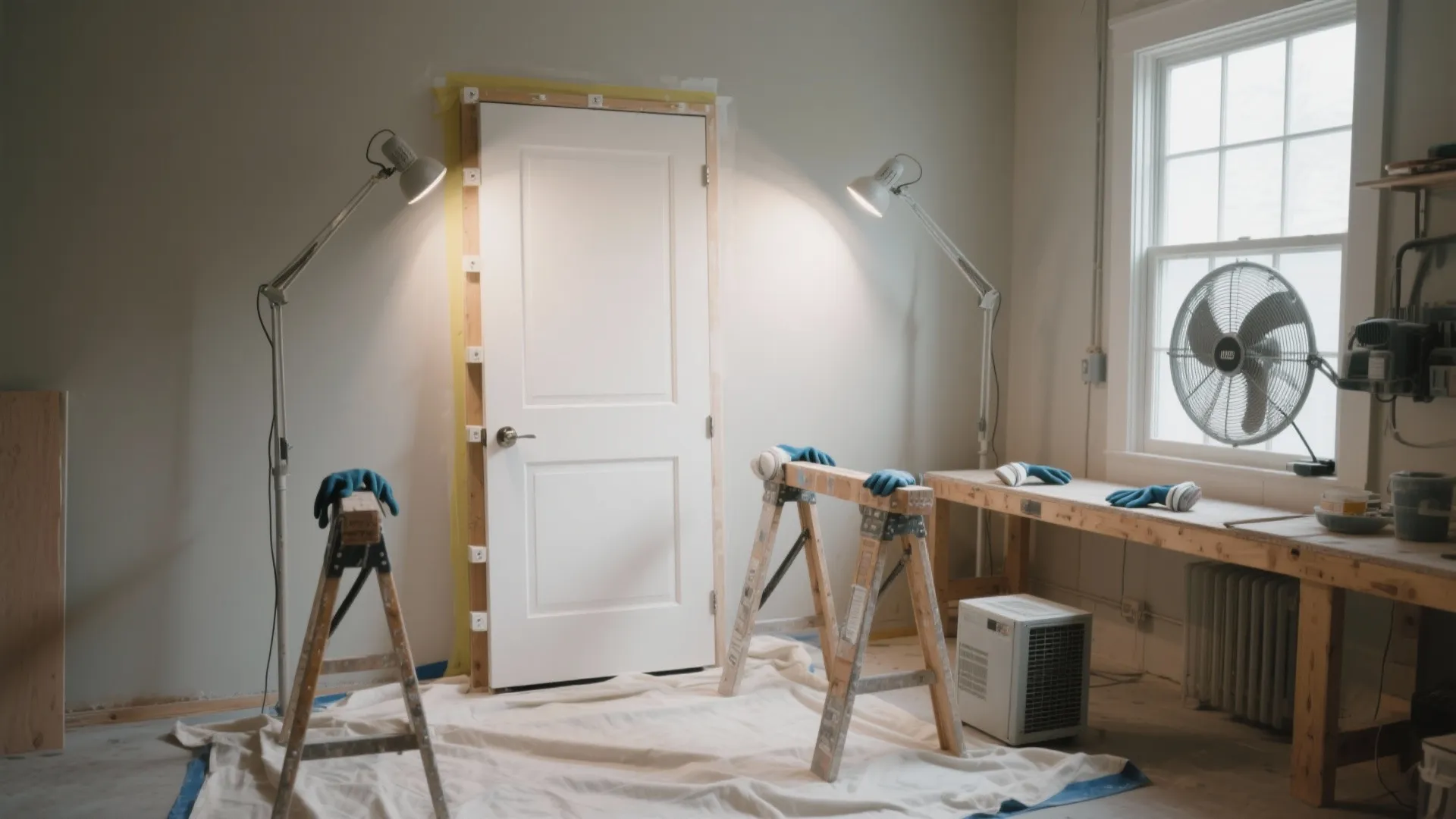

Build a Stable A-Frame Platform

Set two sawhorses about 5–6 ft apart, aligned with the length of your door. Fasten two 2×4s across the sawhorses to create rails. Add the 1×3 battens atop the 2×4s to create a shallow lip—this reduces lateral slip when you rotate the door. A 30–32 in working height keeps shoulders relaxed and reduces wrist strain during cutting-in; Herman Miller’s ergonomics research emphasizes neutral joint angles to sustain accuracy during repetitive tasks.

Edge Pins for Minimal Touch Points

Pre-drill and install small screw hooks or drive two drywall screws at each end of the rail so their points protrude 1/4–3/8 in above the surface. These act as pins that touch only the door’s edge, keeping fresh paint off large surfaces. I place the pins about 2 in in from each corner. If the door is hollow-core, keep screws shallow; for solid wood, ensure pins don’t mar the edge by taping over the contact points.

Rotating Rack for Two-Face Painting

Lay the door on the pins, paint the first face, then rotate along the long axis by lifting one edge and pivoting—those battens help prevent slip during rotation. Painter’s pyramids can support the freshly coated side if you prefer flipping rather than rotating. The goal is continuous movement with minimal contact on painted surfaces.

Ventilation, Dust Control, and Curing

Good results rely on clean air. WELL v2 recommends managing VOCs and particulate matter through ventilation and filtration. At home, I create cross-ventilation with a box fan pulling air out and an intake window screened with a MERV-rated filter to reduce dust. Keep relative humidity around 40–50% and temperature near the manufacturer’s spec. Consistent airflow helps solvent-borne coatings flash evenly; for water-based paints, moderate humidity slows premature skinning and reduces lap marks.

Lighting and Glare Management

To catch sags and holidays, set 4000–4500K task lighting at a raking angle across the door surface. IES lighting guidance favors uniform illumination and glare control; I keep lumens around 1500–3000 for a single door bay and avoid point sources that create harsh specular highlights, which can mask defects.

Ergonomics: Hand, Wrist, and Reach

Grip a brush with a relaxed pinch and keep your wrist neutral. Keep the door height such that your elbow angle stays near 90–110 degrees. Break the task into sections—stiles, rails, then panels—to reduce fatigue. When spraying, align the door so your passes run horizontally and you can step smoothly along the length without overreaching.

Surface Prep and Priming

• Remove hardware; label and bag it.

• Clean with a degreaser, then scuff-sand (180–220 grit) for keying.

• Fill dings with wood filler; let cure, then sand flat.

• Prime based on substrate: bonding primer for lacquered or previously oil-painted doors; stain-blocking primer for tannin-prone species like oak or cedar.

Coating Strategy: Brush, Roll, or Spray

For a classic look on paneled doors, I cut in the recesses with an angled brush and finish the flats with a 4–6 in microfiber roller. If spraying, keep a wet edge and overlap 50%. Light coats reduce sags; two to three passes typically beat one heavy coat. Allow recommended recoat times and always check the data sheet for temperature and humidity ranges.

Lean Workflow Setup

Lay out a simple U-shape: prep station, stand, drying zone. Keep solvents and rags away from airflow paths. If you’re planning a whole-room refresh, mock up circulation and clearances so you can move doors in and out without bumping fresh finishes—using a room layout tool can help visualize movement and spacing.

room layout tool

Common Mistakes I See

• Overloading the first coat leading to sags

• Rotating without edge pins, causing smears

• Inadequate dust control—fine grit becomes embedded in the finish

• Ignoring color context; the door clashes with trims or flooring

• Working under overly warm light, which hides defects

Maintenance and Touch-Ups

Store leftover paint in airtight containers and note the batch. Small chips can be feather-sanded and spot-primed. Keep a short bristle touch-up brush for panel corners and stile edges.

FAQ

Q1: What’s the safest way to support a solid-core door?

A: Use two robust sawhorses with 2×4 rails and four edge pins to minimize surface contact. Confirm weight ratings; solid-core doors often exceed 50–70 lb, so stability and anti-slip battens are essential.

Q2: How do I avoid dust nibs in the finish?

A: Create cross-ventilation, run a fan pulling out, and screen the intake with a filter. Vacuum the door after sanding and wipe with a tack cloth. Keep floors covered and avoid walking through the painting zone with dusty shoes.

Q3: What color temperature is best for spotting defects?

A: Neutral-white lighting around 4000–4500K at a raking angle helps reveal sags and missed spots while avoiding warm-shifted perception that can mask surface texture.

Q4: Can I paint both faces in one session?

A: Yes, with edge pins or painter’s pyramids to keep fresh paint off the rails. Rotate carefully and allow adequate tack time before flipping or pivoting.

Q5: Brush and roller or spray—what’s better?

A: For paneled doors, brush plus a small roller yields control and classic texture. Spraying delivers uniformity on flat doors but requires stricter dust control and PPE.

Q6: How do I manage VOCs at home?

A: Choose low-VOC paints and ventilate continuously during and after painting. WELL v2 guidance underscores airflow and filtration; a box fan exhausting air plus an intake filter is a practical home approach.

Q7: What’s the ideal height for the stand?

A: Around 30–32 in keeps elbows near 90–110 degrees for most adults, reducing wrist flex and shoulder strain during detail work.

Q8: How do I prevent smears when rotating?

A: Use edge pins and rotate along the long axis with a controlled pivot. If flipping, let the first face tack per the product’s recoat time and support with painter’s pyramids.

Q9: Any tips for color selection?

A: Consider adjacent trim and flooring. Warm neutrals feel welcoming; cooler grays and blues calm circulation areas. Reference color psychology basics to match the room’s intent.

Q10: What if my door has glass panels?

A: Mask thoroughly with low-tack tape and cut in slowly along the muntins. Use light coats to avoid pooling near tape edges.
