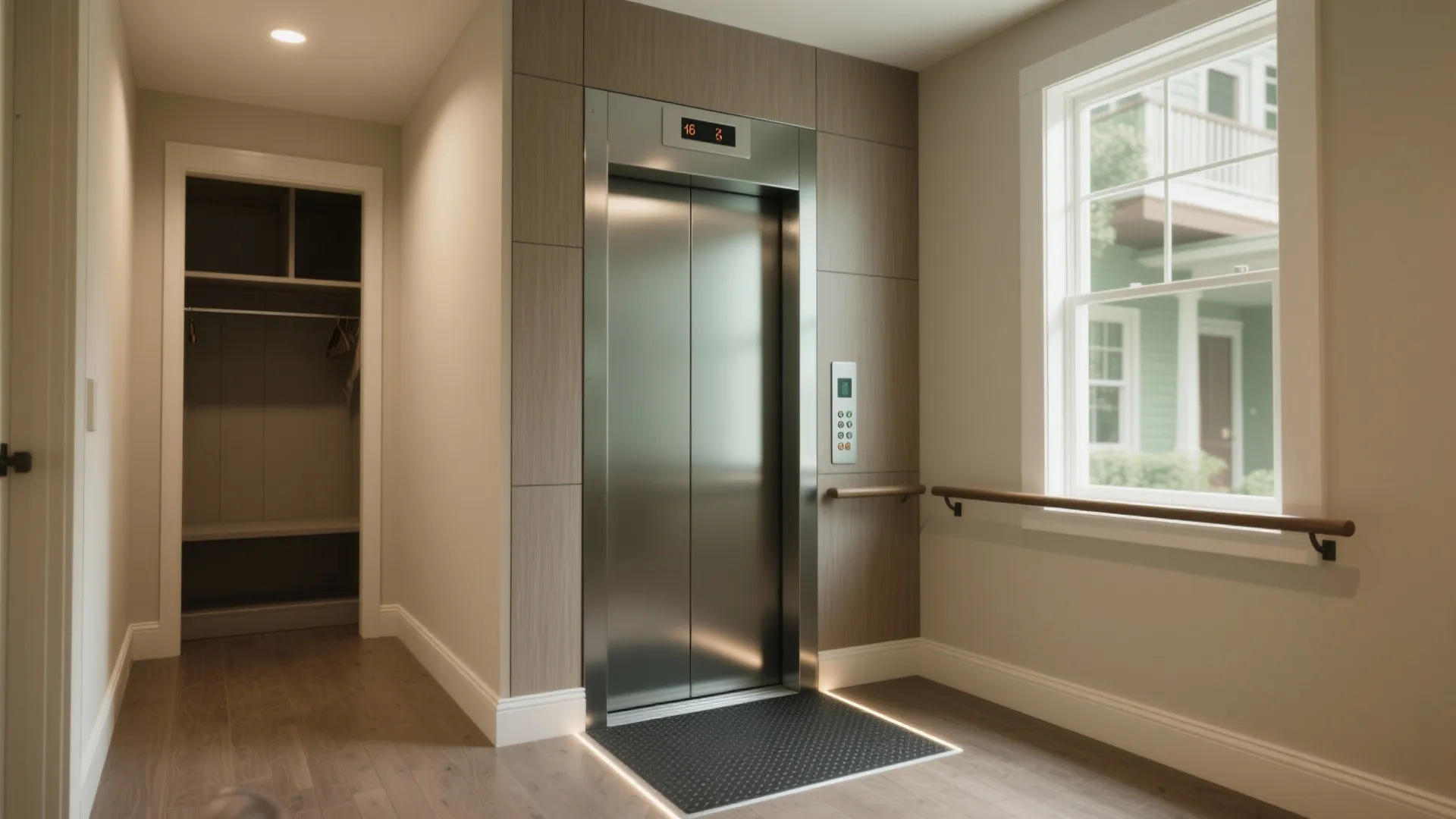

DIY Elevator for Home: A Practical Guide to Small Space Innovation: Fast-Track Guide to Building Your Own Home Elevator in Minutes

I’ve designed and integrated compact residential lifts in tight footprints for clients who needed safer, more dignified vertical mobility without a full remodel. A DIY approach can be viable if you treat it as a systems project—structure, mechanics, electrics, and user experience—while respecting codes and safety standards. The goal is a small, quiet, low-energy lift that fits into a closet-sized shaft or corner bay and looks like it belongs.

Two realities shape the plan: people spend roughly 90% of their time indoors, so accessibility upgrades strongly affect daily life, and vertical travel must be safe in low light, during stress, and for varied users. WELL v2 highlights occupant safety and lighting criteria around visual acuity and glare reduction (see wellcertified.com), while IES lighting recommendations support task illuminance in circulation zones to reduce missteps. Steelcase research links supportive environments with reduced physical strain; integrating ergonomic controls and clear wayfinding lowers risk for older adults and children. These references are practical anchors when you translate mobility needs into design decisions.

Set the Intention: Who Uses It, How Often, What Must Fit

Before sketching, profile users and payloads. Is it one person daily, or a caregiver with a foldable wheelchair? A realistic home lift car is often 30–36 in wide by 30–40 in deep, accommodating a user and small items, not a full hospital chair. Establish cycle frequency (e.g., 10–20 trips/day) and acceptable wait times. Define comfort targets: under 65 dBA inside the cab, smooth start/stop with acceleration under ~0.3 m/s² to avoid jolts, and a car speed around 0.15–0.3 m/s for two-story homes—fast enough to be useful, slow enough for residential safety.

Choosing a Drive System: Traction, Hydraulic, or Screw

In tight homes, I favor machine-room-less traction (counterweight + compact gearless motor) or a self-contained screw-driven system when ceiling height is limited. Hydraulic units can be compact but add oil handling and pit considerations. Key trade-offs:

1. Traction: Efficient, quiet with proper isolation; requires accurate alignment, counterweight space, and overhead clearance.
2. Hydraulic: Smooth ride, simpler control logic; needs pit depth, potential odor/leak management, and thermal considerations.
3. Screw/Spiral: Minimal pit, simpler installation; moderate noise unless well isolated, slower speeds.

For DIY feasibility, screw-driven lifts with integrated safety nuts and mechanical locks simplify alignment and reduce the number of custom fabricated parts. Traction offers the best long-term efficiency if you can build a true shaft with overhead and a robust anchoring strategy.

Structural Strategy: Shaft, Open Platform, or Retrofit Bay

Structure dictates ease and safety. A framed shaft using LVLs or steel studs creates a predictable envelope for guide rails, doors, and fire/smoke stopping. If space is extremely tight, consider an open platform lift with guarding, but only where local code permits and fall hazards can be fully mitigated. I anchor guide rails to structural studs or a steel angle ladder, not just sheathing. Floor loads from a compact lift are modest (often under 500–700 lb moving load for car + user), but point loads at anchors matter—spread them with base plates and continuous members. When planning the path, a corner bay or closet stack is ideal. If you’re laying out the run adjacent to stairs, mock up the landing clearances with a room layout tool to validate door swings and turning circles.

room layout tool

Safety Fundamentals: Redundancy, Interlocks, and Controlled Stops

A home lift must fail safe. Include door interlocks that prevent motion unless doors are fully latched. Add an overspeed governor or threaded-drive safety nut, mechanical locks at landings, and an emergency stop accessible from inside. Emergency lowering should be manual or battery-backed. Smooth acceleration/deceleration reduces slip or fall risk—set ramps to feel progressive, not abrupt. Lighting inside the cab should be glare-controlled, ~200–300 lux on controls, warm-neutral (3000–3500K) to balance visibility and comfort, and avoid exposed bright point sources that create veiling reflections; this aligns with IES guidance around task visibility and glare management.

Cab Design: Ergonomics, Controls, and Visibility

Inside the car, control placement matters. Mount primary buttons at 36–48 in AFF for wheelchair reach ranges and comfortable standing use. Tactile differentiation and high-contrast labeling improve usability across ages. Provide a handrail at 34–38 in AFF on at least one wall. Include a small mirror or camera/indicator for door edge visibility. Keep finishes light but non-specular to reduce glare—matte HPL panels, textured laminate, or coated metal. Floor material should be slip-resistant even at low heel contact; rubber or textured vinyl is dependable and easy to clean. Integrate a soft, indirect perimeter light and a focused but diffused overhead, avoiding sharp shadows near the threshold.

Doors and Landings: Safe Thresholds in Tight Spaces

In cramped homes, landing design prevents mishaps. Provide flat thresholds with minimal gaps; use beveled transitions if you can’t perfectly flush. Aim for at least 36 in clear landing width. If you use swing doors, set closer tension low enough to avoid slamming, and add vision panels; sliding doors are superior in tight corridors. Door interlocks must be robust; test them under misalignment conditions. Use contrasting floor edges or LED strip markers to guide foot placement.

Acoustics and Vibration: Quiet by Design

A compact lift can be nearly silent if you manage structure-borne noise. Decouple the motor mount with elastomer isolators, use resilient channels on shaft walls if near bedrooms, and line the car with acoustic backing behind panels. For screw drives, select a lead screw with precision machining and pair it with a damped motor controller to avoid tonal whine. Keep dBA inside the cab under the mid-60s; the experience should feel calm, not industrial.

Power, Controls, and Redundancy

Plan a dedicated circuit sized for motor load and control electronics, plus a UPS for emergency descent and lighting. Control logic should include soft-start/soft-stop, door status indicators, and fault logs. Place a simple diagnostic panel near the lowest landing. Avoid spaghetti wiring—use labeled harnesses and secure cable management. Battery-backed lighting and a two-way communication option (doorphone or app-integrated module) are essential for reassurance.

Ventilation and Thermal Behavior

Even small cars can feel stuffy. Provide a low-watt fan with a quiet profile and an intake/exhaust route that keeps air moving without drafts. If the shaft shares walls with mechanical rooms, thermally isolate to avoid heat soak. Materials inside the car should be low-VOC and easy to wipe clean.

Color Psychology and Wayfinding

Color choices influence comfort. Neutral, warm palettes reduce anxiety in small enclosures. High-contrast edges at controls and thresholds improve legibility. Verywell Mind’s color psychology overview notes warmer tones can feel inviting while high saturation can heighten arousal—use muted, warm neutrals with crisp contrast accents for buttons and signage to balance calm with clarity.

Small-Footprint Layout Tactics

When you’re carving a shaft into a tight plan, every inch matters. Stack landings in true alignment to avoid offset framing. If a full shaft is impossible, a guided platform inside a protective frame may be acceptable where code allows. Use an interior layout planner to simulate door swings, turning circles, and clearance at the top landing; test nighttime lighting scenarios and glare angles from adjacent fixtures so users aren’t blinded when doors open.

interior layout planner

Materials and Finishes for Durability

Prioritize durable, low-maintenance finishes: HPL, powder-coated steel, and rubber flooring. Rounded edges reduce bruising risk. If you select wood, choose engineered products with stable cores to prevent warping. In shafts, use fire-rated gypsum assemblies per local code, and seal penetrations carefully to limit smoke transfer. Handles and rails should feel warm to touch; coated metals or wood accents work better than bare steel in cold climates.

Lighting: Lux Levels, Color Temperature, and Glare Control

Layer the lighting: indirect perimeter glow for spatial comfort, diffuse overhead task light at ~200–300 lux on the control plane, and small, shielded markers at thresholds. Target 3000–3500K for a friendly, accurate rendering in residential settings. Control glare with lensing and baffles; avoid shiny ceiling panels. If your car has a mirror, position luminaires so reflections don’t create veiling glare. Reference IES illuminance guidelines for circulation and task visibility to fine-tune placement.

Codes, Permits, and When to Call a Pro

A DIY lift still triggers inspection in most jurisdictions. Expect structural review, electrical permitting, and life-safety checks for interlocks and emergency systems. I tell clients: do the carpentry, finishes, and layout; bring in licensed pros for motor wiring, interlocks, and final commissioning. It’s the difference between a clever prototype and a safe, legal installation.

Budgeting and Phasing

On a small residential lift, anticipate costs for structure (framing, doors), drive system (motor, rails, controls), power (dedicated circuit, UPS), finishes (cab panels, flooring), and inspection. Phase work: first framing and shaft; second mechanical install; third wiring and controls; fourth finishes and testing. Keep contingencies for alignment, lighting adjustments, and acoustic treatments.

Testing, Commissioning, and User Training

Plan a thorough test sequence: door interlock checks, emergency stop and descent, overload detection, ride comfort (starts/stops), lighting levels, and acoustic measurements. Train users on entry posture, handrail use, and emergency call. Post a concise instruction placard inside the car.

FAQ

How much space do I need for a compact home lift?

For a two-level home, a practical car interior can fit in roughly 30–36 in width and 30–40 in depth. Shaft exterior may reach 40–50 in square depending on structure and clearance.

What is a safe speed for a residential DIY lift?

Target around 0.15–0.3 m/s with gentle acceleration under ~0.3 m/s² to avoid jolts.

Which drive type is best for tight spaces?

Screw-driven systems simplify installation and minimize pit/overhead needs. Traction is quieter and more efficient long term if you can build a proper shaft.

How should I light the cab?

Provide ~200–300 lux on controls, 3000–3500K color temperature, and diffused fixtures to reduce glare, in line with IES visibility principles.

Do I need door interlocks?

Yes. Interlocks are non-negotiable; they prevent motion unless doors are latched and are central to life safety.

Can I avoid a machine room?

Yes, with machine-room-less traction or integrated screw systems. Ensure adequate overhead and side clearances for maintenance.

What about noise and vibration?

Use motor isolators, resilient shaft linings, and acoustic-backed panels. Aim for interior noise under the mid-60s dBA.

How do I plan landings in cramped halls?

Test door swings, turning circles, and thresholds with a layout simulation tool to prevent pinch points and unsafe approaches.

Is battery backup necessary?

A UPS for emergency lighting and descent is strongly recommended for power outages.

Which materials resist wear?

Matte HPL panels, powder-coated steel, and textured rubber flooring balance durability, slip resistance, and easy cleaning.

When should I bring in licensed professionals?

Electrical hookup, interlock integration, and final commissioning should be done by licensed pros; you can handle framing and finishes.

Can color choices affect user comfort?

Yes. Warm neutrals with high-contrast controls reduce anxiety and improve legibility; avoid high-gloss finishes that cause glare.
