DIY False Wall: Create Extra Space & Style in Minutes: 1 Minute to an Effortless DIY False Wall Setup at Home

I’ve used false walls across apartments, townhomes, and commercial suites to carve out storage, hide wiring, and shape sightlines without committing to heavy structural work. Done right, a DIY false wall can deliver clean function and a tailored look—often in a single weekend. The key is disciplined planning: understand loads, light, acoustics, and circulation before you lift a stud.

Space and behavior data reinforce the impact of well-planned partitions. Gensler’s U.S. Workplace Survey indicates that the physical environment supports performance when it balances focus, collaboration, and respite zones, and workspace changes that improve control over acoustics and visual privacy correlate with higher effectiveness. WELL v2 also highlights controllable glare, balanced illuminance, and low-VOC materials as fundamental to occupant health and comfort, standards I always reference during material selection. For deeper planning principles around occupant experience, the Interaction Design Foundation describes how spatial affordances influence wayfinding and behavior. These references keep the build aligned with human factors from the start.

Define the Intention and Placement

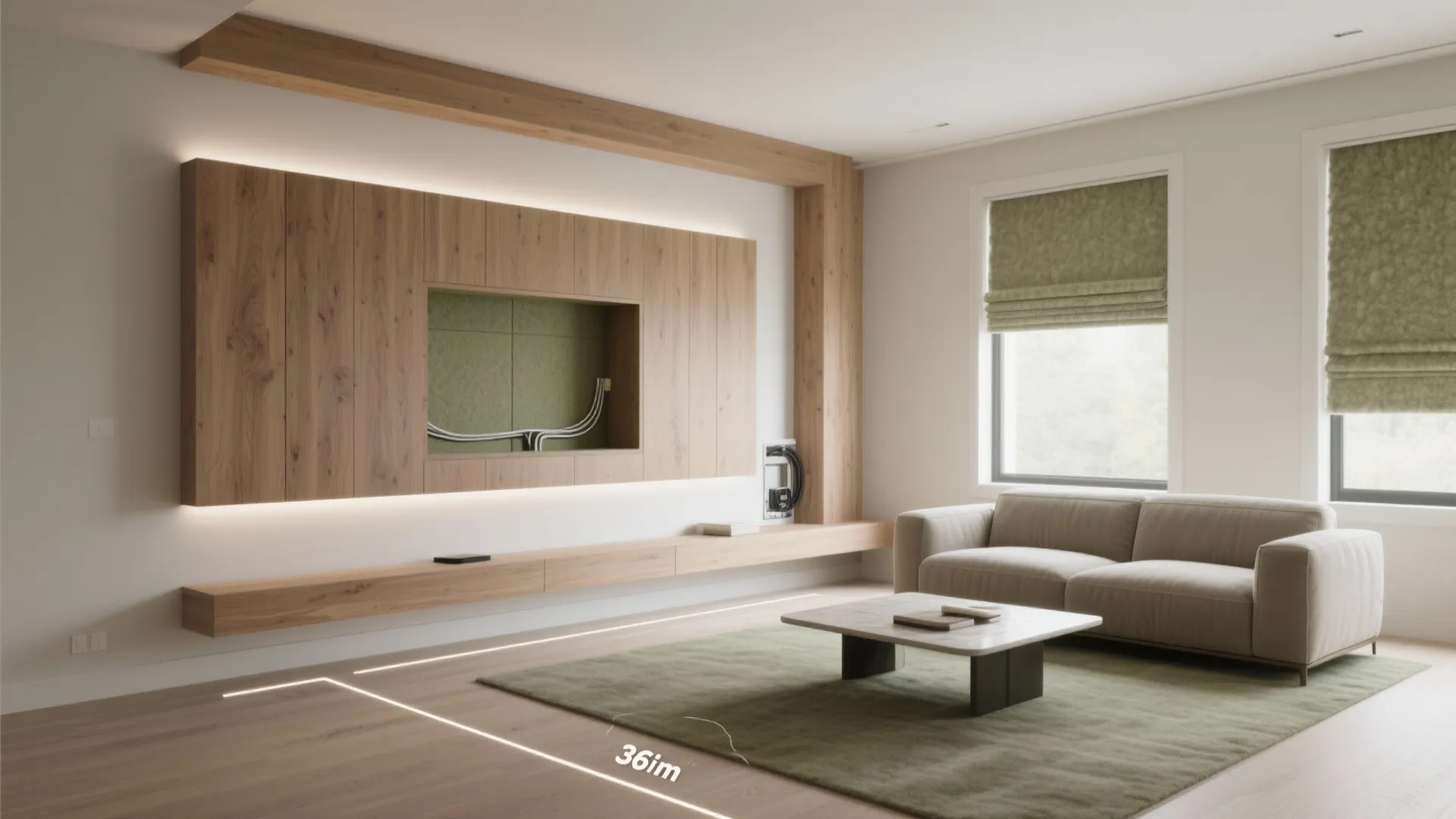

Begin with intention: storage niche, TV chase, bedroom headwall, entry partition, or acoustic baffle. Each use sets dimensions, materials, and detailing. Aim for clear circulation: maintain a minimum 36-inch pathway for comfortable movement and accessibility. If the false wall will shape a living room or studio, simulate layouts before committing. A quick pass through a room layout tool helps test furniture clearance, sightlines to windows, and how the partition interacts with door swings.

Measure, Module, and Mark

I favor modular planning—24-inch or 16-inch stud spacing—so shelving and electrical bays fall into predictable cavities. Use a laser measure to capture ceiling heights and confirm floor flatness; a 1/4-inch slope across 10 feet is common in older buildings, so plan shims at the sole plate to keep the wall plumb. Sketch stud locations, wiring chases, and any recessed niches on painter’s tape directly on the floor and wall; it’s a low-tech way to check reach, ergonomic heights, and symmetry.

Select Materials with Health and Finish in Mind

Choose kiln-dried lumber for consistent framing. For boards, I use formaldehyde-free MDF when painting and Type X gypsum if the wall backs a kitchen or heater for added fire resistance. WELL v2 credits incentivize low-VOC paints and adhesives—worth adopting even at home for better indoor air quality. If moisture is possible (bathroom zones), use cement board behind tile and manage vapor with the correct membrane.

Acoustic and Lighting Strategy

Even a thin partition can tune sound. Fill cavities with mineral wool; it delivers better sound absorption than standard fiberglass at comparable thickness. Decouple surfaces where possible (resilient channels) if you need more isolation. With lighting, respect glare and task balance. IES recommendations for living areas typically sit around 100–300 lux ambient with higher levels for task zones; a false wall is a perfect place to embed low-glare sconces or indirect LED grazers. Pair warm 2700–3000K for living rooms and 3500–4000K for working areas to support circadian comfort.

Frame and Anchor Without Guesswork

Layout your sole and top plates, then mark stud centers. Where attachment to floors or ceilings is sensitive (heated floors, concrete slabs, or plaster ceilings), use appropriate anchors and avoid penetrating utilities. If you’re chasing cables, add protective nail plates to the stud bays. In rentals, consider freestanding L-frames or tension systems to avoid invasive fasteners; add mass at the base for stability and integrate anti-tip brackets discretely.

Utilities: Power, Data, and TV Chases

Plan outlets and cable management before sheathing. Keep receptacle centers at 16–18 inches above finished floor for consistency. For TV walls, route a dedicated conduit from the equipment cabinet to a recessed box behind the display; a 1.5–2-inch diameter conduit future-proofs for HDMI and power separation. If you’re adding uplights or strip LEDs, designate an access panel near drivers for maintenance.

Sheathing, Joints, and Surface Prep

Sheath with gypsum or MDF, then tape and mud joints in two passes with a final skim for level-five smoothness if you plan a matte finish. Prime with a high-build primer to unify porosity and improve the sheen of paint. For shadow gaps, install a 10–12 mm reveal with a trimless channel—this lifts the wall visually and helps with minor floor/ceiling tolerances without bulky baseboards.

Integrated Storage and Niches

Recessed niches work best at 42–48 inches to center for display, 18–24 inches for media components, and 54–60 inches for bedside storage. Line niches with durable laminate or hardwood for wear resistance. Consider a removable back panel to reach wiring. In micro-apartments, a 6–8 inch-deep false wall can hide a coat rack, broom storage, or shoe drawers without crowding circulation.

Color Psychology and Finish Palette

Color shifts perception. Cooler hues expand perceived width, warm tones pull planes forward. For restful bedrooms, muted greens and blues support calm per Verywell Mind’s synthesis of color psychology. If you need energy in a creative corner, saturated accents constrained to the niche interior keep the field walls quiet while adding focus. Pair paints with tactile surfaces—matte plaster, rift-cut oak, or linen wallcovering—to add depth and reduce glare.

Proportions, Rhythm, and Visual Balance

Proportion governs elegance. I often break long walls with a 60/40 massing—two-thirds solid, one-third articulated with a niche or slatted screen—so the eye travels. Repeat verticals at consistent spacing to create rhythm; align niche heads and sconce centers along a common datum for visual calm. Where ceilings are low, use horizontal reveals; with tall ceilings, stretch vertical niches to 72–78 inches to draw the eye up.

Sustainability and Durability

Choose FSC-certified lumber when available and prioritize low-VOC finishes (WELL v2 guidance). If you plan frequent reconfigurations, fasten with screws rather than glue to allow future disassembly and reuse. For high-traffic zones, select abrasion-resistant paints and corner beads; durability extends lifecycle and reduces waste.

Rapid Build Timeline

A realistic weekend plan: Friday evening—measure, mark, and shop. Saturday morning—frame and rough utilities; afternoon—sheath and first mud. Sunday—sand, second mud, prime, paint, and install fixtures. Add dry times to your schedule; quick-set compounds speed the process but sand harder, so use them strategically.

Layout Simulation Before You Commit

Before fastening the first plate, verify furniture and door clearances and test the view corridor from entry to window. A simple pass with an interior layout planner can reveal conflicts with swing paths, lighting throw, and cable lengths, saving time on site.

Common Mistakes I See

Skipping acoustic fill, over-lighting with exposed strips that create glare, misaligned outlets with furniture, and niches that are too shallow for actual devices. The cure is a 30-minute checklist: lighting levels, color temperature, cable routing, device depths, and ergonomic heights.

FAQ

How deep should a false wall be?

For cable management and shallow niches, 4–6 inches works. If you’re chasing a TV with devices or storage, 6–8 inches gives breathing room. Deeper walls (10–12 inches) suit built-in shelving.

Can a false wall improve acoustics?

Yes. Mineral wool in the cavity plus resilient channels can reduce sound transfer. Keep gaps sealed and avoid rigid paths around outlets.

What lighting works best on a faux partition?

Low-glare indirect lighting: wall washers or sconces with diffusers. Match ambient levels to roughly 100–300 lux for living spaces per IES guidance and avoid harsh 5000K lamps unless you’re lighting a workbench.

Is it safe to run power and data inside the wall?

Use listed conduit or raceways, keep power and low-voltage separate, and add nail plates over stud bores. Always follow local codes and consider a licensed electrician for connections.

How do I prevent the wall from looking bulky?

Use shadow gaps, slim profiles, and tone-on-tone finishes. Keep reveals consistent and balance massing—solid fields paired with a restrained niche or slatted insert.

What paints and finishes should I use?

Low-VOC primers and paints guided by WELL v2 help air quality. Matte finishes reduce glare, while satin works for cleanability in hallways.

Can I build a non-invasive false wall in a rental?

Freestanding frames with base weighting and discreet top braces minimize damage. Use felt pads at contact points and avoid floor penetrations.

How do I plan ergonomic heights for niches and outlets?

Outlets at 16–18 inches AFF, display niches at 42–48 inches, media components at 18–24 inches, and bedside niches at 54–60 inches for reach and visibility.

Will a false wall block daylight?

Place it perpendicular to windows to preserve cross-light, use slatted or perforated sections near glazing, and lean on lighter colors to reflect light deeper into the space.

What’s the fastest way to test layouts?

Run a quick pass in a room design visualization tool to check clearances, sightlines, and furniture fit before you build. It’s faster than rework on site.
