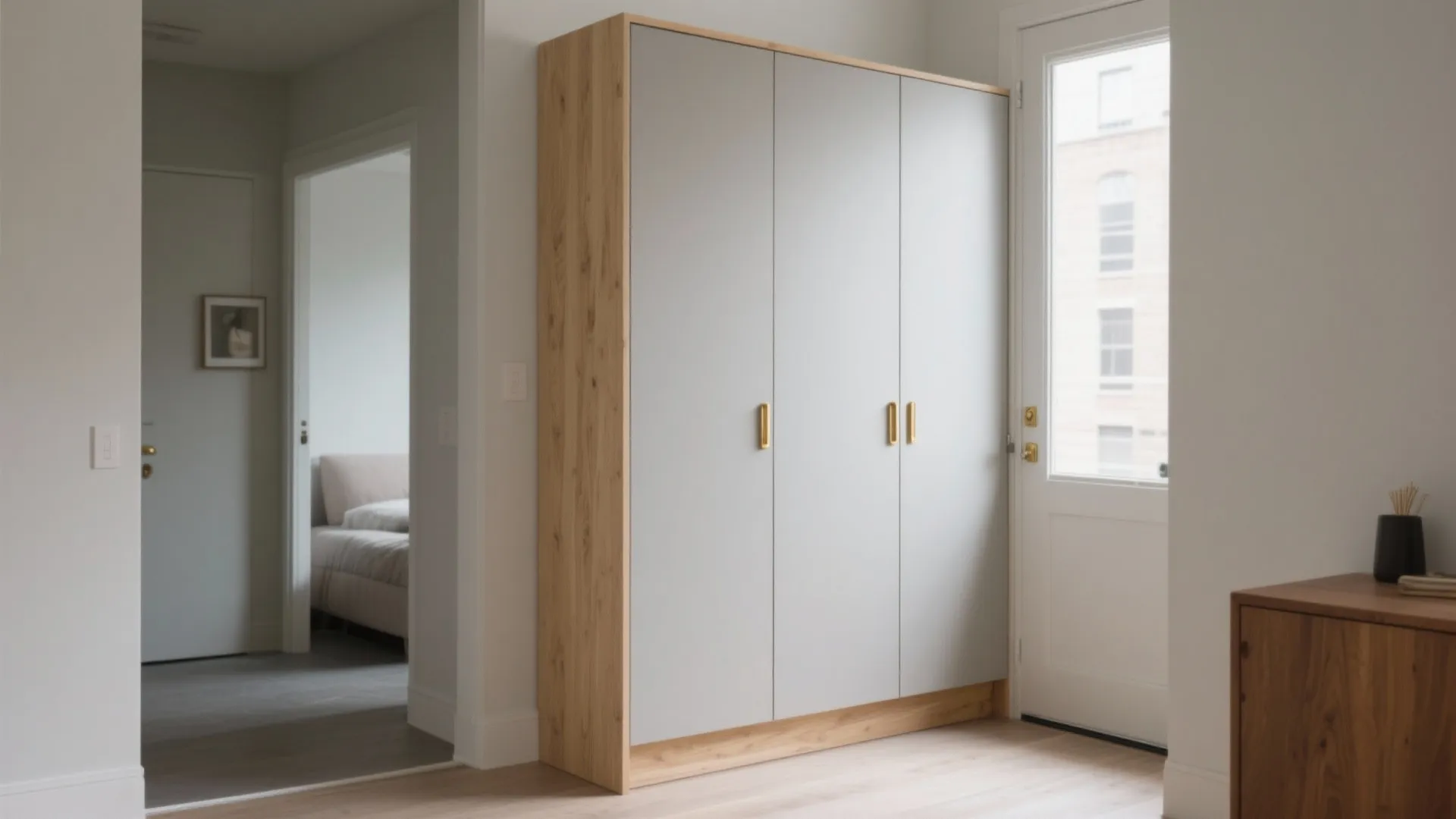

DIY Floor Mounted Wall Cabinet: Step-by-Step Guide for Small Spaces: 1 Minute to Smarter Storage: Fast-Track Guide to DIY Floor Cabinets

Small spaces thrive on vertical efficiency, precise proportions, and resilient joinery. I’ve built dozens of floor-mounted wall cabinets for apartments and compact studios where every inch matters, and this approach consistently delivers: the cabinet stands on the floor for load transfer and stability, while the back panel anchors to the wall to prevent racking. Done right, you’ll gain closed storage, a clean facade, and a safer footprint that won’t wobble—even on uneven floors.

Before cutting a single panel, let’s calibrate to the realities of small spaces. Research from Herman Miller notes that clutter directly undermines user comfort and productivity, reinforcing the need for concealed, easy-to-reach storage in dense rooms. Steelcase research also shows that well-organized environments improve perceived control and reduce stress—key benefits when square footage is tight. For durability and occupant wellness, I align with WELL v2 guidance on ergonomic reach zones and secure mounting of casework to protect users, particularly in multi-use rooms.

Project Overview: Form, Function, and Footprint

A floor-mounted wall cabinet marries the load-bearing reliability of a base unit with the visual lightness of a wall cabinet. It typically includes a rigid carcass, integrated toe-kick or plinth, a full back for wall anchoring, and doors or drawers tailored to your daily reach pattern. This hybrid format is ideal for entryways, compact kitchens, and home offices where added stability and slimmer depth take priority over bulky base cabinets.

Dimensions and Clearances That Work in Small Rooms

In tight spaces, depth and vertical reach drive usability. I aim for 10–14 in (255–355 mm) interior depth for small rooms, with a finished cabinet depth of 12–16 in. Maintain a minimum 36 in (915 mm) circulation path in front. For ergonomic reach, WELL v2 recognizes the importance of reach ranges; keep frequently used items between 24–48 in (610–1220 mm) above finished floor. If placing near seating or desks, respect knee and leg clearance and avoid protrusions that create shin conflicts.

Materials and Hardware

- Carcass: 3/4 in (19 mm) plywood or high-quality MDF with moisture-resistant core in kitchens/baths.

- Back panel: 1/2 in (12 mm) plywood for structural anchoring (not a flimsy 1/8 in backer).

- Face frame (optional): 3/4 in solid wood for alignment tolerance.

- Doors: 3/4 in panels; consider lightweight cores to reduce hinge stress.

- Edge banding: 1 mm ABS or wood veneer for durability.

- Fasteners: Confirmat or cabinet screws, pocket screws for face frames, wood glue (Type II for kitchens).

- Mounting: Structural screws into studs; French cleat optional for supplementary hang and alignment.

- Hinges: Soft-close concealed hinges with 110–120° opening.

- Leveling: Adjustable feet or shims beneath a plinth; anti-tip brackets for seismic safety where required.

Planning Your Layout and Wall Conditions

Locate studs first (16 in or 24 in on center in most U.S. framing). Avoid plumbing and electrical runs. If your wall is out of plumb, expect to scribe the back edge or use a face frame to conceal minor gaps. For multi-cabinet runs, I test-fit with a layout simulation tool like a room design visualization tool to confirm door swing, pull clearance, and visual rhythm before I cut.

For quick digital planning of footprints, circulation, and door swing arcs, try an interior layout planner such as this room layout tool: room layout tool.

Cut List (Typical Single Cabinet 30 W x 14 D x 34 H in)

- Sides (2): 34 x 14 in

- Top/Bottom (2): 28.5 x 14 in (adjust for material thickness)

- Back (1): 33.25 x 28.5 in (inset in dados or surface-mounted)

- Plinth/Toe-kick (front 1, sides 2): 4 x 28.5 in front; 4 x 12.5 in sides

- Fixed shelf (1): 28.5 x 12.5 in (optional adjustable shelves)

- Doors (2): 16 x 31.5 in each (adjust for reveal and hinge type)

- Edge banding as needed

Step-by-Step Build

1) Prep and Marking

- Square your panels. Accuracy here prevents racking later.

- Lay out dados for the top, bottom, and fixed shelf (3/8 in deep). Dados add torsional rigidity.

- Route a 1/2 in dado or rebate for the back panel to sit flush and strengthen the case.

2) Build the Plinth (Toe-Kick)

- Assemble the toe-kick frame using pocket screws or confirmats. Standard height 3–4 in; depth equals cabinet depth minus back clearance.

- Add adjustable feet for uneven floors; aim for a finished level plane.

3) Assemble the Carcass

- Dry-fit sides, top, bottom, and shelf. Check square by measuring corner-to-corner diagonals.

- Glue and screw through pre-drilled countersunk holes; avoid end-grain joints without mechanical reinforcement.

- Install the back panel into its rebate with glue and screws every 6–8 in.

4) Mount to the Plinth

- Secure the carcass to the plinth from inside the bottom panel. Verify level in both directions; shim as needed.

5) Wall Anchoring

- Locate studs again and mark on the inside back. Predrill at stud locations and use structural screws with washers.

- For masonry, use appropriate anchors rated for the cabinet’s loaded weight.

- In seismic zones or homes with kids, add anti-tip straps at the top rail.

6) Doors, Hinges, and Alignment

- Bore 35 mm hinge cups at 3–4 in from top and bottom edges.

- Hang doors, adjust three-way hinge screws for reveal consistency (2–3 mm gap typical).

- Install pulls at ergonomic height based on user reach.

7) Shelving and Load Management

- For adjustable shelves, use 5 mm pins at 1 in increments. Keep heavy items on the lowest shelf.

- A 3/4 in plywood shelf spanning 28.5 in safely holds typical pantry or office loads if supported on all sides; add a mid-rail or shelf stiffener for heavier items.

8) Finishing

- Sand to P180–P220. Seal edges and end grain.

- For kitchens, low-VOC waterborne finishes align with health-first standards and reduce odor.

- Caulk the wall scribe for a crisp, shadow-free joint.

Lighting, Color, and Visual Balance

Cabinet color affects perceived space. Desaturated, mid-light tones extend walls visually and reduce contrast glare. Verywell Mind’s color psychology overview highlights how cool neutrals can feel calming; I often pair them with warm hardware to avoid sterility. For task visibility, target 300–500 lux at the cabinet face using 2700–3500K LEDs; shield sources to reduce veiling reflections. Keep the door sheen matte to minimize hotspots.

Ergonomics and Daily Use

- Store high-frequency items between knee and shoulder height.

- If the cabinet sits near a desk, ensure at least 18 in clearance to avoid door collision with seated knees.

- Use soft-close hardware to reduce impact noise; line shelves with thin cork or silicone for acoustic dampening and grip.

Pro Tips from Job Sites

- Out-of-square rooms: Scribe the side panel to the wall rather than forcing the cabinet square; forcing creates door misalignment.

- Humid rooms: Seal the back panel edges thoroughly; that’s where swelling begins.

- Mixed walls: When only one stud aligns, add a continuous plywood ledger behind drywall (opened from an adjacent bay) to capture more fasteners.

Maintenance and Longevity

Check fasteners yearly, especially in high-traffic areas. Re-level adjustable feet if seasonal floor movement opens gaps. Re-oil hinges annually and touch up finish on edges where bags or chairs contact.

Simple Variations for Different Rooms

- Entry: Add a concealed tray for keys and a louvered door for ventilation if storing shoes.

- Office: Replace doors with framed, acoustically lined panels to dampen equipment noise.

- Kitchenette: Integrate a recessed LED under a subtle rail for task lighting at 3000K.

FAQ

How do I size the cabinet for a very small entryway?

Keep depth to 10–12 in and height under 36 in if it sits near swing doors. Ensure 36 in clear passage and verify door swing arcs.

What’s the safest way to mount to a wall with metal studs?

Use fine-thread self-drilling anchors rated for metal studs, or add a plywood backer spanning multiple studs. Confirm load ratings and distribute fasteners vertically.

Can I skip the toe-kick and place the cabinet directly on the floor?

You can, but a plinth or adjustable feet help level the cabinet, protect against minor spills, and improve ergonomics by raising the door edge away from toes.

Which hinges work best for thin doors?

Use specialized thin-door concealed hinges or add a solid edge strip for standard 35 mm cup hinges. Keep door weight low to reduce sag.

How much weight can the shelves handle?

With 3/4 in plywood, a 28–30 in span holds typical household loads if supported on three sides. For heavy items, add a front stiffener or a center divider.

Do I need a back panel thicker than 1/4 in?

For floor-mounted wall cabinets, I recommend 1/2 in for robust anchoring and racking resistance, especially on uneven floors.

What finish is best for kitchens or baths?

Use waterborne, low-VOC polyurethane or conversion varnish rated for moisture resistance. Seal all edges and penetrations, especially hinge bores.

How do I plan door swing and avoid collisions?

Model your room and cabinet swing arcs in an interior layout planner before cutting. A quick pass with a room layout tool helps test clearances with nearby furniture.

What lighting level should I target around the cabinet?

Aim for 300–500 lux on vertical surfaces with 2700–3500K LEDs for comfortable, neutral rendering. Avoid exposed point sources that cause glare on semi-gloss doors.

Is a French cleat necessary?

Not mandatory for floor-mounted units, but a cleat can simplify alignment and add redundancy. Still anchor through studs with structural screws.
