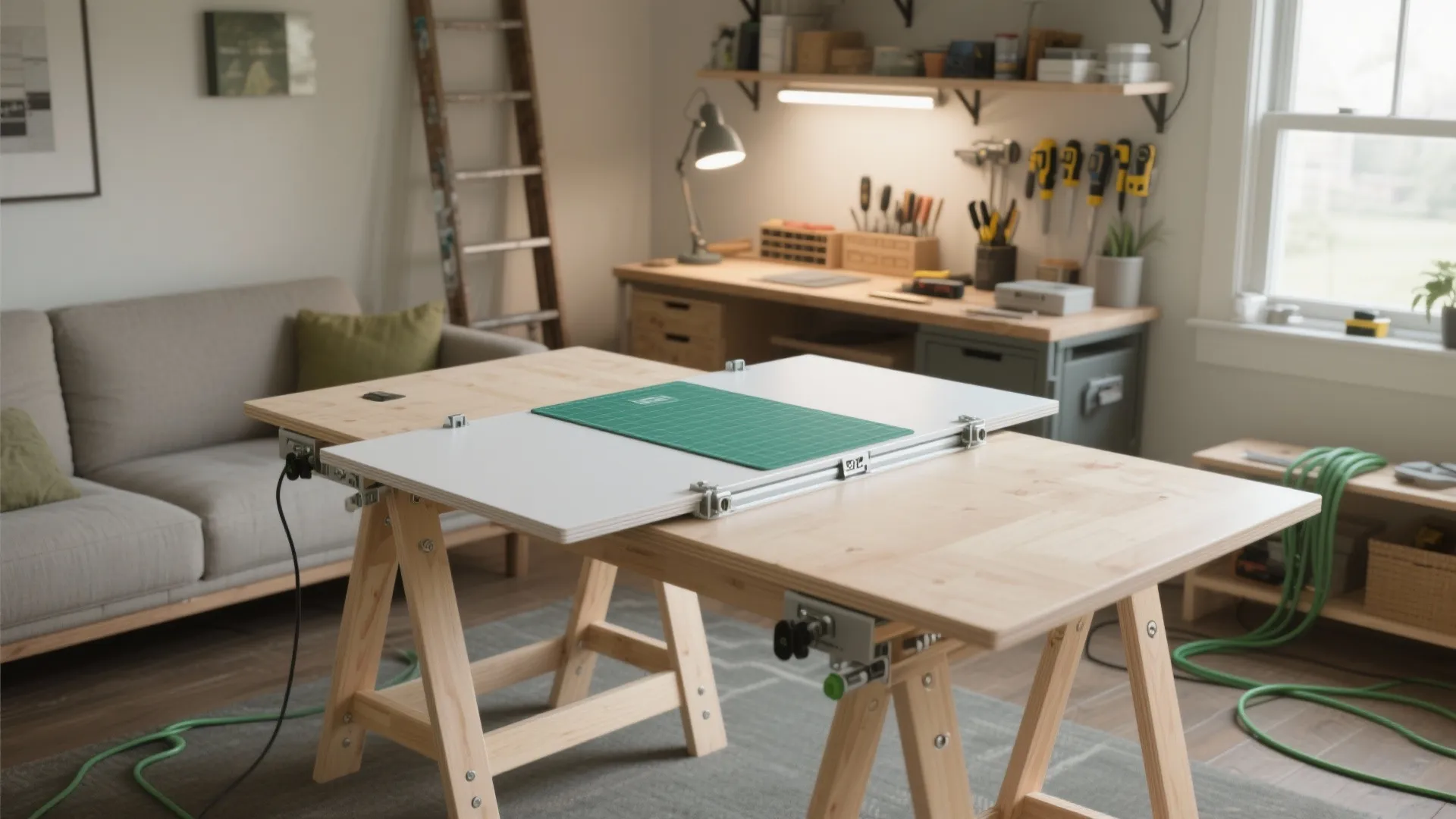

DIY Folding Workshop Table: Space-Saving Craft for Any Room: 1 Minute to a Smarter, Space-Efficient Workshop Table

I’ve designed and built more folding tables than I can count, from compact home studios to multi-use living rooms that moonlight as makerspaces. A well-executed DIY folding workshop table should lock solidly when in use, fold smoothly when you’re done, and respect the room’s circulation, lighting, and acoustics. Done right, it can protect your workflow and your back while reclaiming floor space in seconds.

Space is precious, and the numbers back it up: Gensler’s workplace research has consistently shown that adaptable, multi-use spaces improve perceived effectiveness and reduce space waste, especially in hybrid environments where rooms flex between work and leisure. From a comfort standpoint, the WELL v2 Ergonomic Feature recommends adjustable working heights and clear knee space to minimize musculoskeletal strain. I set my folding table to a comfortable 36 inches for general crafts, and drop to 30 inches when detail work demands a seated posture, aligning with task-related ergonomics. For deeper lighting guidance, the IES recommends task illuminance in the range of 300–500 lux for fine handwork; I aim for 400–450 lux at the surface to balance accuracy and glare control. If you want additional reading, the WELL v2 guidance on ergonomics is especially actionable for DIYers who care about long-term comfort.

Materials matter—both for durability and sustainability. Plywood with a formaldehyde-free core, solid wood battens, and zinc-plated steel or aluminum hardware give the best strength-to-weight ratio. I keep the total weight under 35–40 lbs for an average 48 x 24 inch table so a single person can fold and store it comfortably. Hinges must be robust: continuous piano hinges along fold lines or rated folding leg brackets prevent wobble over time. I favor leg brackets with locking detents; they reduce accidental collapse and increase torsional stability. For the surface, a melamine or high-pressure laminate top resists glue, paint, and scoring, while a replaceable cutting mat zone keeps the primary skin pristine.

Planning Your Dimensions and Load

Before you pick up a saw, map your tasks and loads. If you use benchtop tools (small scroll saw, compact 3D printer, or a desktop vise), calculate live loads around 75–100 lbs and ensure the table’s center area has a frame underneath—not just a skin. For soft crafts (sewing, scrapbooking, model building), you can keep the table lighter and focus on edge stiffness to avoid bounce. I size the frame in a ladder pattern with 1.5 x 2 inch hardwood rails, glued and screwed, with a 6–8 inch spacing to distribute loads. Cross braces near hinge lines reduce racking during fold/unfold.

Leg Systems: Stability Without Bulk

There are three reliable leg approaches: folding trestle legs, telescopic locking legs, and wall-mounted drop-down tables. Folding trestle legs are quick to deploy and offer wide stance stability—a good match for uneven floors. Telescopic legs with indexed heights give you ergonomic flexibility for seated and standing work. Wall-mounted variants turn dead wall space into a deployable work surface; just make sure you hit studs and use lag screws rated for shear. In tight rooms, a drop-down design preserves floor circulation while giving you a full-depth surface when needed.

Surface Finish, Edge Control, and Maintenance

Edges take abuse. I apply a 2 mm PVC edge band or hardwood lipping to protect the panel and hands. A satin, low-reflectance finish helps with glare control under bright task lights, supporting visual comfort in line with IES glare guidance. Keep finishes low-VOC to preserve indoor air quality. For maintenance, a quarterly check of hinge screws, leg bracket fasteners, and locks prevents creep; a dab of dry Teflon lubricant in hinge barrels keeps fold actions smooth without attracting dust.

Lighting and Color Psychology for Craft Accuracy

Task accuracy depends on light quality. I set a 4000–4500K LED task light with a high CRI (90+) and position it at 30–45 degrees off the work surface to minimize shadows. For color-critical tasks (paints, fabrics), cooler neutral light helps with color discrimination. Color psychology plays into stamina: calm neutrals with a few saturated accents can keep energy up without visual fatigue. If your room also serves as a living space, use dimmable fixtures and a secondary ambient layer so you can soften the mood post-project.

Acoustic Comfort in Shared Rooms

A folding table often lives in acoustically reflective rooms. Simple material choices help: a cork pad under tools, felt feet on leg bases, and a thin recycled PET underlayer beneath the tabletop reduce impact noise. If you run small power tools, park a portable acoustic panel behind the table to absorb mid-high reflections; it makes conversations tolerable while you work.

Layout and Circulation: Make Space Work Harder

Plan the table so it never blocks door swings, window access, or primary circulation routes. In compact studios, align the folded table along a storage wall and keep 30–36 inches clear walkway when deployed. If you want to test configurations before you build, a room layout tool can help visualize clearances and folding arcs:

room layout tool

Hardware and Joinery Details I Trust

Use through-bolts with lock nuts where legs meet frames, not just wood screws. Pilot drill everything to avoid splitting. Pocket screws are fine for rails but reinforce high-stress corners with glue blocks. Choose hinges with countersunk holes and at least four fasteners per leg bracket. Where the tabletop folds, leave a 1–2 mm expansion gap; seasonal movement can otherwise bind your hinge line.

Height Settings and Human Factors

For standing work, 36–38 inches is comfortable for most adults; for seated work, 29–30 inches pairs with standard chair heights. Keep 24 inches of knee clearance and avoid cross braces within that zone. A shallow front lip improves wrist posture for fine tasks; if you do heavy clamping, add a replaceable sacrificial edge to prevent damage.

Storage Integration Without Clutter

Integrate shallow under-shelves that fold with the legs, or mount removable bins on the underside with quick-release clips. Keep frequently used tools within a 16–20 inch reach envelope. Magnetic strips on the inside of the folded panel are perfect for lightweight metal tools. If weight creeps up, move storage off-table onto a nearby rolling cart so folding stays effortless.

Sustainability and Longevity

Choose certified wood where possible and durable finishes that can be resurfaced rather than replaced. Design the table so the skin can be swapped without discarding the frame; it’s more sustainable and cheaper long-term. Aluminum hardware resists corrosion; stainless is a good alternative near humid zones.

Step-by-Step Build Overview

1) Cut the top to size, apply edge lipping, and finish. 2) Build a ladder frame beneath with hardwood rails. 3) Mount folding or telescopic legs with locking brackets; check squareness. 4) Install continuous hinge if making a bi-fold top, leaving a tiny gap for movement. 5) Add detent locks to prevent accidental collapse. 6) Test the load and wobble; reinforce corners as needed. 7) Dial in lighting and finish with cable clips so cords don’t snag during fold-up.

Deployment and Safety

Always engage leg locks fully before loading. Keep fingers clear of hinge lines. If children share the space, add secondary safety pins or child-proof latches. Store the table vertically with two wall cleats to prevent tipping.

FAQ

Q1: What is the ideal size for a folding workshop table in a small room?

A: A 48 x 24 inch top balances usable space and weight. It fits through doorways, keeps circulation intact, and supports most craft tasks without feeling cramped.

Q2: How much lighting do I need for detailed work?

A: Aim for 300–500 lux at the surface; 400–450 lux works well for fine crafts. Use a 4000–4500K, high-CRI LED to support accurate color perception per IES task recommendations.

Q3: What table height should I choose for comfort?

A: 29–30 inches for seated tasks, 36–38 inches for standing. Ensure 24 inches of knee clearance and avoid intrusive bracing in that zone, aligning with ergonomic best practices.

Q4: How do I prevent wobble?

A: Use locking leg brackets, cross bracing near hinge lines, through-bolts with lock nuts, and a ladder frame under the top. Verify the floor is level; add adjustable feet if needed.

Q5: Can I mount the table on a wall?

A: Yes—use a drop-down design anchored into studs with lag screws. Include a torsion box or stiff frame so the surface doesn’t deflect when loaded.

Q6: What surface is best for glue and paint?

A: High-pressure laminate or melamine resists spills and cleans easily. Add a removable cutting mat zone to protect the finish during blade work.

Q7: How heavy can the table be and still fold easily?

A: Keep total weight under 35–40 lbs for a 48 x 24 inch build. Heavier tables are possible but become awkward to deploy and store solo.

Q8: Any tips for acoustics in a shared space?

A: Use felt feet, cork pads under tools, and a small portable acoustic panel behind the table to tame reflections, improving comfort for others in the room.

Q9: How do I integrate storage without adding bulk?

A: Use low-profile bins on quick-release clips under the top, magnetic strips inside the folded panel, and shift heavier storage to a rolling cart nearby.

Q10: What safety features are essential?

A: Positive-lock leg brackets, secondary safety pins near hinges, rounded edges, and wall cleats for vertical storage to prevent tipping.
