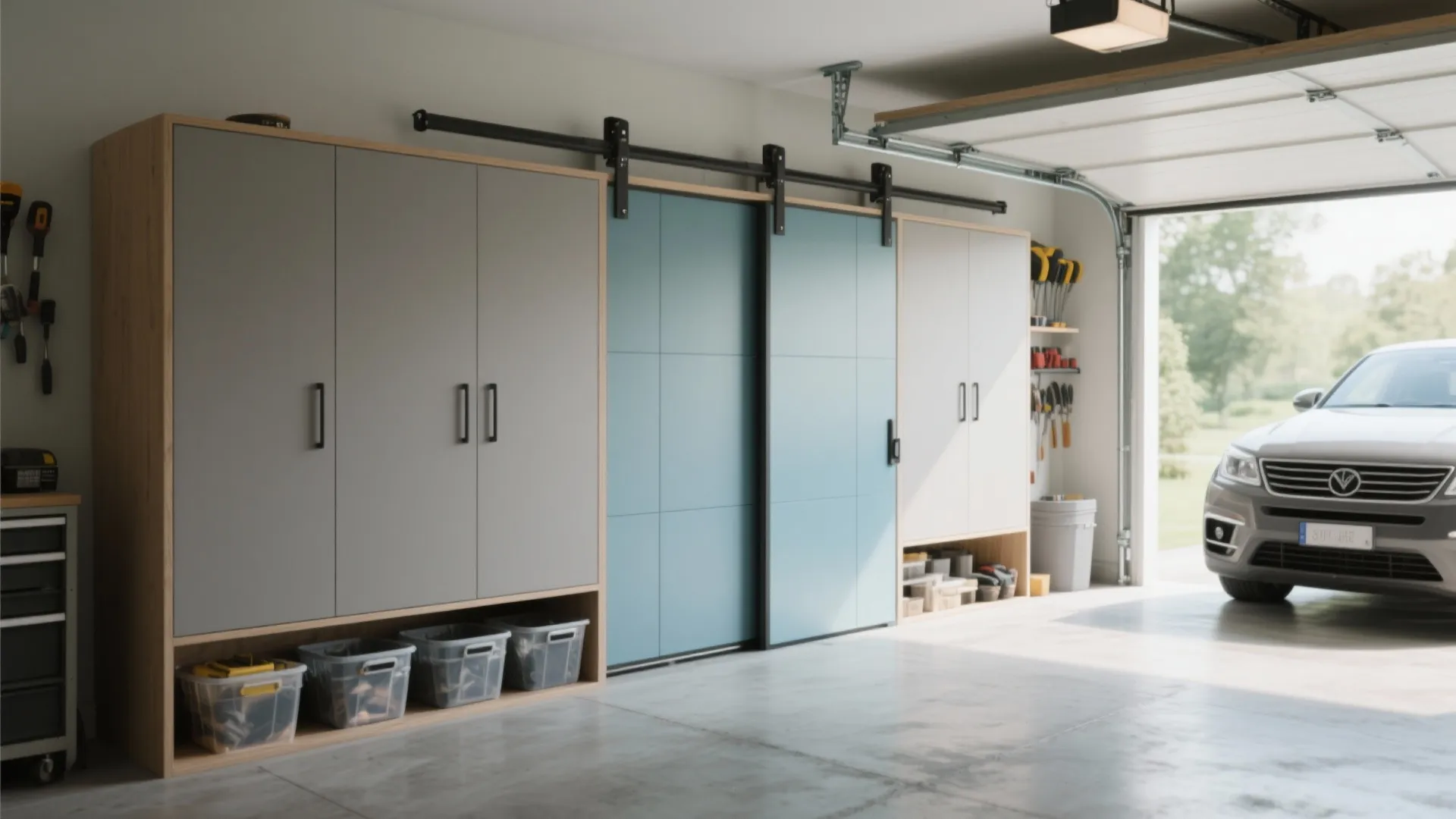

DIY Garage Cabinets with Sliding Doors: Space-Saving Made Easy: 1 Minute to a Clutter-Free Garage with Sleek Sliding Cabinets

I’ve planned and built enough garage storage to know one rule: make every inch work. Sliding doors on cabinets do exactly that—they eliminate swing clearance, resist door sag over time, and keep aisles open for parking and tool movement. In small garages, shaving just 24–30 inches of swing space can be the difference between a comfortable pass-through and a daily obstacle course.

The logic holds up beyond convenience. According to Steelcase research on spatial efficiency and workflow, uninterrupted circulation boosts task completion rates by reducing micro-interruptions in movement across zones; in a workshop context, that translates to fewer wasted steps and fewer collision points around door swing arcs. On the ergonomics side, WELL v2 recommends clear pathways and minimized protrusions to reduce trip risk; sliding fronts help maintain flush faces and predictable clearances (WELL Movement concept). I design sliding fronts so handles sit inset and rails are aligned at 900–1100 mm centerline for comfortable reach.

Plan the Cabinet Footprint

Start by mapping what you’re storing—bins, power tools, seasonal gear—then size bays accordingly. Typical garage cabinet depths run 18–24 inches; I prefer 22 inches for balancing volume and reach without overhang into the drive path. Set toe-kicks at 3–4 inches to keep doors clear of minor floor debris. If you’re testing traffic flow and aisle width, use a layout simulation tool like the room layout tool to visualize panel overlap, vehicle clearance, and pull-out zones for tool cases.

Choose the Right Door System

For DIY builds, there are three reliable sliding configurations: bypass doors (two panels overlapping on parallel tracks), top-hung sliders (no lower track, smooth cleaning), and bottom-rolling with guide rails (more forgiving in uneven floors). Bypass doors are the simplest—two panels, two tracks—and allow partial access to either side. If dust is a concern, use top-hung hardware with a slim lower guide strip to prevent sway.

Hardware: Tracks, Rollers, and Fasteners

Use anodized aluminum tracks or zinc-plated steel for longevity. Roller carriages with sealed bearings glide better and tolerate the fine grit common in garages. Aim for 2–3 rollers per panel for wide doors; weight ratings should exceed 1.5× the door’s actual weight. I anchor top tracks into studs at 16-inch centers with structural screws; for masonry, sleeve anchors are essential. Add soft-close dampers if you want controlled deceleration—handy near vehicles or finished walls.

Panels and Materials

For door panels, 3/4-inch plywood or MDF with a hardwood edge band holds up well; plywood is more stable with humidity swings. Cabinet boxes can be 3/4-inch plywood carcasses with 1/2-inch back panels; use full-length cleats on the wall for distributed loading. Consider HPL (high-pressure laminate) on doors if you want scuff resistance. I spec matte finishes to hide dust and micro-scratches.

Sustainability and Durability

Choose low-VOC adhesives and finishes to keep indoor air cleaner; WELL v2 emphasizes material health and emissions control for occupant well-being. Reclaimed plywood or FSC-certified stock keeps the footprint modest. Hardware longevity is sustainability too—rollers that last 10+ years beat cheap swaps. If you store chemicals, line shelves with HDPE sheets to resist spills, and vent one bay if you house fuels.

Ergonomics: Heights, Grips, and Access

Set the most-used shelves between 32 and 52 inches high—within comfortable reach ranges noted in ergonomic guidance. Keep heavy items (compressors, tile boxes) below knee level. Door pull cutouts or inset handles reduce catch hazards; rounded edges protect hands during fast movement. If you add task lighting inside bays, target 300–500 lux on shelf faces; IES recommendations for task areas typically fall in this range, and it transforms rummaging into quick retrieval.

Acoustics and Smooth Operation

Sliding doors can rattle if tracks are misaligned. Shim tracks to dead level, add felt or silicone bumpers at stops, and use neoprene gaskets along stiles for gentle closure. In shared garages, dampened hardware lowers noise; place dense items on rubber mats to cut resonance.

Color Psychology and Visual Order

Color isn’t just decoration. Neutral cabinet bodies (warm gray, slate) calm visual clutter, while accent door strips help wayfinding—mark tool bays in a distinct hue. Research synthesized by VerywellMind on color psychology notes that blues and greens support focus and calm; I often integrate a muted blue panel for the frequently used tool section to prime attention without visual noise.

Layout Strategy for Tight Garages

Think in zones: car clearance, tool workbench, seasonal storage, and vertical overflow. Keep cabinet runs along the long wall, and cap ends with a shallow broom closet to avoid door interference at corners. Align bypass sliders so the most-accessed bay opens near the workbench side. Model panel overlap with the interior layout planner to ensure your ladder or miter saw fits past partially open doors.

Step-by-Step Build Outline

1) Locate studs and mark the run; confirm floor level and correct for slopes with shims. 2) Build carcasses: sides, shelves, and backs; square everything with corner blocks. 3) Install upper cleats and mount carcasses; tie boxes together for rigidity. 4) Fit tracks: top first, dead-level; install lower guide or bottom rail depending on system. 5) Cut doors, add edge band, drill for recessed pulls. 6) Hang doors, adjust rollers, set overlap (typically 1–2 inches). 7) Add stops, soft-close units, and seals. 8) Test glide, then tune shelf heights and lighting.

Safety and Maintenance

Keep finger clearances at 3–5 mm to avoid pinch points. If kids use the space, add slow-return dampers and a simple latch high on one panel. Quarterly, vacuum tracks and wipe with a dry microfiber; avoid oily lubricants that attract dust—use a dry PTFE spray if needed.

Cost and Time Expectations

For a 10–12 foot run, budget for plywood, tracks, rollers, fasteners, and finishes. With basic tools, expect a weekend build for carcasses and a day for doors/hardware. Precision on tracks is where time pays off—measure twice, shim once, glide forever.

Authority and Practice

If you’re aligning your build with better health and usability, WELL v2’s Movement and Materials concepts offer practical targets for reach, clearances, and low-emission choices. For color and focus cues, VerywellMind’s synthesis on color psychology can help you pick hues that support attention.

FAQ

Q1: What’s the best sliding system for uneven garage floors?

A1: Use top-hung sliders with a simple floor guide. They keep the door weight on the header, so minor slab variations won’t affect glide.

Q2: How deep should garage cabinets be for power tool cases?

A2: Most cases fit in 18–22 inches. I build at 22 inches to accommodate bulkier kits while keeping reach manageable.

Q3: Do I need soft-close hardware?

A3: Not mandatory, but useful near vehicles or shared walls. It reduces impact, noise, and finger pinches.

Q4: What lighting levels make rummaging easier?

A4: Aim for 300–500 lux on shelves. Add LED strips under shelves; follow IES guidance for task illumination.

Q5: How do I keep dust out of sliding tracks?

A5: Choose sealed-bearing rollers, add a modest track cover, and vacuum quarterly. Avoid oil lubricants; use dry PTFE.

Q6: What finishes are both durable and sustainable?

A6: HPL on doors for scuff resistance and low-VOC waterborne topcoats. WELL v2 emphasizes emissions control—check product data.

Q7: Can bypass doors give full access to the cabinet?

A7: They provide partial access to each side at a time. If you need full-width access, consider four-panel bypass to widen the opening or use top-hung sliders with park positions.

Q8: How high should frequently used shelves be?

A8: Keep them between 32–52 inches for comfortable reach. Heavy items go lower; light, infrequent items go up high.

Q9: Is MDF acceptable for garage humidity?

A9: It’s fine with sealed edges and a good finish. Plywood is more forgiving for humidity swings; prefer it for carcasses.

Q10: How do I plan aisle clearance with sliding doors?

A10: Sliding fronts remove swing requirements, but maintain 36 inches minimum clear aisle where possible. Use the room design visualization tool to test overlaps and clearances.
