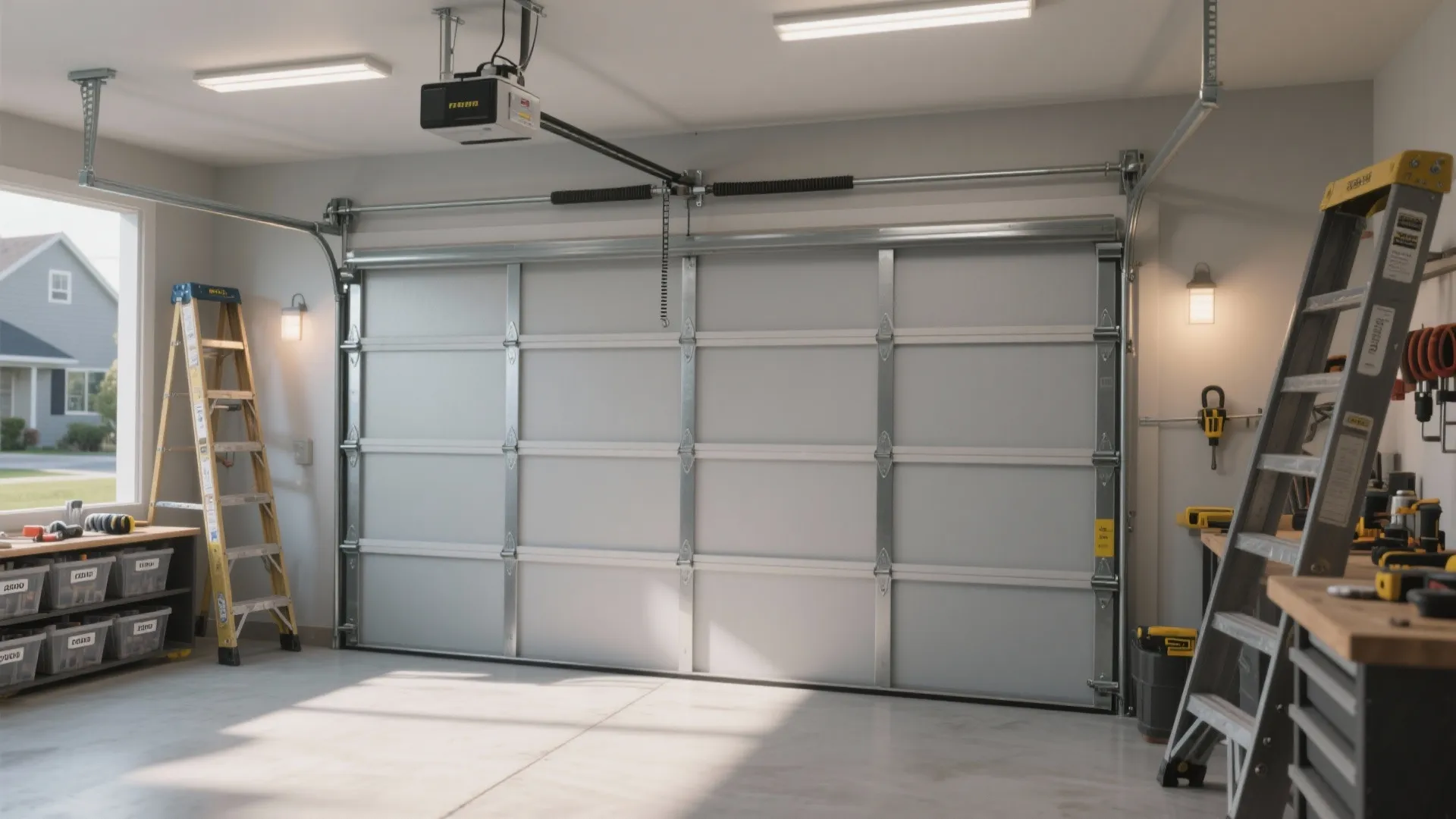

DIY Garage Door: A Step-by-Step Guide for Beginners: Fast-Track Guide to Upgrading Your Garage Door in 1 Hour

I’ve installed and tuned more garage doors than I can count, and the same rules always apply: plan your layout, respect the hardware, and never compromise on safety. A well-installed door improves curb appeal, thermal performance, and daily convenience. Done poorly, it risks injury and premature wear. Steelcase’s research has shown that well-organized environments reduce physical strain and error rates in routine tasks, a principle that translates directly to tool placement and workflow during installation. WELL v2 also highlights safe, ergonomic reach ranges and clear pathways as part of healthy, human-centered spaces—relevant even in a home garage where lifting and ladder use are involved. For light levels while you work, I aim for approximately 500 lux task lighting around the door opening and motor mount, aligning with typical IES recommendations for detailed hand work.

Before you remove anything, map the garage door opening and track paths. Keep tools within shoulder-height reach to reduce overextension; Herman Miller’s ergonomics research notes that neutral postures lower the risk of musculoskeletal strain. Set ladders at a safe angle and verify anchor points. If you’re upgrading from a heavy wood panel to an insulated steel door, expect better thermal performance and reduced weight, which eases spring balancing. I also standardize color coding for hardware bins to reduce search time—consistent with interaction-design principles on visual grouping and task clarity (see Interaction Design Foundation). For those designing a new garage layout, a room layout tool can help simulate door swing clearances and storage zones: room layout tool.

Plan and Measure

Start with accurate openings: width, height, headroom (top of opening to ceiling), and backroom (opening to back wall). Typical sectional doors require 10–12 inches of headroom for standard torsion setups and 3–4 feet of backroom for track and motor clearance. Confirm the jambs and header are plumb and square; minor shimming now prevents track misalignment later. If your slab has a noticeable slope, note it—bottom seals can be upgraded to compensate.

Select the Right Door and Hardware

For beginners, a pre-hung sectional steel door with exterior-grade hardware is the most forgiving. Insulated steel (polyurethane or polystyrene core) balances thermal resistance with manageable weight. Choose torsion springs sized to the door’s exact weight and height; never mix and match old springs with a new door. Use quiet nylon rollers for smoother operation, and match track gauge to manufacturer spec. If you want daylight, add tempered-glass lites positioned above eye level to keep privacy intact while maintaining structural rails.

Safety First: Tools, PPE, and Work Zone

Use eye protection, cut-resistant gloves, a properly rated ladder, two locking pliers, winding bars that match the spring cone, a torque wrench, and a level. Clear a 6–8 foot radius of clutter. Unplug the opener and lock the door sections while you work. Never use screwdrivers in place of winding bars, and never stand directly in line with a spring while tightening or loosening.

Frame Preparation and Weatherproofing

Repair damaged jambs or headers before installation. Add a continuous backer for the track brackets if studs are irregular. Install side and top weatherstripping after the tracks but before final seal checks. Choose a bottom astragal with a flexible bulb profile to bridge small slab irregularities, improving air sealing and pest control.

Section Assembly and Placement

Lay sections on padded sawhorses. Attach hinges and handles according to the manufacturer’s pattern: center hinges take higher numbers as you move up the door. Place the bottom section, set it level, and secure temporary bracing. Stack successive sections, aligning end hinges and ensuring equal reveal at both jambs. Confirm fasteners are snug but not over-torqued to avoid warping the skin.

Track Installation and Alignment

Install vertical tracks first, leaving a slight daylight for the door to travel without binding. Add flag brackets and transition to horizontal tracks, ensuring a gentle radius. The horizontal tracks should be parallel and level, with 1–2 inches of rise at the end to keep the door from drifting open. Check that both tracks share identical offsets; a quarter-inch discrepancy can cause rollers to pop or bind. If you’re refining storage around the track path, test and visualize clearance with an interior layout planner: interior layout planner.

Spring System: Torsion Setup and Balancing

Mount the torsion tube, center bracket, and drums per specification. Thread cables onto drums with equal tension, then set torsion springs. Wind using correct turn counts for door height (e.g., a standard 7-foot door typically requires around 30–32 quarter-turns, per manufacturer tables). Lock down set screws and test balance: the door should stay at mid-height without drifting. Fine-tune in quarter-turn increments. Keep your face and torso out of spring line; secure winding bars firmly at all times.

Opener Mounting and Safety Devices

Mount the opener rail aligned to the door’s centerline. Reinforce the top section with a strut to prevent flexing. Install photo-eyes at 4–6 inches above floor and verify auto-reverse with a 2x4 obstruction test. Set travel and force limits carefully—too much force can mask misalignment and become a safety hazard. Lubricate the chain or belt lightly, and route wiring cleanly along the ceiling.

Lighting, Acoustics, and Comfort

I add LED task lights near the opener and along side walls to hit approximately 300–500 lux during maintenance. Choose 3000–4000K color temperature for balanced visibility without harsh glare. Rubber bottom seals and insulated doors also improve acoustic comfort, dampening street and tool noise. Pay attention to glare control around the photo-eyes; avoid direct beam hits that can cause false trips.

Finishing Touches and Color Psychology

Match the exterior door color to harmonize with the façade—neutral, desaturated hues often reduce visual mass. Verywell Mind’s color psychology guidance notes that blues and greens can be calming, which works nicely for interior garage paint where you want focus without stress. Inside, contrast the door hardware slightly from wall color to aid quick visual identification during maintenance.

Maintenance Routine

Quarterly, inspect rollers, hinges, and tracks; tighten loose fasteners, check cable fray, and wipe debris from tracks. Annually, test auto-reverse, re-check spring balance, and replace weatherstripping as needed. Apply a light lubricant to rollers and hinges (avoid over-lubricating tracks). If the door becomes noisy or drifts, address root alignment issues before increasing opener force.

Common Mistakes to Avoid

Skipping headroom checks, mixing old hardware with new, misaligning tracks by different offsets, using improper winding tools, over-torquing fasteners that deform door skins, and neglecting photo-eye alignment. If you feel uncertainty during spring handling, pause and consult a licensed installer—springs store significant energy and are unforgiving.

FAQ

What headroom do I need for a standard torsion spring setup?

Usually 10–12 inches above the door opening. Low-headroom kits exist, but follow manufacturer specs and expect different track geometry.

Should I choose torsion or extension springs as a beginner?

Torsion springs provide smoother operation and better balance. They require precise winding but are generally safer than extension systems when installed correctly.

How do I know if my door is properly balanced?

Disconnect the opener, lift the door by hand, and stop at mid-height. A balanced door should hold position without rising or falling. Adjust torsion spring tension in quarter-turn increments if needed.

What light levels work best while installing or servicing a door?

Target around 300–500 lux task lighting near the opener and tracks. Use 3000–4000K LEDs to reduce glare and eye strain during detailed work.

Can I reuse my old springs or cables with a new door?

No. Springs and cables must match the exact weight and height of the new door. Mixing components compromises balance and safety.

How do I reduce noise during operation?

Use nylon rollers, lubricate hinges lightly, add a top strut, and verify track alignment. Insulated doors and rubber bottom seals also dampen sound.

What safety checks should I perform after installation?

Test photo-eyes, run the 2x4 auto-reverse test, verify balance, check fasteners, and set opener force and travel limits conservatively.

How often should I service the door?

Do visual checks quarterly and full tune-ups annually: tighten hardware, inspect cables, re-test auto-reverse, and replace worn weatherstripping.

Do color choices matter in a garage?

Yes. Neutral exterior tones keep the façade cohesive, while calm interior hues (muted blues/greens) can reduce stress and help focus during projects.

Can I install a door alone?

It’s possible with lighter, pre-hung sectional doors, but working with a second person improves safety, especially during section stacking and spring setup.
