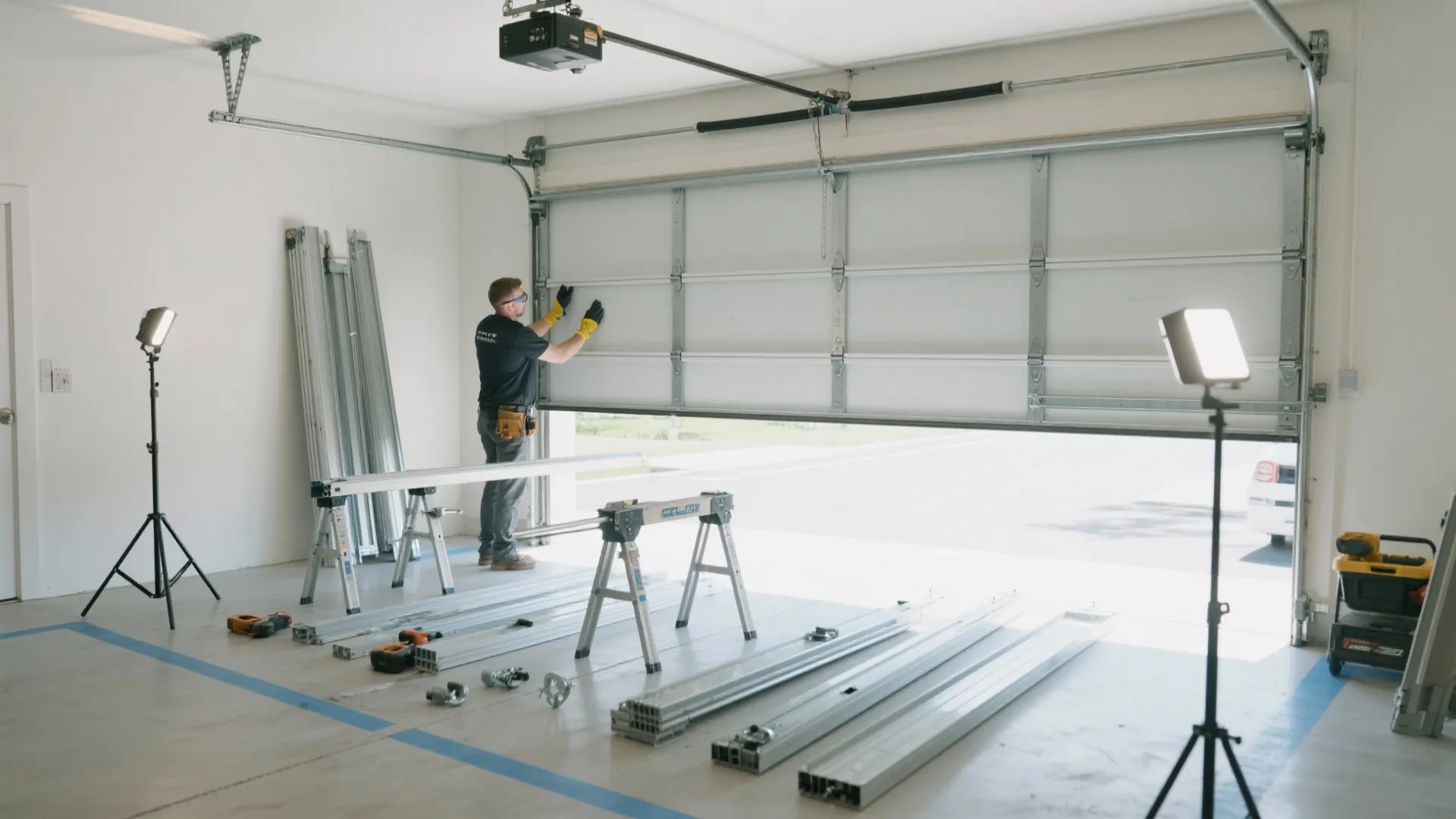

DIY Garage Door Installation Guide: Step-by-Step for Homeowners: 1 Minute to Plan Your Garage Door Project Like a Pro

I’ve installed and retrofitted more garage doors than I can count, and the projects that go smoothly all begin with accurate measurement, proper spring selection, and disciplined safety. Home garages face high daily use, so precision matters: door balance, track alignment, and spring calibration dictate how the door operates—and how long it lasts.

Well-known workplace guidelines underline the importance of controlled forces and safe ergonomics. According to WELL v2, limiting repetitive high-force tasks and ensuring safe reach ranges reduces injury risk; for home installs, that translates into using lift-assist, correct tools, and safe body mechanics. On lighting, IES standards recommend task illuminance between 300–500 lux for detailed work—set up portable work lights so you can clearly see fasteners, cable routing, and alignment marks. Gensler’s research on workflow also reinforces that organized staging zones reduce errors and rework; for a garage door install, I keep fasteners, brackets, and panels laid out by sequence to prevent mix-ups.

Color and perception play small but practical roles. Verywell Mind’s color psychology overview notes blue and neutral greys support focus; I mark reference lines and center marks with high-contrast tape so visual checks are obvious. Steelcase research ties posture and repetitive strain to fatigue; in the garage, that means using knee pads, a low stool for bottom panel work, and a padded mat for spring assembly to maintain posture and keep hardware controlled.

Planning, Safety, and Scope

Sectional garage doors are typically rated by weight, wind resistance, and insulation (R-value). If your door is heavy (steel double-skin with insulation), set realistic expectations: two people are safer than one, and torsion springs demand strict caution. Disconnect the automatic opener, secure the door in the up or down position as instructed, cut power to the opener outlet, and clear a 6–8 ft perimeter zone for movement. Wear safety glasses, leather gloves, and hearing protection if you’ll be drilling into masonry tracks.

Measure Twice: Opening, Headroom, and Backroom

Document four dimensions before ordering: rough opening width and height (stud-to-stud, slab-to-lintel), side room (space from opening edge to wall on both sides), and headroom (floor to lowest obstruction above the opening). You also need backroom (opening height + track curve allowance to the back wall). If you plan torsion springs, check you have sufficient headroom for the shaft and spring; extension springs need clear side room. Where layout is tight—odd columns, appliances along the side wall—use a room layout tool to visualize clearance and door travel: room layout tool.

Tools and Materials Checklist

Core tools: impact driver, socket set, adjustable wrench, level (48"), tape measure, plumb line, C-clamps, locking pliers, winding bars (for torsion springs—never screwdrivers), step ladder, sawhorses, and a stable platform for panel staging. Materials: sectional panels, vertical and horizontal tracks, flag brackets, hinges (#1–#4), rollers, torsion shaft, center bearing plate, drums, torsion springs or extension springs with safety cables, lift cables, top/bottom brackets, strut for the top panel, and fasteners specified by the manufacturer.

Step 1: Prep the Opening and Frame

Verify the opening is square and plumb. Shim the jambs if needed and seal cracks. If the slab has high spots, lightly grind to allow proper bottom seal compression. Mark centerline on the header; drop a plumb line to the floor to keep panel alignment true.

Step 2: Assemble and Set the Bottom Panel

Install the bottom bracket assemblies and weather seal. Place the bottom panel in the opening on padded blocks, center it to your plumb line, and check level. Fasten the panel to the jambs as per manufacturer guidelines. Attach rollers to the side stiles—do not overtighten; stiles can distort.

Step 3: Stack Panels and Hinge Progression

Install intermediate panels one by one. Use the correct hinge numbers (#1 at the bottom, increasing as you go up) to set the curve for the horizontal track. Check reveals at both sides; you’re aiming for even gaps and smooth roller travel. I add a light steel strut to the top panel to reduce flex, especially with openers.

Step 4: Mount Vertical Tracks and Flag Brackets

Attach flag brackets to the jambs and set vertical tracks with slight toe-in at the top to guide rollers. Maintain consistent clearance between tracks and door edge. Fasten loosely at first so you can tweak alignment when you add horizontal tracks.

Step 5: Install Horizontal Tracks

Attach the horizontal tracks to the flag brackets and rear hangers. Set the track slope so the door rests against the stop without binding. Check diagonal measurements across track ends to avoid racking. Sight the track radius; smooth curvature prevents roller pop-out.

Step 6: Torsion System (or Extension Springs)

For torsion springs, mount the center bearing plate on the header aligned to the door centerline, set the torsion shaft, add end bearing plates, drums, and springs. Route lift cables from bottom brackets to drums, ensuring equal tension. Wind torsion springs only with proper winding bars: count turns per manufacturer specification based on door height and spring wire size. Lock the set screws on drums and springs securely, then test balance. For extension springs, install safety cables through each spring, set pulleys, and adjust cable length so the door balances at mid-height.

Step 7: Balance and Test Travel

Disconnect the opener and manually move the door through full travel. A correctly balanced door should stay at mid-travel without drifting. If the door rises, reduce spring tension; if it drops, add tension. Inspect cable wrap: even, no crossing. Listen for scraping—track misalignment is common and easy to fix before final tightening.

Step 8: Weather Seals, Opener Integration, and Final Fastening

Install side and top seals for energy performance and dust control. Mount the opener’s header bracket to the reinforced top panel, align the opener rail, and set travel limits per manufacturer instructions. Add safety photo-eyes at the proper height and test auto-reverse with a 2x4 placed on the floor under the door.

Light, Sound, and Ergonomic Comfort

Set task lighting around the tracks, drums, and spring area at 300–500 lux (per IES task guidance), and aim for 4000–5000K neutral-white color temperature to keep detail contrast crisp. Rubber mats dampen impact noise; a soft-close opener reduces nighttime sound transmission. Keep tool heights between knee and shoulder levels to stay within safe reach ranges—WELL v2’s ergonomics guidance maps nicely to a DIY workflow: minimal twisting, stable foot positions, and deliberate rest breaks.

Material Choices and Sustainability

Insulated steel panels (polyurethane foam cores) offer better thermal performance and durability than single-skin steel; composite overlays mimic wood without the upkeep. Choose powder-coated tracks and galvanized hardware for corrosion resistance. A tight bottom seal and properly adjusted side seals can significantly reduce dust ingress and improve garage comfort.

Troubleshooting and Fine-Tuning

Common issues: door binds at quarter travel (check track radius and roller fit), cables unspool at full open (re-level drums and equalize tension), loud spring squeak (lubricate spring coils lightly, never saturate), door won’t stay mid-way (adjust torsion turns or extension cable length). Before calling a pro, document symptoms and take photos of cable routing and drum positions.

Layout and Clearance Planning

If you’re juggling cars, storage racks, and bikes, simulate door path and radius to avoid collisions. Test clearances for opener rail, lights, and ceiling storage; a simple interior layout planner helps visualize conflicts before drilling: interior layout planner.

Safety Notes I Never Skip

Never loosen torsion hardware without the door secured and tension accounted for. Never use improvised tools for winding. Keep hands off cable drums and shaft when springs are energized. If headroom is minimal or springs are unknown, consult a local installer for a one-time spring calibration—after that, DIY maintenance is straightforward.

FAQ

Q1: How do I determine the correct torsion spring size?

A: Use the door weight, height, drum size, and spring wire diameter to calculate turns per manufacturer tables. If you don’t have the original specs, weigh the door with the opener disconnected using bathroom scales under both sides, then match springs via the supplier’s chart.

Q2: What minimum headroom do I need?

A: Typical torsion systems need around 12 inches of headroom; low-headroom kits can work with less but use different track hardware and spring placement. Measure from floor to the lowest obstruction above the opening.

Q3: Can I reuse old tracks with a new door?

A: It’s not ideal. Track radius, roller size, and bracket spacing vary by manufacturer. Mixing parts often leads to binding and noise. Replace tracks with the door package for best performance.

Q4: How bright should my workspace be?

A: Aim for 300–500 lux task lighting. Neutral-white 4000–5000K improves contrast for reading measurements and aligning hardware, consistent with IES task recommendations.

Q5: My door drifts down from mid-position—what’s wrong?

A: You need more spring tension. Add quarter turns to torsion springs (evenly across both springs). For extension springs, adjust cable length to increase counterbalance. Re-test after each small change.

Q6: Is an insulated door worth it?

A: Yes if the garage is attached or used as a workshop. Insulated doors improve thermal comfort and reduce noise. They also feel more solid, reducing panel flex during opener operation.

Q7: What safety checks should I do after installation?

A: Test manual balance, verify photo-eye reversal, perform a 2x4 obstruction test, inspect cable wraps for crossings, confirm all fasteners are snug, and lubricate hinges and rollers lightly with garage-door rated lubricant.

Q8: How often should I maintain the door?

A: Every six months: check balance, tighten hardware, inspect cables for fray, clean tracks, and re-test opener auto-reverse. Lubricate springs, hinges, and rollers sparingly.

Q9: Can a single person install a double-wide door?

A: It’s possible but not recommended. Panels are bulky, and alignment is easier with two people. If solo, use support stands and clamps liberally and move slowly panel by panel.

Q10: What’s the safest way to wind torsion springs?

A: Use proper winding bars, stand to the side of the bar path, and count turns carefully. Lock set screws firmly and verify drum cable tension before testing door travel.
