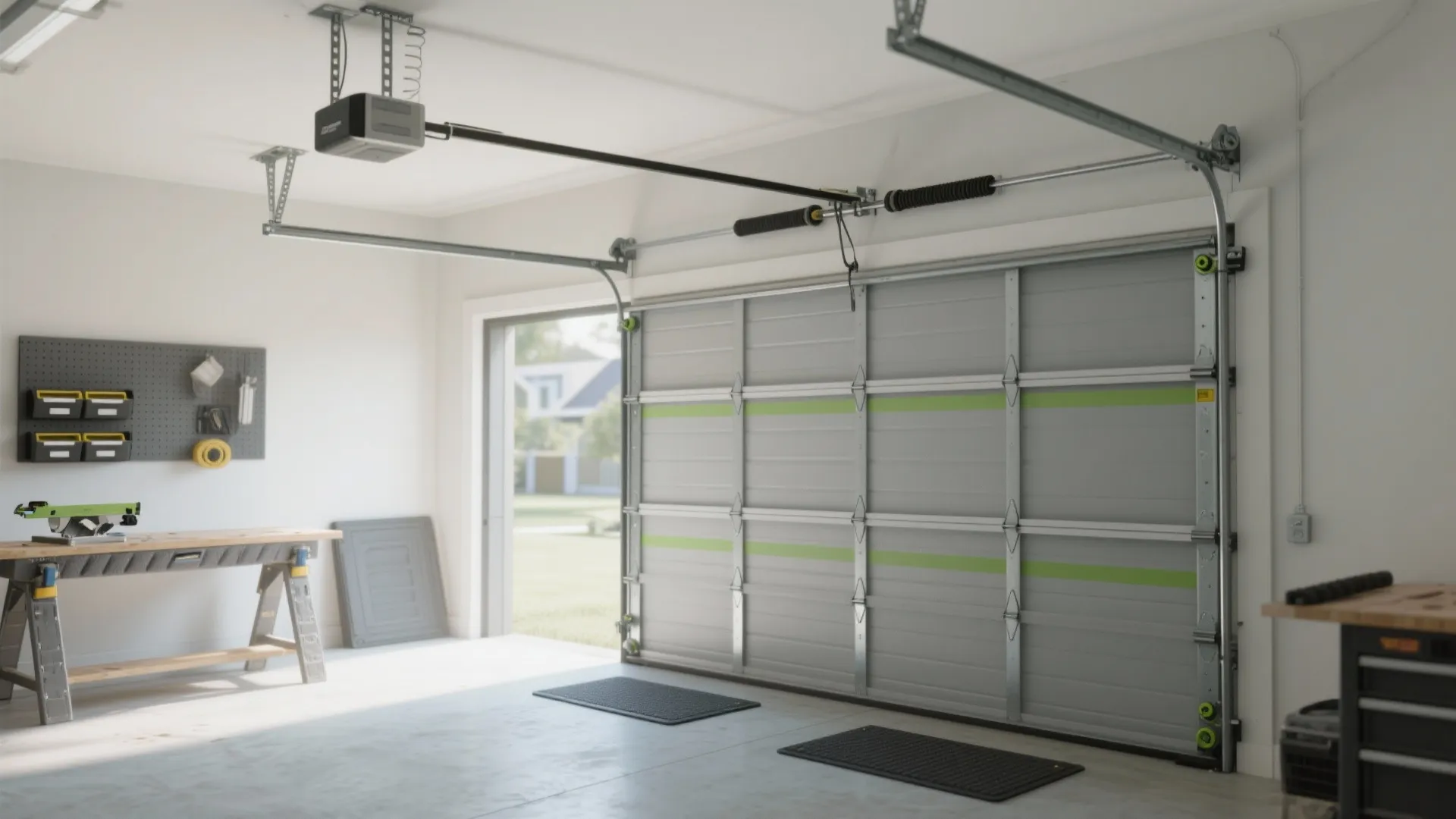

DIY Garage Door Installation: Step-by-Step Guide: Fast-Track Guide to Installing Your Garage Door in 1 Day

I’ve installed and overseen dozens of garage doors in residential projects, and the difference between a quiet, well-balanced door and a troublesome one always comes down to planning and alignment. A garage door is both a moving façade and a critical safety component; getting the weight, spring tension, track geometry, and seal details right will determine whether the door operates safely for years.

Before diving into tools, I start with performance benchmarks. WELL v2 emphasizes safety, ergonomics, and noise control in building operations—translating here to low vibration and safe reach ranges. Steelcase research indicates acoustics are a leading factor in perceived comfort, with sound levels below 40–45 dBA ideal for focused tasks; minimizing rattles and metal-on-metal contact dramatically reduces garage noise during early mornings. These targets guide choices like rubber dampers and nylon rollers rather than bare metal interfaces. For color and visual cues, Verywell Mind’s color psychology notes that high-contrast markings improve visibility and reduce error; I often color-mark centerlines and fastener positions to prevent misalignment during install.

From a workflow perspective, Herman Miller’s research on human factors shows that tasks at shoulder height reduce strain and increase precision. That’s why I pre-stage heavier components, keep the torsion bar and ladder at a stable reach height, and use padded supports to avoid accidental dings or slips. Small ergonomic upgrades—like anti-fatigue mats and magnetic trays—help maintain accuracy across the 3–5 hour install window.

Tools and Materials: What You Need

• Safety: eye protection, leather gloves, hard hat, hearing protection, locked-out opener power.

• Measuring and marking: 25 ft tape measure, 4 ft level, laser level, chalk line, plumb bob.

• Fastening: impact driver, drill bits (pilot, metal), socket set, torque wrench, open-end wrenches.

• Door hardware: new door sections, hinges (#1, #2, #3), top/bottom brackets, rollers (preferably nylon), lift cables, torsion springs, center and end bearing plates, torsion bar, drums, track kit (verticals, horizontals, flag brackets), weatherstripping, bottom seal.

• Optional performance upgrades: rubber isolation pads for opener, polyurethane insulation panels, brush seals for jambs, damped hinges.

Pre-Installation Checks

• Framing true and square: Measure rough opening width and height; diagonals should differ by no more than 1/8 in. Check header level and jamb plumb.

• Headroom and backroom: Confirm manufacturer requirements—typical torsion systems need ~12 in of headroom and door height + 18 in of backroom.

• Spring spec: Match door weight and height exactly; never reuse unknown springs.

• Electrical: Dedicated outlet for opener at ceiling; verify grounding and GFCI where required.

• Floor condition: Check for slopes; plan bottom seal scribe if slab is out of level.

Step 1: Prep the Opening and Hardware

Remove the old door and hardware carefully, locking the opener circuit off. Refasten jambs if loose, shim to plumb, and prime or seal raw wood. Install new bottom seal retainer on the lowest panel before the door is vertical; it’s safer and more accurate. Mark a centered vertical line on the header; this will be your reference for the spring center bracket and opener rail.

Step 2: Assemble and Stack Door Sections

Lay panels on padded sawhorses. Attach hinges and rollers per manufacturer sequence: #1 hinges on the bottom panel, #2 in the next transition, and so on. Fasten bottom brackets with all specified screws and bolts—this is a critical safety point since lift cables attach here. Install nylon rollers for quieter operation and reduced vibration.

Step 3: Set Panels in the Opening

Stand the bottom panel into the opening and temporarily brace it. Seat the rollers into the vertical tracks loosely. Stack remaining panels, ensuring hinge knuckles align and the reveal is even. Check level after each panel; small errors compound and will misalign tracks.

Step 4: Install Vertical and Horizontal Tracks

Attach flag brackets and vertical tracks to the jambs, leaving slight adjustment play. Install horizontals with a gentle upward pitch—typically 1 in rise over 8–10 ft—to keep the door from drifting open. Clearances should be consistent; measure from door edge to track at multiple points to avoid binding.

Step 5: Mount Spring Hardware and Torsion Bar

Install the center bearing plate over your header centerline. Slide the torsion bar through the center plate and end bearings, placing drums on each end. Lash lift cables to the bottom brackets, route up to the drums, and set cable tension evenly—equal cable wraps and equal drum positions are essential.

Step 6: Torsion Spring Winding and Safety

Winding torsion springs is hazardous. Use proper winding bars—never screwdrivers—and keep your face and hands out of the winding path. Follow the manufacturer’s turn chart based on door height and spring spec. After winding, torque set screws properly and mark the shaft to visually confirm any slippage over time. Test lift by raising the door halfway: a well-balanced door should hold position with minimal drift. If it falls, add quarter-turns; if it rises, remove quarter-turns.

Step 7: Final Alignment, Weather Seals, and Opener

Adjust track spacing for smooth travel—no rubs at mid-height. Install top seal and side weatherstripping with a consistent compression that doesn’t pinch rollers. Mount the opener rail to the header centerline, align the trolley, and set travel limits so the door fully closes without crushing the seal. Add rubber isolation pads at the opener mounts to reduce structure-borne noise toward bedrooms and living spaces.

Step 8: Safety Sensors, Testing, and Commissioning

Install photo-eyes at 4–6 in above slab height and ensure the beam is stable with no flicker. Test auto-reverse using a 2x4 flat under the door; the door should reverse upon contact. Confirm manual release operation, then label emergency instructions near the opener. I also run a 20-cycle test to simulate a week of use, listening for squeaks and tracking minor adjustments.

Ergonomics, Acoustics, and Comfort Upgrades

• Ergonomics: Keep lift points at waist-to-shoulder height; avoid overhead reaching while winding springs. Use wider ladder stance and anti-slip treads.

• Acoustics: Nylon rollers and damped hinges cut rattles. Brush seals reduce wind whistle. Target sub-45 dBA during operation for a calmer morning routine, aligning with comfort research noted earlier.

• Thermal: Insulated panels and continuous perimeter seals improve thermal performance and reduce drafts into adjacent living spaces.

• Visual guidance: High-contrast markings on the header centerline and track fasteners reduce mistakes, supported by color perception research.

Maintenance Schedule

• Quarterly: Lightly lubricate rollers, hinges, and springs with garage-rated lubricant; check cable fray and drum alignment.

• Biannually: Test balance at half-open, retighten set screws, inspect weatherstripping compression, and relevel opener limits.

• Annually: Replace worn bottom seals, recalibrate sensors, and check fasteners for corrosion.

Common Mistakes to Avoid

• Misaligned tracks causing binding at mid-travel.

• Under/over-wound springs leading to drift and opener strain.

• Loose bottom bracket fasteners—never compromise here.

• Ignoring slab slope; scribe and trim the bottom seal for a proper close.

• Skipping sensor tests; auto-reverse is non-negotiable.

Layout Planning Tip

If you’re reorganizing the garage for tools, bikes, and storage alongside the door install, simulate clearances around vehicles, ladders, and torsion hardware with a room layout tool to maintain safe paths and keep service access unobstructed.

References and Further Reading

Explore comfort and safety benchmarks through wellcertified.com for WELL v2 guidance and steelcase.com/research for insights on acoustics and human factors.

FAQ

Q1: How much headroom do I need for a torsion spring system?

A: Most standard torsion setups require about 12 inches of headroom; low-headroom kits can reduce this to around 8 inches. Always verify your door manufacturer’s specification before ordering hardware.

Q2: Can I reuse old springs and lift cables?

A: No. Springs and cables fatigue and corrode over time. Replace them with components matched to your new door’s weight and height.

Q3: What’s the safest way to wind torsion springs?

A: Use dedicated winding bars that match the cone size, stand to the side (not in front), and wind in quarter-turn increments per the door height chart. Lock out the opener and keep the area clear.

Q4: Why is my door noisy even after installation?

A: Metal rollers, loose fasteners, and misaligned tracks are common culprits. Switching to nylon rollers, tightening hardware, and adding rubber isolation at the opener mounts reduces vibration and noise.

Q5: How do I check door balance?

A: Disconnect the opener and lift the door halfway. If it stays without rising or falling, spring tension is correct. Adjust in quarter-turns if the door drifts.

Q6: Do sensor heights matter?

A: Yes. Mount photo-eyes 4–6 inches above the floor to detect small obstructions. After installation, test the auto-reverse using a flat 2x4 under the door.

Q7: Which weatherstripping works best?

A: A continuous perimeter vinyl or rubber seal with brush inserts at the jambs gives better air control and reduces whistle compared to thin, segmented seals.

Q8: What’s the ideal track pitch?

A: A slight upward pitch—about 1 inch over 8–10 feet—prevents the door from rolling open on its own while minimizing opener strain.

Q9: Are insulated panels worth it?

A: In most climates, yes. Insulated doors improve thermal comfort in adjacent spaces and dampen operation noise.

Q10: How often should I service the door?

A: Lubricate and inspect quarterly, test balance biannually, and replace seals annually. Heavy-use doors benefit from more frequent checks.

Q11: What’s the best roller material?

A: Nylon rollers on ball bearings provide quieter operation and lower friction than steel, with fewer rattles over time.

Q12: Can I install the opener before setting spring tension?

A: Install and align the opener rail after the door is balanced. An unbalanced door overworks the opener and can mask installation errors.
