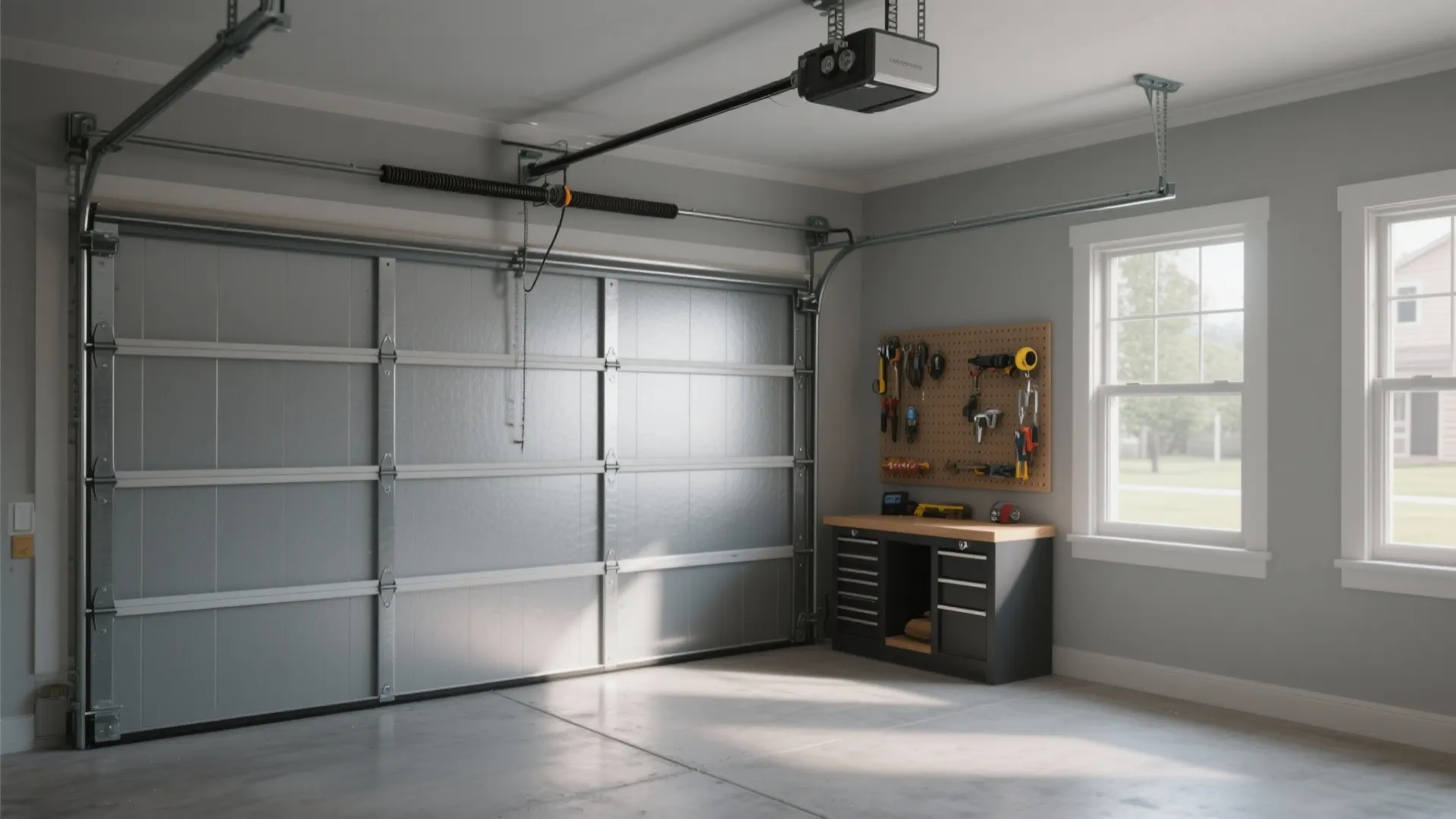

DIY Garage Doors: Step-by-Step Guide for Beginners: Fast-Track Guide to Building Your Own Garage Door in 1 Hour

I’ve installed and serviced more garage doors than I can count, and the first rule I stick to is simple: plan meticulously and respect the hardware. A garage door is among the largest moving elements in a home, weighing 100–300 lbs depending on material and size. Done right, a DIY install saves money and tightens your home’s envelope; rushed work can compromise safety and durability.

Good planning starts with sizing and load awareness. The International Energy Agency reports that buildings account for roughly 30% of global final energy consumption; an insulated garage door can materially reduce heating loss in attached garages and adjacent rooms. Steelcase’s workplace behavior research also shows task performance improves when noise and vibration are reduced—relevant as a well-tuned door and opener lower operational noise that travels into home offices. For specification insights and safety criteria for building performance, the WELL Building Standard offers guidance on comfort and noise thresholds in residential-adjacent spaces: WELL v2.

Material choice affects thermal performance, weight, and longevity. The National Kitchen & Bath Association (NKBA)’s guidance on residential materials highlights durability and maintainability considerations that translate well to garage doors—steel with foam insulation offers a good cost-to-performance ratio; wood brings character but requires maintenance. For ergonomics, Herman Miller’s research into human factors shows repetitive overhead forces increase fatigue—ensure the opener and spring system are correctly balanced to reduce manual latching and heavy lifts.

Pre-Install Assessment

I begin by inspecting the existing framing, header, jambs, and slab. Confirm the opening is square: measure diagonals (top-left to bottom-right and top-right to bottom-left); if they differ by more than 1/4", address framing before proceeding. Check headroom (typically 12–15" needed for torsion spring systems) and backroom (door height plus 18–24" for horizontal tracks). Verify sideroom (3–4" each side) for tracks and brackets. Note obstacles—ducts, lighting, storage racks—and plan clearances.

Selecting Door Type and Insulation

Choose between single-layer (non-insulated), double-layer (insulated core), and triple-layer (steel-insulation-steel) constructions. In cold climates, an R-value of R-9 to R-13 is a pragmatic baseline; triple-layer steel with polyurethane typically offers higher R-values and rigidity. Panel style—raised, carriage-house, flush—affects weight and hardware requirements. Windows add daylight but can reduce insulation; opt for double-glazed units where possible. Hardware finishes (galvanized vs. powder-coated) matter for coastal or high-humidity zones.

Hardware and Opener Compatibility

Track radius (12" vs. 15") influences ceiling clearance and travel smoothness. Torsion springs mounted on a shaft above the door provide balanced lift and cleaner operation than extension springs, and are generally safer when properly handled. Match lift type (standard, high-lift, vertical-lift) to ceiling height and obstructions. For openers, belt-drive units run quieter than chain-drive; DC motors allow soft-start/stop and battery backup. Rolling-code security and photo-eye sensors are non-negotiable.

Measure Twice, Order Once

Record exact dimensions: width and height of daylight opening, headroom, backroom, and sideroom. Specify track type, spring orientation, and panel configuration to the supplier. Order weatherstripping, perimeter seals, a new bottom astragal, and matching fasteners. If you are laying out storage or workbench areas around the door and track path, a room layout tool can help you visualize clearances and workflow: room layout tool.

Tools and Safety Gear

Core kit: level (4'), tape measure, drill/driver, impact driver, socket set, winding bars (for torsion springs—never use screwdrivers), C-clamps, step ladders, sawhorses, and PPE (safety glasses, cut-resistant gloves, hearing protection). Keep a second person on hand for panel handling; even rigid panels flex if lifted poorly.

Step-by-Step Installation

1. Prepare the Opening

Remove the old door and hardware. Clean the slab, repair spalls, and ensure the bottom is level. Install new jamb seals if needed. Mark centerline of the opening and spring anchor on the header.

2. Assemble Bottom Panel

Lay the bottom panel on sawhorses. Attach hinges, bottom brackets, and rollers per manufacturer diagrams. Install the bottom weather seal (astragal). Set the panel in place, shim to level against the slab, and temporarily clamp.

3. Stack Remaining Panels

Attach intermediate panels, aligning edges and installing hinges (No.1 hinges between bottom to second, No.2 to No.3, etc., per kit). Insert rollers. Check reveals on both sides as you stack; small misalignments compound.

4. Mount Tracks

Install vertical tracks to the jamb brackets, ensuring equal spacing from panel edges. Confirm plumb. Add horizontal tracks and rear hangers, maintaining a slight upward pitch (about 1" rise over 8' run). Square and tighten all fasteners.

5. Install Spring System

Mount the torsion tube, center bearing plate, and drums. Thread cables onto drums and tension lightly. With winding bars, add turns to the torsion spring per the door height chart supplied by the manufacturer. Lock set screws and check cable alignment. Keep your body out of the spring’s rotational plane.

6. Balance Test

Disengage the opener. Lift the door by hand to mid-height; it should hover with minimal drift. If it falls, add a quarter-turn; if it rises, remove a quarter-turn. Re-test until neutral balance is achieved.

7. Install Opener

Mount the opener rail and head unit per clearance specs. Align the trolley with the door arm. Set force and travel limits after connecting safety photo-eyes at the correct height (typically 4–6" above floor) and verifying reversal on obstruction.

8. Weatherproof and Final Tune

Install top and side seals, adjust the bottom seal for full contact without drag, and caulk exterior trims as needed. Lubricate hinges and rollers with garage door lubricant (avoid grease on tracks). Tighten all hardware after a week—settling is normal.

Light, Acoustics, and Ergonomics

Glazed panels add daylight but consider glare on parked vehicles and workbenches; aim for diffuse, high-CRI lighting inside to complement any windows. The Illuminating Engineering Society recommends around 300–500 lux for general garages. Belt-drive openers and polyurethane-insulated panels reduce vibration and airborne noise; add neoprene isolation pads at opener mounts if bedrooms sit above.

Safety and Common Pitfalls

Never remove torsion springs without proper bars. Replace frayed cables immediately. Don’t over-torque lag screws—stripped wood loses holding strength; if framing is weak, add a plywood backer. Keep hands clear of panel seams. If your headroom is marginal, consider low-headroom kits with dual-track systems.

Maintenance Schedule

Quarterly: check balance, inspect cables, tighten hardware, and lubricate moving parts. Annually: replace the bottom seal if brittle, test auto-reverse with a 2x4, and recheck opener settings. Expect quality torsion springs to last ~10,000 cycles; heavy use households may need earlier replacement.

Cost, Timeline, and When to Call a Pro

A standard steel insulated door with torsion hardware and belt-drive opener typically runs $900–$1,800 for materials, depending on size and finish. DIY install time for two people is 6–10 hours if framing is true; add time for removal and disposal of the old door. Call a pro if the opening is out-of-square beyond correction, if you lack proper winding bars, or if high-lift conversion is required.

FAQ

What headroom do I need for a torsion spring garage door?

Plan for 12–15" of headroom for standard-lift torsion systems. Low-headroom kits can work with less by using dual-track designs.

How do I choose between steel, wood, and composite doors?

Steel offers durability and low maintenance, wood provides warmth but needs regular care, and composites balance insulation and weather resistance. In cold climates, insulated steel with polyurethane is often the best value.

Are belt-drive openers really quieter than chain-drive?

Yes. Belt-drive units reduce vibration and airborne noise, which helps if living spaces sit above or adjacent to the garage.

How do I know my spring tension is correct?

Perform a balance test: with the opener disengaged, lift the door to mid-height. It should stay in place. Adjust in quarter-turns until neutral balance is achieved.

Can I add windows without losing too much insulation?

Use double-glazed, insulated window inserts and limit window area. Place them high if privacy and glare control are priorities.

What lighting level should I aim for inside the garage?

A general target is 300–500 lux for task-friendly illumination, using high-CRI LED fixtures. Diffuse light reduces glare on car finishes and work surfaces.

How often should I service my garage door?

Inspect and lubricate quarterly, test safety reversals annually, and expect torsion springs to last around 10,000 cycles before replacement.

Is DIY safe for torsion springs?

It can be, with correct winding bars, methodical steps, and a second person. If you’re uncomfortable with spring handling, hire a professional for that phase.

Do I need new tracks when replacing the door?

Yes, in most cases. New doors ship with matched tracks and hardware; mixing old tracks can cause misalignment and premature wear.

What R-value should I look for?

R-9 to R-13 is a practical baseline for attached garages in temperate to cold climates. Higher R-values improve comfort in adjacent rooms.

Will a new door reduce noise in my home office?

Insulated panels, belt-drive openers, and proper isolation at mounts can noticeably cut transmitted noise into adjacent workspaces.

What’s the typical DIY timeline?

For two people with basic tools: 6–10 hours, including removal, installation, balance, opener setup, and weatherproofing.
