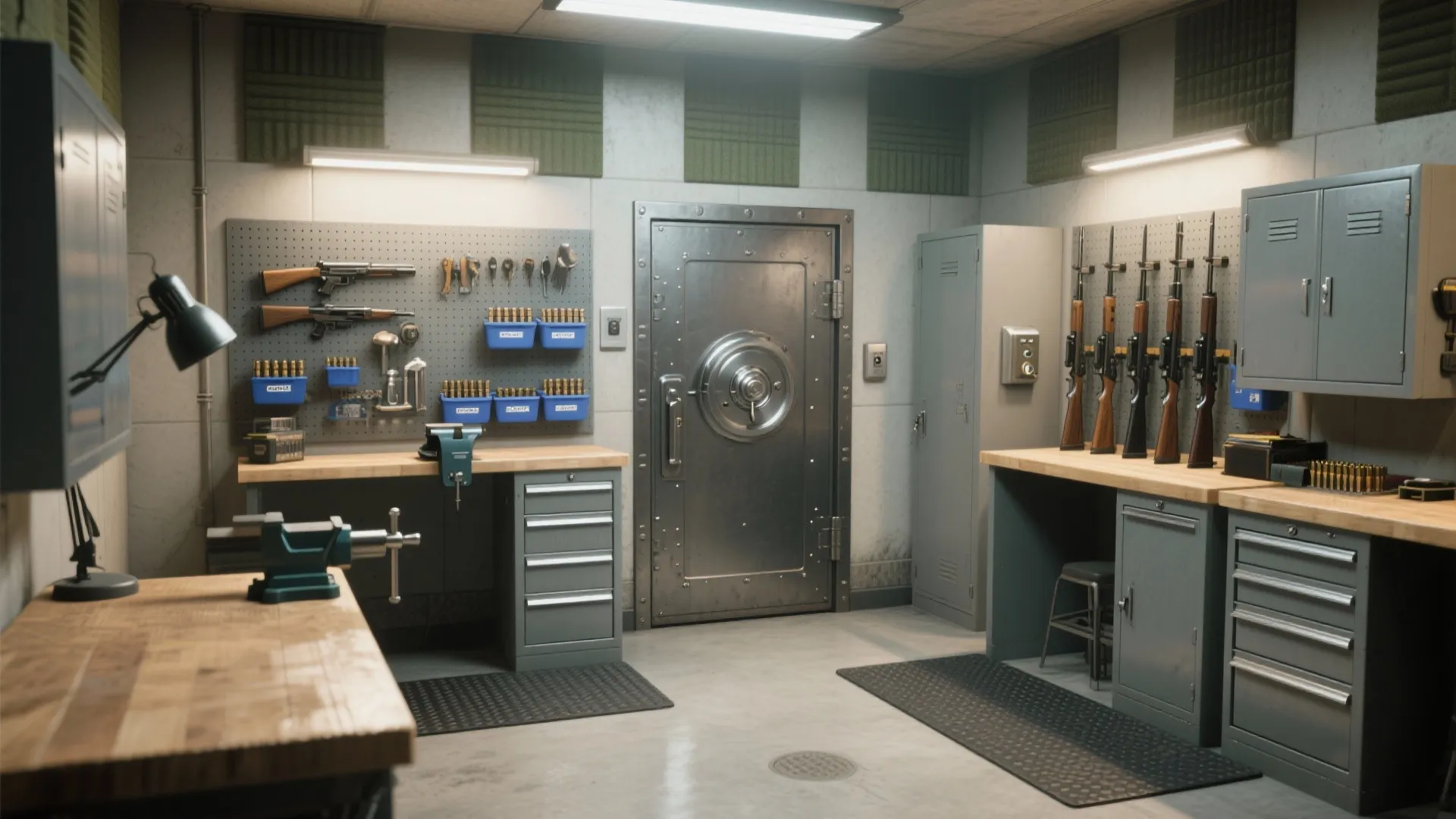

DIY Gun Room: Design & Build Your Secure Space: Fast-Track Guide to Creating a DIY Gun Room at Home

I’ve designed secure storage spaces for collectors, hunters, and tactical enthusiasts for more than a decade, and the best gun rooms share the same DNA: layered security, controlled environment, ergonomic organization, and a layout that supports safe workflows. A well-planned space not only protects firearms but also reduces handling risk and improves maintenance efficiency.

Safety benchmarks guide many of my decisions. WELL v2 recommends indoor ambient lighting between 300–500 lux for general tasks, which is appropriate for firearm cleaning and inventory checks, while task lighting can move toward 750–1000 lux for detailed maintenance. Steelcase research has consistently linked organized, ergonomically sound environments with improved task performance; pairing vertical storage with clear sightlines reduces errors and time-on-task. For color, Verywell Mind notes that blue and desaturated greens can lower stress and promote focus—useful in a room where attention and composure matter.

Plan Your Purpose and Risk Profile

Start with intent: display and collection management, hunting equipment staging, or a tactical readiness space. Each purpose alters your risk profile—public visibility, access frequency, ammunition volume, and tool density. I map behaviors first: how often you retrieve rifles, where you stage ammo, how you move from bench to safe. This determines circulation paths, clearances, and the need for zones (storage, cleaning, ammo, accessories). For layout testing, a room layout tool can help visualize workflow and safe distances: room layout tool.

Security Layers: Physical, Procedural, and Digital

Think in layers. Physical: a solid-core or steel door, reinforced frame, tamper-resistant hinges, and a rated lock (UL-listed, electronic keypad or mechanical). Walls should be 5/8-inch Type X gypsum or better; in high-risk contexts, add steel mesh and anchor points to studs and slab. Procedural: limit access, maintain an inventory log, and schedule audits. Digital: cameras with local recording, contact sensors, and discrete notifications. Keep sightlines to entry points and isolate the ammo zone away from casual reach. I prefer the safe within a not-immediately-visible recess, limiting direct view from the doorway.

Code Awareness and Responsible Storage

Local laws vary; align to the strictest standard you face. Separate firearms and ammunition when possible, and secure both behind lockable barriers. Trigger locks and chamber flags during display periods add redundancy. Consider fire-rated storage for both firearms and key documents. Even when not mandated, I design to exceed common residential guidelines: dual locks for long guns, opaque doors on primary storage, and a clear chain-of-custody protocol for shared households.

Layout Strategy and Safe Circulation

I organize gun rooms into three principal zones: secured storage (safes, locking cabinets), workbench and maintenance, and accessories/ammunition. Keep 36 inches minimum clearance in front of storage and 42 inches around the bench for safe maneuvering. Place the bench perpendicular to primary storage to minimize crossing paths while carrying equipment. Aisles should be free of protrusions; use corner guards on exposed shelving. If space is tight, the interior layout planner can simulate reach envelopes and safe turning radii: interior layout planner.

Lighting: Visibility Without Glare

Ambient illuminance in the 300–500 lux band helps overall visibility, aligned with WELL v2 guidance. Install a 4000–4500K color temperature for neutral clarity; task lights at the bench can be 5000K for maximum detail contrast. Use high CRI (90+) to reveal scratches, residue, and finish differences. Avoid direct glare; position fixtures laterally or above and slightly forward of the bench. Consider under-cabinet LED strips for cabinet interiors, and motion-activated lighting near entry and safes for secure, hands-free access. Follow glare control practices common in the IES standards to minimize veiling reflections on polished metal components.

Acoustic Comfort and Focus

A quiet room reduces startle responses and supports careful handling. Add acoustic panels on walls adjacent to the bench, and seal door perimeters with weatherstripping. Rubber flooring or resilient underlayment dampens dropped-tool impact noise while protecting finishes. Keep any media devices on low volume; alerts should be tactile or visual instead of loud chimes. The goal is an environment where concentration is natural and interruptions are filtered.

Storage Systems: Ergonomics and Organization

Plan vertical storage for long guns with butt rests and muzzle clearance. For handguns, shallow drawers with foam cutouts prevent movement and speed identification. Label shelves and bins; color-coding works well—blue for cleaning, gray for optics, green for safety gear, consistent with calming palettes noted in color psychology research. Heavy items (ammo crates, presses) should sit between knee and hip height to minimize strain. Mount pegboards for tools and parts in a grid that mirrors the bench workflow: left to right for disassembly, cleaning, inspection, and reassembly.

Workbench Design and Maintenance Workflow

A stable bench is non-negotiable. Aim for 36–38 inches in height; add an anti-slip mat and a bench vise with protective jaws. Under-bench drawers house solvents and tools, locked if necessary. Keep a dedicated cleaning tray, microfiber cloths, and labeled containers for pins and springs. Task lighting should be articulated and dimmable, with a shadow-free zone directly over the mat. Establish a cleaning protocol: unload and verify, stage tools, lay components left-to-right, document, reassemble, and final inspection under high CRI light.

Environmental Control: Temperature, Humidity, and Air Quality

Corrosion prevention is a design problem as much as a maintenance one. Target relative humidity between 40–50% and temperature around 65–70°F. Use a dehumidifier with auto-drain and a sealed room envelope. Ventilation should be localized when using solvents—an inline fan drawing from the bench zone to the exterior, with make-up air provided quietly. Choose finishes that resist off-gassing; low-VOC paints and metal cabinetry reduce chemical load. Keep desiccant packs in safes and monitor humidity with a digital hygrometer.

Materials, Finishes, and Sustainability

Durable, non-porous surfaces are your friends: powder-coated steel cabinets, sealed hardwood or phenolic resin tops, and epoxy or rubber flooring. Avoid carpet; it traps debris and moisture. Sustainable choices include FSC-certified plywood, low-VOC coatings, and long-life LEDs. If the room doubles as a display, use tempered glass with lockable frames and shatter-resistant film. Rounded edge profiles on benches and shelves reduce injury risk during movement.

Color Strategy and Visual Balance

Neutral bases (warm gray, desaturated green) make metallic components easier to visually parse. Accent colors can guide behavior: a red stripe at the door reminds users to verify unloaded status on entry; a blue zone at the bench reinforces calm, aligning with Verywell Mind’s findings on blue promoting tranquility and focus. Keep contrast adequate but gentle; high-chroma accents used sparingly avoid visual fatigue.

Fire Protection and Emergency Planning

Integrate a smoke detector with a photoelectric sensor to reduce false alarms from particulates, add a clean-agent extinguisher (Class ABC or Halotron) near the door, and keep an emergency light. Document protocols: secure, verify, evacuate. Post contacts and a location map discreetly, and store critical records in a fire-rated document safe.

Access Control and Household Safety

For shared households, layer access: lock the room, lock the safes, and store keys separately. Biometric readers can speed authorized access but keep a mechanical backup. Educate household members on boundaries; a simple visual cue like a red floor band in front of storage indicates a do-not-cross zone. Routine checks—weekly visual inspection, monthly inventory reconciliation—sustain discipline.

Budgeting and Phasing the Build

Prioritize spending on the door assembly, safe, and environmental control. Next come lighting and the bench, then storage systems and finishes. Phase work: secure envelope and power first, then install storage, then refine ergonomics. Keep contingency funds for anchors, hardware, and unexpected reinforcement needs.

Common Mistakes I See—and Fix

Overdisplaying without locking mechanisms, poor glare control at the bench, carpeted floors that trap debris, and unvented solvent use. Another frequent miss: cluttered accessories mixed with ammunition. Separate zones and label everything. Finally, many rooms underestimate humidity; a small, smart dehumidifier is cheap insurance against corrosion.

FAQ

How bright should my gun room be?

General ambient light around 300–500 lux supports visibility, with 750–1000 lux at the bench for detailed maintenance. Use 4000–4500K ambient and high-CRI task lights for accurate inspection.

What’s the safest way to store firearms and ammo?

Lock firearms in a rated safe or cabinet and store ammunition separately in a locked container. Add trigger locks and opaque doors for visual discretion. Maintain a written inventory.

Which materials work best for benches?

Sealed hardwood or phenolic resin tops with rounded edges are durable and solvent-resistant. Pair with powder-coated metal bases and anti-slip mats for stability and safety.

How do I manage humidity to prevent rust?

Keep relative humidity between 40–50% using a dehumidifier and desiccant packs in safes. Seal the room envelope and monitor with a hygrometer for consistent control.

What color palette supports focus and safety?

Neutral bases with desaturated greens or blues promote calm and visual clarity. Research on color psychology highlights blue’s calming effect, useful for focused maintenance.

Do I need acoustic treatment?

Yes, especially if the room is near living areas. Wall panels, rubber flooring, and sealed doors reduce noise and help maintain concentration during delicate tasks.

How should I lay out the room for safe movement?

Create three zones: secured storage, bench/maintenance, and accessories/ammo. Maintain 36–42 inch clearances and align the bench perpendicular to storage to avoid crossing paths while carrying equipment.

What security features are most effective?

Reinforced doors and frames, UL-rated locks, concealed safe placement, layered access (room + safe), and discreet surveillance. Combine physical, procedural, and digital measures.

Is fire protection necessary?

Yes. Install a photoelectric smoke detector, keep a clean-agent extinguisher, and consider fire-rated safes for documents and firearms. Post simple emergency protocols near the exit.

Can I integrate technology for tracking?

Use local cameras, contact sensors, and a secure inventory app. Keep digital records offline or encrypted. Avoid loud alerts; choose visual or haptic notifications.
