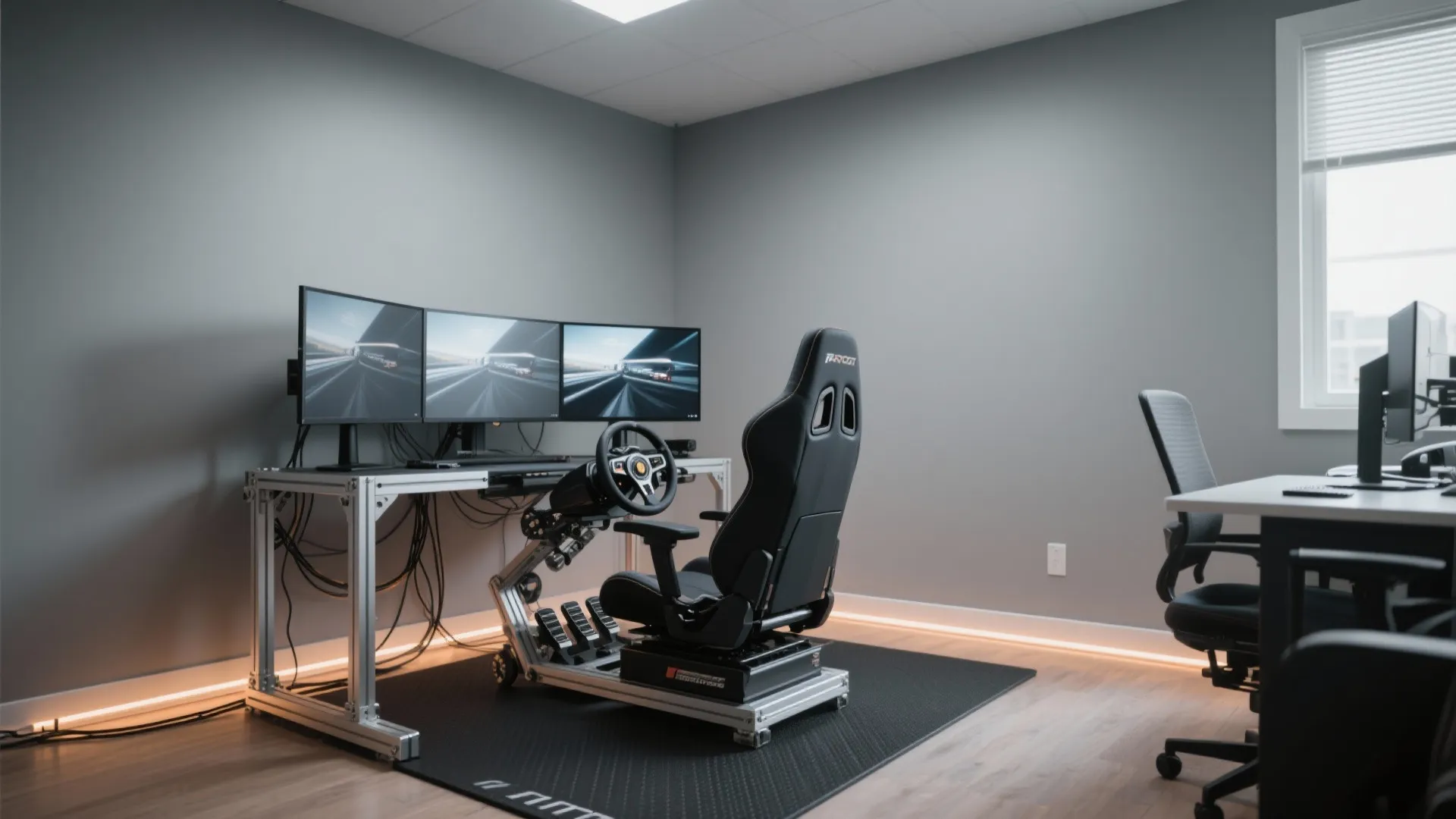

DIY Home Racing Simulator: The Ultimate Guide: Fast-Track Guide to Building Your Dream Racing Setup at Home

I’ve built and tuned multiple home racing simulators over the past decade, and the best rigs share a common DNA: a strong chassis, correctly positioned controls, stable visuals, and a comfort-first environment. Get these pillars right, and the handling feels intuitive, your lap consistency improves, and fatigue drops dramatically.

Ergonomics is the first lever to pull. Steelcase research indicates that posture quality directly affects cognitive performance and endurance in task settings, a principle that maps cleanly to sim racing where sustained focus matters. WELL v2 guidelines similarly highlight musculoskeletal support and adjustable seating as key to reducing fatigue during prolonged sessions. Positioning your wheel, pedals, and seat to match human factors ratios pays off immediately in control precision.

Visual comfort and lighting come next. IES recommends managing luminance ratios and glare to avoid veiling reflections; for screens, target a balanced ambient light that reduces eye strain without washing out contrast. WELL v2 emphasizes minimizing direct glare and enabling user control of lighting. Combine these with a neutral wall palette to hold perceived brightness steady while reducing distractions.

Core Components: What Matters Most

The frame needs to be rigid enough to handle torque from direct-drive wheels and the impulse loads from load-cell pedals. Aluminum profile systems (e.g., 80/20 style) offer exceptional stiffness-to-weight, modularity for future upgrades, and easy mounting points. A robust seat mount with fore/aft and tilt adjustability helps dial in hip-to-heel angle and steering reach.

Steering torque and pedal force define fidelity. Direct-drive bases deliver nuanced road feel and higher dynamic range; load-cell pedals give consistent braking based on force rather than travel. The trade-off is cost, but consistency and training value increase markedly with these upgrades.

Ergonomics: Positioning for Control

I set up driving position using three anchors: seat height, steering wheel reach/angle, and pedal geometry. Aim for a hip angle near 100–110 degrees and a knee angle around 120–135 degrees to allow strong, controlled braking without strain. The steering rim should sit roughly 25–35 cm from your chest, with a mild incline (10–15 degrees) that matches your chosen discipline (GT vs. Formula). Wrist tops aligning with the rim at 10 and 2 o’clock is a quick field check.

Back support matters during long stints. A seat with adjustable lumbar and side bolsters stabilizes your torso so fine motor inputs aren’t wasted on balancing. Research from Steelcase on task seating underscores micro-adjustability as a predictor of posture endurance—fit your sim seat the same way you would a performance office chair.

Visual System: Screens, FOV, and Stability

Triple-screen layouts provide a wide field of view and better spatial cues for corner entry and exit. For most rigs, 27–32" panels at 1080p or 1440p with 120–165 Hz refresh hit a good cost-performance ratio. If you prefer VR, prioritize headsets with strong clarity and comfort; ensure adequate ventilation to avoid lens fogging.

Field of view should be calibrated to your actual viewing distance and screen size, not guessed. Mount screens so the horizon line matches your real eye level and the center screen is directly square to your seating axis; minor misalignments cause subtle steering bias. Use an interior layout planner when your room footprint is tight—the room layout tool helps visualize clearances, cable runs, and sight lines: room layout tool.

Lighting: Glare Control and Contrast

Ambient light should be diffuse and indirect. I place dimmable 3000–3500K fixtures behind and above the display plane to keep luminance ratios stable. IES glare control principles suggest shielding bright sources from direct view and favoring matte finishes around screen zones to reduce specular reflections. Vertical illuminance at eye level is a better target than horizontal lux only—your goal is comfortable perception, not maximum brightness.

Accent lighting can aid immersion—under-rig LED strips set to low output help spatial orientation without contaminating the image. Keep RGB effects subtle; color temperature shifts impact perceived contrast and may fatigue your eyes over long sessions.

Acoustics: Mechanical Damping and Neighbor-Friendly Sound

Rig vibration and fan noise accumulate quickly. Isolate wheel bases and pedals with elastomer bushings or rubber washers to decouple high-frequency buzz. Under the frame, dense rubber mats or a plywood sandwich with Green Glue-style damping reduces footfall transmission in apartments.

For room acoustics, soft panels at first reflection points (side walls and behind screens) tame slap echo and keep audio imaging clean. Aim for a balanced decay; overly dead rooms feel unnatural and can mask spatial cues. Position speakers to avoid desk bounce and use modest sub levels to keep neighbors happy.

Materials and Sustainability

Aluminum profiles excel for structural members; they’re recyclable, light, and maintain tolerances under load. For seat shells, consider durable fabrics that resist pilling with a breathable weave to manage heat. Cable management tracks and braided sleeves prevent abrasion and extend component life.

If you build panels or platforms, FSC-certified plywood with low-VOC finishes keeps indoor air quality in good shape. WELL v2 speaks to material health and ventilation; even a small rig benefits from that mindset—less off-gassing, better comfort.

Power, Safety, and Thermal Management

High-torque wheel bases and gaming PCs pull significant power under load. Use surge protection and distribute devices across circuits if possible. Keep ample airflow around GPUs and wheel control boxes; dust filters and regular cleaning preserve performance.

Bundle cables with velcro straps and label both ends; a clean harness reduces snag risk and simplifies upgrades. Avoid aggressive coil springs on pedals without safety shields if pets or kids are around.

Spatial Ratios and Layout

Plan clearances first: at least 70–90 cm behind the seat for entry, 60 cm to either side for arm movement, and 100–120 cm in front for displays and pedal box. If you share the space with work-from-home gear, consider a rolling base plate so the rig docks into a fixed position and stows easily. Before drilling into floors, model the placement using an interior layout planner to test sight lines, seating paths, and display angles: interior layout planner.

Tuning: Software, Force Feedback, and Pedal Curves

I tune force feedback by starting with a lower overall gain and raising road detail and scrub effects until I can reliably feel understeer onset. Too much torque masks detail and fatigues forearms. For brakes, a gentle logarithmic curve on load-cell pedals helps modulate threshold braking; if your sim allows calibration, map your maximal force to what you can sustain for long stints without shaking.

Steering damping and friction should be just enough to remove oscillation without blunting snap-oversteer cues. Save profiles per car class; GT3, rally, and formula cars benefit from different pedal force ranges and FFB bandwidth.

Comfort and Habit Formation

Small rituals matter. Keep a microfiber cloth for screens, a fan angled toward your face for heat management, and a bottle of water within reach. Steelcase notes task performance improves when micro-distractions are reduced—translating that to sim racing means fewer interruptions and steadier lap times.

Cost Strategy and Upgrade Path

Start with a stable frame and load-cell pedals, then move to direct-drive and better displays as budget allows. A well-set mid-tier rig with thoughtful ergonomics beats an expensive but poorly tuned system. Document your measurements and settings so you can replicate the feel after any hardware change.

Recommended Standards and Research

For lighting principles and glare control, IES standards are my go-to reference supporting display comfort. WELL v2 guidance helps keep material choices and ergonomics aligned with health goals. For workplace-derived insights on posture and cognitive endurance that apply to long sim sessions, Steelcase research is consistently useful. See: Steelcase research and WELL v2.

FAQ

Q1: What seat angle and height work best for GT-style sim racing?

A hip angle around 100–110 degrees with slight seat pan tilt (2–5 degrees) supports strong braking while keeping lower back comfort. Keep eye level aligned to the top third of the center screen.

Q2: How do I reduce glare on my displays?

Use indirect, dimmable lighting behind/above screens, matte wall finishes, and avoid visible light sources within the screen’s reflection cone. IES guidance emphasizes shielding and luminance balance rather than raw brightness.

Q3: Is triple-screen better than a single ultrawide for racing?

Triple screens generally provide superior lateral cues and mirror visibility. An ultrawide is simpler and cleaner, but field-of-view calibration tends to be more accurate with triples for close-quarters racing.

Q4: What pedal type gives the most realistic braking?

Load-cell pedals measure force and mimic real brake feel better than potentiometer-based travel pedals. Calibrate the force curve to your sustainable max so threshold braking is repeatable.

Q5: How do I choose color temperature for my rig lighting?

Stay between 3000–3500K for warm-neutral comfort that preserves display contrast. Cooler light can feel crisp but may increase perceived glare and visual fatigue during long sessions.

Q6: How can I manage noise in an apartment?

Use elastomer mounts for hardware, dense rubber mats or a damped platform under the rig, and moderate subwoofer output. Treat first reflection points with soft panels to reduce flutter echo.

Q7: What’s the safest way to handle power distribution?

Use surge-protected strips, avoid overloading a single circuit, and keep ventilation clear around PCs and wheel bases. Label cables at both ends to simplify troubleshooting.

Q8: How should I set force feedback?

Start with moderate overall gain, raise road detail until you can feel understeer onset, and add minimal damping to prevent oscillation. Save per-car profiles for consistency.

Q9: Are there health guidelines relevant to sim racing setups?

WELL v2 ergonomics and material health principles apply directly—adjustable seating, reduced glare, and low-VOC finishes improve comfort and air quality for extended sessions.

Q10: Can I plan the rig in a small room without guesswork?

Yes. Use a room design visualization tool to simulate clearances, display angles, and cable routes before committing to holes or heavy furniture.

Q11: What refresh rate should I target?

120–165 Hz is a practical sweet spot for racing sims, yielding smoother motion and clearer car control cues without excessive GPU load at 1440p.

Q12: Any tips for long endurance stints?

Ventilate the headset/room, keep hydration handy, and use a seat with lumbar support. Reduce micro-distractions with organized cables and set routines for quick pit breaks.
