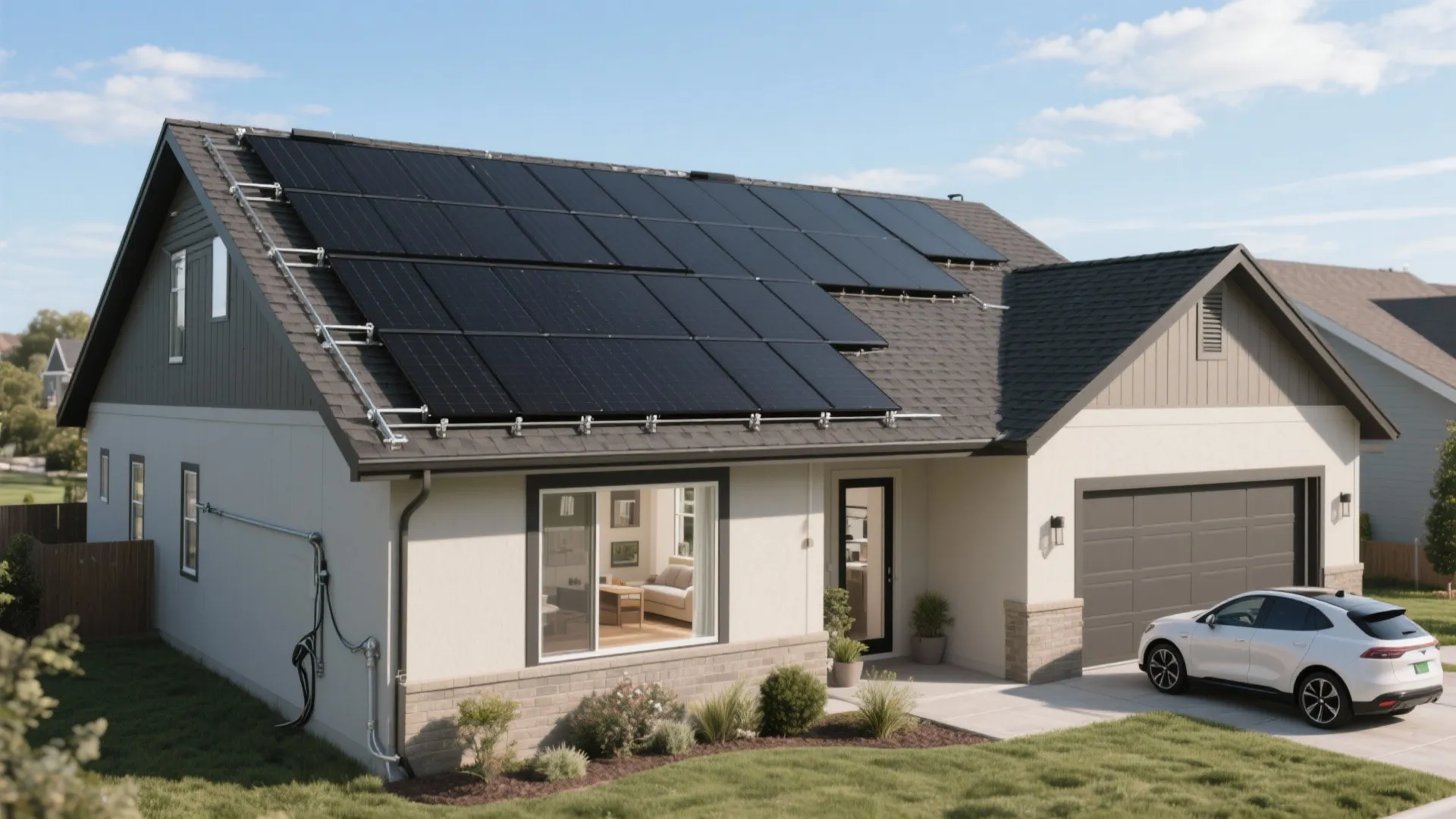

DIY Home Solar Power System: Get Started Today: Fast-Track Guide to Building Your Own Solar Solution at Home

I’ve guided homeowners through dozens of small-to-mid scale solar installs, and the same questions always surface: how big should the array be, what battery size makes sense, and will it truly lower utility bills without creating headaches? The short answer—yes, with proper sizing, safe hardware selection, and clean execution. Solar isn’t one-size-fits-all, but a disciplined approach makes DIY both feasible and rewarding.

Real performance data helps ground expectations. Residential systems in the U.S. often achieve 80–90% of nameplate output in good conditions due to inverter efficiency and temperature losses. Typical panel efficiencies today sit around 20–22%, and most homes can offset 40–80% of annual consumption depending on roof orientation and shading. On the human side, behavior patterns matter: Steelcase’s workplace research consistently shows environment quality influences occupant satisfaction and energy use patterns, while WELL v2 emphasizes glare control and daylight balance for visual comfort—principles I carry into solar-plus-daylighting decisions for living spaces. For further reading on occupant wellness, WELL v2 offers clear guidance on light, glare, and circadian considerations.

Plan Your Targets and Energy Profile

Start with your last 12 months of utility bills and average daily kWh. A typical U.S. household consumes around 30 kWh/day, but the spread is wide. If your goal is a 60% offset, you’re targeting ~18 kWh/day from solar. In climate zones with 4–5 peak sun hours, that translates to roughly a 4–5 kW array (assuming 80–85% system performance). Check orientation: south-facing roof pitches between 15–35° usually deliver strong yields; east/west can still work with slight oversizing.

Roof, Structure, and Layout Basics

I assess roof age (ideally less than halfway through its life), sheathing condition, and rafter spacing before any layout. Shading from chimneys, trees, or neighboring buildings can erode output dramatically; even partial shade on a string can drop production. When mapping modules, keep service pathways and fire setbacks, and group panels by similar irradiance to avoid mismatch losses. If you want to simulate different stringing schemes and furniture/roof obstructions for aesthetic alignment, a room layout tool helps visualize spacing, service clearances, and structural symmetry.

Choose PV Modules and Inverters Wisely

Monocrystalline panels (20–22% efficiency) offer strong power density. Look for robust warranties (25-year performance) and low temperature coefficients (−0.3 to −0.35%/°C). For inverters, string units with module-level power electronics (optimizers) or microinverters provide shade tolerance and per-panel monitoring. Microinverters simplify rooftop DC and can enhance safety by keeping high voltage off the roof; optimizers paired with a central inverter offer slightly higher DC aggregation efficiency and often lower costs on larger arrays. If your roof has multiple orientations or intermittent shade, microinverters or optimizers are usually a smart choice.

Battery Storage: Size for Use, Not Hype

Battery capacity should reflect critical loads and backup duration, not just marketing numbers. A modest 10–13.5 kWh pack can handle refrigerators, lighting, internet, and some HVAC for several hours, but whole-home backup with central AC may require 20–30+ kWh and careful load shedding. Lithium iron phosphate (LFP) batteries bring long cycle life and thermal stability, while nickel manganese cobalt (NMC) variants offer higher energy density. Always pair storage with a hybrid inverter or energy management system that supports islanding and automatic transfer during outages.

Safety First: Electrical, Fire, and Human Factors

Use proper rapid shutdown equipment, listed combiner boxes, and clearly labeled disconnects. Conduit runs should be tidy, with drip loops on exposed cables. Keep working clearances around service panels (typically 30 inches wide by 36 inches deep) and follow local code. Ergonomically, ladder safety, roof tie-offs, and tool tethering are non-negotiable. Consider visual balance—arrays that align with rooflines and avoid skylight crowding feel better day-to-day and reduce glare into interior spaces. WELL v2 guidance on glare management is relevant when placing arrays near clerestory windows; it’s wise to avoid positions that intensify interior luminance contrast.

Permitting, Interconnection, and Incentives

Most jurisdictions require electrical permits, structural checks, and utility interconnection approval. Document panel datasheets, racking engineering, and voltage calculations. Net metering policies vary; some utilities offer retail credits, others “buy-all/sell-all” or time-of-use rates. Keep a clean one-line diagram and labeling package—it speeds inspections and protects future serviceability.

Racking, Waterproofing, and Weathering

I use flashed mounts rated for your roof type (asphalt shingle, tile, metal). For shingles, pre-drill into rafters, inject sealant, and install metal flashings under the upper course to maintain the water plane. Torque rails to manufacturer specs, verify module clamping zones, and route wiring in UV-resistant conduit. In snow zones, leave extra edge clearance to reduce ice dam interactions and check load tables for combined wind/snow pressures.

Wiring, Stringing, and Commissioning

Plan string lengths to stay within inverter MPPT voltage windows across temperature extremes. Use MC4 connectors with proper crimp tools—no improvisation. Bond rails, verify equipment grounding continuity, and test insulation resistance. During commissioning, confirm polarity, measure open-circuit and operating voltages, and validate inverter settings for grid profile. Activate module-level monitoring for real-time troubleshooting; it’s invaluable when a single panel underperforms.

Designing for Daylight Comfort

Solar work often pairs with daylight optimization indoors. Managing glare and balancing daylight reduces reliance on artificial lighting and improves comfort. WELL v2 addresses luminous intensity balance and glare indices; I keep task zones at 300–500 lux and choose interior finishes with mid-range reflectance to avoid harsh contrasts. Good daylighting complements PV savings—fewer lighting hours, lower cooling loads if glazing is shaded correctly.

Budgeting and Payback

A DIY 4–6 kW system with quality components can land in the $7,000–$12,000 range before incentives, depending on roof complexity and inverter choice. Payback periods vary by utility rates and net metering, typically 6–10 years for solid sun regions. Add storage thoughtfully; batteries improve resilience but extend payback unless your area has frequent outages or high demand charges.

Maintenance and Monitoring

Keep modules clean where pollen or dust accumulates; a gentle rinse a few times per year helps, but avoid high-pressure jets. Check fasteners annually, inspect wire runs for abrasion, and update firmware on inverters and batteries. Monitoring dashboards reveal trends—if output dips, compare against ambient temperature and irradiance to isolate issues like shading changes or connector faults.

Color, Materials, and Aesthetic Integration

Black-framed, black-backsheet modules read cleaner on dark roofs, while silver frames can suit lighter tiles. Racking color matters—black reduces visual clutter from the street. Inside, select finishes that harmonize with daylight cooled by solar shades; neutral palettes reduce perceived glare, and matte surfaces maintain visual calm. Behaviorally, harmonious exteriors and interiors make sustainable choices feel integrated rather than bolted-on.

Future-Proofing: EVs and Load Management

If an EV is in your near future, plan feeder capacity and consider a smart charger that responds to solar surplus. Load management devices can prioritize circuits during outages and shift flexible loads (water heating, laundry) to solar-rich hours. This coordination moves you from “solar as generation” toward a responsive home energy ecosystem.

Authority Resources

For occupant comfort and light guidance, explore WELL v2’s Light concept at the International WELL Building Institute. For design research on how environments shape behavior and satisfaction, Gensler Research offers rich, data-backed insights.

FAQ

How do I estimate my system size accurately?

Use your daily kWh average and local peak sun hours. Target array watts = (daily kWh / peak sun hours) ÷ system performance (0.8–0.85). If you consume 30 kWh/day and have 5 sun hours, that’s about a 7–7.5 kW array for near-full offset; scale down if aiming for partial offset.

Are microinverters or optimizers better for a shaded roof?

Both mitigate shade by managing modules individually. Microinverters convert DC to AC at each panel—simplifying rooftop safety and offering strong per-panel data. Optimizers keep DC centralized but provide similar shade resilience at potentially lower cost for larger arrays.

Do I need a battery to go solar?

No. Grid-tied systems without storage are common and cost-effective. Add batteries if you need outage resilience, time-of-use shifting, or demand charge mitigation. Size storage to critical loads rather than whole-home expectations.

What about glare and visual comfort indoors?

Pair solar with sensible daylight design: control glare near work surfaces, aim for 300–500 lux in task zones, and use mid-reflectance finishes. WELL v2’s Light guidance is a solid reference for maintaining visual balance.

Will winter cold or summer heat hurt performance?

Panels actually perform better in cooler temperatures; heat increases resistance and reduces output. Check the temperature coefficient on your module datasheet—lower absolute values mean less loss in hot weather.

Is DIY permitted everywhere?

Requirements vary. Most places allow homeowner installs with proper permits and inspections. Consult your local authority having jurisdiction (AHJ) and utility interconnection rules early to prevent delays.

How long does installation usually take?

For a 4–6 kW array, plan a few weekends: one for layout and racking, one for wiring and inverter work, and one for inspections and commissioning. Complexity and roof type can add time.

How do I maintain the system?

Inspect fasteners annually, clean modules gently when dirty, and review monitoring data for anomalies. Keep vegetation trimmed to prevent new shading and update firmware when available.

Can solar complement EV charging effectively?

Yes. Smart chargers can follow solar production, shifting charging to midday. If you have time-of-use rates, this alignment reduces cost and improves overall system value.

What if my roof isn’t ideal?

Consider ground mounts, carports, or east/west arrays with slight oversizing. Module-level electronics help mitigate non-optimal orientation and intermittent shade.

Do newer panels make my old system obsolete?

Not at all. Many homeowners add a second array or expand strings later. Ensure electrical capacity and inverter compatibility; mixing modules is fine if voltage/current characteristics match the MPPT windows.
