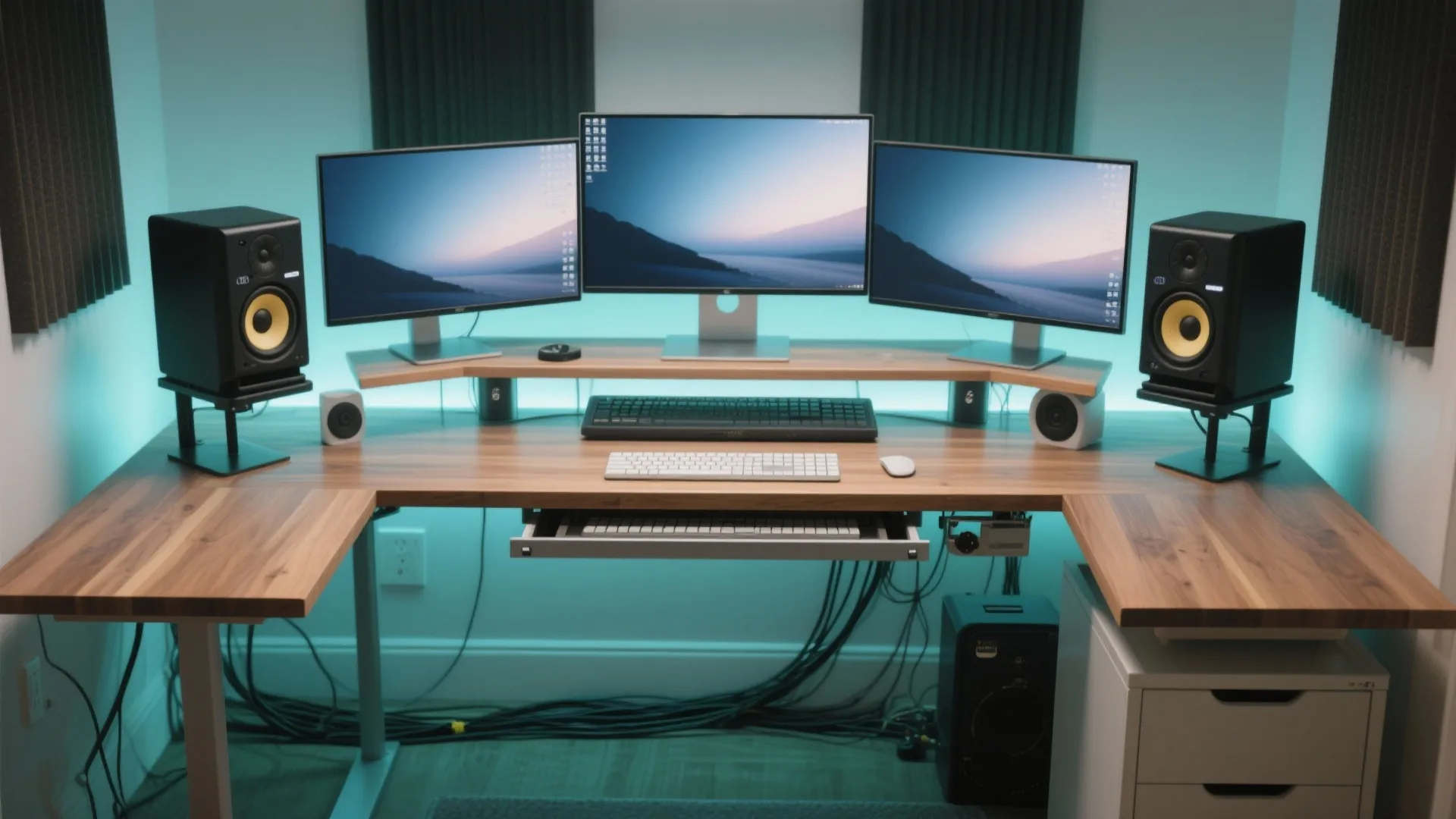

DIY Home Studio Desk: Create Your Custom Workspace Easily: Fast-Track Guide to Building a DIY Home Studio Desk in 1 Hour

Crafting a DIY home studio desk is less about woodworking bravado and more about designing a surface that supports your workflow, posture, and sound. In studios I’ve built, the biggest wins always come from getting heights, reach distances, and acoustic geometry right before cutting a single board. WELL v2 recommends seated desk heights that pair with a 90–100° knee angle and neutral wrists, which typically lands most people around a 28–30 inch desk height with an adjustable chair and foot support when needed. Herman Miller’s research also notes that tasks alternating between sitting and standing can reduce musculoskeletal discomfort and improve perceived energy across the day—particularly when mixing and editing sessions stretch beyond 2 hours. Linking your build to proven ergonomics means fewer compromises later.

Sound and sightlines deserve equal attention. According to IES lighting guidance, 300–500 lux on the desk plane suits task work like editing waveforms and labeling tracks, while keeping glare and monitor contrast in check. For psychoacoustics, Steelcase’s workplace studies connect perceived control over noise with improved focus and lower stress—relevant even in a small music corner. Positioning monitors to form an equilateral triangle with your ears and avoiding first-reflection splash on the desk surface often produces more reliable mixes than any last-minute EQ fixes. If you want to pre-visualize keyboard reach, speaker toe-in, and cable routes before you buy lumber, test layouts in a room layout tool such as this interior layout planner: room layout tool.

Define Your Studio Intent and Signal Flow

I start by mapping the work: composing with a 61- or 88-key controller, tracking vocals or guitars, mixing with nearfields, and occasional video edits. That map drives zones: primary (keyboard, mouse, faders), secondary (audio interface, small control surface), and tertiary (synths, patchbay, drawers). Keep primary tools within a 14–18 inch reach envelope to reduce shoulder protraction and wrist deviation. If you use a large MIDI controller, consider a pull-out tray at 24–26 inches height; it lowers the keys closer to lap level for relaxed forearms while keeping the main desk surface clean.

Choose a Structure: Frame, Top, and Modularity

Two reliable build paths: a solid plywood carcass with torsion-box top, or a steel frame with a laminated desktop. Plywood (18–21 mm) with a torsion box resists sag under rack weight; steel frames paired with a dense 1.25–1.5 inch top feel rock-solid for isolated keyboards. Leave a 2–3 inch rear cable chase and 60–80 mm grommets for clean management. I favor pilot-holed rails along the back to mount power strips and a ground-lifted power conditioner. If you anticipate gear growth, pre-drill for 10–12U of low-profile rack space flanking your knee zone while maintaining at least 22–24 inches clear legroom.

Dial in Ergonomics: Height, Reach, and Screen Position

Set the desktop around 28–30 inches high for seated work; add a 4–6 inch adjustable keyboard tray if you play long sessions. For sit-stand, pair a lifting frame (range ~25–50 inches) with cable slack loops and under-desk raceways to avoid strain on audio lines. Center your screen so the top third sits at or slightly below eye level; place nearfield monitors so tweeters are at ear height and 30–38 inches from your head, forming a triangle. Angle the desk or use monitor stands to prevent the desktop from acting as a reflector.

Acoustic Awareness: Geometry That Helps Your Mix

I avoid deep, glossy desktops that bounce highs. A matte, micro-textured laminate or oiled wood helps. Keep the desktop depth around 28–34 inches so monitors can sit on independent stands slightly behind the desk plane; this reduces early reflections. Leave 6–10 inches between the back of the desk and the wall to fit broadband panels at first reflection points. If you must place speakers on the desk, use decoupling pads and toe them so axes cross just behind your head to tighten the phantom center.

Lighting That Supports Precision

Task lighting at 300–500 lux improves waveform visibility and reduces eye strain; dimmable 3000–4000K LEDs keep color fatigue low while maintaining color accuracy for video timelines. Avoid fixtures that create specular highlights on screens or glossy synth panels. A low-glare desk lamp with a cutoff shield and high CRI helps with labeling patch cables and reading knobs. Consider bias lighting behind displays for better perceived contrast and lower eye strain in evening sessions.

Materials: Feel, Durability, and Sustainability

Baltic birch plywood is dimensionally stable and finishes beautifully with oil-wax. For budget builds, a high-pressure laminate on MDF resists cup-ring damage and stays flat if you seal edges. I often inlay a thin cork strip near the front lip for slip-free notepads and to soften wrist contact. Ventilate rack bays; gear runs warm. If you use reclaimed tops, verify flatness to within 2–3 mm across the span to avoid wobbly keyboards and monitor tilt.

Smart Cable and Power Strategy

Plan a left-to-right or right-to-left signal flow: instruments—DI—interface—computer. Separate power and audio lines by at least 3–4 inches to reduce hum. Use under-desk trays and Velcro ties rather than zip ties for future changes. Label both ends of every cable with heat-shrink or tape flags. Leave two spare outlet spots per rack bay; you will fill them sooner than you think.

Build Steps: From Cut List to Finish

1) Measure and Mock Up

Tape out the footprint on your floor. Sit with your chair and mock keyboard to confirm reach and leg clearance. Quick checks here prevent expensive re-cuts. Use a layout simulation tool if you want to test multiple monitor and keyboard positions: interior layout planner.

2) Cut and Dry-Fit

Cut side panels, stretchers, and the top. Dry-fit with clamps to validate rack spacing and tray height. Pre-drill for inserts if you plan removable rack rails or future expansions.

3) Assemble Frame and Cable Paths

Glue and screw the frame, then install grommets, raceways, and a rear cable channel. Mount your power conditioner on the back rail; check cord lengths reach wall outlets without tension.

4) Finish Surfaces

Sand to 180–220 grit; finish with hardwax oil or waterborne poly for a low-sheen, non-glare surface. Avoid high-gloss finishes that amplify reflections.

5) Mount Hardware and Test Ergonomics

Attach the keyboard tray, rack rails, monitor arms, and stands. Sit, play, and mix for 20–30 minutes. Adjust tray height, armrest elevation, and monitor toe-in before final tightening.

Color and Mood: Keep You in the Creative Zone

For long sessions, mid-value neutrals around your display help color judgment. Desaturated blues and greens can reduce perceived stress and aid focus; keep a few accents warm to avoid a sterile feel. Choose one high-chroma pop—like a cable hanger or a single drawer front—to create a gentle visual anchor without distracting from the mix position.

Maintenance and Iteration

Re-check fasteners after the first month; wood settles and vibrations loosen screws. Refresh surface finishes annually in high-wear zones. Keep a small bin for failed cables and another for spares; nothing breaks momentum faster than hunting for adapters mid-session.

Safety and Load Considerations

Confirm the desk can support combined loads: nearfields, two displays, interface, and racks can easily exceed 80–120 lbs. A torsion box with internal ribs every 8–10 inches prevents sag. Anchor the desk if you add tall upper shelves; stability beats risk when a heavy synth sits at head height.

Cost-Smart Upgrades

Prioritize a stable top, good chair, and monitor stands before fancy drawer hardware. Add a small control surface or fader pack when your editing time outpaces capturing ideas. A single power conditioner and a dedicated circuit reduce noise headaches more than boutique cables.

FAQ

What is the ideal desk height for a home studio?

Most users land at 28–30 inches for seated work, paired with an adjustable chair and neutral wrist posture. If you play a large MIDI controller, a slightly lower pull-out tray (24–26 inches) is more comfortable.

Should I build a sit-stand studio desk?

If you edit or mix for hours, a sit-stand frame helps vary posture and reduce fatigue. Ensure cable slack and use under-desk raceways so raising the desk doesn’t strain audio or power lines.

How deep should the desktop be?

Target 28–34 inches. This depth balances reach to keyboard and mouse while allowing monitor stands behind the desk to reduce early reflections.

Do I need acoustic treatment on the desk itself?

No treatment is required on the desk, but avoid high-gloss surfaces that reflect highs. Use matte finishes and decouple speakers from the desktop with pads or stands.

Where should studio monitors go relative to the desk?

Place monitors so tweeters are at ear height, forming an equilateral triangle with your head (30–38 inches per side for most nearfields). Stands behind the desk plane yield cleaner first-reflection control.

What lighting levels work best for editing?

Aim for 300–500 lux on the work surface, with dimmable 3000–4000K LEDs and low-glare fixtures to prevent screen reflections and eye strain.

How can I keep cables from becoming a mess?

Plan a single-direction signal flow, separate power and audio by 3–4 inches, use under-desk trays, and label both ends of every cable. Leave spare outlets for growth.

What materials are most durable for a DIY desktop?

Baltic birch plywood with a hardwax oil finish or HPL laminate on MDF are both robust. Seal edges, and confirm flatness within 2–3 mm across the span.

Can I integrate rack gear without losing legroom?

Yes—split 6U racks on left and right, keep at least 22–24 inches clear in the center, and route cables through a rear channel to avoid knee interference.

How do color choices affect creativity and fatigue?

Mid-value neutrals reduce visual noise near displays; soft blues/greens can feel calming for long sessions. Add a warm accent to keep the space from feeling sterile.
