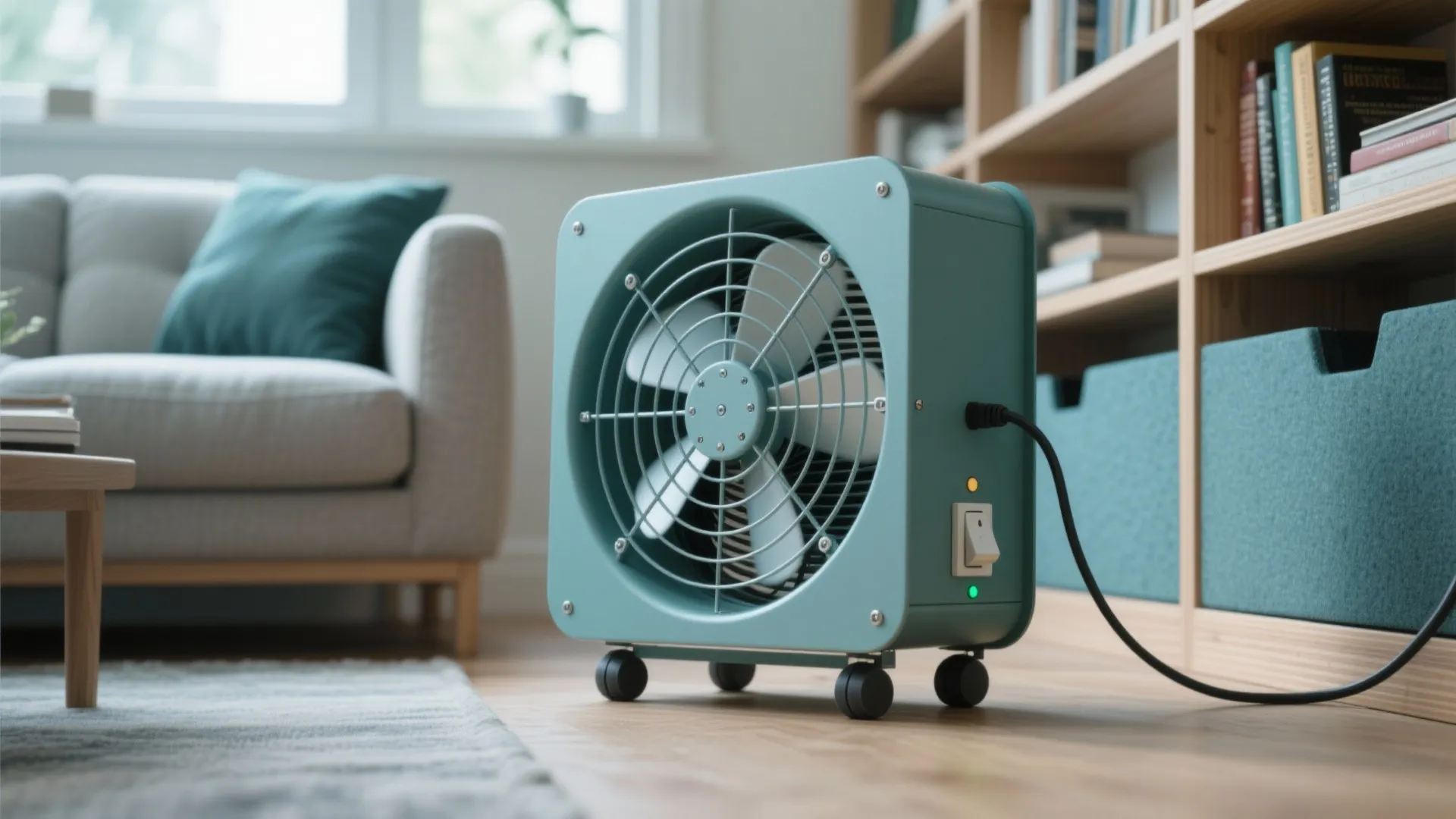

DIY House Fan: How to Build Your Own Cooling Solution: 1 Minute to a Cooler Home: Fast-Track Guide to DIY House Fans

Store‑bought fans rarely balance airflow, sound, and safety the way I want. When summer ramps up, I build my own: a compact axial fan that pushes serious air without turning the room into a noise chamber. Getting it right means treating the fan like a small-scale airflow system—blade selection, motor torque, housing geometry, noise isolation, and power safety all matter.

Two numbers guide my early decisions: air changes and sound exposure. In living rooms, a target of 6–10 air changes per hour typically feels comfortable when paired with ceiling fans or well-directed portable airflow. Research from Steelcase found that perceived comfort and task effectiveness improve when thermal conditions are stable and noise stays below the low 40s dBA range for focused work; excessive fan noise undermines both comfort and productivity. WELL v2 also emphasizes acoustic comfort, with background noise targets around NC 40 for typical occupied spaces, reinforcing the need for quiet operation (see WELL Building Standard, v2).

Color and visual comfort play a subtle role. Verywell Mind’s overview on color psychology notes blue and green hues are often associated with calm and coolness—useful when selecting finishes for a fan housing or adjacent decor to nudge perceived thermal comfort. On the technical side, the Illuminating Engineering Society (IES) highlights the importance of limiting glare and flicker in lighting; by analogy, smooth fan blade finishes and matte housings help minimize distracting specular reflections, supporting a more comfortable environment.

Core Design Choices: Axial vs. Centrifugal

I default to axial fans for room cooling: they deliver high volumetric flow (CFM) with minimal footprint. Centrifugal blowers develop higher pressure—great for ducts—but feel too directional and bulky for a movable house fan. For a living room (approx. 200 sq ft with 8 ft ceilings), I aim for 800–1,200 CFM to gently cycle air without turbulence. With an axial unit and a well-shaped inlet ring, you can hit those numbers at sub‑50 dBA when you isolate the motor and manage blade speed.

Sizing the Airflow and Housing

Here’s my quick sizing path: estimate needed CFM (room volume × desired air changes per hour ÷ 60). For 200 sq ft × 8 ft = 1,600 ft³. At 8 ACH, target ~213 CFM; in practice, I oversize to ~800–1,000 CFM to allow low‑speed, quiet operation while still moving heat away from occupants and electronics. A 9–12 inch fan diameter with a shallow venturi (inlet bell) balances flow and noise. Keep the fan face at least one blade chord length away from any grille to reduce tip vortex noise.

Blade Geometry and Materials

Three to five blades at moderate pitch (18–28°) give steady flow with manageable motor load. I prefer fiberglass-reinforced nylon or balanced wood blades: they’re stiff, light, and damp vibration. Avoid sharp trailing edges; a slightly thickened, rounded trailing edge can reduce tonal noise. Balance blades statically and dynamically—minor adhesive weights on the hub often solve micro‑wobble.

Motor Selection and Speed Control

For household builds, I like brushless DC (BLDC) or high-quality AC shaded‑pole/PSC motors with sealed bearings. BLDC wins for efficiency and torque at low RPM, which is crucial for quiet airflow. Aim for variable speed: a simple PWM controller for BLDC or a triac/auto‑transformer for AC. Mount the motor on rubber isolation grommets and add a neoprene layer between motor plate and housing to cut structure‑borne noise.

Power, Safety, and Wiring

Safety precedes airflow. Use UL‑listed power supplies, strain reliefs, and a grounded metal housing or a double‑insulated enclosure. Route cables away from the fan sweep and secure with P‑clips. Add an inline fuse sized 125–150% of full load current and a master rocker switch with an indicator light. A robust finger‑safe grille (≤12 mm spacing) on both sides is non‑negotiable, especially around kids or pets.

Housing Geometry: The Quiet Edge

A shallow, smooth venturi increases inlet efficiency and reduces tip loss. I 3D‑print an inlet ring with a 10–12% bell radius relative to the fan diameter. Inside the frame, line panels with 6–10 mm melamine foam or recycled cotton acoustic mat, keeping clear of the inlet/outlet to avoid pressure drop. If the build involves complex room placement or airflow paths around furniture, I’ll sketch options with an interior layout planner to visualize throw distances and recirculation. Try a lightweight room layout tool to test positioning, furniture clearances, and airflow paths: room layout tool.

Acoustic Tuning and Vibration Control

Noise has three roots: blade pass tones, motor hum, and structural vibration. Countermeasures: lower RPM with larger diameter, add a stator or flow‑straightening grille downstream to reduce swirl, isolate the motor, and weight the base. Place the fan on sorbothane feet. If tonal peaks remain, adjust blade pitch a few degrees or change speed slightly—moving out of a room mode can be surprisingly effective.

Filters and Purifying Add‑Ons

For smoke season, I fit a low‑resistance MERV 8 prefilter on the inlet. Avoid restrictive HEPA pads unless the motor can supply the static pressure; otherwise you’ll slash CFM and raise noise. If filtration is a priority, a centrifugal blower build is better suited.

Thermal and Human Factors

Our bodies perceive cooling through air speed over skin. In seated tasks, 0.3–0.8 m/s across the upper body often feels ideal without drying eyes. Place the fan slightly off‑axis to faces, chest height or a bit lower, and angle the discharge to graze across occupants rather than blasting them. Cool‑colored finishes (muted blues/greens) around the fan subtly reinforce perceived coolness, aligning with color psychology findings. Keep cables out of circulation paths and ensure the fan base doesn’t become a toe‑stubber—small ergonomic details prevent daily friction.

Materials and Sustainability

I design housings in plywood or recycled sheet aluminum with a powder‑coat finish. Plywood edges finished with water‑based sealers stay stable; aluminum helps with heat dissipation from motors and controllers. Choose screws over adhesives for disassembly, and specify bearings that are serviceable. Quiet fans last when they’re maintainable.

Build Steps: From Bench to Breeze

1) Plan and Measure

Confirm target CFM and diameter. Check clearances around furniture; ensure a 1–1.5 fan diameter free zone in front for clean flow.

2) Cut and Prepare Housing

Build a rigid frame with a circular cutout and a smooth inlet bell. Pre‑drill motor plate holes and grille mounts.

3) Mount Motor and Blades

Install isolation grommets, seat the motor, attach blades, and perform static balance with small weights on the hub.

4) Wire Safely

Install fuse, switch, and speed control. Use ferrules on stranded conductors and proper strain relief at every chassis exit.

5) Add Grilles and Acoustic Lining

Fit finger‑safe grilles. Line the housing walls, not the inlet/outlet path.

6) Test and Tune

Run at low speed first. Listen for rubbing, hum, or rattles. Adjust pitch and speed, then confirm airflow with a simple anemometer or a lightweight ribbon test.

Placement and Room Strategy

For cross‑breeze, aim the fan across the longest diagonal of the room, angled to skim along walls to reduce hotspots. Near windows, pull in cool evening air and push warm air out an opposite opening. In shared work areas, comfort correlates with low noise and stable conditions—a point echoed in workplace research from Steelcase and WELL v2 acoustics guidance—so prioritize larger diameter at slower speed over small fans at high RPM.

Maintenance and Longevity

Dust kills performance. Vacuum grilles monthly in peak season, wipe blades quarterly, and recheck blade balance annually. Replace vibration mounts if they harden. If you hear a new tonal whine, check bearing play early—catching it saves motors.

Bill of Materials (Indicative)

- 9–12 inch axial fan blade set with compatible hub

- BLDC or PSC motor with mounting plate

- Speed controller (PWM for BLDC, triac or autotransformer for AC)

- Inline fuse holder and appropriately rated fuse

- Rocker switch with indicator

- Finger‑safe grilles (front and rear)

- Rubber isolation grommets, sorbothane feet

- Plywood or aluminum for housing; fasteners; cable grommets

- Optional: MERV 8 prefilter, acoustic lining, flow straightener

References for Comfort and Performance

Useful research on comfort and acoustics: Steelcase research on workplace comfort and performance, and the WELL Building Standard v2 acoustic comfort guidance: steelcase.com/research and v2.wellcertified.com.

FAQ

Q1. How much airflow (CFM) do I really need for a living room?

A1. Calculate room volume (sq ft × ceiling height) and target 6–10 air changes per hour for summer comfort. For 200 sq ft with 8 ft ceilings (1,600 ft³), that’s 160–267 CFM. I oversize the fan to ~800–1,000 CFM so I can run it slower and quieter while still moving heat effectively.

Q2. Is a bigger diameter always better?

A2. For noise, yes within reason. Larger diameter at lower RPM reduces blade pass tones and turbulence. Just ensure you keep a clear inlet and outlet and use a proper inlet bell to avoid tip noise.

Q3. Which motor type should I choose?

A3. BLDC offers the best efficiency and controllable low‑speed torque, ideal for quiet operation. PSC AC motors are robust and simpler to wire but may hum more at low speeds. Either way, use isolation mounts.

Q4. Can I add a HEPA filter to my DIY fan?

A4. You can, but most axial fans struggle with the added static pressure. Expect big CFM drops and more noise. A centrifugal blower or a purpose‑built purifier is better for HEPA‑level filtration.

Q5. How do I reduce that annoying tonal whine?

A5. Drop RPM slightly, adjust blade pitch a few degrees, add a downstream flow straightener, and check for grille proximity. Isolate the motor and add mass to the base to damp structural resonance.

Q6. What about energy use?

A6. A 12-inch BLDC build typically sips 8–40 W depending on speed—far less than a portable AC. Running oversized and slow is usually the sweet spot for watts per CFM and comfort.

Q7. Any placement tips for shared workspaces?

A7. Aim airflow to skim occupants, not hit faces directly, and keep background noise roughly in the low 40s dBA range. This aligns with comfort findings from workplace research and WELL v2 acoustics guidance.

Q8. How do I keep it safe around kids and pets?

A8. Use finger‑safe grilles on both sides, secured fasteners with threadlocker, a grounded or double‑insulated design, strain relief on every cable exit, and a clearly visible power switch.

Q9. What finishes and colors help the space feel cooler?

A9. Matte finishes on the housing reduce visual glare. Cool hues—soft blues and greens—can subtly reinforce perceived coolness, aligning with color psychology research.

Q10. How often should I service the fan?

A10. Vacuum grilles monthly during heavy use, clean blades quarterly, check balance annually, and replace isolation mounts if they harden or crack.
