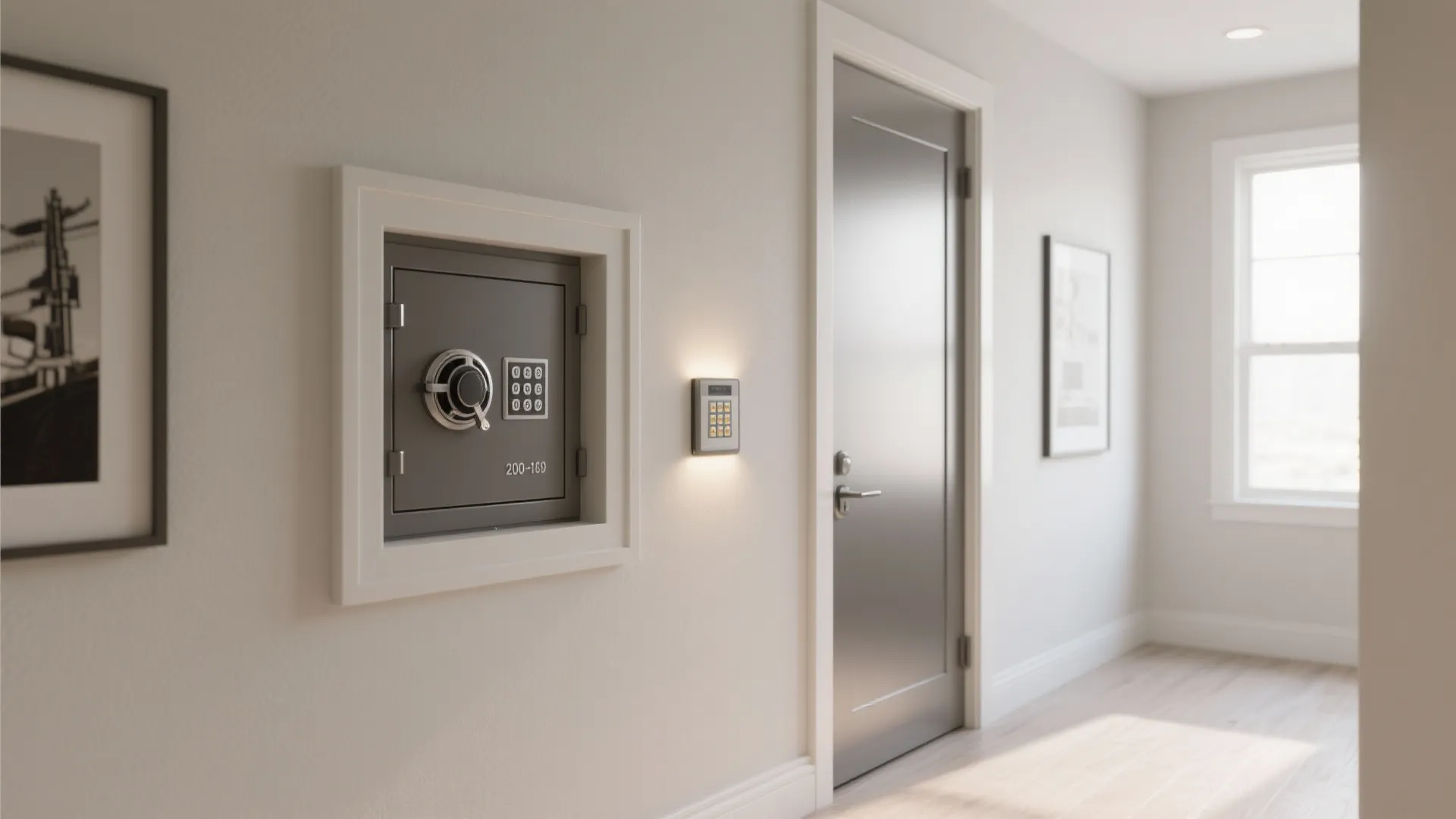

DIY In-Wall Gun Safe Between Studs: Secure Storage Simplified: 1 Minute to a Hidden, Accessible Gun Safe Solution!

Discreet firearm storage doesn’t have to dominate a room or compromise accessibility. An in-wall gun safe set between studs can deliver low-profile security, better visual order, and quick access when designed with the right structural, lighting, and ergonomic decisions. According to Steelcase research, visual clutter can increase cognitive load and impede task focus; streamlined, concealed storage helps maintain a calmer, more functional environment. WELL v2 also emphasizes secure storage and clear access paths as part of broader health and safety considerations, reinforcing the value of planning, lighting, and reach ergonomics in small architectural interventions.

When it comes to safety, securing access is only half the equation. Gensler’s workplace studies have repeatedly tied clear circulation and intuitive wayfinding to reduced errors and faster response under stress; applied at home, this supports positioning a wall safe in a location that’s reachable but not visible. On the human factors side, WELL v2 points to adequate task illumination—150–300 lux for typical residential tasks—helpful for keypad accuracy and content identification without over-lighting the room. This is especially relevant if the safe is used at dawn or night and relies on low-glare, neutral-white (3500–4000K) task light.

Plan the Location and Structure

I begin with a stud finder and a tape measure to identify a 14.5-inch cavity (typical between 16-inch-on-center studs). Older homes can vary, so I confirm spacing and depth. Avoid exterior walls where insulation, vapor control, and temperature swings complicate installation, and never compromise load-bearing studs without an engineer’s guidance. If the plan includes a quick-access layout next to a closet or mudroom bench, I use a simple interior layout planner to test clearances for the safe door swing and user stance.

Select the Right In-Wall Safe

Look for a recessed safe designed for 2x4 or 2x6 framing, with a flange to cover drywall cuts and predrilled mounting points. Prioritize a UL-listed lockset or proven electronic keypad with manual override. Choose a door with concealed hinges and at least 11–12 gauge steel for the door skin if possible. For moisture-prone zones, add a desiccant pack or a low-wattage dehumidifier rod. If you need quick access, ensure the keypad has backlighting (ideally 300–500 cd/m²) and a quiet latch action to reduce acoustic signatures.

Confirm Power and Low-Voltage Needs

Battery-only keypads are convenient, but I preplan a concealed low-voltage route when possible. If hardwiring, follow local electrical codes and keep line voltage in separate cavities or EMT as required. A thin LED strip inside the safe (neutral-white, CRI 90+) on a magnetic door switch improves visibility of contents without glare. The Illuminating Engineering Society recommends balanced task lighting and controlling veiling reflections to reduce errors at the keypad.

Mark, Cut, and Frame the Opening

After tracing the safe’s template level on the wall, I score the drywall with a sharp blade before using a jab saw to minimize torn paper and dust. If the cavity is wider than the safe, I install 2x blocking to create a rigid frame, anchoring to studs with construction screws. Where a stud must be notched for flange clearance, I stop and re-evaluate: load-bearing members are off-limits without structural reinforcement. I keep clear of plumbing and low-voltage bundles; a small inspection hole and borescope saves surprises.

Mount and Anchor the Safe

I fit the safe into the opening, shim for plumb, and anchor through the sides into studs. If the unit offers additional back anchors, I place blocking behind the drywall to receive them. Tight, even fastening ensures the door won’t bind. I test the door swing and latch repeatedly before trimming.

Seal, Trim, and Conceal

For a minimal look, I run a thin bead of paintable sealant at the flange, then add casing or a shallow picture-frame trim that aligns with adjacent reveals. Some homeowners prefer a concealed panel—such as a hinged canvas, mirror, or slat detail—so the safe reads as part of the wall rhythm rather than hardware. Keep any disguised element easy and fast to move; complexity can cost precious seconds.

Ergonomics and Reach Zones

Comfort and speed matter. I position the keypad between 40 and 48 inches above finished floor for most adults, with the interior shelf height set so the primary item is within the elbow-to-shoulder reach envelope. This cuts fumbling and helps maintain control. If multiple users share access, I test grips and hand dominance to assign shelf positions and holster angles accordingly.

Lighting and Visual Comfort

I aim for 200–300 lux on the keypad and interior shelves with neutral-white LEDs and low-glare diffusers. A short delay-off timer (5–10 seconds) keeps hands free to close and lock without relighting. According to WELL v2 lighting guidance, adequate illuminance and glare control reduce eye strain and task errors—ideal when operating quietly at night.

Acoustics and Discretion

Soft-close trim, felt bumpers, and a quiet latch reduce noise that could draw attention. If the safe is near a bedroom, I add a thin, closed-cell foam strip behind the trim to damp vibrations. For walls adjacent to living areas, a small patch of mineral wool inside the cavity adds mass and improves sound damping without interfering with the safe body.

Fire, Moisture, and Material Strategy

In-wall safes trade depth for discretion; most aren’t full fire safes. If fire protection is critical, I specify a separate fire-rated box inside, or site the safe in a partition lined with Type X gypsum for added resistance. Moisture control is equally important: keep away from bathrooms with steam showers unless the cavity is well sealed and conditioned.

Behavioral Patterns and Access Protocols

Beyond hardware, I coach households to decide on a consistent access protocol: who carries keys, how codes are managed, and how often batteries are replaced. A 90-day battery check and a quarterly drill for code recall keep the system reliable. Research from Herman Miller notes that consistent workflows reduce errors and improve response times; a simple, rehearsed routine is your best redundancy.

Code, Responsibility, and Training

Local laws vary on firearm storage, especially in homes with minors. I verify compliance with locking requirements and signage as applicable. Training matters as much as steel thickness: practice safe handling, maintain clear lines of sight when opening, and never store ammunition loose with solvents or lithium batteries inside the same confined space.

Common Layout Variations

I frequently place in-wall safes behind closet doors, inside mudrooms near the interior garage entry, or between pantry studs behind a shallow shelving run. For each scenario, I validate door swing and body posture using a quick room layout tool to ensure there’s no conflict with hinges, adjacent casing, or shelving fronts.

Maintenance and Periodic Checks

Every six months, I verify anchor tightness, inspect gasket seals, test the manual override, and replace desiccants. Dust the keypad and check illumination. If the safe sits on an exterior wall by exception, monitor for condensation during cold snaps and ventilate accordingly.

FAQ

What stud spacing works best?

Most modern homes use 16-inch-on-center studs, leaving about 14.5 inches of cavity. Measure—older homes can vary, and some interior partitions are 24-inch-on-center.

Can I install an in-wall safe in a load-bearing wall?

Not without proper engineering. Cutting or notching a load-bearing stud can compromise structure. Choose a non-load-bearing partition or add engineered reinforcement.

How high should I mount the keypad?

Set the keypad between 40 and 48 inches AFF for most users, keeping the primary item in the easy reach envelope to reduce fumbling.

Do I need interior lighting?

Yes—low-glare LED task lighting (200–300 lux, 3500–4000K) improves speed and accuracy. This aligns with WELL v2 guidance on adequate task illuminance and glare control.

What about humidity control inside the safe?

Add desiccant packs or a low-wattage dehumidifier rod, especially in humid climates or near exterior walls. Inspect and replace desiccants quarterly.

Is an in-wall safe fireproof?

Most are not. For fire protection, consider a secondary fire-rated box inside or locate the unit within assemblies that include Type X gypsum for added resistance.

How do I keep the installation discreet?

Use aligned trim reveals, quiet latches, and a simple concealment panel (mirror or framed art). Control noise with felt bumpers and foam gasketing.

What if I need quick access at night?

Choose a backlit keypad, maintain 200–300 lux localized lighting, and rehearse a simple access protocol. Steelcase and WELL research connect good lighting and clear workflows with fewer task errors.

Can I hardwire the keypad?

Yes, if the model allows. Follow electrical codes, separate line and low-voltage, and consider a battery backup to maintain access during outages.

Which walls should I avoid?

Avoid exterior walls (insulation, temperature swings, moisture) and wet walls carrying plumbing. Interior partitions near closets or mudrooms are usually ideal.

How often should I change batteries or codes?

Check batteries every 90 days and update codes at least twice a year. Conduct quick drills to maintain muscle memory and reduce access errors.

Will the door hit nearby trim or shelves?

Verify swing and clearances before cutting. Use a layout simulation tool to test hinge side, handle projection, and body stance.
