DIY Injection Foam Insulation for Existing Walls: Step-by-Step Guide: Fast-Track Guide to Upgrading Wall Insulation in Minutes

I’ve insulated more than a dozen existing homes where opening walls wasn’t an option. Injection foam is one of the least disruptive ways to improve thermal performance, reduce drafts, and calm noise in closed cavities. Done methodically, it can raise comfort quickly and cut energy use without a full remodel.

Measured benefits are not trivial. The WELL v2 Thermal Comfort concept cites maintaining operative temperatures that support 80% occupant acceptability, a target often achievable when wall assemblies reach effective R-values around R-13 to R-15 for 2x4 cavities, depending on climate and surface temperatures (WELL v2). Steelcase research links better ambient comfort to sustained task performance, noting that thermal discomfort can lower cognitive performance by 5–15% in office settings (Steelcase research). Translating that to a home workspace, tightening wall cavities can improve both comfort and concentration.

Expect noise improvements as well. While closed-cell injection foam is not primarily an acoustic product, filling voids reduces flanking paths and air-borne transmission. In my experience, a fully filled stud bay can deliver a perceived 3–6 dB reduction in street noise, especially when paired with air-sealed outlets and upgraded windows.

What Injection Foam Does Best

Injection foam—typically a water-based, phenolic, or aminoplast formulation—flows into closed cavities through small drilled holes, expands modestly, and cures into a semi-rigid, low-shrink material. The result is improved R-value, strong air sealing, and less convective looping in stud bays. It shines in older homes with irregular framing and minimal existing insulation, and in painted exterior walls where you want to avoid full demo.

Safety, Permits, and Prep

I start with a permit check and call the utility locator before drilling exterior walls. Wear goggles, gloves, and a respirator rated for fine particulates. Protect finishes—mask trim, tape poly sheeting, and set up a vacuum at the drill point to control dust. If you’ll inject from the interior, plan a repair strategy for drywall or plaster.

Assess the Wall Assembly

Identify siding type, sheathing, and if there’s a drainage plane. On interiors, locate wiring runs, outlets, and any plumbing. Use a stud finder and small exploratory holes at trim lines to confirm cavity depth and check for fire blocks at mid-height—the latter are common in older homes and will require separate injection above and below the block.

Moisture and Venting Considerations

Foam injection reduces air leakage; that is great for comfort, but it raises the importance of moisture management. Verify that exterior walls have intact flashing and working caulk joints. In cold climates, prefer foams with lower moisture absorption and ensure the interior faces maintain a reasonable vapor profile. Kitchens and baths benefit from mechanical exhaust to keep relative humidity in check.

Tools and Materials

- Injection foam kit (manufacturer’s two-part or premixed system, with feed hoses and mixing chamber)

- Variable-speed drill, 1/2" chuck

- Hole saws (typically 1–1.5" for interior; smaller for exterior plug kits)

- Non-contact voltage tester, stud finder

- Measuring tape, chalk line

- Poly plugs or siding plugs for clean closure

- Patch materials (drywall, plaster patch, matching paint)

- Vacuum and drop cloths

- Infrared thermometer or thermal camera for post-checks

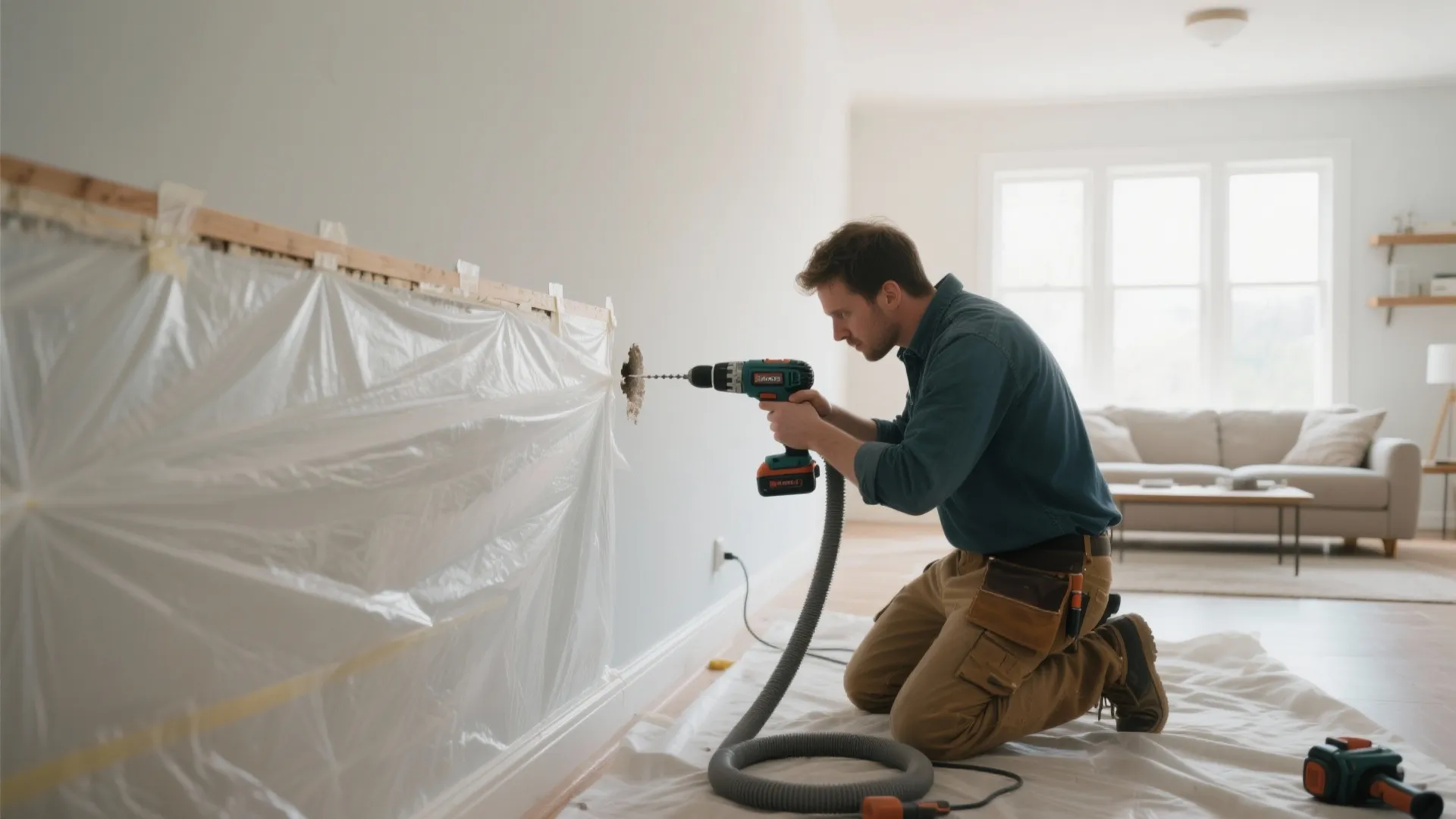

Step-by-Step: Drilling and Access Strategy

1) Map studs and plate lines. Mark hole locations centered horizontally in each cavity, 12–18" below the top plate for interior drilling. If exterior drilling through siding, follow manufacturer spacing guidelines and align holes on a consistent course to ease plugging.

2) Confirm utilities. Open a small pilot hole first and probe with a flexible rod. If resistance suggests blocking or a pipe/wire, shift to a safer location within the same bay.

3) Drill access holes. Keep the drill square to the surface. If you hit fiber batts, remove a small section with a hook and continue; most foams can encapsulate remaining fiber, but avoid compressing existing insulation.

Mixing, Injection, and Fill Control

4) Prepare the foam. Follow the manufacturer’s temperature and mix ratio. Colder substrates slow cure; I target 60–80°F wall temperature for consistent fill. Purge the hose to ensure homogenous mix before the first cavity.

5) Inject from the bottom up. Insert the nozzle mid-cavity, then withdraw slowly as foam displaces air. You’ll feel back-pressure rise; pause to let foam expand and settle before topping up. Typical 8–9 ft bays take 30–60 seconds per lift, depending on formulation.

6) Watch for tell-tales. Slight backflow at the hole is normal. If foam appears at adjacent outlets or gaps, stop and seal those openings, then continue. Consistent resistance and mild backflow indicate a full cavity without voids.

Dealing with Fire Blocks and Irregular Bays

7) Split the cavity at the block. Drill below and above, inject the lower portion first, then repeat at the upper zone. For diagonal bracing or irregular framing, add a second hole in the same bay and cross-fill to avoid pockets.

8) Corners and around windows. Short bays near king/jack studs can trap air; use a smaller nozzle and slower feed to ensure complete wetting. Probe with a rod to confirm continuity.

Quality Checks and Thermal Verification

9) Cure and patch. Allow recommended cure time, then install plugs or patch the interior. Sand and paint once the foam reaches its specified hardness.

10) Verify fill. I use a thermal camera on a cool morning; filled bays read more uniform and warmer on the interior surface compared to adjacent unfilled sections. Spot cool or warm tests with an infrared thermometer also reveal voids.

Energy, Comfort, and Acoustic Outcomes

In typical 2x4 walls, properly injected foam brings effective R-values into the R-12–R-15 range, depending on product and framing fraction. Reduced infiltration is often the bigger win. Herman Miller’s research has long associated fewer environmental stressors—thermal swings, noise, glare—with lower cognitive load and higher satisfaction (Herman Miller research). If your goal is a calmer home office or bedroom, sealing wall cavities is a high-impact upgrade alongside window improvements and weather-stripping.

Common Pitfalls I Avoid

- Overfilling: Excess pressure can bow drywall; control feed and allow foam to relax.

- Ignoring moisture paths: Seal exterior penetrations before injection.

- Skipping outlet sealing: Backflow into boxes is messy and unsafe—foam-safe gaskets and tape help.

- Inconsistent hole spacing: Leads to voids in wide bays and around blocking.

Layout Planning for Minimal Disruption

If you’re tackling multiple rooms, stage work by zone and plan hole locations along trim lines or behind furniture. For large projects, simulating pathing and access points helps you minimize patching and downtime; a room layout tool can clarify drilling routes and furniture protection plans: room layout tool.

Material Choice and Sustainability Notes

Foam formulations vary in density, expansion, and VOC profiles. Low-VOC, water-based options reduce odors and speed re-occupancy. Check manufacturer environmental data sheets for global warming potential (GWP) and ensure proper disposal of leftover chemicals per local guidelines. Pair the project with LED upgrades and draft sealing for a compound efficiency gain.

FAQ

Q1: Can injection foam be used in walls with existing fiberglass batts?

A1: Yes, if the batts are sparse or poorly installed. I remove accessible clumps near the hole and inject to encapsulate remaining fiber. Avoid compressing batts; the foam should displace air and fill voids without excessive pressure.

Q2: Will foam trap moisture in my exterior walls?

A2: Not if the assembly has proper flashing and you respect vapor profiles. Use low-absorption foam, maintain functional exterior drainage, and ensure kitchens/baths have exhaust. Monitor indoor RH around 30–50% in most climates.

Q3: Is there a risk of electrical hazards during drilling?

A3: Use a non-contact voltage tester, locate boxes, and probe pilot holes. If foam backflows into a box, stop and seal the opening. Never inject directly where wiring is present; shift to a clear portion of the bay.

Q4: How do I know the cavities are fully filled?

A4: Consistent back-pressure during injection, minor backflow at the hole, and uniform thermal readings after cure are good indicators. A thermal camera or infrared thermometer helps spot voids, especially near corners and blocking.

Q5: What about sound reduction—how much can I expect?

A5: Foam isn’t a specialized acoustic material, but by eliminating air paths it typically yields a perceived 3–6 dB reduction of exterior noise. For more isolation, pair with heavier gypsum, resilient channels, or window upgrades.

Q6: Should I inject from the interior or exterior?

A6: Exterior drilling keeps interior finishes intact but depends on siding type and plug aesthetics. Interior drilling is often cleaner to patch, especially with drywall. Choose the approach with fewer obstructions and easier repairs.

Q7: How long before I can repaint or reinstall fixtures?

A7: Most foams reach handling strength within hours and full cure in 24–48 hours at moderate temperatures. Patch once plugs are set and the foam is firm; paint after the patch dries without residual off-gassing.

Q8: Will injection foam increase my wall’s R-value enough to notice?

A8: In 2x4 walls, expect effective R-12–R-15, depending on product and framing fraction. The comfort gain typically comes more from reduced air leakage—fewer drafts and more stable surface temperatures—than from R-value alone.

Q9: Can I DIY this or should I hire a pro?

A9: Handy homeowners can tackle small areas with kits, but pros bring calibrated equipment and experience with blocking, moisture, and patching. If you have plaster walls, complex wiring, or historic siding, professional help is wise.

Q10: What temperatures are best for injection?

A10: Aim for wall temperatures around 60–80°F. Cold substrates slow cure and can cause inconsistent expansion. Warm the space if needed and avoid very hot surfaces that accelerate curing unevenly.

Q11: Will the foam shrink or settle over time?

A11: Quality formulations have minimal shrink when mixed correctly and cured within recommended temperature ranges. Proper injection technique—bottom-up lifts and pause periods—also minimizes voids and settlement.

Q12: How do I handle fire blocks?

A12: Drill and inject below the block, then above it. In older homes, expect mid-height blocks and diagonal bracing; add cross-fill holes as needed to guarantee continuity in each segment.
