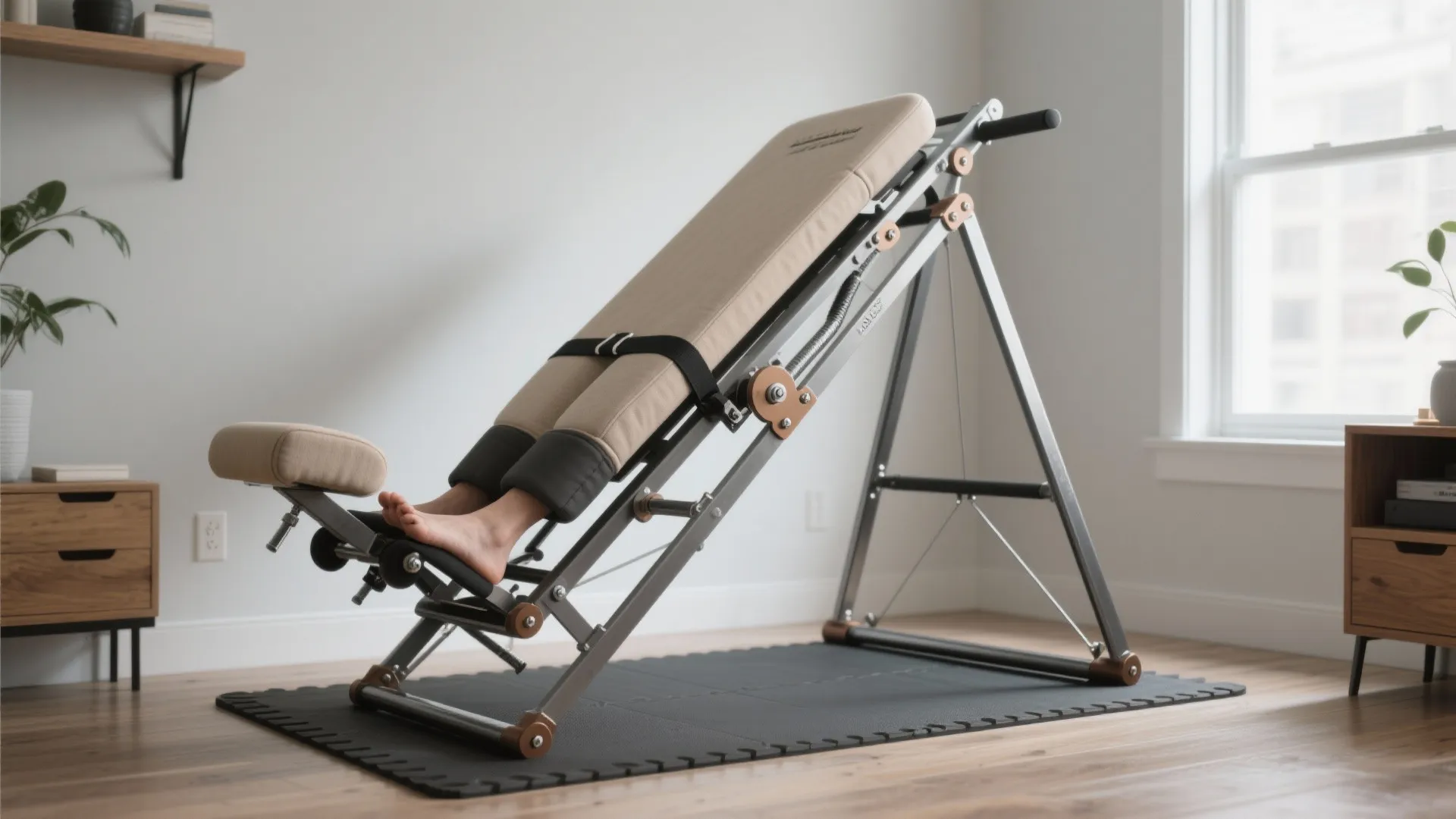

DIY Inversion Table: Build Your Own at Home Easily: Fast-Track Guide to Craft a Safe and Effective Inversion Table in Minutes

I approach any DIY inversion table with the same care I give to load‑bearing furniture: it needs precise geometry, verified materials, and a controlled user experience. Home users report short-term relief from back tightness with inversion, but the build must respect human factors, angles, and stability under dynamic load. Steelcase research notes that 69% of workers experience musculoskeletal discomfort tied to posture and seated duration, which explains why decompressive strategies attract attention. WELL v2 also underscores user safety and ergonomics as a core consideration in movement and recovery spaces, framing how I define dimensions, angles, and adjustability.

Before cutting a single board, I cross-check practical safety ranges. The Interaction Design Foundation emphasizes human-centered design and iterative testing—critical for body-support products. Most consumer inversion tables operate within 0° to about −60° to −80° relative to horizontal; novice users benefit from staying below −30° to limit vascular and ocular stress. From an ergonomic standpoint, keeping adjustability in 5°–10° increments supports gradual acclimation. These ranges align with common market devices and general practitioner recommendations for cautious use; they are not medical prescriptions.

Core Considerations: Safety, Ergonomics, and Adjustability First

I design for a static working load of at least 2.5× body weight to account for momentum while rotating. For most adults, that means planning for 300–400 lb rated capacity. The frame needs triangulation to dissipate torsional forces; gussets at stress points reduce racking during inversion. Padding should maintain a balanced pressure profile—firm enough for spinal alignment yet forgiving at scapula and sacrum. Quick-release ankle locks must be glove-friendly, visibly indexed, and fail-safe. I add mechanical stops at progressive angles (−10°, −20°, −30°, −45°) so learners can halt rotation without relying solely on balance.

Materials and Hardware: What Holds and What Fails

For the main A‑frame, 1.5"–2" square steel tubing (11–14 gauge) offers reliable stiffness and predictable welding. If you prefer wood, laminated hardwood (e.g., maple or ash) with through‑bolted joints and steel plates at hinge points can work, but expect thicker members and heavier sections to match strength. Fasteners should be Grade 5/8 bolts with nylon lock nuts at all rotational points. Bearings or bushings at the pivot reduce chatter; I’ve had good results with 1" shaft collars and bronze bushings. The bed deck can be 3/4" plywood with closed‑cell foam and washable vinyl upholstery. Avoid soft foams that bottom out; target ILD in the 30–50 range for support.

Dimensions: Proportions that Align with the Human Body

Proportion is everything. A typical user footprint is 28"–32" wide and 60"–70" long. The pivot axis should sit roughly at the user’s center of mass; a practical rule is to place the hinge 1"–3" above the hip joint when lying supine. Adjustable sliding rails (8"–12" travel) help align different heights. The A‑frame base should span 30"–36" with cross-bracing at 8"–12" above the floor to resist splay. I add non‑marring rubber feet and a mild 3° outward splay for stability. Ankle cuffs require anatomically curved pads, 3"–4" wide, with a quick cam-lock and secondary pin.

Angle Control and Balance: Smooth, Predictable Rotation

Rotation should be smooth yet restrained. I use a radial stop plate with indexed holes at safe angles and a spring-loaded detent pin. A friction knob or gas strut can temper rotation speed. Test with ballast equal to user weight before a person tries it—sandbags help reveal balance quirks. Set the neutral balance so that the bed returns gently to 0° with minimal effort, avoiding runaway inversion. For lighting, 300–500 lux ambient task light reduces glare and helps with angle visibility while adjusting pins; I label angle marks with high-contrast graphics for quick reads.

Ankle Locking System: Comfort Without Compromise

Ankle discomfort is the top reason users abandon inversion. I contour the inner pads, add a heel cup, and include micro-adjust via a ratcheting strap. If you can, incorporate a secondary safety strap above the Achilles to distribute load. The release mechanism must be intuitive: a single pull and a redundant manual pin. Test fit with athletic shoes; barefoot use might increase pressure points and is not ideal for beginners.

Build Steps: From Cut List to Assembly

1) Frame fabrication: Cut the main uprights and base cross members. Weld or bolt with corner gussets. Confirm squareness before tightening.

2) Pivot assembly: Mount hinge plates and bushings, ensuring coaxial alignment. Add shaft collars as end stops.

3) Bed deck: Assemble plywood deck, add foam, and upholster. Install the sliding height rail and angle index plate.

4) Ankle locking: Fit cuff brackets, pads, and the cam-lock. Add the safety strap and test release.

5) Angle stops: Install detent pin and radial plate with clear markings.

6) Finish: Deburr edges, prime and paint steel, or seal wood. Add non-slip feet and check all fasteners.

Testing Protocol: Start Conservative

I run a staged test: ballast check at full range; static load at 1.5× target user weight; dynamic tilts at −10°, −20°, −30°. Confirm that the detent pin seats cleanly and ankle locks release instantly under light load. Keep first user sessions under three minutes at modest angles to observe circulation responses. Herman Miller’s research on posture and recovery is a reminder to vary position, not overcommit to extremes; you’re looking for gentle decompression, not dramatic inversion.

Placement and Layout: Integrating the Table into a Room

Clearances matter. I allow a minimum 24" behind the table for rotation and 36" on sides for spotting and access. Avoid placing near high-traffic paths to reduce accidental bumps. If you’re planning a wellness corner, sketch the circulation route and storage for straps and wipes. For quick planning and visual checks of clearances, a room design visualization tool like this can help see rotation arcs and access paths:

room design visualization tool

Acoustics, Lighting, and Surface Safety

Quiet operation promotes calm breathing. Nylon washers reduce squeaks; rubber feet damp vibration. Aim for 300–500 lux diffuse lighting with warm-neutral color temperature (3000–4000K) to keep eyes comfortable while reading angle indices. Use grippy flooring—rubber tiles or textured vinyl—to resist slip. Keep cleaning supplies nearby; sweat and skin oils shorten pad life if not maintained.

Maintenance and Lifespan

Monthly checks: retighten bolts, inspect pads, and test the release under mild tension. Replace foam when compression sets appear. Re-lubricate bushings with a light machine oil every quarter. If welds are used, look for hairline cracks near the pivot plates; if bolted, check for ovaling around holes and upgrade washers if needed.

Health Cautions and Responsible Use

Inversion can increase intraocular and cranial pressure. Anyone with glaucoma, hypertension, cardiovascular conditions, herniation concerns, or pregnancy should seek medical guidance before use. Start shallow, time sessions conservatively, and stop if you feel dizziness, visual disturbances, or numbness.

Reference Notes

Human-centered design principles from the Interaction Design Foundation reinforce iterative testing and user safety. WELL v2 outlines broad requirements for ergonomics and movement-friendly environments applicable to DIY wellness fixtures. Steelcase research highlights the prevalence of musculoskeletal discomfort in sedentary work, contextualizing why gentle decompression strategies appeal to home users.

FAQ

What angle should beginners use?

I recommend starting at −10° to −20°, with short sessions under three minutes, then increasing gradually in 5°–10° steps if comfortable.

How much weight should the frame support?

Design for at least 300–400 lb rated capacity to accommodate dynamic loads and a safety margin.

Is wood or steel better for the frame?

Steel offers predictable strength and slimmer sections. Laminated hardwood can work if you increase section thickness and use steel plates at hinge points.

How do I align the pivot to my body?

Set the hinge roughly 1"–3" above the hip joint when lying on the deck. Use a sliding rail (8"–12" travel) to fine-tune for different heights.

What kind of ankle locks are most comfortable?

Curved pads with a cam-lock and a secondary strap distribute pressure better. Test with shoes to reduce hotspots.

How do I prevent sudden, fast inversion?

Install indexed angle stops and a friction control (knob or gas strut). Balance the bed so it returns gently to neutral.

Where should I place the table at home?

Keep 24" clearance behind and 36" on the sides. Avoid high-traffic zones and ensure good lighting for reading angle marks.

What maintenance schedule is realistic?

Monthly bolt checks, quarterly lubrication of bushings, and pad replacement when compression set appears work well for home use.

Are there health conditions that contraindicate inversion?

Yes. Glaucoma, hypertension, cardiovascular disease, pregnancy, and certain spinal pathologies warrant medical consultation before use.

Do I need professional welding?

If you choose a steel frame, professional welding or meticulous bolting with rated hardware is strongly advised at pivot and load points.

How bright should the room be?

Target 300–500 lux diffuse ambient light with 3000–4000K color temperature to ensure comfortable visibility without glare.

Can I add accessories like heat or massage?

Yes, but avoid blocking the pivot or adding weight that shifts balance. Keep electrical elements clear of moving parts.
