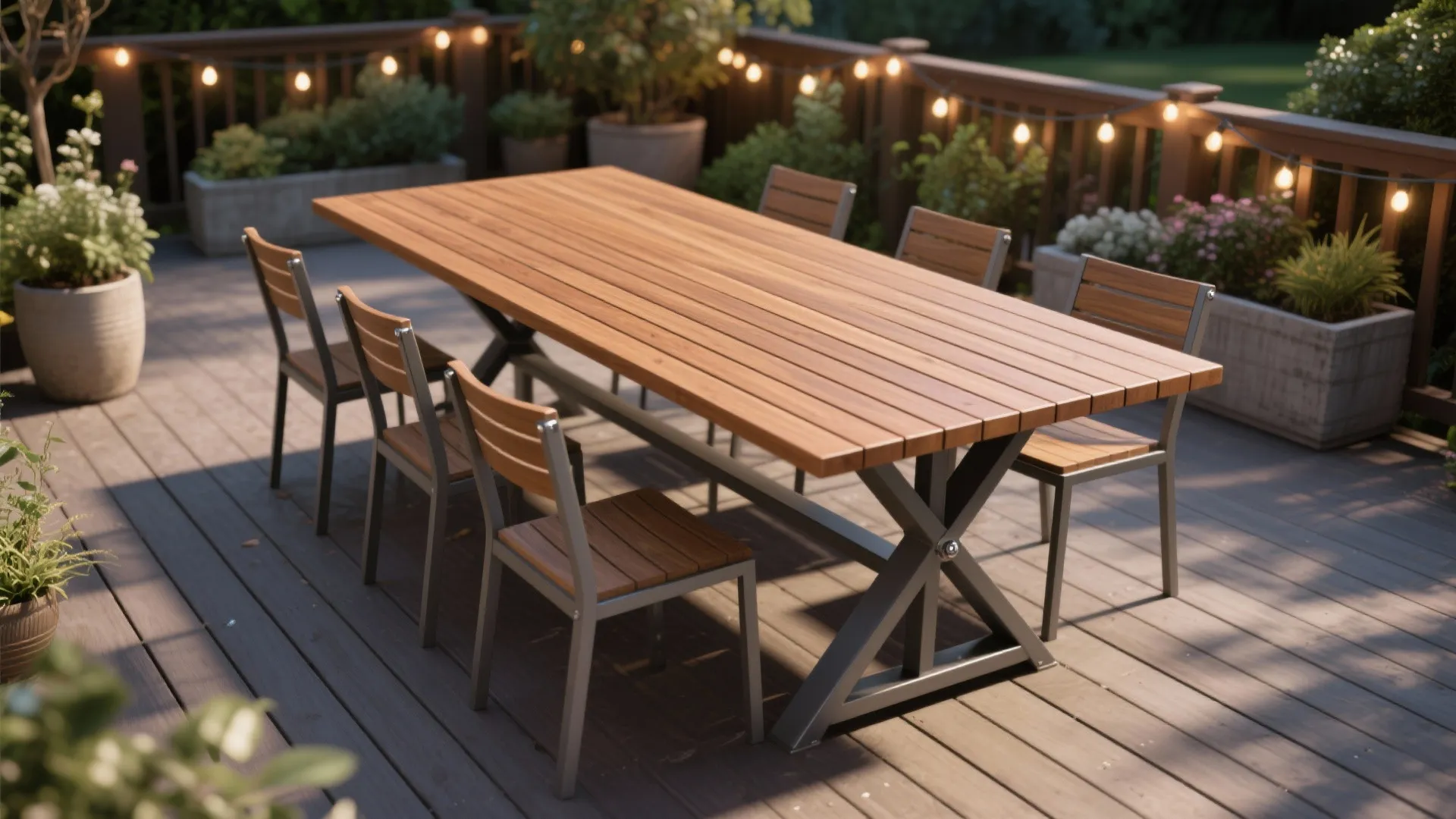

DIY Large Outdoor Table Plans: Build Your Perfect Patio Table: Fast-Track Guide to Crafting a Spacious Table in 1 Weekend

I’ve built more than a dozen large outdoor tables for patios, rooftops, and garden decks, and the best ones always balance structure, comfort, and weather resistance. A great patio table should feel generous yet proportionate to its setting, seat comfortably without knee-knockers, and survive multiple seasons. I’ll lay out dimensions, materials, joinery, and finishing strategies so you can build a table that holds up to summer dinners and shoulder-season hangouts.

Size choices are more than personal preference; they affect circulation and how people actually use the space. Steelcase’s workplace research notes that collaboration flourishes when people have adequate personal space—about 24–30 inches per person—translating well to dining and social layouts outdoors. Meanwhile, WELL v2 guidance around light and comfort reminds us that glare and microclimate (shade, solar exposure) shape dwell time: plan the table orientation to minimize high-angle glare and consider a task ambient ratio of roughly 1:3 for evening use (WELL v2 Lighting). To keep circulation clear, I leave at least 36 inches around the table for walkways and 60 inches on the main approach sides for accessible movement.

For durability, material performance matters. Herman Miller’s research on human factors highlights seated comfort bands—seat height 17–19 inches, knee clearance 24 inches—so I target a table height of 29–30 inches with an under-table apron no lower than 25 inches to avoid squeezing knees. Outdoor wood moves with humidity; a kiln-dried hardwood top (like ipe or thermally modified ash) resists warping. For frames, powder-coated steel with a zinc-rich primer handles coastal air better than raw mild steel. If you prefer all-wood, use exterior-rated joinery and a breathable finish to reduce checking.

Recommended Dimensions and Seating

• 8-person rectangle: 96" L x 40–42" W x 29–30" H. This gives 24" per diner and a serving lane down the center.

• 10-person rectangle: 108–120" L x 42–44" W x 29–30" H. Stretch the base footprint to keep racking down.

• Square social format: 60–72" square for 8–10 people; ensure adequate reach to the center.

• Round: 72" diameter seats 8 comfortably; allow a strong central pedestal or trestle cross to prevent wobble.

• Knee clearance: ≥24"; apron set at 25–26" from finished floor; base setback 10–12" from edges to avoid foot conflict.

Layout Planning for Your Patio

Before cutting lumber, block the footprint with painter’s tape or cardboard templates and test chair scoot zones. For tight decks, a bench on one long side saves 12–18" of clearance. If you’re testing multiple configurations, a simple interior layout planner helps simulate circulation and seating counts with accurate dimensions: try the room layout tool for quick scenario planning.

Frame Options: Trestle, Box Frame, or Pedestal

• Trestle base: Two end frames joined by a stretcher. Rock-solid for long tables; leaves flexible seating on the sides. Use through-mortise or mechanical connectors plus a hidden bolt-through stretcher.

• Box frame (parsons): Clean silhouette; ensure diagonal bracing or concealed gussets to prevent racking on long runs.

• Pedestal: Great knee clearance; requires a broad footprint or splayed legs to avoid tip risk, especially on uneven stone patios.

Joinery That Survives Weather

Outdoor joints fail more from moisture cycling than from load. I use stainless screws for assembly and rely on structural joinery where it counts:

• Mortise-and-tenon or loose tenon (domino) for trestle uprights to stretcher interfaces.

• Through-bolts with stainless hardware for removable tops—handy for seasonal storage.

• Slotted holes and elongated pockets on top fasteners to allow seasonal wood movement.

Top Construction: Slatted vs. Solid

• Slatted tops: shed water and dry faster; leave 1/8–3/16" gaps. Round over edges to reduce splinters and improve tactile comfort.

• Solid plank tops: gorgeous, but manage movement. Use breadboard ends or floating cleats underneath. Avoid wide glued panels unless using thermally modified wood with low movement.

Materials: Wood, Metal, Composites

• Hardwoods: Ipe, teak, white oak (quarter-sawn), thermally modified ash. Prioritize FSC-certified stock and stable cuts.

• Metals: Powder-coated steel with a zinc base coat; 304 stainless for fasteners; avoid dissimilar metal contact to reduce galvanic corrosion.

• Composites: High-pressure laminates or recycled plastic lumber for the top; stable, low-maintenance, matte finish to prevent glare.

Finish Strategy for UV, Moisture, and Heat

Outdoors is harsh: UV degrades film finishes; thick varnish blisters. I prefer:

• Penetrating oils with UV inhibitors for hardwoods—reapply seasonally.

• Waterborne exterior polyurethane with high solids for softwoods—thin coats, sand between, and ventilate underside equally.

• Powder coat for steel; seal cut edges and hardware penetrations with epoxy to prevent under-film rust.

Comfort: Ergonomics, Light, and Acoustics

Seating comfort shapes how long guests linger. Per human factors guidance reflected in Herman Miller’s research, maintain a 10–12" clearance between chair front edge and table apron. For evening use, layer ambient string lighting with shielded task accents to avoid glare. The Illuminating Engineering Society’s outdoor recommendations emphasize uniformity and glare control; aim for warm 2700–3000K for dining comfort and use indirect fixtures to reduce specular reflections on glossy tops.

Step-by-Step Build Plan

1) Design and mockup: Tape out the footprint; verify 36–60" circulation paths. Confirm chair counts at 24–30" per person.

2) Cut the base: Mill legs and stretchers; add a slight splay (2–3°) for stability on trestles. Dry-fit joinery.

3) Assemble frame: Glue structural joints; add stainless bolts where necessary. Check squareness diagonally; add hidden gussets for long spans.

4) Build the top: Rip planks, add 1/8–3/16" gaps if slatted. Ease all edges with a 1/8" round-over. Drill slotted attachment holes.

5) Finish: Seal end grain; apply penetrating oil or exterior poly. Powder-coat metal components; seal hardware penetrations.

6) Attach top: Use stainless screws with washers; allow movement. Shim and level on site, especially over flagstone or pavers.

7) Accessory add-ons: Umbrella sleeve with reinforcement plate; center trough for herbs/ice (use a removable liner); felt or rubber feet to protect decking.

Proportions and Visual Balance

Large tables can feel monolithic. Break mass with a shadow reveal under the top (1/4–3/8"), taper leg profiles, or add a soft chamfer. Keep leg thickness visually proportional: around 2.5–3" square for 8–10 person tables. Use rhythm in slat spacing and balance finish sheen (matte tops reduce glare and fingerprints).

Weatherproof Details

Seal end grain aggressively—those straws drink water. Slope the top subtly (1–2mm across the width) or chamfer edges to shed drops. Avoid horizontal crevices where pollen and grit accumulate. Elevate the base off paving with non-staining feet and allow airflow underneath to prevent trapped moisture.

Sustainability Notes

Choose FSC-certified woods, powder coats with low-VOC primers, and hardware you won’t need to replace. Design for disassembly—bolt-on tops and removable stretchers make refinishing practical. Thermally modified wood extends lifespan without tropical sourcing.

Common Mistakes to Avoid

• Oversized aprons that crush knee room.

• Gloss finishes that glare under midday sun.

• No movement allowance on top fasteners—leads to splits.

• Insufficient bracing on long tables—causes racking.

• Ignoring circulation—the table fits but the chairs don’t.

Cut List Example for a 96" x 42" Trestle Table

• Legs: 4 pcs @ 3" x 3" x 28.5" (hardwood or steel)

• Stretchers: 2 pcs @ 2" x 4" x 40"; 1 center @ 2" x 4" x 78"

• Top planks: 8–10 pcs @ 1" x 5–6" x 96"

• Apron rails (if used): 2 pcs @ 1" x 4" x 78"; 2 pcs @ 1" x 4" x 36"

• Gussets/cleats: as needed for anti-racking

• Hardware: 304 stainless screws/bolts; washers and finish plugs

Maintenance Routine

Rinse and wipe seasonally, re-oil hardwoods as they grey, and spot-sand high-wear edges. Check bolts annually; wood shrinks/expands and fasteners loosen. Touch up powder coat chips with epoxy primer and matching topcoat.

FAQ

Q1: How much space should I plan around a large outdoor table?

A1: Keep 36" minimum for general circulation and 60" on primary approach sides for comfortable passing and accessibility. Allocate 24–30" of table edge per person for seating.

Q2: What table height works best with standard outdoor chairs?

A2: Target 29–30" table height. Maintain at least 24" knee clearance with aprons set around 25–26" from the floor.

Q3: Which wood species hold up outdoors without excessive maintenance?

A3: Ipe, teak, white oak (quarter-sawn), and thermally modified ash perform well. Pair with penetrating oil finishes or breathable exterior poly.

Q4: How do I prevent the table from racking on long spans?

A4: Use a trestle with a through-stretcher, add diagonal bracing or hidden gussets, and keep the base footprint broad. Through-bolts in critical joints increase stiffness.

Q5: Should I choose a slatted or solid top?

A5: Slatted tops drain better and dry faster; solid tops look seamless but require movement allowances like breadboard ends or floating cleats.

Q6: What lighting is most comfortable for evening dining?

A6: Warm 2700–3000K ambient light with shielded task accents reduces glare. Keep uniformity and indirect distribution for visual comfort in line with IES guidance.

Q7: How do I protect metal frames near the coast?

A7: Use powder-coated steel over a zinc-rich primer, 304 stainless fasteners, and seal all cut edges and hardware penetrations to prevent under-film corrosion.

Q8: What’s the best finish for high-UV exposure?

A8: Penetrating oils with UV inhibitors for dense hardwoods; for softwoods, use exterior waterborne poly in thin, well-cured coats. Avoid thick varnish films outdoors.

Q9: How do I size a round table for eight?

A9: A 72" diameter round seats eight comfortably. Use a robust pedestal or trestle cross and ensure the base doesn’t intrude into foot space.

Q10: Can I integrate an umbrella without weakening the top?

A10: Yes—reinforce the hole with an underside plate, use a sleeve, and tie the load back to the base so wind forces don’t split the top.

Q11: What’s a simple way to test layouts before building?

A11: Tape out the footprint and mock up chair positions. If you want quick digital scenarios with accurate dimensions, try an interior layout planner like the room layout tool.

Q12: How often should I maintain the finish?

A12: Re-oil hardwoods seasonally or when the surface looks dry. Inspect hardware annually, and spot-touch powder coats as needed.
