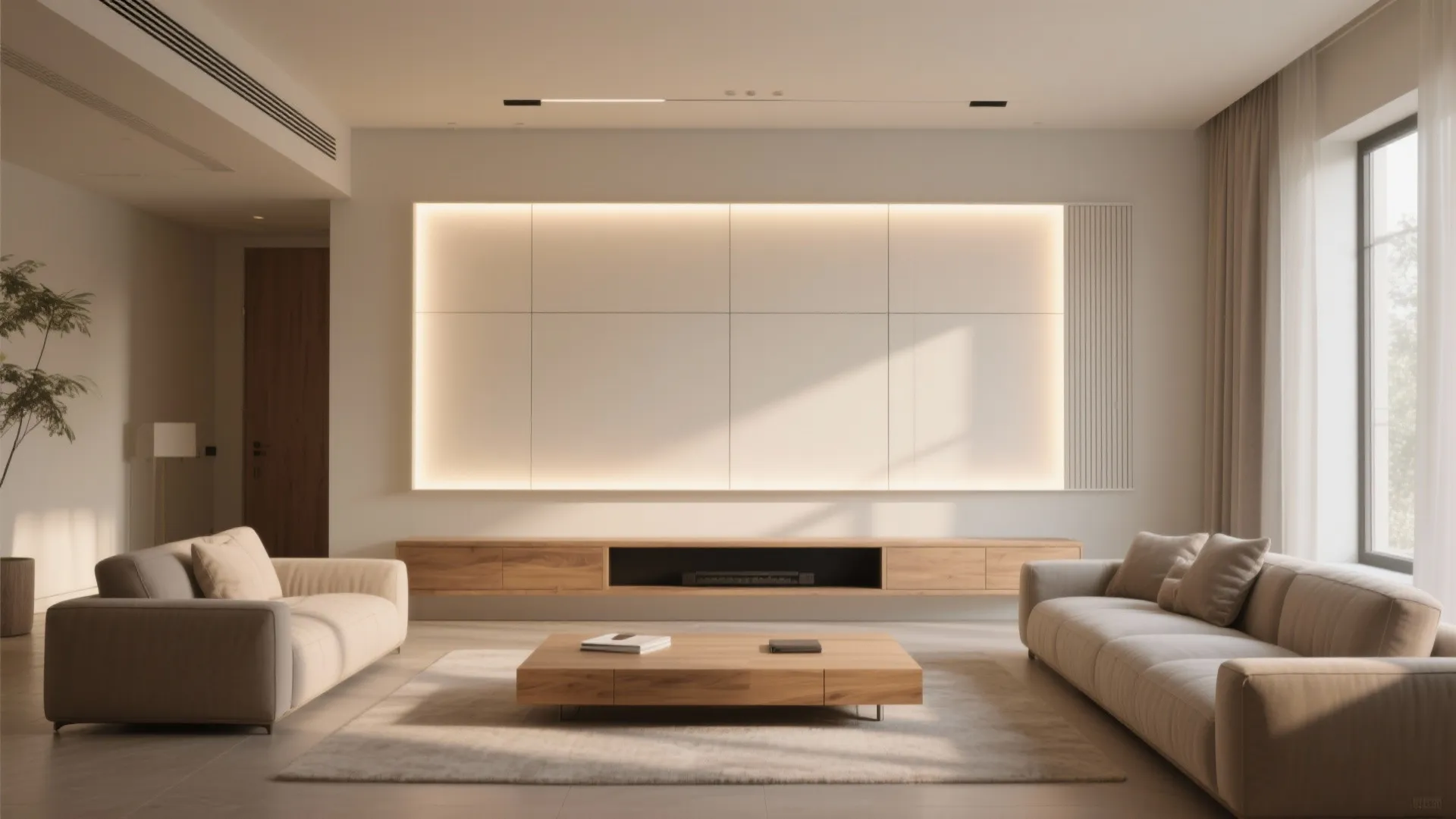

DIY LED Wall: Step-by-Step Guide for Your Dream Lighting: 1 Minute to Brighten Your Space – Fast-Track DIY LED Wall Setup

An LED wall does more than glow—it anchors mood, supports task visibility, and defines spatial rhythm. When planned correctly, it can lift perceived ceiling height, smooth circulation, and create a calming focal point rather than a blinding billboard. I’ll walk you through a practical, materials-first approach that balances luminance, color consistency, thermal safety, and clean installation.

Before you start, anchor your plan with performance targets. For reference, the Illuminating Engineering Society (IES) suggests general ambient lighting in living areas around 100–300 lux and task zones 300–500 lux; your LED wall should complement—not overpower—those levels. In workplace contexts, the WELL v2 Light concept encourages glare control and color rendering that supports visual comfort, reminding us that smooth distribution, dimming, and accurate color are just as important as brightness. I budget my feature walls to deliver roughly 75–150 nits (cd/m²) for ambient scenes, with dimming down to 1–10% for evening use.

The psychological effect of color is real. Verywell Mind’s overview of color psychology notes that warm hues can feel energizing while cool tones tend to calm; translated to LEDs, 2700–3000K feels cozy, 3500–4000K reads neutral and versatile, and 5000K+ is crisp but can feel clinical at night. Keep this in mind as you select strips and drivers.

Plan the Concept and Composition

Start with the intention: statement gradient, soft backlight behind panels, or full matrix for animations. Sketch the wall and define lit zones, dark framing, and cable paths. I aim for clear spatial ratios—roughly 60–70% lit surface to 30–40% negative space for living rooms—so the wall breathes instead of shouting. If you’re testing furniture placement and sightlines around the feature, consider a room layout tool to visualize glare angles and viewing distances: layout simulation tool.

Select LED Type and Optical Strategy

Pick the light engine based on the effect you want:

1. Static white (2700–4000K): clean, timeless, best for reading-friendly glow and low complexity.
2. Tunable white (e.g., 2700–5000K CCT): follow daytime rhythm; great with circadian-aware scenes.
3. RGB or RGBW: accent color for events; select high-quality RGBW if you want believable whites.
4. Addressable pixels (WS2812B, SK6812): for gradients/animations; higher power and programming overhead.

For backlighting panels, use high-density strips (e.g., 120–180 LEDs/m) and a diffuser or at least 45–60 mm standoff to avoid LED dotting. For grazing textured surfaces (wood slats, stone), use linear optics or an aluminum channel with opal lens to soften scallops.

Calculate Power, Drivers, and Dimming

Sum total wattage. Example: 10 meters of 12 W/m strip = 120 W. Add 20–30% headroom, so choose a 150 W driver. Keep voltage drop in check: at 12 V, runs longer than ~5 m benefit from parallel feeds or 24 V strips. Use UL-listed or CE-compliant constant-voltage drivers matched to strip voltage. For dimming: PWM low-voltage dimmers (inline) or 0–10 V / DALI / DMX for architectural control. Set scenes that land within IES-referenced ambient ranges and dim deep for evening comfort.

Thermal, Safety, and Wiring Standards

LED longevity depends on heat management. Always mount strips on aluminum channels or heat-spreading backers; avoid foam-only substrates. Maintain bend radii and relieve tension near solder pads. Fuse each power branch sized to wire gauge and load. Use stranded copper, correct polarity, and adhere to local electrical codes—especially if you’re placing the driver in a closet or plenum.

Color Quality and Consistency

Look for CRI 90+ with R9 ≥ 50 for rich reds. Bin consistency matters: buy all strips from the same batch and vendor to avoid panel-to-panel color drift. If you’re mixing RGB and white, consider RGBW with a dedicated warm or neutral white channel for clean everyday scenes. Keep correlated color temperature consistent across the wall; small CCT shifts are noticeable on large continuous fields.

Surface, Diffusion, and Glare Control

Choose a diffuser that balances transmission and uniformity. Opal polycarbonate lenses typically pass 60–70% light while hiding diodes. For backlit acrylic, start with 3–6 mm thickness and test spacing to remove hotspots. Aim for luminance uniformity within ±10–15% across zones; it reads calmer and helps mitigate disability glare from off-axis seating positions.

Mounting Framework and Access Panels

Build a shallow service cavity (often 40–60 mm) to hide wiring, channels, and drivers if they’re in-wall rated. Provide at least one accessible panel near drivers for maintenance. Use French cleats or concealed brackets to allow removal of cladding without damaging LEDs. Label every run and leave a pull string in conduits for future upgrades.

Controls, Scenes, and Automation

Simple: wall-mounted low-voltage dimmer with memory presets. Advanced: smart bridge with day/evening scenes, motion triggers, and voice integration. I program three core scenes: Media (15–25% output, warm CCT), Entertain (40–60%, neutral), Focus (60–80%, neutral-cool). Align these with WELL-aligned principles of glare control and visual comfort to prevent eye fatigue during longer use.

Step-by-Step Build Sequence

1) Measure and Map

Draft elevations with stud locations, outlet positions, and cable routes. Mark driver placement where ventilation is adequate.

2) Frame and Prepare Surface

Install battens or a service cavity. Prime reflective backers white for better diffusion. Dry-fit aluminum channels.

3) Run Power and Control

Pull low-voltage cable, leave service loops, and install inline fuses. Terminate at junction blocks. Keep high and low voltage separated per code.

4) Mount LED Channels

Screw or adhesive-mount channels level; avoid thermal breaks. Test-fit diffusers but leave off until after testing.

5) Install LED Strips

Clean surfaces with isopropyl alcohol. Adhere strips, respecting polarity and cut marks. Solder or use quality connectors; tin pads lightly to avoid lift.

6) Power-Up and Test

Check polarity, measure voltage at far ends, and verify uniform brightness. Test dimming range for flicker (slow-motion video helps detect PWM artifacts).

7) Close, Diffuse, and Finish

Snap in lenses or install the diffusing face. Seal light leaks with black foam tape at edges. Set scenes and store presets.

Acoustics and Material Synergy

LED walls pair well with soft, sound-absorbing finishes. If the space is lively, add felt panels or perforated MDF with acoustic backing around or opposite the light feature. The visual softness of a diffused wall reads best when echoes are tamed to a 0.5–0.8 s RT60 in living spaces.

Maintenance and Longevity

Dust lenses quarterly. Recalibrate color scenes if you replace sections. Keep spare strip lengths from the same batch. Drivers often outlast strips; plan replacement access without damaging the finish.

Budget and Value Engineering

Where to save: use 24 V strips to reduce cable gauge; consolidate drivers; choose static white if you rarely use color. Where to spend: aluminum channels, quality drivers, and bin-consistent LEDs—these three dictate visual polish and lifespan more than any other line item.

Common Pitfalls to Avoid

1. Over-brightness without dimming—fatiguing and flat.
2. Visible hotspots due to tight spacing and thin diffusion.
3. Color mismatch from mixed batches.
4. Thermal issues on non-metal substrates.
5. Long 12 V runs without parallel feeds—expect voltage sag.

FAQ

How bright should my LED wall be?

Target a gentle 75–150 nits for ambient. Ensure the overall room still lands near IES recommendations (100–300 lux for living areas), using the LED wall as a layer rather than the only source.

Which color temperature works best for a living room feature?

Stick to 2700–3000K for cozy evenings, or 3500K for a versatile neutral. Reserve higher CCT for daytime task scenes if tunable white is available.

Do I need RGB or is white enough?

For daily use, high-CRI white often looks more refined. Add RGBW if you want occasional color accents without compromising a clean white channel.

How do I prevent LED hotspots?

Increase LED density, add an opal diffuser, and create 45–60 mm spacing between LEDs and the diffusing surface when backlighting.

What driver and dimming should I choose?

Match driver voltage to strip (12 V or 24 V) and overspec wattage by 20–30%. Use PWM dimmers for simple setups, or 0–10 V/DALI/DMX for architectural control with scenes.

How can I manage glare for TV viewing?

Place the LED wall behind or adjacent to the screen with dimmed warm scenes (15–25%). Use diffusers and avoid direct line-of-sight to bare diodes.

How do I maintain color consistency across a large wall?

Buy from a single batch with documented binning, specify CRI 90+ and stable CCT, and avoid mixing vendor lots. Calibrate scenes after installation.

Is ventilation necessary for drivers?

Yes. Allow free air around drivers, avoid sealed cavities, and follow the manufacturer’s derating curves to prevent premature failure.

Can I run long strips from one end?

Not ideal at 12 V. Feed from both ends or center, or step up to 24 V to reduce voltage drop. Verify far-end voltage under load with a multimeter.

What’s the safest way to wire multiple runs?

Home-run each segment to a distribution block with appropriately sized fuses. Label circuits and keep low-voltage and mains separated.

How do I integrate with smart home systems?

Choose drivers/controllers compatible with your ecosystem (e.g., 0–10 V gateways, Zigbee/Z-Wave/Thread bridges) and set scenes aligned with daily routines.

What materials pair best for a premium look?

Matte finishes, satin paints, and opal lenses read upscale. Combine with warm woods or acoustic felt to enhance both visuals and sound.
