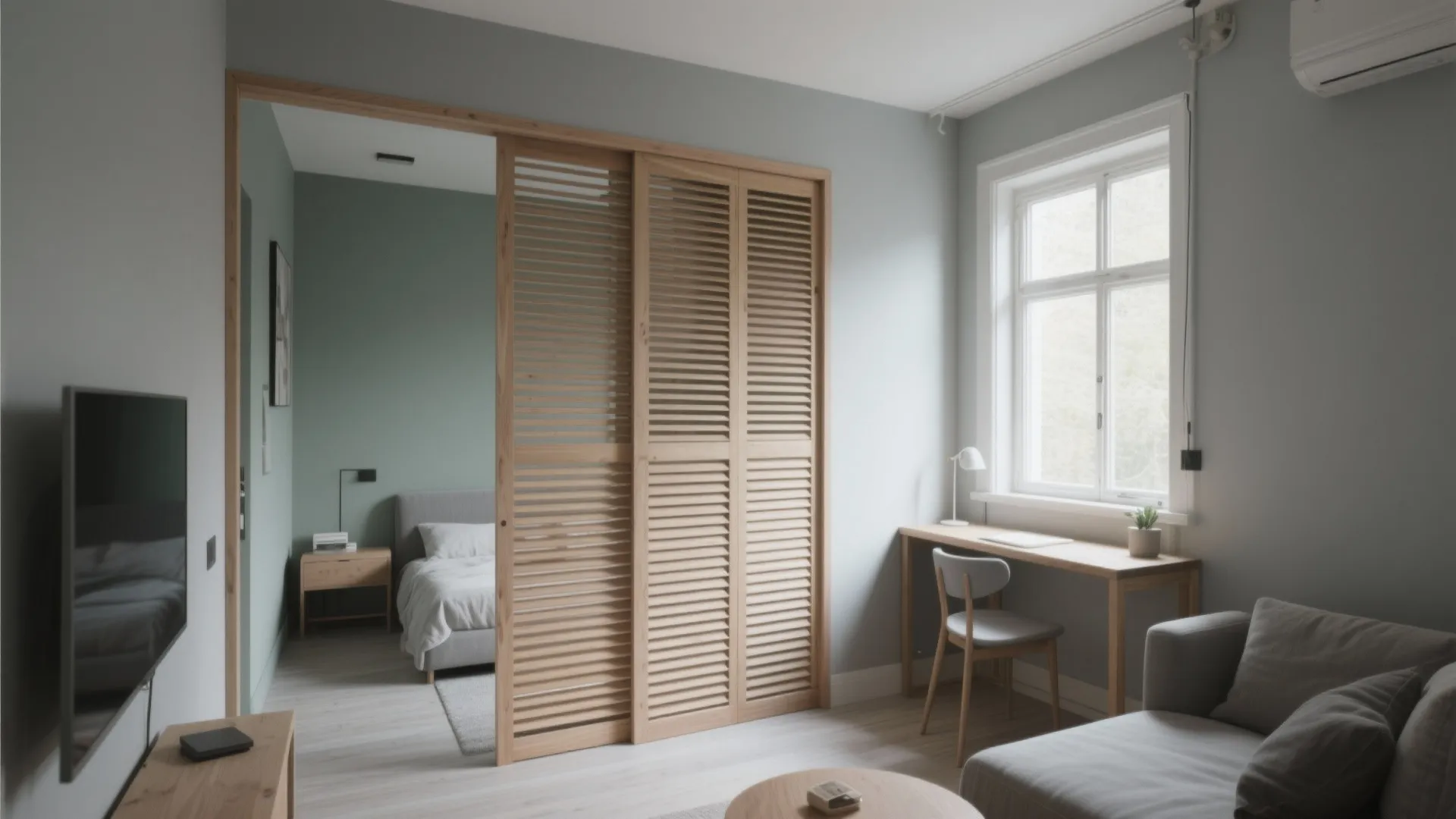

DIY Louvered Privacy Wall for Small Spaces: 1 Minute to Plan Your Own Sleek DIY Privacy Solution

I’ve built more than a dozen louvered partitions for studios, micro-apartments, and compact home offices, and the same pattern keeps proving itself: angled slats deliver privacy without starving a room of light or air. In small footprints, you can’t afford dead corners or heavy visual blocks, so a louvered wall becomes a smart, breathable buffer for sleep zones, work nooks, or entry transitions.

Daylight, glare control, and comfort matter even at DIY scale. The WELL Building Standard notes that access to natural light improves satisfaction and circadian health, while its Light concept emphasizes glare management and visual comfort (v2.wellcertified.com). Steelcase research also ties visual privacy and controlled distraction to better focus, reporting measurable productivity gains when workers can shield sights and noise adequately. Those two points shape the design: openness for light and air; angled occlusion for privacy.

Color can further fine-tune mood and perception. Verywell Mind’s overview of color psychology highlights how soft neutrals reduce arousal and promote calm, while desaturated blues and greens can lower stress and support focused tasks (verywellmind.com/color-psychology). When you combine calm hues with directional slats, you craft privacy that feels gentle rather than closed off.

Design Intent: What a Louvered Wall Solves

In small spaces, privacy usually competes with light, ventilation, and circulation. Louvered walls solve this triad by: filtering sightlines at eye level; letting light pass through upper sections; keeping airflow unobstructed; and offering acoustic diffusion that soft partitions lack. I aim for a slat angle that blocks direct views from typical standing and seated positions but still catches daylight at oblique paths.

Spatial Ratios and Scale

Proportion keeps a compact room from feeling squeezed. I work with a 0.6–0.7 transparency ratio for small studios: roughly 60–70% open area when viewed straight on, which balances privacy and brightness. In tight rooms (8–10 ft wide), keep the divider no longer than two-thirds of the wall run to preserve circulation and sight depth. Height can stop 6–12 inches below the ceiling to relieve visual weight and preserve stack ventilation.

Layout Strategy and Placement

Place the louvered wall to screen the bed or desk from a main entry or living zone, but align the slats to aim daylight toward your core activities. In narrow rooms, set the divider parallel to windows, slats angled to bounce light deeper. If you’re testing scenarios, a layout simulation tool helps preview clearance, flow, and viewing cones before you cut any timber:

room layout tool

Materials and Sustainability

For DIY builds, choose dimensional lumber or high-quality plywood with a stable core. FSC-certified softwoods keep costs down and weight light. If you prefer sheet goods, look for low-VOC finishes to maintain indoor air quality. For slats, 1x2 or 1x3 stock is easy to handle; frames can be 1x4 or 2x2 depending on span. Consider bamboo or thermally modified wood for durability and a refined grain without heavy stain.

Louver Geometry: Angles, Pitch, and Spacing

The three variables—angle, pitch, and spacing—drive privacy and light. Angles between 25° and 35° typically block a straight-on view while allowing light to slip through. A pitch (vertical spacing from slat to slat) of 1.5–2 inches maintains a consistent rhythm without visual clutter. If glare is an issue, increase angle slightly or add a micro-bevel to the top edge to redirect light upward.

Acoustic Comfort in Small Footprints

While louvers don’t fully soundproof, the angled faces scatter mid-to-high frequencies and soften direct lines of noise. Add a felt-backed frame or acoustic fabric behind the louver field where you need extra hush—especially near desks or sleep areas. The goal is to diffuse rather than seal, so you maintain airflow.

Ergonomics and Human Factors

Think through daily movement patterns: entry-to-desk paths, reach ranges for switches, and seated sightlines. A 30–36 inch clearance zone beside the divider keeps circulation fluid. At desks, aim slats to block background movement from the living area, reducing attention-capturing motion in peripheral vision. This is a subtle but meaningful upgrade to focus in compact homes.

Step-by-Step Build: Compact, Rigid, and Clean

1) Measure and plan: Confirm width, height, and fix the slat angle you want. Mark view cones from key positions (sofa, bed, desk).

2) Frame fabrication: Build a rectangular frame from straight 1x4s or 2x2s. Cross-brace a mid-rail to prevent racking.

3) Template the angle: Cut two side rails with evenly spaced kerfs or add angle guides to receive each slat at the chosen degree.

4) Install slats: Start at the bottom, checking angle with a jig. Maintain consistent pitch using spacers.

5) Sand and finish: Smooth edges to minimize snagging and splinters. Apply low-VOC finish; matte sheens reduce glare.

6) Mounting: Anchor the frame to floor and ceiling with L-brackets or a pressure-fit channel. In rentals, consider a freestanding foot detail with wide, rubberized bases.

7) Edge detailing: Add a shallow top cap to hide fasteners and tighten the visual line.

Light Environment: Color Temperature and Glare Control

Pair the louvered wall with warm-white lighting (2700–3000K) in living zones and neutral-white (3500–4000K) near tasks. Keep fixtures out of direct sight through the slats to avoid pixel glare. If you use LED strips behind the partition, diffuse them with frosted covers and set brightness based on ambient daylight.

Finishes and Color Psychology

For calm privacy, I favor desaturated hues: fog gray, clay, muted sage. A tone-on-tone palette helps the wall recede visually. If you need energy near a creative desk, introduce a restrained accent—mustard or terracotta—in a narrow band, not across the entire louver field, to avoid over-stimulating small rooms.

Maintenance and Durability

Dust collects on the upper edges of slats. Round over the leading edge slightly to reduce buildup and make wiping easier. Use a microfiber duster weekly; re-oil or wax annually if you chose natural finishes. For high-traffic zones, consider a clear waterborne polyurethane with low sheen for resilience without plastic shine.

Small-Space Variations

• Half-height screen: Keeps sightlines open while shielding a bed or workstation.

• Pivoting louver panel: Adds flexibility; rotate to open for social time, close for work.

• Layered fabric + louver: A sheer behind the slats increases visual privacy at night while preserving day brightness.

• Integrated shelf rail: A minimal ledge on the frame supports plants or lightweight decor—natural texture softens the partition.

Safety and Code Notes

Keep louvers clear of heating vents; aim for at least 6 inches of space to avoid heat trapping. If you’re near an egress path, confirm that the divider doesn’t reduce required clear width. Use proper anchors in plaster or drywall; toggle bolts or studs for heavy builds.

FAQ

Q1: How tall should a louvered privacy wall be in a studio?

A: Aim for 6–7 feet for effective screening, stopping 6–12 inches below the ceiling to preserve airflow and reduce visual weight.

Q2: What louver angle gives the best privacy without killing light?

A: 25°–35° works well for mixed-use rooms. Start at 30° and adjust based on your typical sightlines.

Q3: Can a louvered wall improve focus in a home office?

A: Yes. By blocking peripheral movement while maintaining brightness, it reduces visual distractions linked to attention drift—an effect supported by workplace research from Steelcase.

Q4: Does it help with acoustics?

A: It diffuses, not isolates. Angled surfaces scatter highs and mids; add felt or fabric layers if you need more absorption.

Q5: What wood species are best for DIY?

A: FSC softwoods (pine, spruce) for cost and ease; bamboo or thermally modified ash for durability and stable grain. Use low-VOC finishes to support indoor air quality.

Q6: How do I avoid glare through the slats?

A: Slightly increase the angle, use matte finishes, and position fixtures so their sources aren’t visible through the louver gaps. Neutral-white task lighting (3500–4000K) balances clarity and comfort.

Q7: What spacing should I use between slats?

A: A pitch of 1.5–2 inches creates a clear rhythm and consistent privacy. In very tight rooms, closer spacing improves screening but may reduce brightness.

Q8: Can I make it freestanding for rentals?

A: Yes. Build a weighted base with wide feet, add anti-slip pads, and a discreet top stabilizer that presses against the ceiling with a compression pole.

Q9: How do I plan the layout without mis-measuring?

A: Mock up with painter’s tape and cardboard first, then test proportions with a room layout tool to verify circulation and sightlines.

Q10: Is metal better than wood for louvers?

A: Metal is slimmer and durable but can ring acoustically and feel colder visually. Wood is warmer, easy to work with, and dampens sound slightly.

Q11: Will plants work with a louvered wall?

A: Absolutely. The slats create filtered light ideal for shade-tolerant species; a narrow shelf or hanging hooks on the frame adds biophilic texture.

Q12: How do I maintain a clean look over time?

A: Round edges, use matte finishes, dust weekly, and refresh the finish annually. Avoid high-gloss sheens that show fingerprints and micro-scratches.
