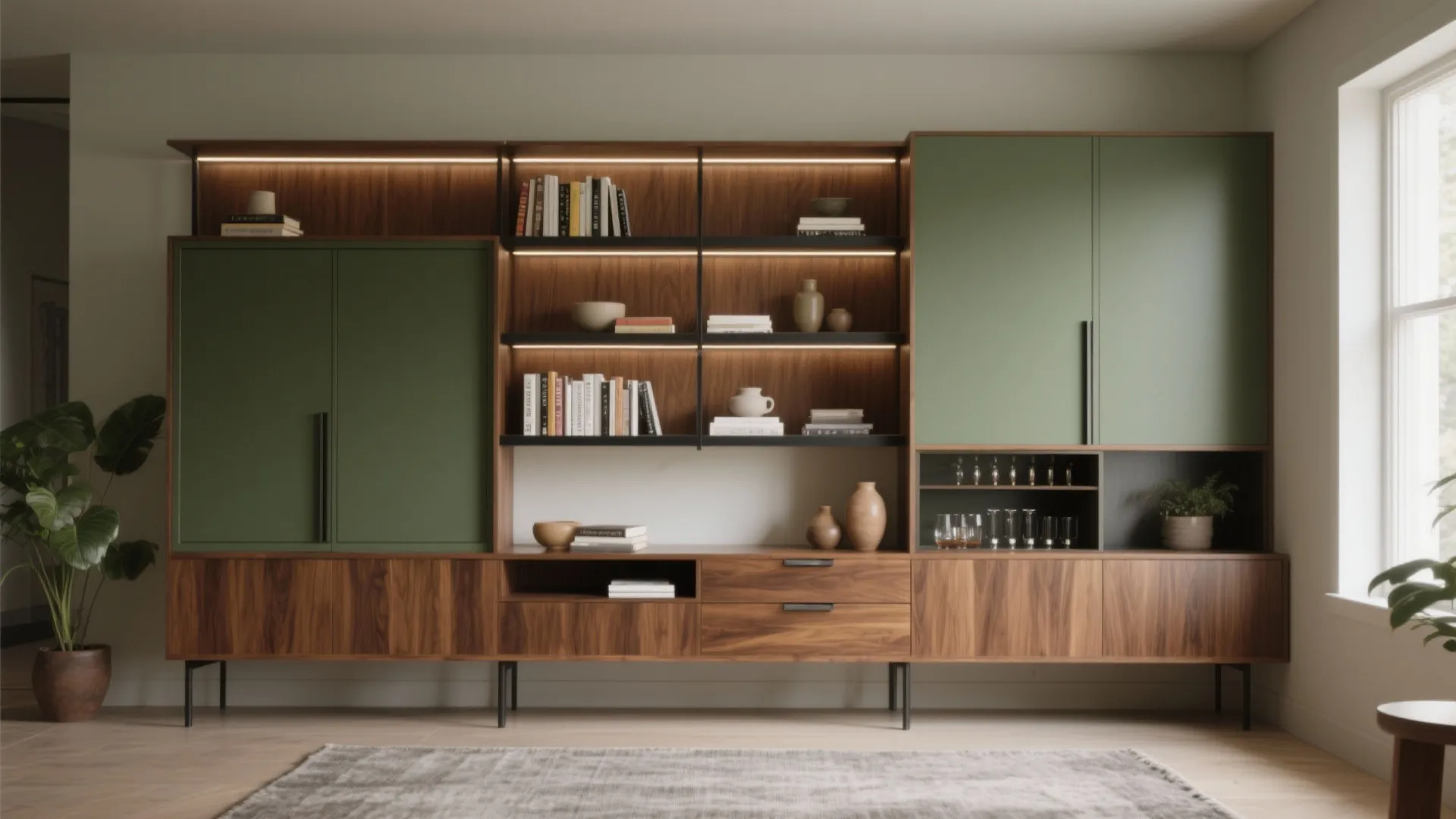

DIY MCM Wall Unit: Step-by-Step Guide to Mid-Century Magic: 1 Minute to Plan Your Retro-Inspired Shelving Makeover

I’ve built and specified more mid-century inspired storage walls than I can count, and the best ones balance clean geometry with real-world function. This guide distills the essentials—proportions, materials, lighting, and assembly—so you can create a DIY MCM wall unit that feels custom, not cobbled.

Start with intent and performance. WELL v2 recommends 300–500 lux for general ambient lighting, which guides how deep shelves should be and where task lighting belongs. Steelcase research also notes that visual comfort directly influences perceived productivity—glare and dark corners fatigue users even at home. Those benchmarks will steer your dimensions, finishes, and lighting choices early. For further reading on workplace-lighting interplay and human performance, explore wellcertified.com and Steelcase’s research insights at steelcase.com/research.

Define the Program and Measure the Wall

Good MCM is pragmatic. List what the unit must hold: books (250–300 mm height), media components (430–480 mm width per bay), LPs (330 mm height; 315 mm depth), and display pieces. Measure floor-to-ceiling height, baseboard depth, and wall width with a 3 mm tolerance. Typical MCM rhythm works well with a 3:4 proportion; for example, 300 mm thick uprights and 400 mm shelves or doors create a balanced cadence. If your plan includes zones—media, bar, books—block them on paper before committing.

Choose Your System Logic: Casework, Rails, or Ladder Uprights

MCM wall units usually follow one of three logics: (1) floating casework with cleats, (2) wall-mounted steel rails with adjustable brackets (think Danish modular), or (3) ladder-style uprights bearing to the floor with top compression. Rails offer the most adjustability for evolving needs; ladders deliver a classic silhouette and easy installation. Casework gives you the sleekest fronts but demands more precise carpentry. Match the method to the wall condition and your tool set.

Core Dimensions That Simply Work

- Bay width: 600–900 mm for shelves, 900–1,000 mm max for closed cabinets to limit sag and door racking.

- Shelf depth: 250–300 mm for books; 350–400 mm for media/bar; 450–500 mm for record storage.

- Vertical pitch: 320–360 mm clear between shelves for mixed books/objects; 220–260 mm for glassware; 380–420 mm for tall art books.

- Toe and clearance: If using base cabinets, keep a 60–75 mm recessed toe and 20 mm negative reveal to float the mass visually.

- Hardware loading: Typical adjustable steel brackets handle 25–40 kg per shelf when anchored to studs or solid masonry. Verify fastener pull-out values.

Material Palette: Honest, Warm, and Durable

Mid-century magic comes from contrast: warm wood + matte color + slender metal. I favor quarter-cut white oak or walnut veneer on plywood for stability, balanced with painted MDF doors in desaturated hues (moss, clay, midnight). Choose edges: 2 mm solid lipping reads crisp; eased 1 mm softens the hand feel. For sustainability, FSC-certified veneers and low-VOC finishes matter; catalyzed waterborne topcoats keep the sheen at 10–20% for that soft, period-correct glow.

Finish Strategy and Color Psychology

Keep a restrained palette: one wood tone, one color, one metal. Verywell Mind’s color-psychology overview notes blues and greens generally promote calm and focus, which suits study or lounge units; use saturated accents sparingly to avoid visual clutter. Brass or blackened steel hardware can bookend the composition—choose one and repeat.

Lighting and Glare Control

Integrate lighting early. Target 300–500 lux on shelves for viewing and styling, and keep 2700–3000K for a warm, mid-century atmosphere. Hide LED strips in a 10–12 mm deep recess at the front or back of the shelf to prevent diode dots; add a low-gloss finish to reduce specular reflection. I place dimmable drivers in a ventilated base cabinet and route low-voltage leads in a rear chase. The result is even wash without hotspots or shadows.

Ergonomics and Access

Frequent-use shelves should live between 700 and 1,400 mm from finished floor. Heavy items belong at knee to elbow height. If including a desk niche, set work surface at 730–760 mm with a clear knee space of 600 mm wide x 450 mm deep. Cables? Run a 40–50 mm grommet behind the work bay and a horizontal chase along the back to keep cords invisible yet serviceable.

Acoustic and Media Considerations

Closed cabinets dampen sound reflections; perforated or slatted doors can conceal speakers while preserving acoustic output. For a TV bay, maintain 100–150 mm of clearance for ventilation around components; line one rear panel with 9–12 mm acoustic felt to cut flutter echo, especially in hard-surfaced living rooms.

Planning the Layout (with a Quick Digital Check)

Mock your scheme at full scale on the wall using painter’s tape to test rhythm and sightlines. If you want to simulate options—door/shelf sequences, desk niches, or asymmetry—use a lightweight interior layout planner. A room layout tool can help you test bay widths, clearances, and viewing distances before you cut any material: room layout tool.

Hardware: The Invisible Hero

- Wall rails: 1.5–2.0 mm steel, powder coated, anchored to studs at 400/600 mm centers with structural screws.

- Brackets: Rated for your shelf depth and load; choose low-profile to keep the MCM lightness.

- Shelf pins or cams: 5 mm pins for adjustables; confirm shelf underside reinforcement on long spans.

- Hinges and slides: Soft-close, full-overlay concealed hinges; 34–45 kg rated slides for deep drawers holding records.

Step-by-Step Build Sequence

1) Locate structure: Find studs and mark a centerline grid. Pull reference heights for base, midline, and top cap.

2) Fabricate carcasses: If using base cabinets, build 18 mm plywood boxes with 6–10 mm back panels; pre-drill for cable pass-throughs.

3) Set bases: Level plinth or adjustable feet. Shim until dead plumb and level; scribe to uneven walls.

4) Mount rails/uprights: Use a laser line. Check every upright for plumb; secure top and bottom first, then infill.

5) Hang shelves and doors: Start from the bottom to stabilize. Pre-finish parts to keep edges crisp.

6) Integrate lighting: Run low-voltage leads, test, then conceal with matching valances.

7) Fit panels and reveals: Maintain consistent 2–3 mm door gaps. Use spacers to keep rhythm uniform.

8) Final tune: Adjust hardware, set dimmer scenes, and felt-pad every contact point.

Proportional Rhythm and Visual Balance

Classic MCM thrives on consistent spacing—repeated verticals and an off-center focal bay. I’ll often widen one bay by 100–150 mm to host art or a bar; that asymmetry keeps the unit from feeling like a kitchen. Keep the heaviest visual mass low, taper toward the top, and align horizontals with architectural cues like window heads or door trims.

Safety, Anchoring, and Loads

Anchor every upright into structure. In older homes with unpredictable studs, add a continuous French cleat or secondary plywood backer fixed to studs, then mount rails to the backer. Verify combined live load per bay; books weigh 20–30 kg per linear meter on average. Test each shelf with a distributed load before styling.

Styling the Finished Unit

Mix vertical and horizontal stacks, vary heights, and leave 20–30% negative space so the unit breathes. Ground with ceramics and matte metal; add plants to soften lines. Keep cables invisible and remotes corralled in a shallow drawer.

Maintenance and Longevity

Use furniture pads, avoid silicone polishes, and refresh oiled finishes annually if used. LED strips lose output slowly over years; spec replaceable tape and accessible channels so upkeep is painless.

FAQ

How deep should shelves be for vinyl records?

Go 350–400 mm deep and at least 330 mm clear height. Reinforce long spans or keep to 600–750 mm bay widths to prevent sag.

What lighting temperature suits a mid-century look?

Use 2700–3000K for warmth. Aim for 300–500 lux on display shelves to meet comfortable viewing levels referenced by WELL v2 guidance without glare.

How do I prevent shelf sag over time?

Use 18–20 mm plywood or solid wood, keep spans under 900 mm, add a front edge band (20 mm x 30 mm) or hidden steel flat bar for longer shelves.

Can I mount the unit on drywall only?

Not safely. Anchor into studs or masonry. If studs are off-grid, install a plywood backer anchored to studs, then mount rails or cleats to that backer.

What finish matches mid-century originals?

Low-sheen (10–20%) waterborne lacquer on walnut or oak veneer feels authentic and hides fingerprints better than high gloss.

How do I manage cables for a TV bay?

Provide a 40–50 mm grommet, a rear horizontal chase, and ventilated compartments. Keep power and low-voltage separated to reduce interference.

What’s the ideal height for a desk niche in the unit?

Set the work surface at 730–760 mm with 600 mm minimum clear width and 450 mm knee depth for comfortable use across most users.

How do I choose colors that won’t date quickly?

Pair one honest wood species with a muted color (deep green, navy, clay). According to mainstream color-psychology summaries, greens and blues promote calm and focus—great for living and study spaces.

Do I need soft-close hardware?

Highly recommended. It protects veneers and keeps gaps consistent over time, especially with heavier drawers for records or media.

What if my wall is out of plumb?

Scribe side panels or use adjustable feet and filler strips. Establish a true reference plane with a laser and let scribed pieces reconcile the wall’s imperfections.

How much weight can a typical rail system hold?

Quality steel rails with proper stud anchoring often support 25–40 kg per shelf, but always verify manufacturer ratings and fastener pull-out values for your wall type.
