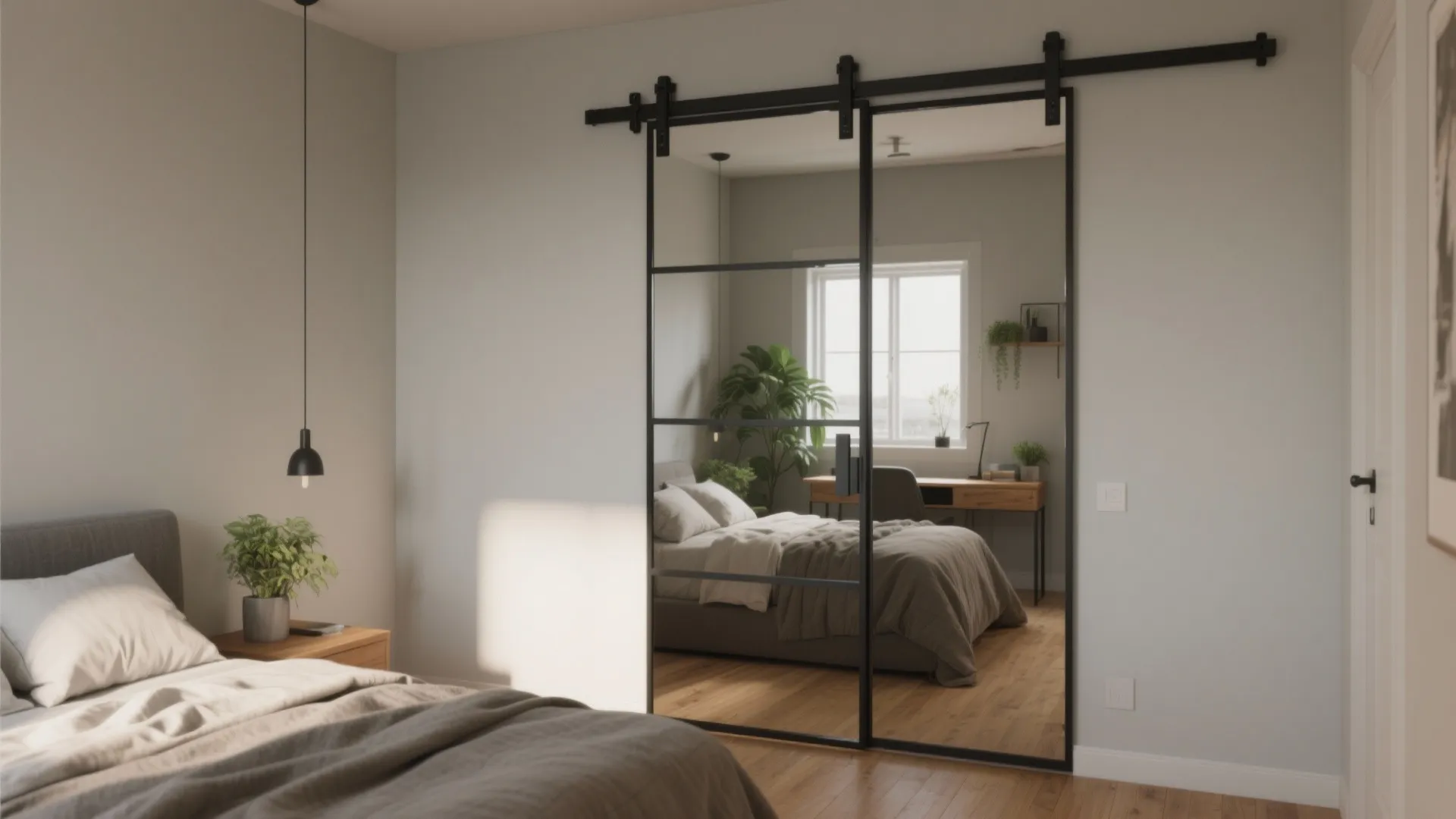

DIY Mirrored Barn Door: Stylish Space-Saving Upgrade: 1 Minute to Transform Any Room with a DIY Mirrored Barn Door

A mirrored barn door blends two high-value functions—space-efficient sliding hardware and a full-height reflective surface—into one elegant upgrade. I use this solution in tight bedrooms, small apartments, and home offices where swing clearance is limited and a mirror meaningfully amplifies light and perceived depth.

Done right, a mirror panel can increase perceived room size by up to 10–15% through visual extension, and well-managed illumination matters: the Illuminating Engineering Society recommends 150–300 lux for general residential tasks, while dressing and grooming benefit from roughly 300–500 lux with balanced vertical illumination to avoid shadows (IES standards). In workplace contexts, Steelcase research associates visual comfort and reduced glare with fewer distractions and better sustained focus, a principle that translates to home offices behind a mirrored door by careful light placement and matte finishes around the reflective plane (steelcase.com/research).

Planning the Door: Size, Clearance, and Track

I start by mapping door width to the opening plus 2–3 inches for full coverage. A typical bedroom closet opening of 30–36 inches pairs well with a 36–40 inch door. For sliding tracks, plan at least 1.5× door width of free wall space for full travel. If your wall is short, consider a bypass system with two doors. When testing furniture clearances or traffic flow, a simple room layout tool helps visualize the door sweep, switch locations, and potential light bounce paths off the mirror.

Choosing the Mirror: Safety, Clarity, and Edge Profiles

For a DIY mirrored barn door, I favor tempered or laminated mirror glass to enhance safety. Laminated mirror holds together if cracked, limiting shard risk—a smart move for kids’ rooms or narrow corridors. Specify low-iron glass if a true-color reflection is important; it reduces the slight green tint common in standard glass. Beveled edges add a tailored look, while flat, polished edges suit minimal interiors. A full-length panel (72–84 inches tall) becomes a functional dressing mirror and a genuine light amplifier when aligned with ambient sources.

Frame Materials and Finish Strategy

Solid wood stiles (oak, ash, or maple) deliver warmth and easy refinishing, while powder-coated steel lends a crisp, industrial profile. I often use a slim steel perimeter frame with a recessed channel, then back the mirror with a moisture-resistant MDF or plywood substrate. Keep finishes around the mirror in matte or eggshell to control glare; WELL v2 emphasizes glare mitigation and balanced luminance as helpful for comfort, which you can achieve by suppressing high-gloss adjacent surfaces (wellcertified.com).

Hardware: Track, Rollers, and Soft-Close

Select a track rated 1.5× the door’s final weight. A mirror panel can add 35–60 pounds, so many DIY builds land in the 80–120 pound range. Quiet, ball-bearing rollers and soft-close dampers protect the glass from abrupt stops. For handles, I prefer low-profile pulls to keep the reflection clean; back-to-back pulls prevent fasteners from contacting the mirror. Confirm stud locations for lag bolts; if studs don’t align, use a continuous backing board anchored into multiple studs and then mount the track to the board.

Light Environment: Color Temperature and Glare Control

Mirrors magnify both beauty and flaws in lighting. Aim for 2700–3000K in bedrooms for warmth and 3000–3500K in dressing zones to keep skin tones natural. Reduce off-axis glare by positioning fixtures so they don’t reflect directly toward seating or work areas. Layer ambient lighting with vertical sconces near the mirror to improve facial rendering; even distribution reduces harsh contrast and reflections that can distract.

Acoustic and Privacy Considerations

Mirrored barn doors are not acoustic doors, but a few tweaks help: add perimeter brush seals or a slim neoprene gasket to soften sound transmission and light bleed. If the door closes a bath or dressing area, consider laminated mirror for a marginal acoustic bump and add a solid core backing panel for mass.

Color Psychology and Spatial Balance

A large reflective surface doubles prominent hues in the room. Very saturated colors can feel intense when mirrored; I balance strong chroma with neutral, textured materials. According to color psychology insights, blues and greens tend to be calming while bright reds can energize—use these tendencies to support dressing or prep zones without overpowering the reflection (verywellmind.com/color-psychology). Keep the mirror aligned with a pleasing focal wall or natural light source so the reflection enhances—not clutter—your composition.

Ergonomics: Handle Height and Reach

I set handle centers around 36–40 inches from the floor for most adults, slightly lower if children use the door regularly. For closets, ensure a 24-inch clear path in front of the opening to avoid awkward twisting. If the door slides over switches, relocate them or offset the stop so controls remain accessible.

Step-by-Step Build Outline

1. Measure and Model

Confirm opening size, wall space, stud positions, and ceiling level. Use an interior layout planner to test travel and reveals before purchasing hardware.

2. Source Materials

Order the mirror (tempered or laminated), frame stock, substrate, track kit, soft-close dampers, and low-profile pulls. Verify weight and hardware ratings.

3. Fabricate the Frame

Assemble a square, rigid frame with a recessed channel. Dry-fit the mirror and substrate. Add a continuous backing board on the wall if studs are irregular.

4. Mount the Track

Level the track precisely; tolerance should be within 1/16 inch across the span to prevent drift. Pre-drill for lag bolts into studs or the backing board.

5. Install the Mirror Panel

Apply mirror-safe adhesive (neutral cure) and perimeter gaskets, set the panel, and add mechanical clips as required by the system. Avoid point loads at corners.

6. Add Stops and Soft-Close

Tune stops so the door fully covers the opening but does not collide with trim. Set soft-close cylinders to engage in the last 4–6 inches of travel.

7. Align, Test, and Seal

Check plumb and level, ensure smooth motion, add brush seals, and confirm lighting angles to avoid direct glare in seated positions.

Safety Notes

Handle the mirror with suction cups and gloves. If cutting wood or metal frames, mask edges to protect the reflective surface. Keep children clear during installation and add anti-jump pins on the track to prevent derailment.

Design Variations

• Grid muntins: add steel or wood muntin bars over the mirror for a loft aesthetic.

• Half-height mirror: pair the upper half with opaque paneling to reduce fingerprints.

• Smoked or bronze mirror: warms reflections and tames brightness in sunlit rooms.

• Integrated lighting: perimeter backlighting creates a gentle halo; use diffusers to avoid hotspots.

Maintenance

Use ammonia-free glass cleaner to preserve coatings. Microfiber cloth minimizes streaks. Periodically check fasteners and roller tension; sliding systems loosen over time with frequent use.

Cost and Value

A DIY mirrored barn door typically ranges from mid to high three figures, depending on glass type and hardware quality. The resale impact is strong in small homes and condos where a full-length mirror and sliding clearance solve daily pain points. Thoughtful lighting and finish choices maximize perceived quality.

FAQ

Q1: Will a mirrored barn door make my room feel brighter?

A1: Yes, when paired with adequate ambient illumination. Aim for 150–300 lux general lighting, and avoid direct glare by offsetting fixtures from the mirror’s axis (IES guidance).

Q2: Tempered vs. laminated mirror—what’s best?

A2: Tempered resists impact and breaks into small fragments, while laminated holds together if cracked and offers minor acoustic gains. For kids’ rooms or narrow halls, I lean laminated.

Q3: How do I prevent the door from wobbling?

A3: Use a bottom guide channel or floor-mounted guide, ensure the track is perfectly level, and add anti-jump pins. Roller quality matters—choose ball-bearing units.

Q4: What color temperature works near a mirror?

A4: 2700–3000K in bedrooms for warmth; 3000–3500K where dressing or grooming occurs to keep skin tones natural and reduce harsh contrast.

Q5: Can I use a bypass system for short walls?

A5: Absolutely. Two overlapping doors on parallel tracks let you cover wide openings without long, clear wall space—ideal for closets.

Q6: How do I reduce fingerprints and smudges?

A6: Choose a half-height mirror or opt for smoked/bronze finishes that disguise marks. Keep a microfiber cloth handy and use ammonia-free cleaner.

Q7: Will a mirrored door hurt acoustics in a bedroom?

A7: It won’t insulate like a solid acoustic door, but laminated mirror, brush seals, and a solid core backing improve sound dampening modestly.

Q8: Is soft-close worth it?

A8: Yes. It protects the mirror from abrupt impacts, reduces noise, and enhances daily comfort—especially important for nighttime use.

Q9: Where should I place the mirror relative to windows?

A9: Align it to capture natural light without reflecting direct sun into seating or workstation areas. Slight angles and matte surroundings mitigate glare.

Q10: Can I mount the track to drywall only?

A10: No. Always anchor into studs or a properly fastened backing board. The combined weight of glass and frame requires secure structural support.

Q11: What handle height is most ergonomic?

A11: Around 36–40 inches to suit most adults; adjust lower for children. Keep handles slim to maintain a clean reflection.

Q12: How do I confirm the door size?

A12: Add 2–3 inches beyond the opening width for full coverage, and ensure wall clearance equals at least 1.5× the door width for travel.
