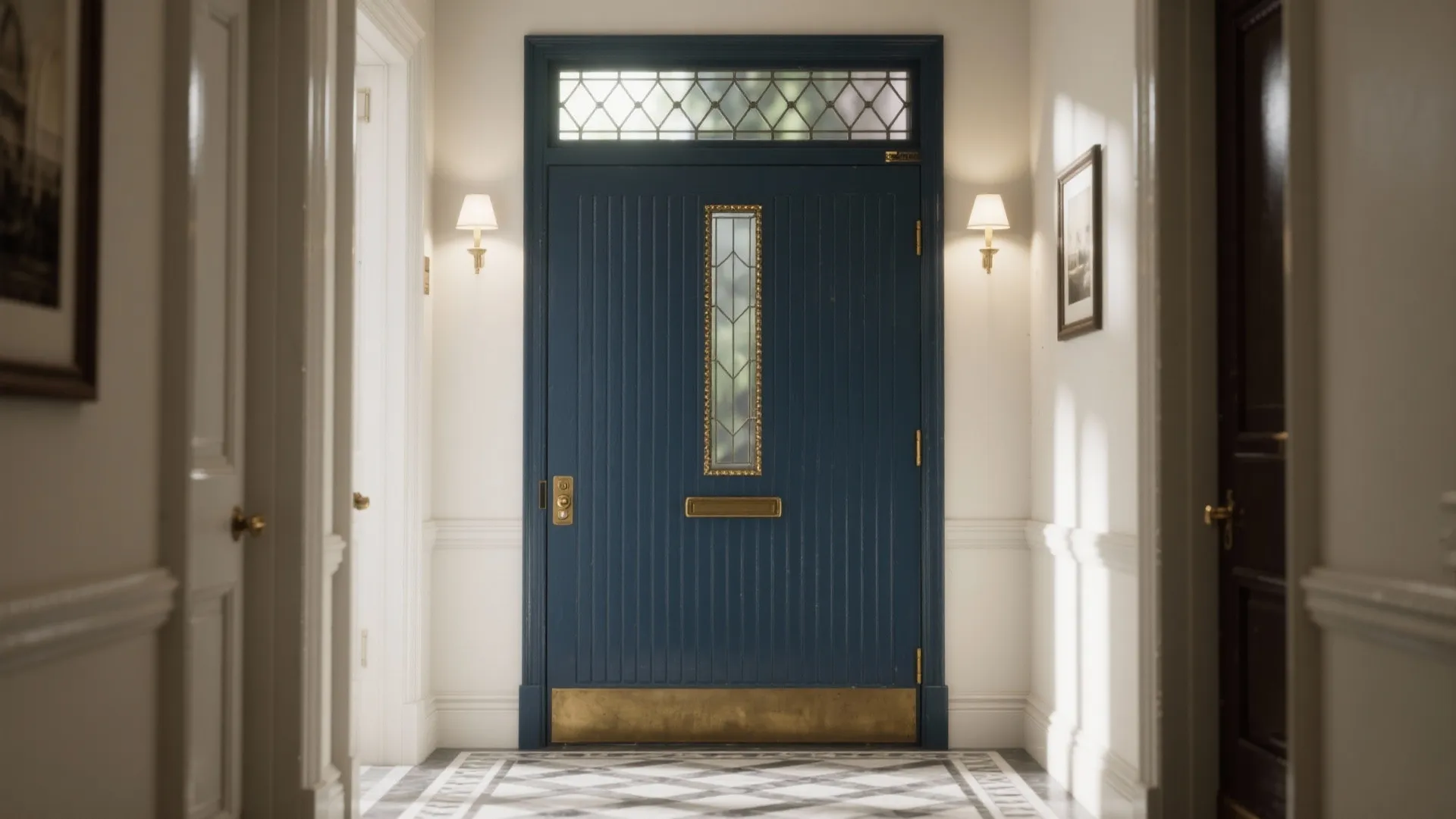

DIY Old Style Elevator Door: Step-by-Step Guide for Home Designers: Fast-Track Guide to Building a Vintage Elevator Door in Your Home

I’ve restored and built several vintage-inspired doors for residential lifts and decorative niches, and a classic elevator door—think ribbed steel panels, brass accents, and small vision glass—never fails to add character. This guide walks through planning, fabrication, finishing, and installation, while aligning with safety, ergonomics, and proportion. Note: for any operable lift or hoistway, consult your local code and a licensed professional; this article covers a styled door and panel set, not life-safety systems.

Before diving into materials, I benchmark proportions against human factors data. Standard comfortable reach ranges for adults fall roughly between 24–48 inches from the floor; handle placement near 36–42 inches suits most users (Herman Miller research highlights anthropometric ranges commonly used in workplace fittings). For glare-free visibility through a vision panel, target a viewing height aligned to 48–60 inches eye level and keep luminance contrast gentle, aligning with IES recommendations on visual comfort. For well-being, WELL v2 encourages minimizing sharp edges and ensuring adequate clear widths for passage; plan a finished clear opening of at least 32 inches for practical use.

Materials and finishes drive both durability and authenticity. Brass retains its patina beautifully, and cold-rolled steel takes crisp fluting. Color psychology research indicates warm metallics (brass/bronze) are perceived as inviting and premium, while deep greens/navy suggest heritage and trust (Verywell Mind notes warm tones can evoke comfort and richness). For a hallway where the door becomes a focal point, I balance reflectance: semi-matte enamel keeps glare under control while letting hardware catch the light.

Planning the Design Language

Period elevator doors often feature vertical fluting, inset panels, narrow vision glass, and substantial hardware. I sketch three variants: (1) single-leaf swing door with faux gate detail, (2) double-panel bi-fold with stepped stiles, and (3) fixed outer frame plus inner grill motif. Decide early if your door is purely decorative or operable for a residential lift cabinet. If you’re laying out a hallway recess or alcove, a room layout tool can help visualize clearances and swing paths: room layout tool.

Key Dimensions and Proportions

- Finished height: 84–96 inches keeps the door elegant and vertical. Lower ceilings (96 inches overall) still read grand with a transom panel.

- Clear opening: ≥32 inches if the door is used for passage. For decorative installations, you can reduce to 28–30 inches but keep symmetry.

- Stile and rail widths: 4–5 inch stiles, 8–10 inch bottom rail for visual grounding, 5–6 inch top rail.

- Vision glass: 4–6 inches wide, 18–24 inches tall, centered at 52–58 inches from floor for typical sightlines.

- Fluting depth: 3/16–1/4 inch; spacing 1–1.5 inches keeps rhythm refined without trap dirt.

Structural Frame and Substrate

Build a stable frame first. I use a hardwood subframe (white oak or maple) or a welded steel angle frame depending on the weight and style. Hardwood frame with 3/4 inch stiles and rails, reinforced with concealed splines or dowels, offers a traditional feel. Steel angle (1.5 x 1.5 x 1/8 inch) frames give crisp lines and hold metal skins firmly. If your door is non-structural décor over a closet, a lighter MDF core with hardwood edge-banding works; for an operable door, stick to solid hardwood or steel.

Panel Fabrication

For that old-elevator texture, mechanically flute metal skins or router shallow flutes into hardwood panels. Steel or aluminum sheets (16–18 gauge) take press-brake ribs nicely. If using wood, I set a CNC path with a ball-nose bit to avoid sharp valleys. Add a recessed vision panel with tempered glass (laminated if you want acoustic dampening). A narrow brass or bronze glazing bead frames the glass and nods to historic detailing.

Hardware Selection

Period-correct hardware lifts the whole piece. Choose a robust pull handle (10–14 inches long), a surface bolt or dummy gate latch, and heavy-duty hinges. For operable residential doors, I prefer ball-bearing mortise hinges; for steel skins, weld-on hinges are fine. Keep handle center at ~38 inches and ensure gripping diameter between 1.25–1.5 inches—comfortable for most hands per common ergonomics guidance. Consider a spring closer if the door fronts a lift cabinet; adjust for soft close to prevent slam noise.

Finishes: Metal, Wood, and Paint

Brass: Hand-brush with Scotch-Brite to soften sheen, then apply microcrystalline wax to slow oxidation.

Steel: Prime with epoxy primer; finish with semi-matte enamel in deep jewel tones (green, oxblood, navy) to evoke early 20th-century lobbies.

Wood: Stain in walnut or ebonize oak for contrast. Seal with catalyzed varnish or waterborne conversion varnish for durability.

Glazing: Use clear tempered; a slight gray interlayer calms glare.

Acoustics and Weight Management

Old elevator doors had substantial mass, which aids acoustic isolation. If you need quiet, add a mass-loaded vinyl layer beneath the metal skin and perimeter seals. Keep total door weight in check: target 80–110 lbs for a solid single leaf at 36 x 84 inches; heavier builds demand reinforced jambs and three to four hinges. For quieter operation, attach neoprene silencers at strike points.

Safety and Code Notes

If this door conceals a lift or hoistway, engage a qualified installer. Ensure finger-guard clearances at any gate-like elements and minimum gaps per local code. The WELL Building Standard emphasizes accessibility and safety lines—maintain smooth edges, adequate lighting near thresholds, and visual contrast at handles. For illumination, follow IES guidance to avoid harsh shadows; aim for 200–300 lux in corridors with warm 2700–3000K lamps to complement brass and deep paint.

Step-by-Step Build Sequence

1. Measure and mock-up: Tape out the door outline and swing in the hallway. Validate reach heights and sightlines.

2. Fabricate the frame: Cut hardwood stiles/rails or weld steel angle. Dry-fit and square the assembly.

3. Prepare panels: Create flutes or attach ribbed metal skins. Sand or deburr thoroughly.

4. Cut the vision opening: Reinforce the opening; add a rabbet for glazing. Test-fit tempered glass.

5. Hardware layout: Mark hinge locations (top hinge 5 inches from head, bottom hinge 10 inches from sill). Pre-drill.

6. Finish components: Prime, paint, or patinate before final assembly to keep edges clean.

7. Assemble: Bond skins, set panels, install glass and beading. Mount hinges and handle.

8. Hang and adjust: Plumb the jamb, shim where needed, align reveal gaps to 3/32–1/8 inch.

9. Seal and quiet: Install perimeter seals and threshold, add silencers.

10. Final light check: Tune corridor lighting to reduce glare on metal and glass.

Layout and Integration Tips

Integrate the door into a period-inspired foyer: add a transom grille, chevron stone floor, and picture lights. If planning alcoves or side niches, simulate sightlines and swing arcs with an interior layout planner: interior layout planner. Maintain 36 inches clear in front of the door for comfortable approach, and align mullions with wall paneling for visual harmony.

Maintenance

Monthly: dust and inspect hardware; re-wax brass as needed.

Quarterly: tighten hinge screws, check seals, touch up paint on high-contact areas.

Annually: refresh wax or clear coat, re-level hinges if settling occurs, and clean glass with non-ammonia solutions to protect patina.

FAQ

Q1: What handle height is most comfortable?

A: Place the handle center around 36–42 inches from the finished floor. This aligns with common adult reach ranges and keeps operation comfortable.

Q2: How wide should the vision glass be?

A: A narrow 4–6 inch width with a 18–24 inch height maintains period proportions while providing adequate visibility. Center the vertical midpoint around 52–58 inches for typical eye level.

Q3: Can I use MDF for the core?

A: Yes, for decorative-only doors. For operable, heavier use, opt for hardwood or a steel frame to handle weight and hinge stress.

Q4: What hinge count should I plan for?

A: For a 36 x 84 inch door, use three heavy-duty hinges. If the door exceeds 100 lbs or 96 inches in height, add a fourth hinge for stability.

Q5: Which paint sheen looks authentic?

A: Semi-matte or eggshell reads period-correct and controls glare. High gloss can look theatrical; reserve it for small accents like beading.

Q6: How do I reduce noise?

A: Add mass-loaded vinyl beneath metal skins, use perimeter seals, and install soft closers. Neoprene bumpers at strike points also help.

Q7: What lighting works best around the door?

A: Warm 2700–3000K ambient light at roughly 200–300 lux suits corridors and complements brass and deep colors. Keep fixtures shielded to avoid specular glare on metal.

Q8: Is brass high-maintenance?

A: Not if you accept patina. A periodic wax keeps fingerprints subtle. If you prefer bright brass, use a clear lacquer, but expect occasional refinishing.

Q9: Can I add a transom to increase height?

A: Absolutely. A fixed transom with grille or frosted glass visually elongates the composition and preserves classic lobby proportions.

Q10: What’s the ideal door thickness?

A: Aim for 1.75 inches if using a solid core and metal skins. Thinner doors can feel insubstantial and transmit more noise.

Q11: How do I protect edges on metal skins?

A: Hemmed edges or applied brass angle trim prevent sharp corners and reinforce durability at high-contact zones.

Q12: Can this door be used on an actual residential lift?

A: Only with a licensed elevator contractor and local code compliance. DIY styling is fine for decorative applications; operable lift doors have strict requirements.
