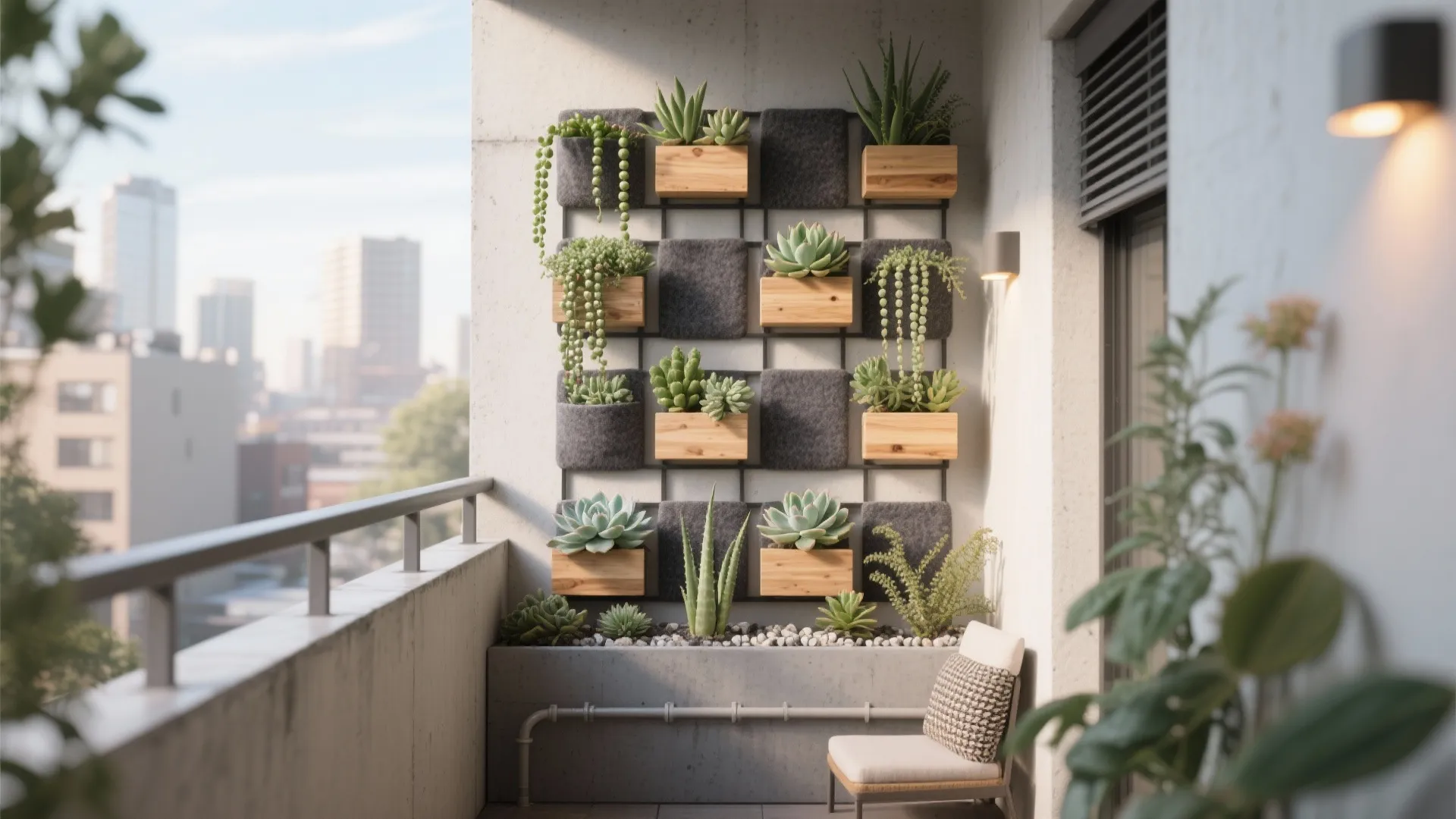

DIY Outdoor Succulent Wall Planter: Easy Guide for Small Spaces: 1 Minute to Your Own Living Wall—Fast-Track, Fuss-Free DIY

I’ve built more than a dozen outdoor succulent wall planters for compact terraces and urban balconies, and the same principles always deliver: smart drainage, balanced light, and a lightweight structure that won’t overwhelm small walls. Succulents are forgiving, but they thrive when the microclimate is intentional—think moderate sun, breathable backing materials, and a watering plan that respects their drought-resistant nature.

Small spaces need evidence-based planning. WELL v2 guidelines note that daylight access and glare control influence comfort and perceived wellbeing, which is crucial for outdoor seating zones near vertical planters. Meanwhile, the Illuminating Engineering Society (IES) recommends avoiding high-glare fixtures above reflective foliage; soft, warm accents (2700–3000K) keep evening views comfortable without stressing plants. Steelcase research on human-centered environments also shows that visually ordered, nature-integrated settings reduce cognitive load—your planter layout should read clean and calming, not chaotic. I anchor my compositions with a 60/30/10 visual ratio: 60% hardy structural succulents (e.g., jade, echeveria), 30% trailing texture (string of pearls), 10% seasonal accents.

From a behavioral standpoint, a wall planter becomes a living backdrop for micro rituals—watering, pruning, and observing growth—that reinforce a sense of place. My go-to method is a modular frame with breathable felt pockets or a shallow cedar box with perforated backer. If you’re still shaping your balcony layout or want to test vertical placements over seating or grill zones, a room layout tool can help you visualize planter height, sightlines, and circulation: room layout tool.

Design Goals for Small Spaces

Outdoor walls demand lightness, rhythm, and durability. I prioritize a grid that feels orderly—three to five columns of pockets or planters, with consistent spacing (typically 4–5 inches between centers) to prevent visual clutter. Keep the overall depth under 4 inches for narrow balconies. Use a neutral palette for the frame (charcoal, natural cedar) to let foliage pop. Reserve one vertical band for trailing plants so the composition reads top-to-bottom rather than flat.

Materials and Tools

- Weather-resistant frame: cedar, teak, or powder-coated aluminum

- Backer: marine-grade plywood or composite board with corrosion-resistant screws

- Planter modules: breathable felt pockets or shallow boxes (2.5–3.5-inch depth)

- Drainage: landscape fabric, pea gravel (1–2 cm layer), multiple drain holes

- Soil mix: 50–70% inorganic (pumice/perlite), 30–50% succulent potting soil

- Hardware: stainless steel or hot-dip galvanized fasteners

- Extras: light-duty drip line, solar timer, wall anchors appropriate to substrate, silicone sealant

Lighting, Heat, and Orientation

Succulents love bright light, but leaves scorch under harsh western exposure and reflective glazing. Aim for east or southeast walls where plants get gentle morning sun. For night scenes, choose warm LEDs around 2700–3000K to maintain foliage color without glare (aligned with IES comfort practices). Keep luminaires offset by 12–18 inches and use baffled fixtures to avoid hot spots on waxy surfaces.

Layout Strategy and Visual Balance

I sketch three tiers: structural, texture, accent. Structural: rosette-form echeveria, compact aloe, jade (Crassula ovata) for body. Texture: trailing sedum, string of bananas, rhipsalis to break the grid. Accent: variegated haworthia or kalanchoe blooms. Repeat species diagonally to create rhythm; stagger color temperature—blues and silvers on top row to cool sun exposure, warmer greens and reds lower to ground the composition. Keep heavy plants at the bottom tiers to minimize stress on upper fasteners.

Drainage, Substrate, and Watering

Drainage is non-negotiable: drill multiple 6–8 mm holes across the planter base, add a thin pea gravel layer, then landscape fabric so fines don’t clog exits. A pumice-forward mix (about 60% pumice/perlite to 40% soil) keeps roots aerated. Outdoor watering: in summer, a deep soak once every 7–10 days; shoulder seasons every 14–21 days; pause during sustained rains. A discreet drip line on a solar timer reduces guesswork, especially in heatwaves.

Mounting and Safety

Assess your wall substrate. Masonry: sleeve anchors with neoprene washers; timber studs: lag bolts into studs, never just sheathing. Distribute load with a backer plate, and keep total planted weight under 2.5–3.5 lbs per square foot for small balconies. Seal cut edges and screw penetrations with exterior-grade sealant to prevent water intrusion.

Color Psychology and Plant Selection

Cool-toned succulents (blue echeveria, silver sedum) calm tight spaces; a few warm accents (red-tipped crassula, orange kalanchoe) add energy without visual noise. Limit the palette to 4–6 species to avoid a busy look; repeat clusters to reinforce harmony. For pollinator interest, integrate low-flower sedum along the outer band so blooms don’t rub against seating zones.

Acoustic and Thermal Comfort

Vertical foliage subtly diffuses sound from neighboring units. Pair the planter with a soft wall panel or outdoor rug to dampen reflections. Avoid mounting the planter directly over metal railings that heat up—conductive surfaces can exaggerate stress during mid-afternoon peaks.

Step-by-Step Build

1. Measure and mark: define width and height; plan 4–5 inch spacing. Test sightlines from seating.

2. Backer and frame: cut marine plywood, seal edges, attach cedar or aluminum frame with stainless screws.

3. Drainage: drill base holes, add pea gravel and landscape fabric.

4. Modules: screw felt pockets or shallow boxes to frame, checking alignment.

5. Mounting: anchor to wall studs or masonry with appropriate hardware; confirm level.

6. Planting: pre-moisten mix lightly; plant structural species first, then texture, then accents.

7. Irrigation: install drip line if desired; set timer sparingly.

8. Final checks: verify glare, runoff path, and reach for maintenance.

Maintenance and Seasonal Care

Trim leggy growth quarterly, rotate trailing species if they shade neighbors, and check for mealybugs after heatwaves. Refresh topsoil annually with a thin layer of gritty mix. Before winter in frost-prone regions, move tender species to sheltered spots and cover the frame during hard freezes.

Reference and Research

I look to WELL v2 for daylight and comfort guidance and to IES practices for night-time glare control—both shape how I light and position outdoor vertical green features for small spaces. Explore evolving workplace and human-centered environmental research through Steelcase to understand how visual order and biophilic elements support restoration.

FAQ

Q1: Which succulents handle outdoor exposure best?

A: Echeveria, sedum, sempervivum, crassula, and compact aloe tolerate bright conditions and mild wind. Avoid tender varieties in frost-prone regions unless you can provide winter protection.

Q2: How much sun is ideal for a wall planter?

A: Aim for 3–5 hours of gentle morning sun. Eastern exposure keeps foliage vivid without leaf scorch. Use warm, low-glare accent lighting at night to maintain comfort per IES recommendations.

Q3: What soil mix prevents rot?

A: A gritty blend around 60% pumice/perlite and 40% succulent potting soil supports drainage and root aeration. Add a thin gravel base and ensure multiple drain holes.

Q4: How often should I water outdoors?

A: Summer: every 7–10 days with a deep soak. Spring/fall: every 14–21 days. Skip watering during rainy stretches and reduce in cool weather.

Q5: Can I install this on a rental balcony?

A: Yes, use freestanding frames or mount to existing studs with removable anchors. Keep total weight modest and distribute load with a backer plate.

Q6: What about glare and nighttime viewing?

A: Choose 2700–3000K fixtures, baffle lights, and offset luminaires from foliage by 12–18 inches to minimize glare, aligning with IES comfort practices.

Q7: Will the planter help with noise?

A: Vertical foliage can soften reflections. Combine with soft surfaces—outdoor textiles or acoustic-friendly panels—for noticeable improvement in small patios.

Q8: How do I keep the look cohesive?

A: Limit to 4–6 species, repeat diagonals for rhythm, and follow a 60/30/10 structure-texture-accent ratio. This keeps the composition calm and visually ordered.

Q9: Do I need irrigation?

A: Not mandatory, but a simple drip line on a timer reduces overwatering risk and stabilizes care during heatwaves or travel.

Q10: What’s the best frame material for weather?

A: Cedar and powder-coated aluminum resist rot and corrosion. Seal cut edges and use stainless or hot-dip galvanized hardware for longevity.

Q11: How high should I hang the planter?

A: Center the composition between 48–60 inches above floor for easy reach and comfortable viewing from seated positions. Test with a mock-up before drilling.

Q12: Can I mix flowers with succulents?

A: Yes, integrate low-flower sedum or hardy kalanchoe as accents. Keep bloom-heavy plants away from narrow circulation to avoid snagging.
