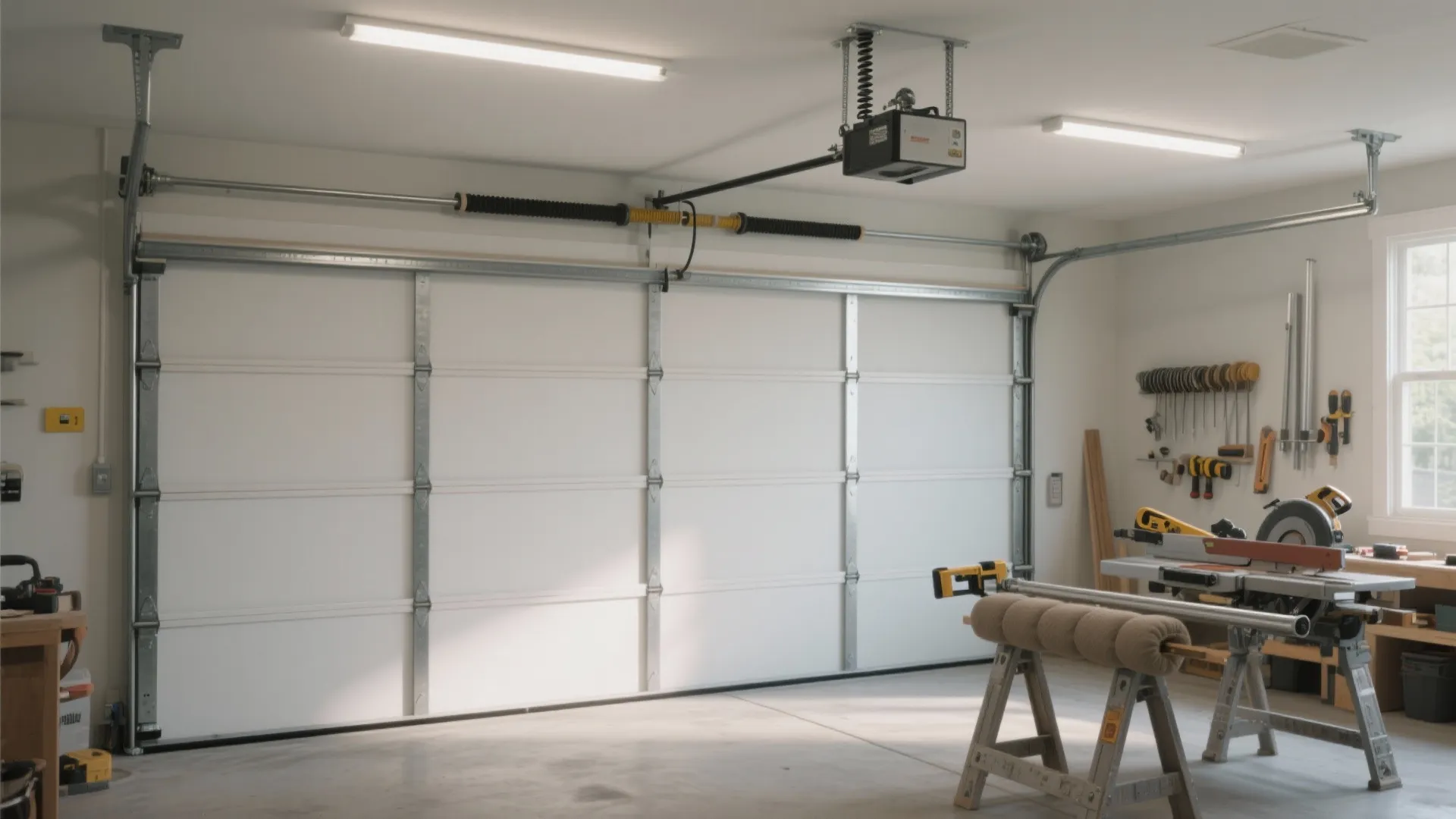

DIY Overhead Door Installation Guide: 1 Minute to Understand Fast-Track DIY Overhead Door Solutions

I’ve installed and serviced dozens of overhead doors across workshops, garages, and light commercial bays. A DIY installation is doable if you respect load, tension, and alignment. The goal is a door that travels true, seals well, and doesn’t fight the opener. Before picking up a wrench, confirm structural backing, measure accurately, and stage all components so you’re never guessing mid-assembly.

Precision matters. In workplace studies, poor ergonomics during repetitive tasks can increase musculoskeletal disorder risk; Steelcase research highlights that awkward reaches and sustained force rapidly degrade performance and safety over time. For lighting, the Illuminating Engineering Society recommends task illuminance typically between 300–500 lux in residential garage work zones to reduce mistakes during mechanical assembly (IES standards). If you’re adding an opener later, WELL v2 guidance on comfort highlights noise management and vibration control as contributors to perceived acoustic comfort in small spaces. For broader planning insights, explore Steelcase research for workflow behaviors, and IES standards for glare management in utility areas.

Plan, Measure, and Select the Right Door

Start by confirming rough opening dimensions (width and height), headroom (top of opening to ceiling or lowest obstruction), and backroom (opening height plus the length needed for horizontal tracks). Most sectional overhead doors require at least 10–12 inches of headroom for standard torsion setups. Measure the opening at three points horizontally and vertically; use the smallest dimension for fitting and note any out-of-square variances greater than 1/4 inch. If your layout includes constrained side clearances or obstructions, a room layout tool can help visualize track paths and opener locations: room layout tool.

Safety, Tools, and Staging

Prepare safety gear: eye protection, cut-resistant gloves, hearing protection if you’ll be drilling into masonry, and a stable ladder or platform. Torsion springs are under high tension—treat them with absolute respect. Stage panels on padded sawhorses, group fasteners by step, and inspect tracks for dents. Keep a calibrated level, measuring tape, locking pliers, impact driver with nut-setters, a set of winding bars sized to your spring cones (never screwdrivers), and a torque wrench for final hardware checks.

Frame Preparation and Weather Sealing

Inspect the jambs and header for rot, bowing, or loose fasteners. Shim as needed to ensure the jambs plumb and the header level. Anchor a new weatherstop if the existing one is brittle or warped. Install the bottom threshold (optional) to help with water ingress; choose closed-cell EPDM for durability. Confirm the slab is even—more than 1/2 inch pitch across the width can require a tapered bottom seal to prevent daylight and drafts.

Panel Assembly and Hinge Placement

Lay the bottom panel first, center it in the opening, and set temporary blocks to maintain a uniform reveal. Attach bottom brackets—never remove the fasteners once the cable is attached under tension. Install hinges: #1 hinges typically sit between the bottom and second panel, #2 hinges between second and third, etc., depending on the manufacturer’s rise pattern. Fasten rollers to stiles before lifting panels. Keep fasteners snug but not fully torqued until final alignment; wood doors may need pilot holes to avoid splitting.

Track Installation and Alignment

Mount vertical tracks to the jamb using slotted brackets to allow micro-adjustment. The track face should be parallel to the door edge with an even 1/8–1/4 inch gap for free travel. Check plumb with a 2–4 ft level and verify that both sides are symmetric. Install the flag brackets and horizontal tracks, supporting them temporarily with a strap or angle. Horizontal tracks should have a slight rise—typically 1–2 inches over the length—to prevent the door from drifting open. Ensure the track radius matches your headroom and spring system.

Torsion System: Shaft, Drums, and Springs

Set the torsion shaft across the header with bearing plates and center bracket secured into structural backing. Slide on the cable drums, springs, and secure set screws lightly until positioned. Route lift cables from the bottom brackets to the drums, ensuring equal tension and no frays. Double-check the drum alignment so cables wind cleanly without riding the flanges. If your system uses extension springs, install safety cables through each spring to prevent snap-back hazards.

Spring Winding and Balancing

Follow the manufacturer’s chart for turns based on door height and spring wire size. Insert winding bars fully; never substitute tools. After winding, tighten set screws on the cones and test lift. A correctly balanced door will stay at mid-travel without drifting more than a few inches. If the door rises on its own, reduce turns; if it sinks, add turns. Confirm there’s no cable slack at full open and that both sides reach the same drum mark.

Opener Integration and Limits

Mount the opener according to the track type (chain, belt, or direct-drive). Anchor the header bracket to solid framing and align the rail with the door centerline. Connect the arm to the door’s operator bracket and set travel limits so the door seals firmly at close and doesn’t slam the stops at full open. Add photo-eyes at standard height (usually 4–6 inches from the floor) with clean sightlines. Test auto-reverse with a 2x4 under the door; it must retract immediately when encountering resistance.

Weatherstripping, Bottom Seal, and Final Tuning

Install side and top weatherstripping with a slight compression against the door to reduce drafts and improve acoustic comfort. Fit the bottom U-seal to match slab irregularities. Tune roller brackets and hinges for smooth travel—listen for rubs or clicks that indicate a misaligned track or a roller bearing starting to fail. Lubricate torsion springs lightly with a dedicated garage door lubricant, not heavy grease that attracts dust.

Lighting, Color, and Acoustic Considerations

For overhead door work zones, maintain 300–500 lux with neutral-white (around 4000K) lighting to preserve contrast without cold glare. Shield bare lamps to minimize veiling reflections on metal panels. Color psychology suggests cooler neutrals can make utility spaces feel cleaner and more task-focused, while a warmer accent near the entry improves perceived comfort. If an opener introduces hum, add rubber isolation mounts and consider wall-mounted acoustic panels to damp reflections, keeping the bay usable for workshop tasks.

Maintenance Schedule and Safety Checks

Every six months: check cable fray, roller bearings, hinge cracks, and fastener torque. Test manual balance, auto-reverse, and photo-eye alignment. Annually, confirm spring count marks, drum set screws, and weatherstrip compression. Replace rollers at the first sign of wobble. If you notice a sudden change in travel speed or noise, pause operation and inspect—minor adjustments prevent major failures.

Authority Resources

For data on task lighting and safety factors, reference IES standards from ies.org/standards. For workspace behavior and ergonomic insights related to repetitive installations, review Steelcase research at steelcase.com/research.

FAQ

Q1: How much headroom do I need for a standard torsion setup?

A1: Most residential sectional doors need 10–12 inches of headroom. Low-headroom kits can work with less, but check your manufacturer’s specifications for radius and spring placement.

Q2: What lux level should I target during installation?

A2: Aim for 300–500 lux on the work plane to reduce errors and eye strain, aligning with typical task illuminance guidance from IES standards.

Q3: How do I know the door is properly balanced?

A3: Disconnect the opener, move the door to mid-height, and release. It should hold position or drift slightly within a few inches. If it drops or shoots upward, adjust spring turns accordingly.

Q4: Can I use a screwdriver instead of winding bars for torsion springs?

A4: No. Always use correctly sized winding bars. Improvised tools can slip, causing severe injury and damaging the cone.

Q5: What’s the ideal track alignment gap?

A5: Keep an even 1/8–1/4 inch clearance between the door edge and track face. This prevents binding while maintaining smooth roller engagement.

Q6: How often should I service rollers and hinges?

A6: Inspect every six months. Replace rollers showing wobble or noisy bearings. Tighten hinge fasteners and check for cracks or elongated holes.

Q7: How do I improve acoustic comfort if the opener is noisy?

A7: Add rubber isolation at mounting points, maintain proper lubrication, and use belt-drive openers if compatible. Consider small wall panels to absorb reflections in hard-surface garages.

Q8: What color temperature works best in a garage?

A8: Neutral-white around 4000K balances contrast and comfort. Pair with glare control to avoid harsh reflections on metal hardware.

Q9: Do I need side weatherstripping on all doors?

A9: Yes, for most installations. Proper side and top seals reduce drafts, protect against dust, and help with temperature and noise control.

Q10: When should I choose extension springs instead of torsion?

A10: Use extension springs when headroom is limited and the design calls for them, but include safety cables. Torsion systems generally offer smoother operation and balance.

Q11: What’s the safest way to test auto-reverse?

A11: Place a 2x4 flat under the door and initiate close. The door must reverse immediately on contact. Also test photo-eyes by interrupting the beam.

Q12: How do I handle an out-of-square opening?

A12: Shim jambs to true, adjust track brackets to maintain even reveal, and use a tapered bottom seal if the slab pitches more than 1/2 inch across the width.
