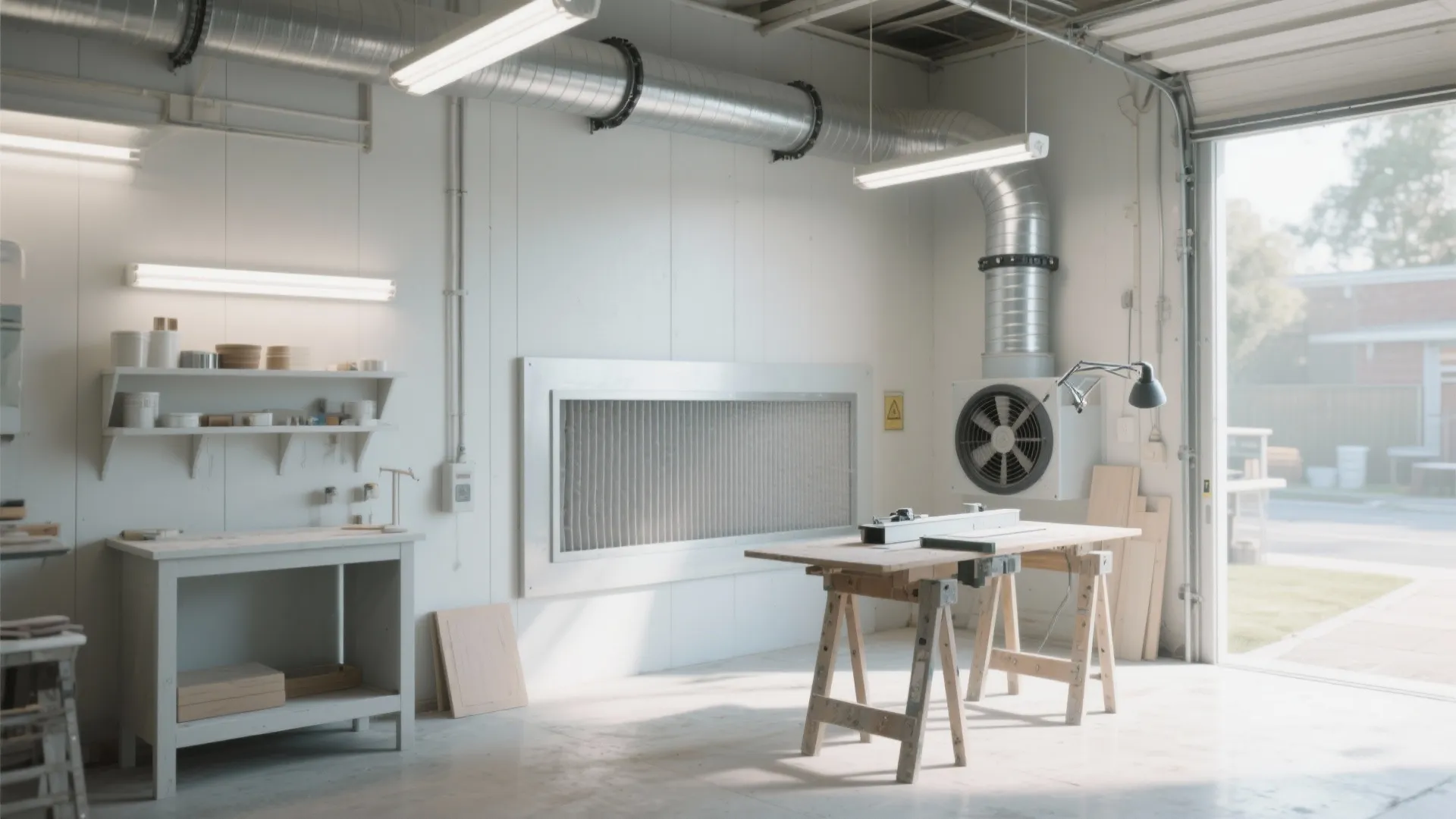

DIY Paint Booth Exhaust Wall: A Practical Guide for Small Spaces: 1 Minute to Build a Safer, Cleaner DIY Paint Booth Exhaust Wall at Home

I’ve built and tuned several compact paint setups for furniture refinishing and small product runs, and the exhaust wall remains the most reliable way to manage overspray and fumes in tight quarters. The goal is straightforward: pull air evenly across your work area, capture particulate before it hits the fan, and discharge to the outdoors with minimal noise and heat loss.

Airflow and filtration are not guesswork. Workplace studies show ventilation quality directly influences task performance; Steelcase research links improved environmental control to higher perceived productivity and reduced fatigue. From a standards perspective, WELL v2 recommends source-capture ventilation and direct exhaust for processes generating fumes, and the Illuminating Engineering Society (IES) emphasizes minimizing glare and maintaining visual acuity in task lighting—both relevant when painting fine surfaces. These benchmarks help frame the build: steady airflow, particle filtration, safe discharge, and adequate lighting while you work.

For scale, small hobby spray areas typically benefit from 200–500 cubic feet per minute (CFM) of exhaust, depending on booth size and filter resistance. Herman Miller’s workplace findings on environmental comfort highlight that consistent airflow reduces perceived strain during focused tasks, which matches my field observations—when the draw is even, you paint longer with fewer errors.

Core Design Principles

Think of the exhaust wall as a negative-pressure backdrop. Air enters from behind you or side intakes, travels past the workpiece, and gets pulled through a filter bank set into a plenum before the fan. The sequence is: open face → filter media (pre-filter + fine filter) → safety plenum → fan → duct → exterior discharge. Keep duct runs short and straight to reduce static pressure; avoid sharp elbows and undersized flex duct that choke flow.

Sizing Airflow and Static Pressure

Measure your booth face area (width × height). A modest 3 ft × 4 ft opening is 12 ft². A face velocity of 50–100 feet per minute works well for light coatings, yielding 600–1,200 CFM. In very small rooms, you can run lower CFM (200–500) if the opening is smaller or partially baffled. Balance CFM against noise, filter pressure drop, and heat loss—oversized fans waste energy and can overdraw conditioned air.

Filter Strategy: Layered Filtration

Use a two-stage filter stack: a MERV-8 or dedicated paint arrestor pre-filter to catch overspray, followed by a MERV-13 (or equivalent paint booth media) for finer particulates. Replace pre-filters frequently; they load fast and protect your fan. Keep filter frames airtight with foam tape or gaskets to prevent bypass. Most small builds benefit from a 2–4 inch total media thickness. Track pressure drop; as filters clog, CFM falls and overspray drifts.

Fan and Motor Selection

For solvent-based finishes, choose a fan with appropriate motor isolation or explosion-resistant design. A backward-inclined centrifugal fan handles filter resistance better than axial fans, maintaining steadier flow across the wall. If you’re strictly using waterborne coatings with low VOCs, a quality inline centrifugal can suffice. Locate the fan downstream of the filters in a sealed plenum.

Ducting and Exterior Discharge

Use smooth-walled metal duct, size-matched to your fan outlet. Keep runs under 10–15 feet where possible, with gentle-radius elbows. Terminate outside with a backdraft damper and weather hood. Never discharge into attics or crawl spaces. If local code requires, install a spark arrestor or secondary filter before discharge when spraying solvent-based finishes.

Wall Construction and Plenum Depth

Frame the wall with 2×4s or metal studs. Leave 8–12 inches of plenum depth behind the filters to equalize pressure and avoid hot spots. Add perforated baffles or diffuser screens if the draw feels uneven. Seal all joints with construction adhesive and tape; air leaks reduce capture efficiency.

Layout and Small-Space Planning

Place the exhaust wall opposite your entry airflow. Keep 24–36 inches of clear working depth in front of the filters to avoid wet paint being sucked onto media. If you’re reconfiguring a tight room, a simple interior layout planner helps visualize clearances, fan placement, and duct path, especially when working around doors and windows. Try this room layout tool for rapid planning and simulation: room layout tool.

Lighting, Glare, and Color

Task lighting should sit above and slightly forward of your work to reveal texture without blasting directly into your eyes. Follow IES guidance to avoid excessive luminance contrast; 500–1,000 lux on the task plane is comfortable for fine finish work, with neutral 4000–5000K LEDs to keep color rendering consistent. Matte white or light gray surrounds reduce glare and help judge coverage.

Acoustics and Comfort

Centrifugal fans produce tonal noise; line the plenum with thin acoustic panels or mineral wool away from the airflow path to damp resonance. Rubber isolators on the fan mount cut vibration. Keep peak noise under 75–80 dBA if possible—fatigue rises quickly above that range during detailed spraying.

Material Choices and Cleanability

Use smooth, non-porous surfaces: melamine, sealed plywood, or powder-coated sheet for the wall face. Avoid raw OSB at the booth face; fibers lift and catch overspray. Pick finishes that tolerate solvent wipe-downs. For sustainability, select low-VOC sealants and paints, and replace filters on a schedule to keep efficiency high.

Safety and Code Awareness

Ground metal components if you spray flammable coatings. Keep fire extinguishers rated for Class B fires. Check local regulations for residential discharge and flammable storage limits. Never operate near open flames or heaters. Provide make-up air—cracking a window or adding a passive intake prevents negative pressure from back-drafting appliances.

Step-by-Step Build Outline

1) Frame a wall sized to your booth opening, ensuring plenum depth (8–12 inches). 2) Install filter rails for a two-stage stack. 3) Seal the plenum and mount a centrifugal fan downstream of filters. 4) Run smooth duct to the exterior with a damper and hood. 5) Add baffles or diffuser screen to even out draw. 6) Install task lighting and matte finishes around the booth face. 7) Test airflow with a smoke pencil across several points; adjust baffles and replace filters as needed. 8) Add acoustic isolation, label filter change dates, and document CFM readings.

Maintenance and Performance Checks

Log filter changes and note pressure drop (a simple manometer across the filter bank works). If capture weakens, check for bypass gaps, clogged pre-filters, or crushed duct. Keep a spare set of filters ready; painting sessions go smoother when you can swap quickly.

When to Scale Up

If you frequently spray larger panels or higher-solids coatings, increase face area and CFM, and consider upgrading to a more robust motor or adding a side intake to improve laminar flow. At that point, review WELL v2 ventilation guidance and local code for ignition-proof equipment and discharge requirements.

FAQ

Q1: How much CFM do I need for a small DIY paint booth?

A: For hobby-scale work, 200–500 CFM can manage light coatings in tight rooms. For a 3×4 ft opening, target 600–1,200 CFM if you aim for 50–100 fpm face velocity and have adequate make-up air.

Q2: Which filters should I use?

A: Start with a paint arrestor or MERV-8 pre-filter and follow with MERV-13 or booth-grade fine media. Replace pre-filters often; they capture most overspray and keep static pressure stable.

Q3: Can I use an inline duct fan?

A: Inline centrifugal fans can work for waterborne coatings and low VOCs, but for higher resistance and steadier draw across filters, a backward-inclined centrifugal blower is more reliable.

Q4: How do I reduce noise?

A: Isolate the fan with rubber mounts, use smooth metal duct, minimize elbows, and add acoustic lining inside the plenum away from airflow. Keep peak levels below roughly 75–80 dBA for comfort.

Q5: What lighting is best?

A: Aim for 500–1,000 lux with 4000–5000K LED fixtures and diffusers to limit glare. Balanced lighting helps reveal coverage without washing out color—aligns with IES guidance on task visibility.

Q6: Do I need make-up air?

A: Yes. Without make-up air, exhaust flow drops and you risk back-drafting combustion appliances. Provide a passive intake or crack a window near the booth.

Q7: Is it safe to spray solvent-based paints?

A: Use appropriately rated fans and keep ignition sources away. Ground metal parts, follow local codes, and consider a spark arrestor before exterior discharge when using flammable coatings.

Q8: How often should I change filters?

A: Change pre-filters whenever overspray loads visibly or static pressure rises noticeably; fine filters last longer but should be replaced on a schedule to maintain consistent airflow.

Q9: Can the exhaust wall be portable?

A: Yes—build a freestanding frame with locking casters, quick-release filter rails, and flexible duct to a wall thimble. Keep the footprint minimal to preserve floor space.

Q10: What about odor control?

A: Mechanical exhaust is primary. For residual odors, add activated carbon pads as a tertiary layer, but don’t rely on them in place of direct outdoor discharge.
