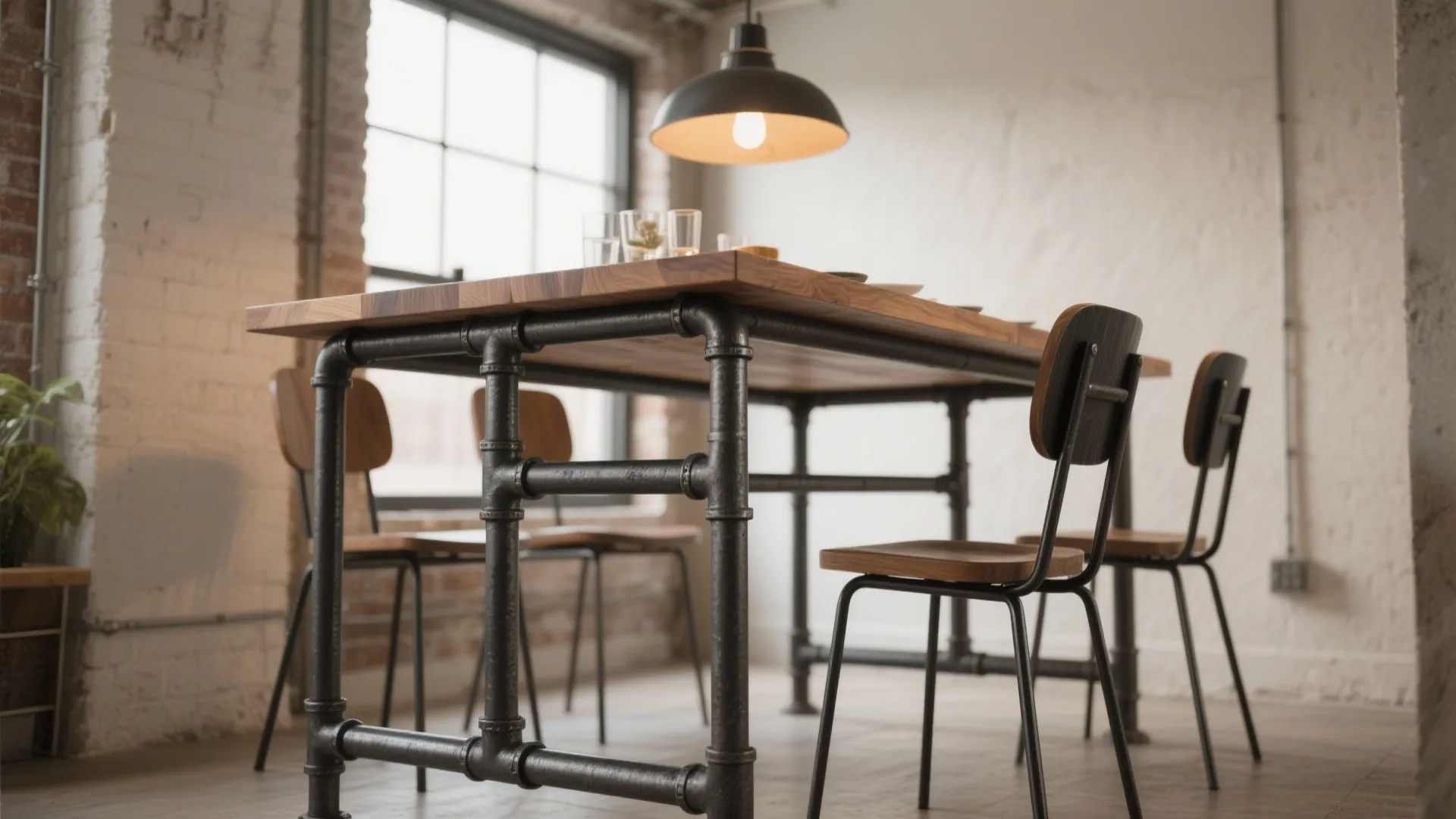

DIY Pipe Leg Table: Create an Industrial Chic Table at Home: Fast-Track Guide to Making a Stunning DIY Pipe Leg Table in Minutes

I’ve built more pipe-leg tables than I can count for lofts, studios, and dining nooks. The appeal is obvious: strong, affordable, and unapologetically industrial. To make yours feel intentional rather than improvised, focus on proportion, ergonomics, and finish—then lock it all in with a durable top and properly assembled pipe base.

Start with dimensions shaped by real human factors. Standard dining height sits at 28–30 inches; I target 29 inches with 17–18 inches of leg clearance for comfortable knees. Herman Miller research links supportive posture and appropriate work heights with reduced musculoskeletal strain and higher task comfort; translating that to the home, a table around 29 inches tall paired with 17–19 inch seat height keeps hip and knee angles in a comfortable range for meals and light laptop work. For lighting, the Illuminating Engineering Society suggests 30–50 footcandles (≈300–500 lux) for dining and casual task zones; hang a dimmable pendant to reach that level at the tabletop and cut glare with diffusers.

Material durability matters just as much. I often use 1-inch steel pipe (schedule 40) for legs because it resists racking. For surfaces, solid hardwoods like oak and maple handle impact well; a conversion varnish or hardwax oil earns its keep in abrasion resistance. From a well-being standpoint, WELL v2 emphasizes low-VOC finishes to improve indoor air quality—choose finishes clearly labeled as low-VOC and cure fully before use. For workplace-style surfaces, Steelcase research highlights how tactile comfort and visual clarity support focus; translated home-side, a matte finish reduces specular glare and eye fatigue when working at the table.

Plan Your Size, Purpose, and Proportion

Define what the table must do before buying any pipe. For four diners, plan a 60–72 x 36 inch top; for six, 72–84 x 38–40 inches. Keep a 36 inch circulation path around the table to avoid bumping knees into the frame. Visually, pipe bases read heavier than wood aprons; balance that with a 1–1.5 inch thick top to avoid a top-heavy silhouette. If this will double as a laptop station, keep the surface depth at 30–36 inches so screens sit 20–28 inches away, easing visual accommodation.

Pipe and Fittings: What to Buy

- Legs: Four pieces of 1-inch black steel pipe, cut to achieve a 29 inch finished height after adding flanges and glides.

- Rails/Stretchers: Two long pipes running lengthwise and two short pipes crosswise. These prevent splay and add stiffness.

- Fittings: Eight floor flanges (top/bottom), four tees, four elbows if doing a rectangular H-frame. Add thread seal tape only for squeak control, not for structural needs.

- Hardware: 1–1.25 inch wood screws for flanges, felt or rubber glides, washers for slotting the wood underside to allow seasonal movement.

Choose the Tabletop: Wood, Plywood, or Composite

- Solid hardwood (oak, ash, maple): Tough, repairable, takes oil or varnish well. Aim for 1–1.25 inch thickness for a crisp profile.

- Furniture-grade plywood with hardwood edge-banding: Stable and budget-friendly; seal edges carefully.

- Reclaimed planks: Great character; mill them flat and add bowties if checking is present. Expect more finishing time.

Keep weight in mind. A 72 x 36 x 1.25 inch oak top can exceed 70–80 lb; your stretcher design, flange count, and screw bite must match that mass.

Ergonomics and Legroom

Pipe legs mounted at the corners can steal knee space if the flanges sit too far inboard. I hold flanges 1.5–2 inches from the outer edges to maximize legroom while keeping screws clear of end grain. For bench seating, check a 12 inch knee overhang from the table edge to avoid shin hits against the frame.

Lighting and Visual Comfort

Set the mood and cut glare. A dimmable pendant or linear LED hung 28–34 inches above the tabletop gives even spread. Target 30–50 footcandles on the surface for dining; bump to 50–75 for work sessions. Use warm to neutral CCT (2700–3500K) to keep skin tones flattering and food appealing. If the top is high-gloss, add a diffuser or position light slightly off-axis to avoid mirror-like hotspots.

Color and Finish Strategy

Industrial doesn’t have to mean cold. Color psychology suggests warmer hues increase sociability, while cooler hues can feel calmer. A blackened pipe base anchors the piece; pair it with a mid-tone wood to avoid stark contrast. If you prefer painted pipe, use an etching primer and satin enamel. On wood, a hardwax oil keeps grain tactile; a conversion varnish offers top-tier stain resistance for families.

Acoustic Considerations

Hard surfaces reflect sound. If your space is echo-prone, add a felt runner, fabric chairs, or a textured rug under the table. Soft additions can lift absorption at speech frequencies, making conversations clearer without raising volume.

Step-by-Step Build

1) Cut and prep the top: Flatten, sand to 180–220 grit. Break edges with a 1/16–1/8 inch chamfer.

2) Lay out the base: On a soft surface, dry-fit pipes, tees, and stretchers into an H-frame. Square the assembly by measuring diagonals until equal.

3) Add flanges: Attach flanges to the top-side of the pipe legs first, then to the floor side. Install adjustable glides if floors are uneven.

4) Pre-finish: Degrease pipes with mineral spirits, then finish (clear coat, oil-based enamel, or paste wax). Finish the wood separately to avoid contaminating grain with metal oils.

5) Mount the base: Flip the top upside down. Position the base 1.5–2 inches from edges; mark pilot holes. Use washers and slotted holes to allow seasonal wood movement across the grain.

6) Final level and cure: Flip upright, level with glides, and let finishes cure fully before heavy use.

Layout and Space Planning

Before drilling, mock the table footprint with painter’s tape to confirm circulation and chair pull-out. If you’re testing multiple sizes or orientations, a digital interior layout planner helps visualize clearances and lighting cones ahead of time. I often run a quick scenario in a room layout tool to check the 36 inch circulation and pendant reach.

room layout tool

Safety, Stability, and Longevity

- Cross-bracing: If your table is over 84 inches long, add a center stretcher to prevent racking.

- Fastening: Drive screws snug, not over-tight, to avoid stripping. Use at least four screws per flange into solid wood.

- Leveling: Adjustable glides protect floors and compensate for minor pipe length differences.

- Maintenance: Re-wax or re-oil annually; check fittings seasonally for any loosening from thermal changes.

Sustainability Choices

Choose FSC-certified wood where possible. Reuse salvaged tops when available. Low-VOC finishes support indoor air quality and align with wellness guidelines. Black steel pipe is widely recyclable; if you paint it, select durable coatings to extend maintenance cycles.

Design Variations

- Parsons profile: Legs tight to the corners with hidden stretchers for a cleaner silhouette.

- Trestle pipe base: Frees up corner knees and suits longer tops.

- Counter-height (36 inches): Pair with 24–26 inch stools; add a footrest stretcher at ~11–12 inches above the floor.

Cost and Timeline

Expect to spend more on the top than the pipe. For a 72 x 36 inch hardwood table, pipe and fittings typically fall in the modest three-figure range, while quality lumber and finish push the total higher. With pre-cut pipe and a pre-glued top, you can assemble over a weekend including finish cure time.

FAQ

Q1: What pipe diameter should I use for stability?

A: For most dining tables, 1-inch (schedule 40) steel pipe hits the sweet spot of stiffness and weight. Go to 1-1/4 inch for tops longer than 84 inches or for heavy reclaimed slabs.

Q2: How tall should the table be?

A: Aim for 29 inches finished height with 17–18 inches of knee clearance. Pair with chairs that have 17–19 inch seat height for comfortable joint angles.

Q3: How do I prevent wobble?

A: Use cross stretchers, square the frame by equalizing diagonals, and add adjustable glides. Check that flanges seat flat against the underside of the top.

Q4: What finish resists stains best on the top?

A: Conversion varnish offers strong chemical and abrasion resistance. Hardwax oils are easier to repair but need periodic refresh.

Q5: How do I handle wood movement?

A: Slot flange holes in the direction of wood movement (across the grain) and use washers. Keep the base slightly inboard to accommodate seasonal expansion.

Q6: What lighting works best above an industrial table?

A: A dimmable pendant at 28–34 inches above the surface gives even coverage. Target 30–50 footcandles for dining; raise output for task use. Diffusers help with glossy tops.

Q7: Can I paint the pipe instead of leaving it black?

A: Yes. Clean with a degreaser, apply an etching primer, then a satin enamel. Let each coat cure fully to improve chip resistance.

Q8: What’s the ideal tabletop thickness?

A: 1–1.25 inches feels substantial without looking bulky. Thicker tops benefit from larger-diameter pipe and additional stretchers.

Q9: How do I reduce noise around a hard-surface table?

A: Add a rug, fabric chairs, or a felt runner. Soft materials improve speech clarity and reduce clatter.

Q10: Is counter-height a good idea for small spaces?

A: It can be. At 36 inches tall with stools, you gain storage beneath and visual separation from seating areas. Add a footrest stretcher for comfort.

Q11: What spacing should I leave for chairs?

A: Allow about 24 inches per person and maintain 36 inches of clearance behind chairs for circulation.

Q12: How do I choose a color scheme that isn’t too stark?

A: Balance a dark base with a mid-tone top, or soften with warm woods and matte finishes. Warmer hues generally feel more inviting for dining.
