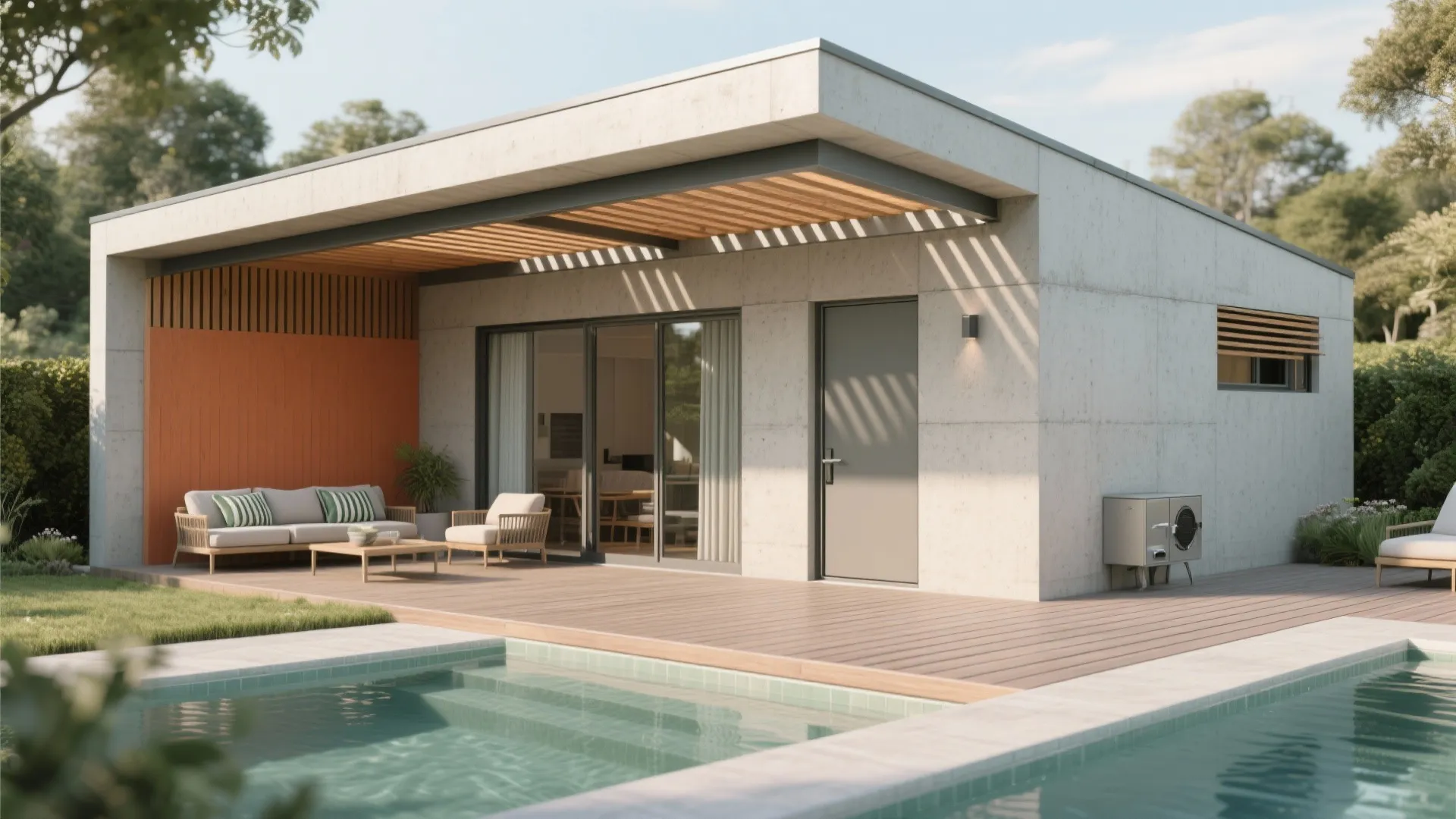

DIY Pool House Design: Your Ultimate Guide: Fast-Track Guide to Building a Pool House That Maximizes Space

I design small outbuildings a lot, and pool houses are the most rewarding. Done right, they streamline wet-foot traffic, hide gear, and extend outdoor living through shoulder seasons. The key is balancing proportions, drainage, light, and storage without overcomplicating the build.

Define Purpose and Size First

Start with the program: changing room, shower, toilet, equipment closet, bar or kitchenette, lounge, and storage. Each function dictates circulation and utility runs. For compact builds, I use a 60/40 split: 60% for active use (changing, lounge) and 40% for service (equipment, storage). Gensler’s workplace research notes that a 10–20% increase in usable collaboration space correlates with better perceived functionality; outdoors, that translates to generous, obstruction-free zones between doors, wet areas, and seating (source: gensler.com/research). For sanitary planning, WELL v2 promotes handwashing access with clear sightlines and non-porous finishes in high-moisture zones (source: wellcertified.com). Map fixtures and door swings before framing so you avoid awkward pinch points.

Site, Orientation, and Envelope

Place the pool house to capture afternoon shade and protect from prevailing winds. Cross-ventilation keeps humidity in check; I aim for two operable openings on opposing walls. For glazing, the IES recommends controlling glare and luminance ratios to reduce visual discomfort—target a balanced 300–500 lux indoors for task areas with indirect light and cut direct west-facing glare with overhangs or louvers (source: ies.org/standards). In hot climates, deep eaves and a light, high-albedo roof finish help; in colder zones, insulate slab edges and consider a vestibule or enclosed porch to buffer temperature swings.

Layout: Zones, Circulation, and Wet/Dry Separation

Create a clean path from pool to changing and shower, then out to lounge. Keep wet functions on one side with a continuous floor drain line to limit moisture spread. If you need quick iteration on plan options or traffic flow, a room layout tool can speed up visualization for door locations and fixture clearances: room layout tool. In small footprints, sliding doors or outswing doors prevent clashes with benches and towel hooks. Maintain at least 900 mm (36 in) clearances around showers and WCs; ADA-equivalent turning circles (1500 mm / 60 in) in a changing area make movement comfortable for all users.

Plumbing, Drainage, and Moisture Control

Moisture drives the specification. Use a sloped floor (1–2%) toward trench or point drains in shower and threshold zones. Waterproof membranes behind tile are a must. I specify marine-grade plywood for cabinetry, EPDM or liquid-applied membranes in wet walls, and PVC trim to resist rot. Vent fans should hit 8–10 air changes per hour in changing rooms; pair with an operable transom for passive purge. Separate pool equipment with a gasketed door and louvered intake/exhaust to manage heat and noise.

Lighting Strategy: Day to Night

For daytime, indirect daylight and shaded apertures keep spaces bright without glare. Even at dusk, aim for 100–200 lux ambient in lounging areas and 300–500 lux at vanities. Warm-white 2700–3000K LEDs outside promote relaxation; 3000–3500K inside keeps skin tones flattering. Minimize UGR (Unified Glare Rating) by using diffused fixtures and wall-wash. Dim-to-warm luminaires help the pool house transition from prep to evening entertaining.

Color Psychology and Finishes

Cool neutrals soften heat; muted greens or aquas suggest cleanliness and calm, while a single saturated accent (terracotta, navy) anchors the palette. According to research on color perception summarized by Verywell Mind, blues and greens are associated with relaxation and balance, useful for spaces where recovery and downtime are the goal (verywellmind.com/color-psychology). Keep high-chroma hues to accents to avoid visual fatigue in bright sunlight.

Materials: Durable, Non-Slip, and Sustainable

Choose slip-resistant tiles (R11 or higher), resin-bound outdoor flooring, or textured concrete with silica additive near wet entries. FSC-certified woods, recycled-content composite trims, and low-VOC coatings protect indoor air quality. Stainless or powder-coated aluminum hardware resists corrosion. Exterior fabrics should be solution-dyed acrylic with UV resistance; indoor cushions benefit from quick-dry foam. Where possible, specify water-efficient fixtures aligned with WELL v2 prerequisites for hygiene and sustainability.

Acoustic Comfort and Privacy

Hard, wet surfaces reflect sound; break it up with perforated panels, slatted wood with mineral wool backing, or outdoor-friendly acoustic baffles in the lounge ceiling. Keep the equipment room isolated with resilient channels on common walls. White-noise or fan hum can mask occasional splashes without feeling intrusive.

Storage That Actually Works

Plan tall lockers for towels and dry clothes, ventilated bins for swim gear, and closed upper cabinets for chemicals (never store with textiles). A dedicated wet zone with wall hooks and a drip tray stops puddles from migrating. Magnetic latches hold doors despite seasonal warping, and concealed drains under boot trays keep entries clean.

Outdoor Interface: Shade, Deck, and Transitions

Set a covered porch or pergola on the sunniest side to temper heat and glare. Non-slip decking with directional grooves guides water away from thresholds. Consider a rinse station or foot shower at the transition to cut dirt load. If you host, an undercounter fridge, ice drawer, and a linear bar with a hand sink is enough—go simple to avoid grease and venting complications.

Utilities, Safety, and Code Notes

Run dedicated GFCI circuits near water, isolate pool equipment on its own breaker, and keep all receptacles at code height. Temper water at the source with anti-scald valves. Use tempered or laminated safety glass in doors adjacent to wet areas. Exterior lighting should comply with local dark-sky guidance to minimize glare beyond the property line.

Seasonal Use and Energy

For three-season comfort, insulate walls and slab, seal doors, and add a small heat pump or mini-split with dehumidification. Cross-breezes in shoulder months are as important as heat in winter; place operable windows to invite night cooling while keeping privacy intact.

Budget and Phasing

I like to phase: pour slab and run utilities; frame and weatherproof; finish wet areas; then tackle built-ins and lighting. Spend early money on envelope and drainage—the pretty stuff only shines if the shell is dry and robust. Keep a 10–15% contingency for subsurface surprises.

DIY-Friendly Details

Pre-assemble wall panels, use pocket screws for cabinetry, and select modular tile systems with integrated membranes. Quick-connect plumbing and push-fit valves simplify rough-in. Finally, mock up door swings with painter’s tape and cardboard; it’s the fastest way to catch conflicts before you cut.

FAQ

Q1: What size should a DIY pool house be?

A: For a basic changing room with storage and a small lounge, 10–14 m² (110–150 ft²) works. Add 4–6 m² (45–65 ft²) for a shower/WC, and 3–5 m² (30–55 ft²) for an equipment closet.

Q2: How do I prevent slippery floors?

A: Specify tiles with R11–R12 slip ratings or textured concrete, maintain a 1–2% slope to drains, and add ribbed mats at entries during peak use.

Q3: What lighting levels work best?

A: Target 100–200 lux ambient in lounges, 300–500 lux at vanities. Use 2700–3000K outdoors for relaxing tones, 3000–3500K indoors to keep color rendering flattering and glare controlled.

Q4: Do I need mechanical ventilation?

A: Yes in enclosed changing/shower rooms. Aim for 8–10 air changes per hour via an exhaust fan, plus operable windows or transoms to purge humidity.

Q5: Which materials resist moisture and sun?

A: PVC or composite trims, marine-grade plywood, stainless hardware, solution-dyed acrylic fabrics, and low-VOC, mildew-resistant paints. Use EPDM or liquid-applied waterproofing behind tiles.

Q6: How should I organize storage?

A: Mix tall lockers for dry items, ventilated bins for wet gear, closed cabinets for chemicals, and a drip zone at the entrance with hooks, trays, and a concealed drain.

Q7: Can I include a toilet?

A: Yes, but plan for proper venting, a dedicated drain line, and anti-scald mixing valves. Maintain privacy with a solid door and consider a small vestibule to buffer moisture and odor.

Q8: What about acoustics?

A: Use slatted wood with acoustic backing, perforated panels, and soft furnishings. Isolate equipment rooms with gasketed doors and resilient channels to reduce noise transfer.

Q9: How do I protect finishes from chlorine?

A: Choose corrosion-resistant metals, sealed stone or tile, and UV-stable outdoor fabrics. Keep pool chemicals in a separate, ventilated cabinet to avoid vapor damage.

Q10: Any tips for energy efficiency?

A: Insulate the envelope, seal openings, add a mini-split with dehumidification, and leverage cross-ventilation. Opt for LED lighting and water-efficient fixtures aligned with WELL v2 guidance.
