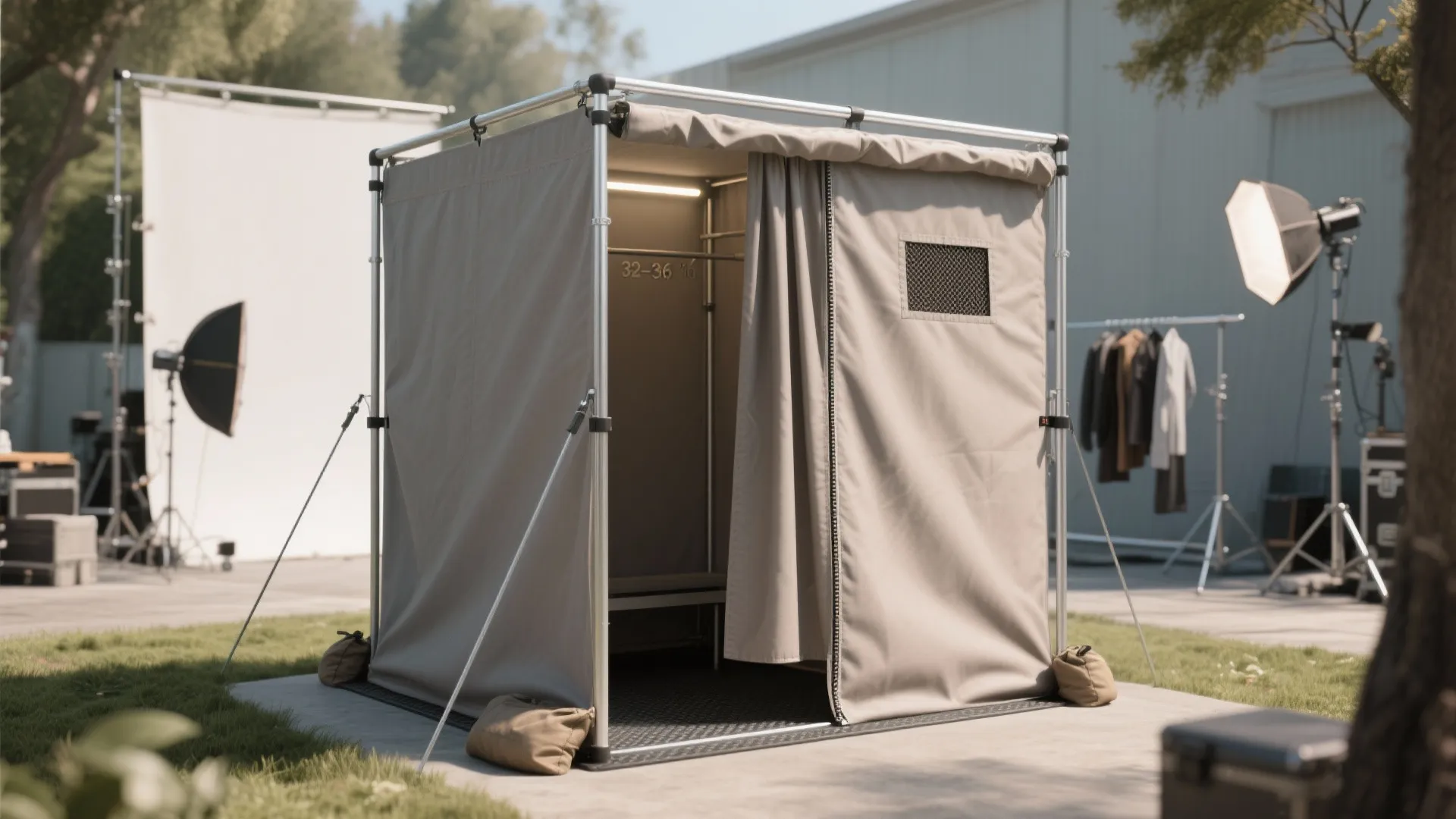

DIY Portable Changing Room: Step-by-Step Guide: 1 Minute to Build Your Own Mobile Privacy Retreat

I’ve built and refined portable changing rooms for photo shoots, pop-up retail, and outdoor events where privacy, speed, and portability matter. The goal is simple: create a stable, lightweight booth that assembles in under five minutes, fits in a car trunk, and feels comfortable to use.

Privacy isn’t just visual—acoustics, ergonomics, and comfort shape how people feel inside a small enclosure. Research from Steelcase notes that perceived privacy improves user comfort and focus; their studies have shown environments with controllable privacy lead to higher satisfaction and task performance. Similarly, WELL v2 emphasizes acoustic and lighting comfort as factors in occupant wellbeing, recommending glare control and balanced illumination to reduce eye strain. I tailor this design to achieve both: opaque, non-sagging fabric for visual privacy, soft but sufficient light, and low-noise panels that don’t flap in wind.

Material choices affect weight and durability. I tend to use aluminum tubing over PVC when the booth will be transported often; aluminum reduces total frame weight by roughly 20–30% compared to equivalent PVC structures of the same stiffness, making it easier to carry and faster to set up. For lighting, I aim for 200–300 lux inside—enough to change comfortably, read labels, and check fit without glare. According to IES recommended practices, task lighting for low-detail activities generally ranges from 150–300 lux, which keeps this booth safe and usable day or night.

Core Design Principles

• Stability first: a freestanding rectangular frame with braced corners resists wobble, even on grass or uneven floors.

• Fast setup: tool-less connectors and labeled poles cut assembly time to under 5 minutes.

• Visual privacy: opaque fabric with a 0.15–0.25 mm blackout liner prevents silhouettes when backlit.

• Acoustic comfort: thicker fabric on at least one panel dampens rustle and external noise.

• Ergonomics: a 32–36 inch door opening and a minimum interior footprint of 36 x 36 inches (91 x 91 cm) let users turn and lift arms comfortably.

• Lighting: diffused, warm-neutral LEDs (3000–3500K) minimize harsh shadows and mirror distortion.

• Ventilation: a small mesh panel near the top prevents heat buildup without compromising privacy.

Recommended Dimensions

For most adult users and quick wardrobe changes, 36 x 36 inches interior floor area and a height of 78–84 inches feels adequately spacious without becoming bulky. If the booth must fit in compact vehicles, a 30 x 30 inch footprint still works but requires careful fabric management and a small shelf to keep items off the floor. The door should be at least 32 inches wide to accommodate bags and shoulders. If you plan for wheel-based movement or uneven sites, add adjustable feet to level the frame quickly.

Materials and Tools

Frame options:

• Aluminum tubing (1 inch OD) with quick-release push-button connectors.

• PVC schedule 40 (1 inch) with T and elbow fittings for low-cost builds.

• Fiberglass tent poles for ultra-light temporary use.

Panels and hardware:

• Opaque polyester or canvas (7–10 oz) with optional blackout liner.

• Hook-and-loop strips, snap fasteners, and zippers for the door.

• Corner braces or guy lines for outdoor stability.

• LED strip light (CRI 90+, 3000–3500K), battery pack, and diffuser.

• Mesh vent (4 x 8 inches) near the top on a side panel.

• Rubber feet or sandbags (10–15 lb each) for ballast.

Accessories:

• Mirror (shatter-resistant acrylic, 12 x 18 inches) with a strap mount.

• Small foldable shelf or hanging organizer for phones, clips, and pins.

• Floor mat with non-slip backing (neoprene or rubber).

• Label set for poles and fabric edges to speed assembly.

Layout Planning and Packability

The booth footprint and door orientation should follow expected traffic flow—entry on the least visible side, with interior storage opposite the door to minimize bumps and falls. If you’re testing different footprints or door positions before committing to cuts, a room layout tool can help you simulate the setup and people flow: room layout tool. I also bundle poles in labeled sets and fold fabric like a tent fly so the door zipper is visible immediately when you open the bag.

Step-by-Step Build Guide

Step 1: Cut and Label the Frame

Measure and cut tubing for four verticals (78–84 inches), four horizontals (36 inches), and two cross-braces (diagonal or mid-span). Label each piece clearly (Top/Bottom/Side A/B) for faster assembly.

Step 2: Assemble the Base

Connect the four base horizontals into a rectangle and add rubber feet. Test stability by applying light lateral pressure; if it skates on smooth floors, add two sandbags inside the footprint.

Step 3: Raise the Uprights and Add Bracing

Insert verticals into the corners and attach the top rectangle. Add cross-braces at 45° or mid-horizontals to reduce sway. Outdoor builds benefit from guy lines attached at the top corners.

Step 4: Fit Panels and Door

Attach fabric panels with hook-and-loop strips on the frame’s outer perimeter. Install the blackout liner behind at least two sides. The door panel should use a vertical zipper with a magnetic or snap close at the bottom to prevent billowing.

Step 5: Integrate Lighting

Mount a short LED strip along the front top bar with a diffuser facing downward. Aim for 200–300 lux at waist height; a portable meter or smartphone light app gives a rough check. Choose 3000–3500K to keep skin tones flattering and reduce glare on a mirror.

Step 6: Add Ventilation and Accessories

Cut and hem a small mesh vent near the top rear panel. Mount the acrylic mirror at shoulder height with a strap. Add a foldable shelf opposite the door and a hook for bags. Place a non-slip mat inside.

Step 7: Test, Adjust, and Pack

Enter with a garment bag and a backpack to confirm door width and turning radius. Check if the fabric silhouettes under backlighting; if so, extend the liner or add a second layer. Fold fabric neatly and bundle poles in a duffel; total packed length should match your longest pole segment (typically 36–42 inches).

Lighting and Acoustics Considerations

Balance brightness and intimacy. Bright but diffuse light (CRI ≥90) helps color rendering—key for stylists and performers—while neutral warmth keeps faces natural. Avoid point-source LEDs that cast hard shadows; a diffuser softens edges and reduces visual stress. For acoustics, heavier fabric on one side absorbs a touch of ambient noise in busy environments, improving perceived privacy. WELL v2’s guidance on controlling glare and flicker aligns with these choices; low-flicker drivers and indirect mounting keep comfort high.

Safety and Ergonomics

Rounded frame ends and capped tubes prevent snags. Keep the door threshold flat; people often step backward while changing, so the mat must not curl. The 36 x 36 inch footprint supports a natural movement pattern: step in, turn, hang bag, change, step out—no awkward shoulder scrapes. Test stability with a lateral push equivalent to about 10–15 lb force; if it wobbles, add ballast or braces. Make sure electrical components are insulated, wires are strain-relieved, and battery packs are enclosed.

Materials and Sustainability Tips

Opt for recycled polyester or canvas where available and select hardware that’s repairable. Modular frames extend lifespan—replace a single bent rod rather than scrapping the entire booth. Mildew-resistant fabrics help if you work outdoors. If a mirror breaks, acrylic fragments are less hazardous than glass. Design for disassembly: snaps and hook-and-loop closures outlast adhesives and speed repairs.

Use Cases and Variations

• Photo shoots and runway back-of-house: fast change cycles, mirror plus shelf, two sandbags for stability.

• Beach and outdoor events: lighter frame, guy lines, vented panels, elevated mat to avoid sand.

• Pop-up retail: add a small battery-powered fan, a brighter 300–350 lux level, and a neutral fabric color that won’t clash with merchandise.

• Sports and wellness: wider 40–42 inch footprint for gear bags and a double zipper for quick access.

Maintenance and Packing Strategy

After each use, shake out sand or grass, wipe the mat, and air-dry fabric to prevent odors. Store LEDs with the diffuser attached to prevent kinks. Keep a small kit: spare snaps, hook-and-loop strips, alcohol wipes, zip ties, and a compact sewing kit. Label the duffel with total weight—aim for 18–25 lb for aluminum builds, 22–30 lb for PVC.

FAQ

Q1: What size works best for most adults?

A1: A 36 x 36 inch footprint with a 78–84 inch height balances comfort and portability. If users carry bulky bags, widen to 40 inches.

Q2: How much light is ideal inside?

A2: Target 200–300 lux with 3000–3500K LEDs and a diffuser. This provides clear visibility without glare and keeps skin tones natural.

Q3: How can I prevent silhouettes when backlit?

A3: Use opaque fabric plus a blackout liner on at least two sides and orient the booth so strong light doesn’t hit directly behind the user.

Q4: What’s the quickest frame system for setup?

A4: Aluminum tubing with push-button connectors assembles faster than PVC and typically weighs less, making transport easier.

Q5: How do I stabilize the booth outdoors?

A5: Add corner guy lines, heavier fabric on the windward side, and 10–15 lb sandbags inside the base. Adjust feet to level on uneven ground.

Q6: Which fabric is best for privacy and durability?

A6: 7–10 oz polyester or canvas with a blackout liner resists sagging and blocks silhouettes while remaining manageable in weight.

Q7: Can I include a mirror safely?

A7: Yes—use shatter-resistant acrylic and mount it with straps at shoulder height. Keep edges rounded and avoid glass in mobile setups.

Q8: What door design works smoothly?

A8: A vertical zipper with a magnetic or snap bottom prevents billowing and keeps the closure reliable during frequent use.

Q9: How do I manage heat buildup?

A9: Add a small mesh vent near the top and consider a low-noise, battery-powered fan. Orient openings away from direct sun outdoors.

Q10: Any tips for packing and labeling?

A10: Bundle poles by position, label fabric edges, and place the door zipper on top in the bag. Keep the packed length within 36–42 inches for trunk fit.

Q11: What colors work best inside?

A11: Neutral mid-tones (warm gray, taupe) reduce visual fatigue and keep color judgment consistent; avoid stark white that amplifies glare.

Q12: How do I clean and maintain the booth?

A12: Wipe the mat after each use, air-dry fabric, and carry a small repair kit with spare snaps and hook-and-loop strips for quick fixes.
